PX1 / UP ONLY Electronic VNT Actuator Engine-Code Verified Garrett Cross-Referenced Express AU Shipping

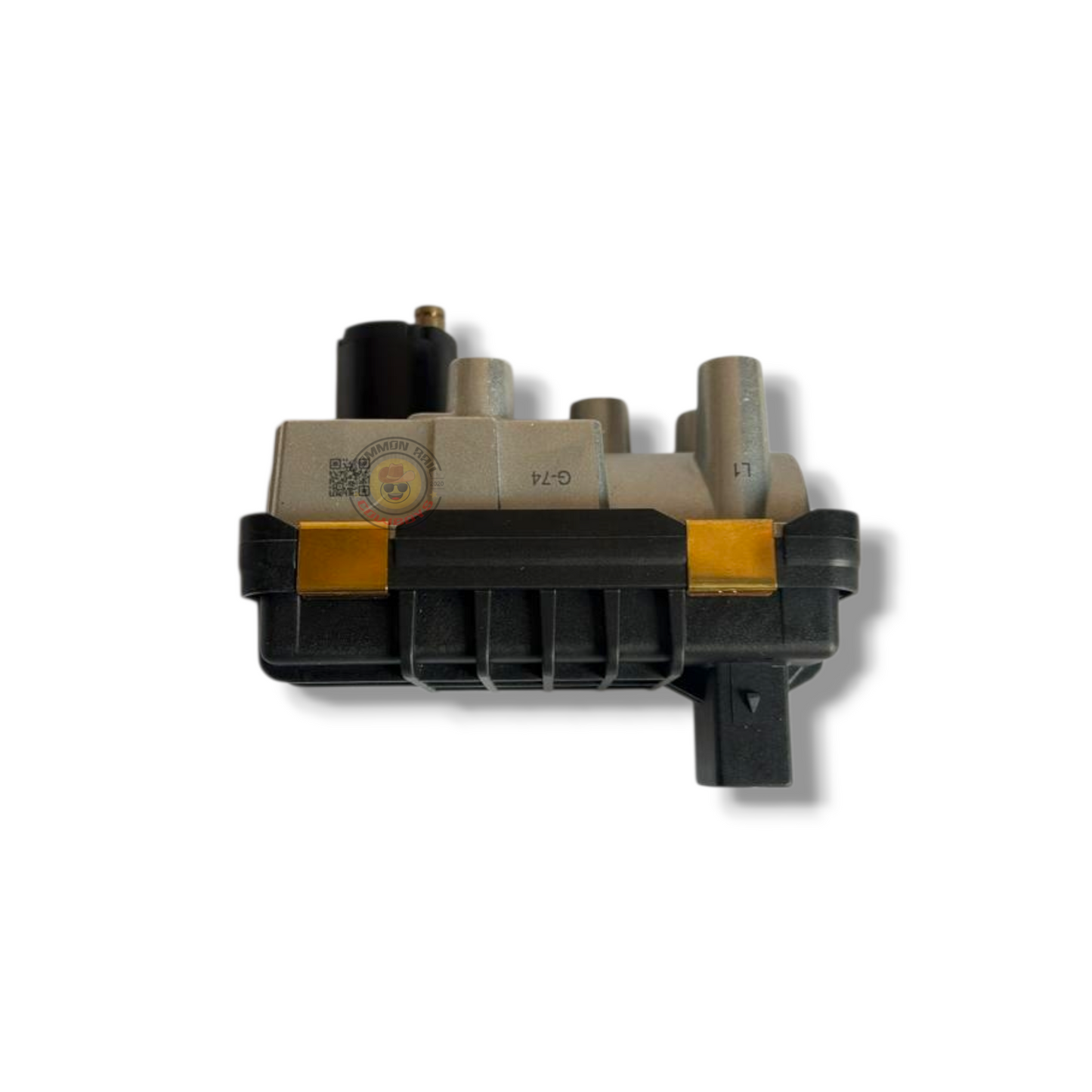

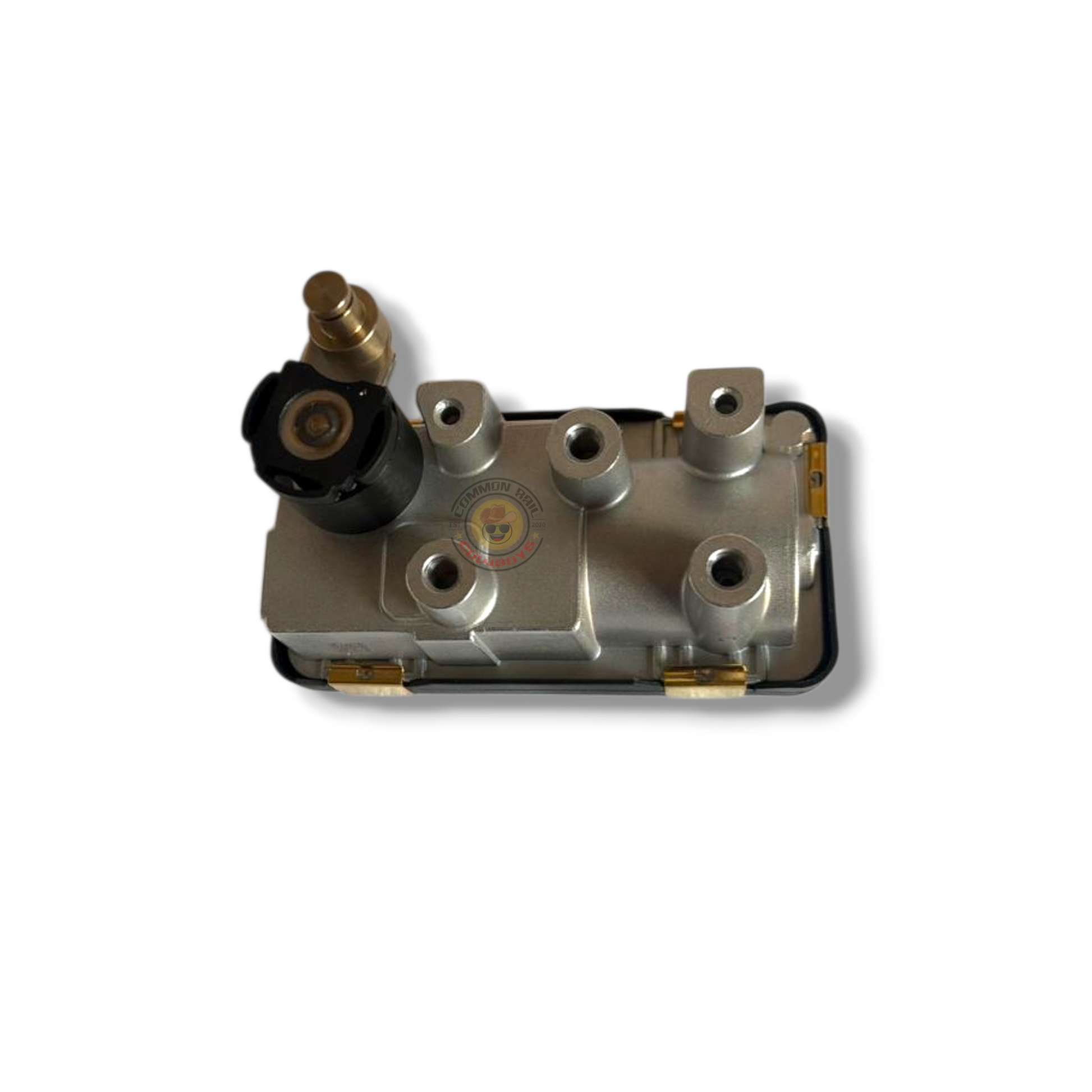

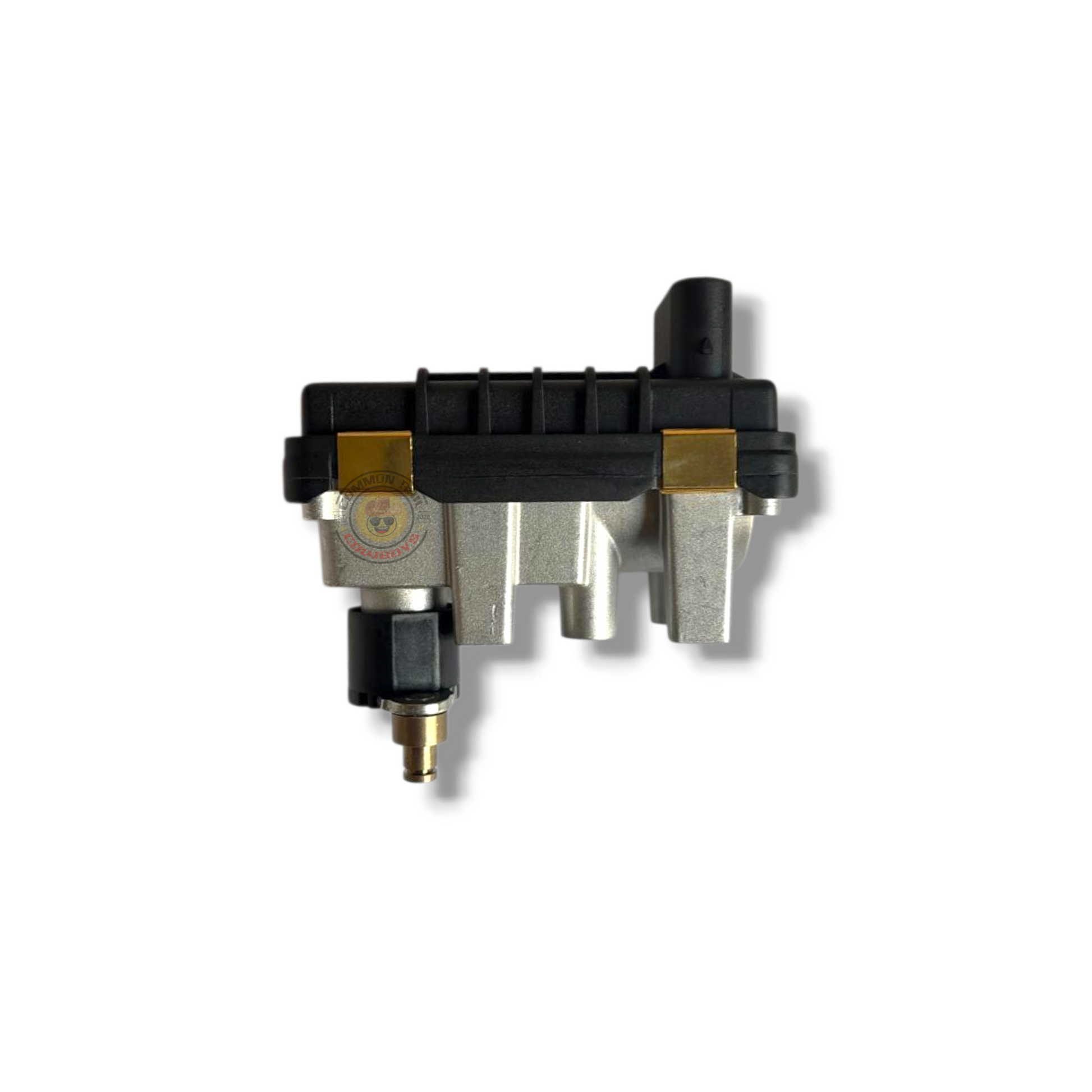

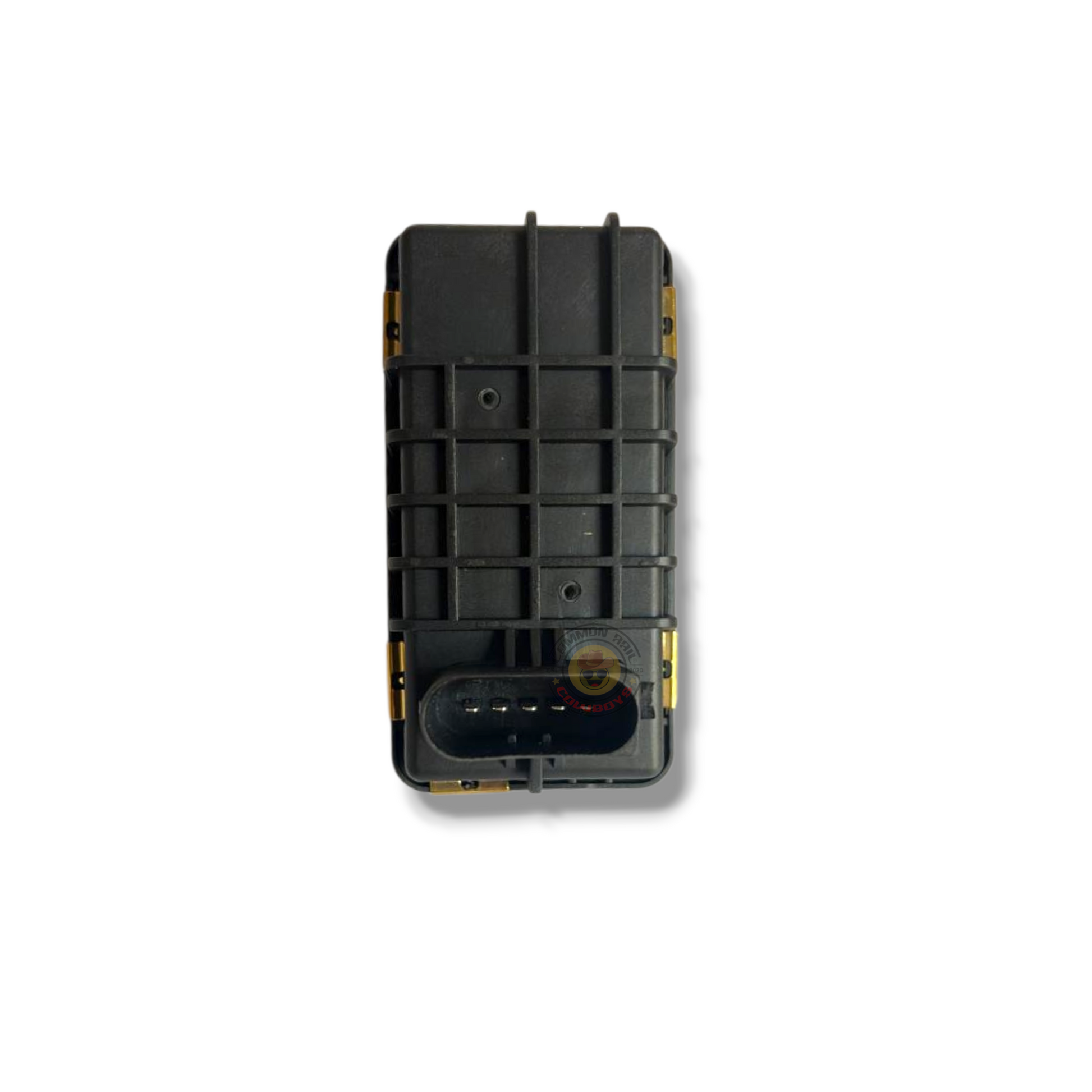

Correct electronic turbo actuator for Ford Ranger PX1 and Mazda BT-50 UP fitted with the P5AT 3.2L diesel engine using a GTB2256VK / GTB2260VZK turbocharger.
This listing is for the factory electronic VNT turbo actuator used on Ford Ranger PX1 and Mazda BT-50 UP vehicles with the P5AT 3.2L 5-cylinder diesel.
This actuator is matched to the PX1 / UP 3.2L turbocharger family and is NOT interchangeable with PX2, PX3, Everest UA, or any 2.2L applications.
Calibration may be required after installation.
PX1 / UP only — not suitable for PX2, PX3 or Everest UA.
| GTB22V | GTB2256VK | GTB2260VZK |
| 798166 | 798166-0006 | 798166-6 |
| 798166-0007 | 798166-7 | |
| 798166-5006 | 798166-5006S | |
| 798166-5007 | 798166-5007S | |
| 812971 | 812971-0002 | 812971-2 |
| 812971-0006 | 812971-6 | |
| 812971-5002 | 812971-5002S | |
| 812971-5006 | 812971-5006S | |
| 853333 | 853333-0001 | 853333-1 |
| 853333-5001 | 853333-5001S | 853333-5001W |
If your turbo ID plate matches any of the Garrett numbers above, this is the correct actuator.
| BK3Q6K682AB | BK3Q-6K682-AB | |
| BK3Q6K682AC | BK3Q-6K682-AC | |
| BK3Q6K682EA | BK3Q-6K682-EA | |
| BK3Q6K682RB | BK3Q-6K682-RB | |
| BK3Q6K682RC | BK3Q-6K682-RC | |
| BK37-6K682-AB | BK3Z-6K682-U | |
| UH0513700 | 1D0113700A | |
| 1720418 | 1762066 | 2231172 |
| 1717629 | 1857660 | 20088130 |
OEM numbers listed for identification purposes only.
Incorrect actuator selection can cause over-boost, under-boost, fault codes or engine damage.
If unsure, contact us with your turbo ID before ordering.
