1KD Rail Pressure Sensor - 3 Pin
1KD Rail Pressure Sensor - 3 Pin
Taxes excluded. Shipping calculated at checkout.
Couldn't load pickup availability

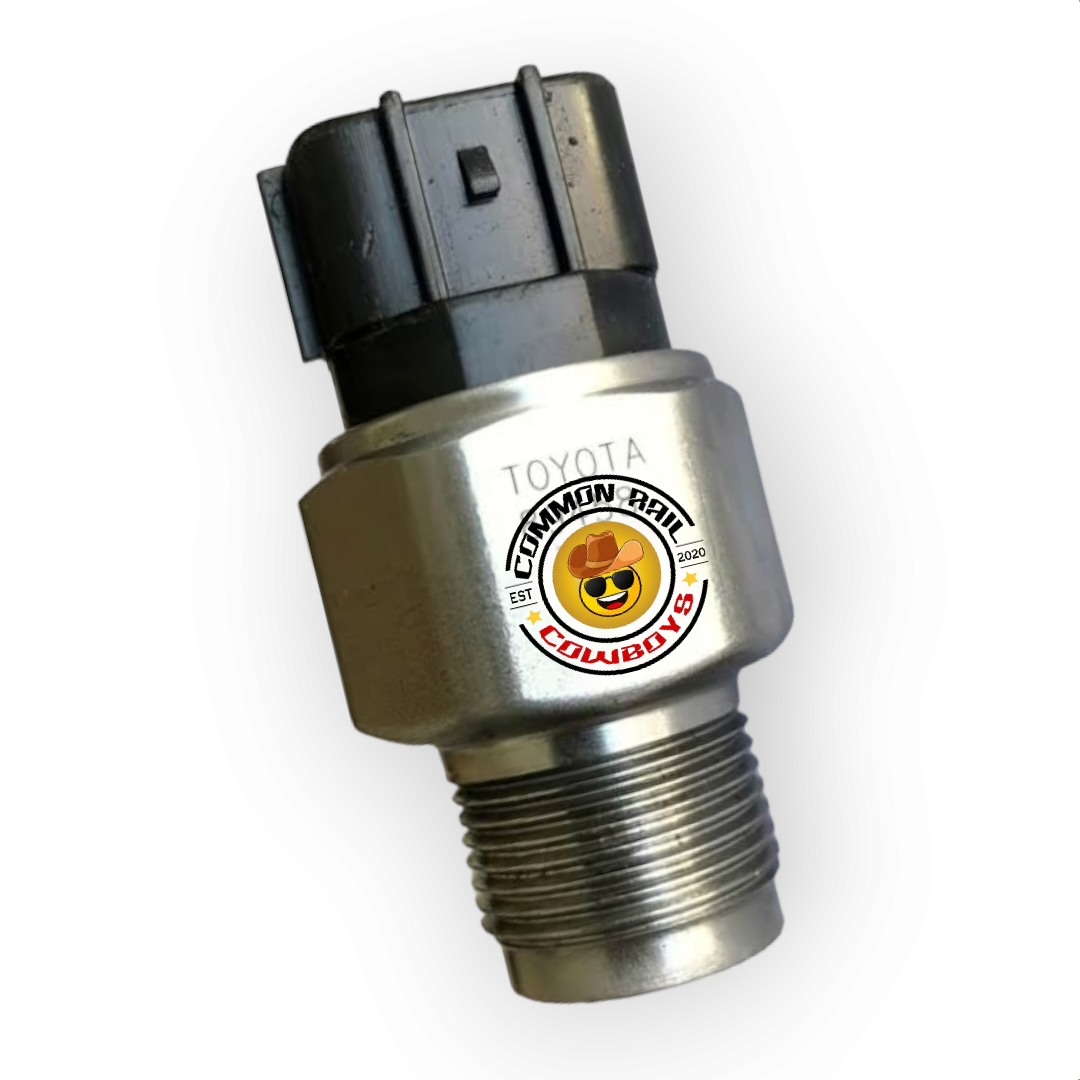

The correct 3-pin rail pressure sensor for early 1KD-FTV engines running 11-code injectors (pre 08/2006). The sensor feeds live rail pressure to the ECU for injector control, and when it starts sending bad data you get rough idle, hard starts, surging under load and rail pressure fault codes. This is a premium OE-spec aftermarket unit with the correct output curve and factory-style 3-pin connector: direct plug-and-play, no programming required.
Specifications
| 1KD Rail Pressure Sensor, 3 Pin | |
|---|---|
| Engine | Toyota 1KD-FTV 3.0L (early, 11-code injectors) |
| Connector | 3-pin |
| Suits | Hilux N70 and Prado 120 1KD-FTV up to 08/2006 |
| Replaces OE part number | 89458-71010 |
| Type | Premium OE-spec aftermarket |
| In the box | 1 x rail pressure sensor |
Fitment Notes
This 3-pin version suits early 1KD engines running 11-code injectors. From August 2006, 1KD engines with 13-code or 18-code injectors moved to the 6-pin sensor, listed separately. Count the pins on your plug before ordering. Fitment guide only, verification is the buyer's responsibility. Unsure? Check your injector code or contact us.
Installation Notes
Disconnect the battery before replacement, keep the connector clean, and torque to factory spec without overtightening. Fully plug-and-play, no programming or adaptation required.
