1KD-FTV Genuine Toyota Timing Belt Kit | Toyota Hilux KUN26 & Prado 3.0L D4D
1KD-FTV Genuine Toyota Timing Belt Kit | Toyota Hilux KUN26 & Prado 3.0L D4D
Taxes excluded. Shipping calculated at checkout.
Couldn't load pickup availability
1KD-FTV Genuine Toyota Timing Belt Kit
Hilux KUN26, Prado 120/150, HiAce & Fortuner 3.0L D4D | 100% Genuine Toyota
The complete genuine Toyota timing belt kit for the 1KD-FTV 3.0L D4D. Every component in the box is a genuine Toyota part: belt, idler, hydraulic tensioner, both front oil seals and the idler pivot bolt, so the front of the engine gets done properly in one hit, once. No mixed-brand kits, no bearing roulette, just the exact parts Toyota fits on the production line.

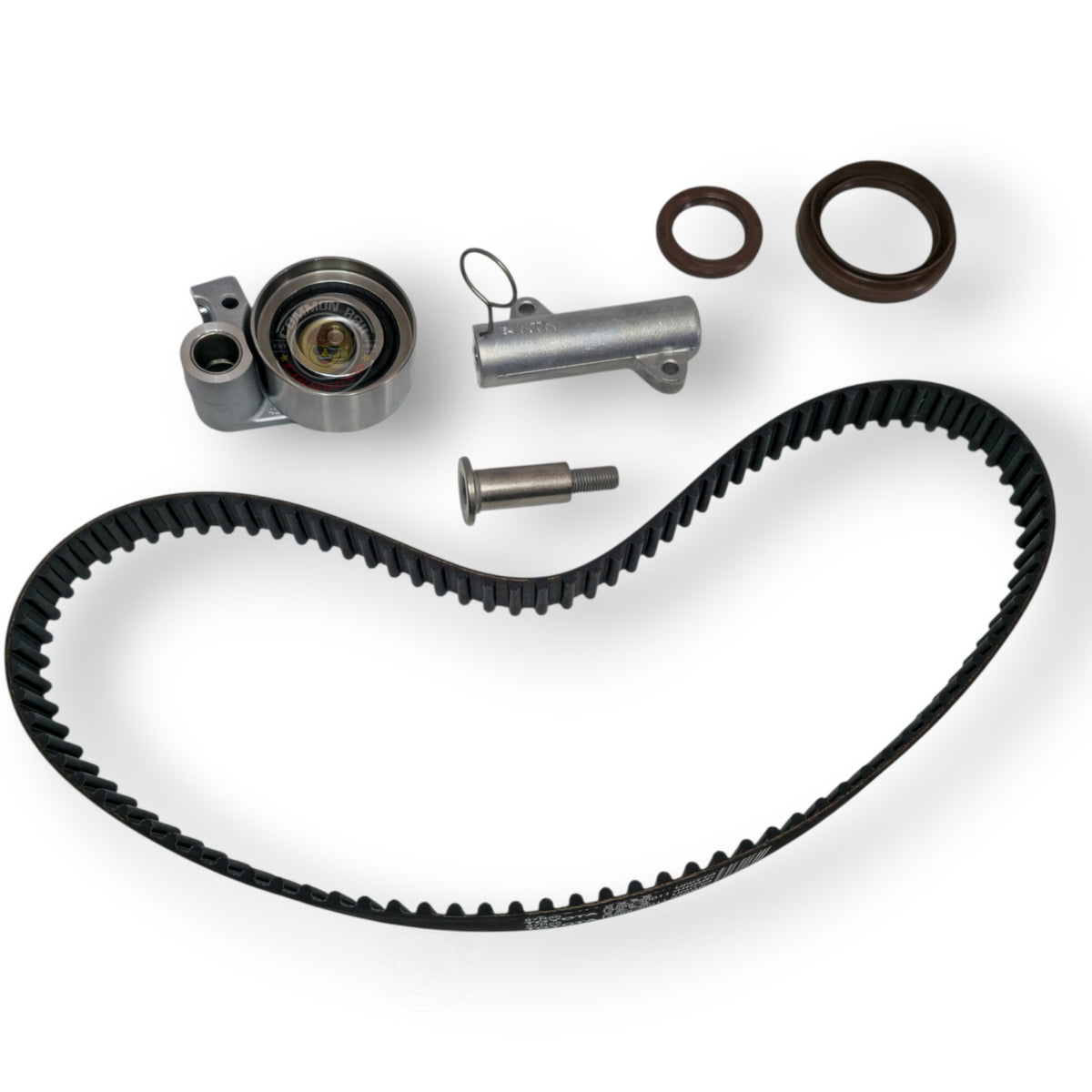

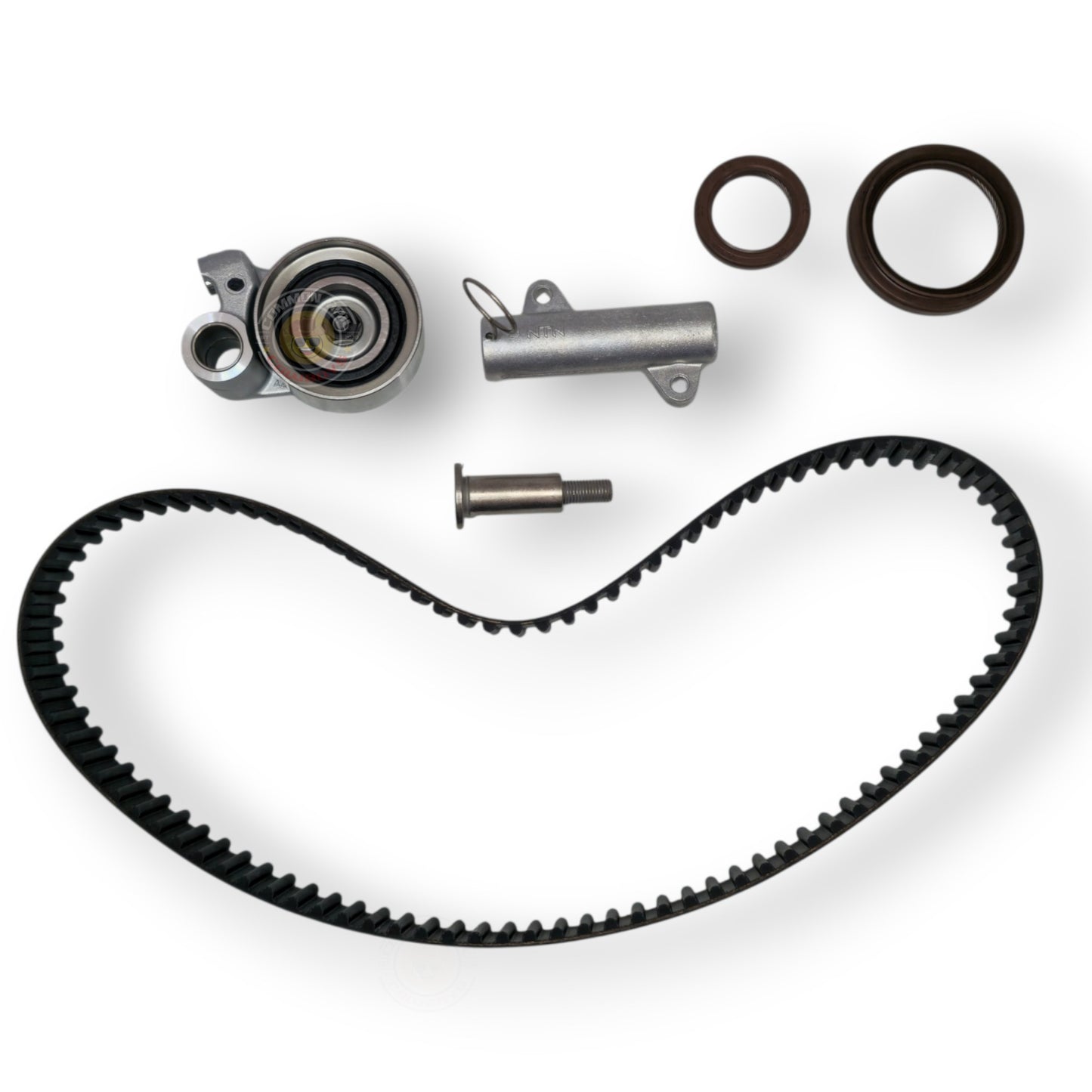

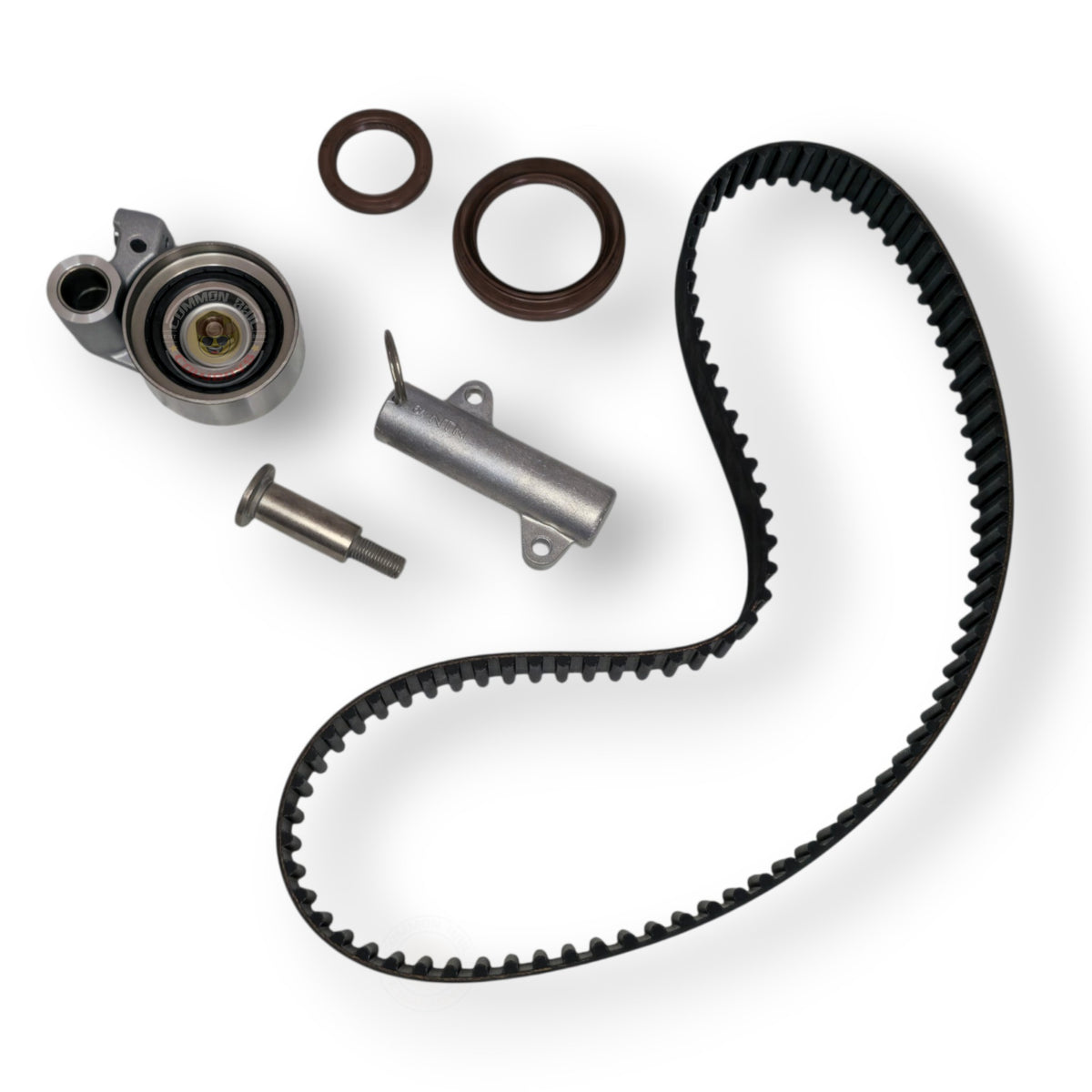

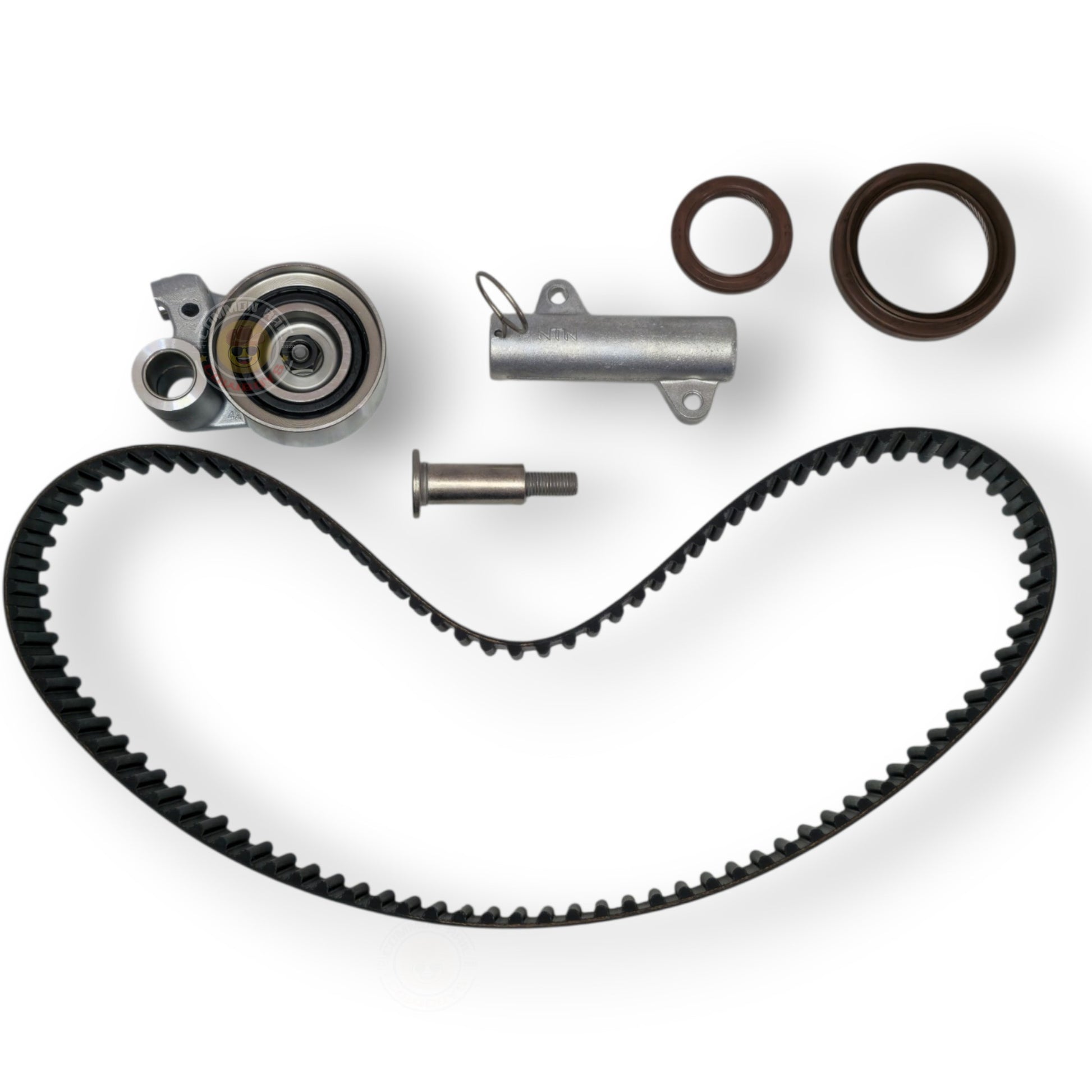

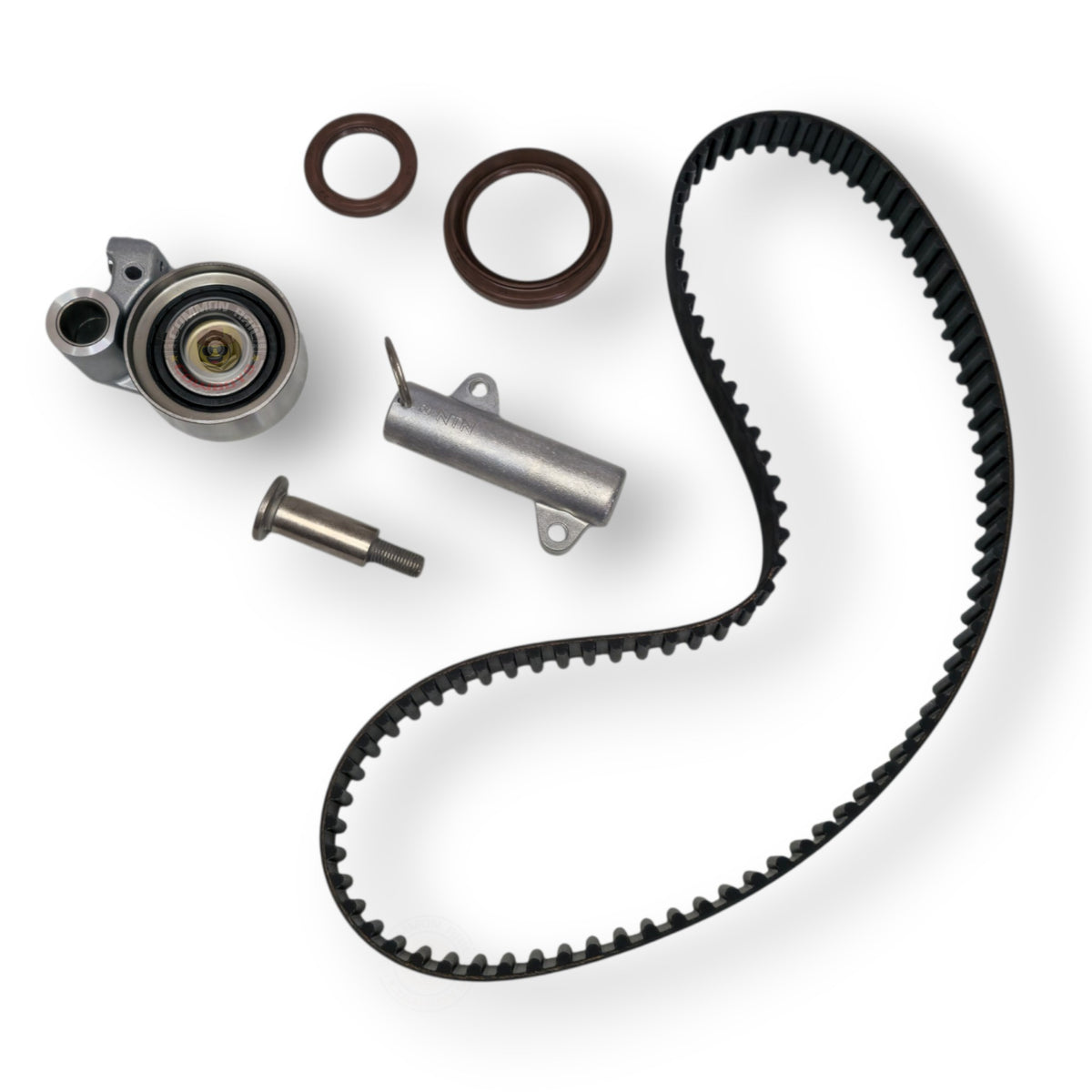

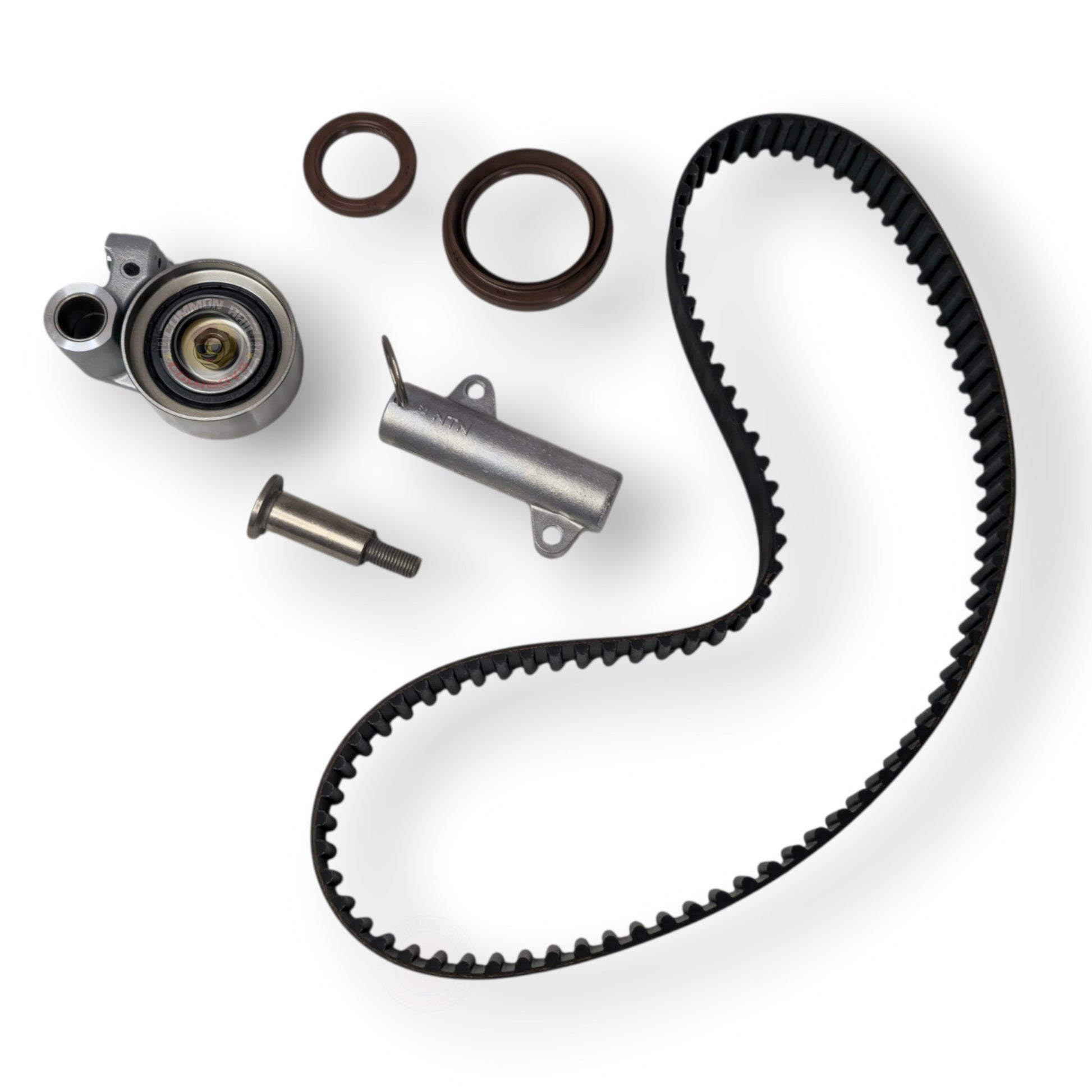

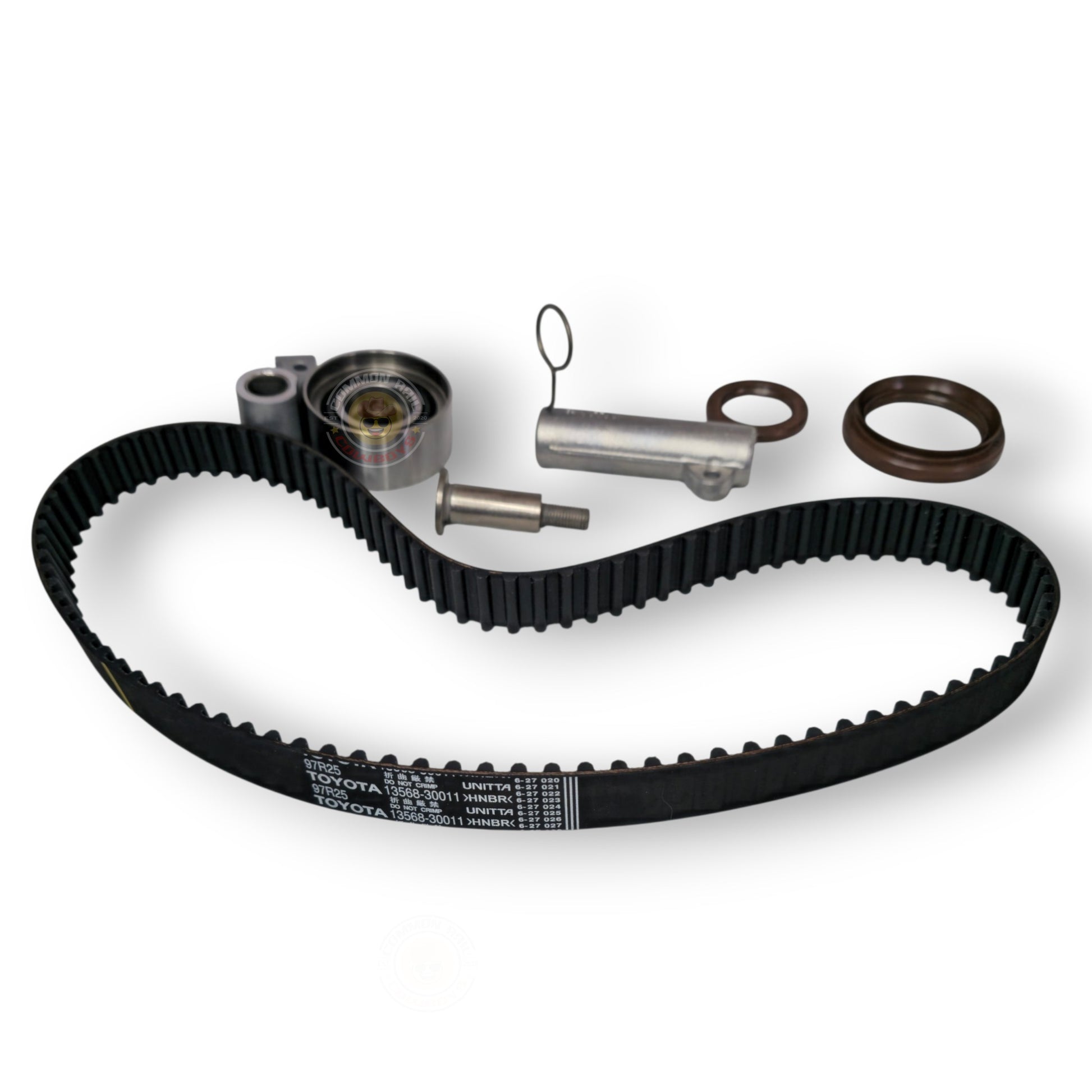

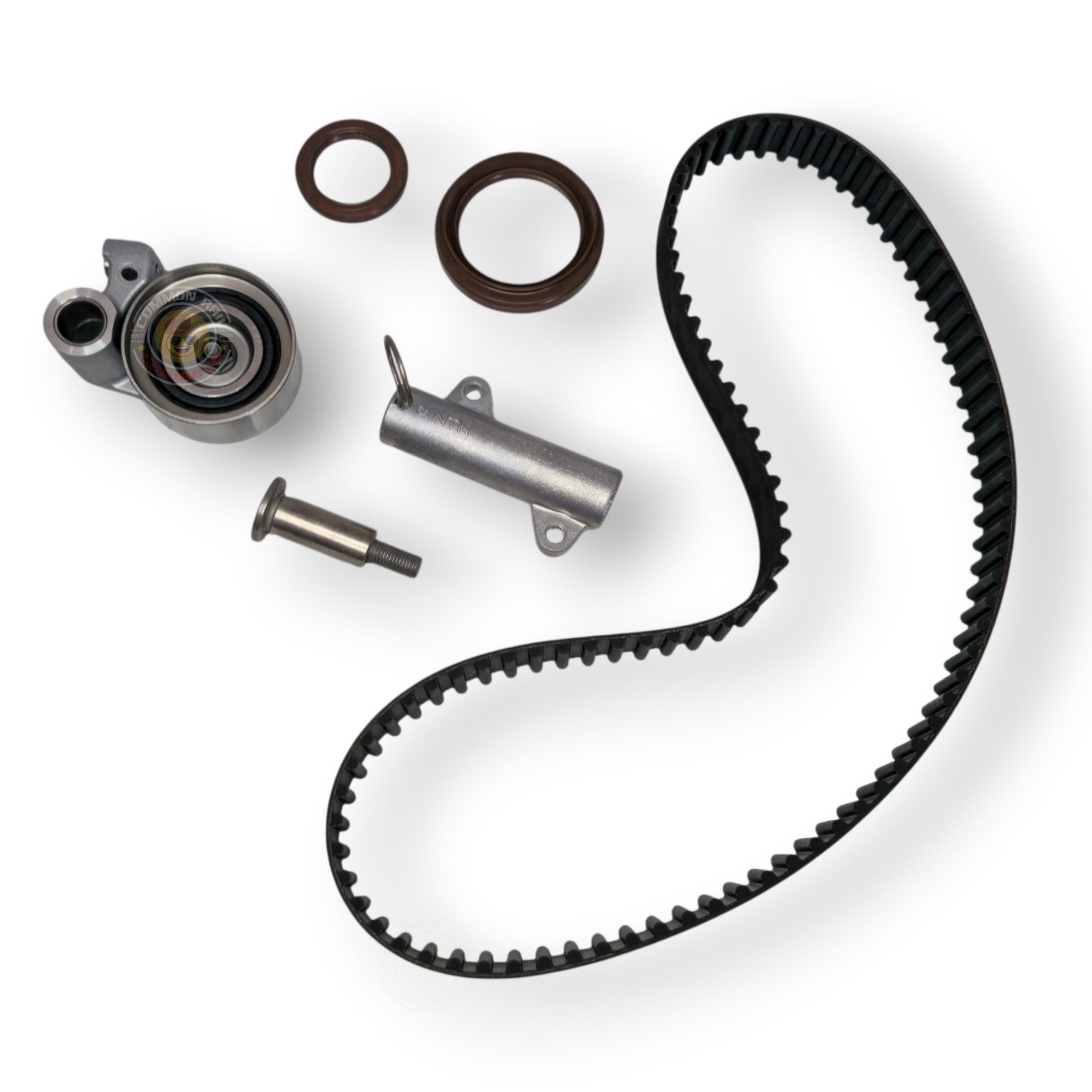

What's In The Kit
| Component | Genuine Toyota Part No. |
|---|---|
| Timing belt (97 tooth) | 13568-39016 |
| Timing belt idler pulley sub-assembly | 13505-67050 |
| Hydraulic timing belt tensioner | 13540-67020 |
| Camshaft front oil seal | 90311-32020 |
| Crankshaft front oil seal | 90311-50051 |
| Idler pivot bolt (shaft, timing belt) | 13556-67010 |
Fitment
| Vehicle | Chassis | Years |
|---|---|---|
| Toyota Hilux 3.0L D4D | KUN26 / KUN16 | 2005 to 2015 |
| Toyota Prado 3.0L D4D | KDJ120 / KDJ125 | 2002 to 2009 |
| Toyota Prado 3.0L D4D | KDJ150 / KDJ155 | 2009 to 2015 |
| Toyota HiAce D4D | KDH200 / 201 / 202 / 203 / 204 | 2005 to 2015 |
| Toyota Fortuner 3.0L D4D | KUN60 | 2005 to 2015 |
Check your engine code: the belt, idler, tensioner and seals are shared with the 2KD-FTV 2.5L D4D, so this kit covers the 2.5 as well. The 1GD-FTV 2.8L (2015 on, GUN chassis) is chain driven and does not use this kit.
Installation Notes
Toyota's service interval for the 1KD timing belt is 150,000 km. The camshaft timing pulley bolt must only be cracked loose with the belt removed, and the idler pivot bolt must be refitted with its special washer so the idler pivots freely once torqued. Both front seals are accessible with the belt off, which is why they are in the kit: doing them now saves pulling the front of the engine apart again later. If the engine has done big kilometres, inspect the water pump while the covers are off.
Shipping & Payment
- Free Express Shipping Australia-Wide
- Buy Now, Pay Later: Afterpay, Humm, Klarna & Zip
Frequently Asked Questions
Q: Is everything in the kit genuine Toyota?
A: Yes, every part number in the table above is a genuine Toyota component.
Q: Does it suit my 2.5L 2KD?
A: Yes, the 2KD-FTV shares the same belt, idler, tensioner and seals. Message us with your VIN if unsure.
Q: Should I do the water pump at the same time?
A: On high-kilometre engines it's worth inspecting while the covers are off. Message us and we can add one to your order.
Do the Front of the Engine Once, Properly
Complete genuine Toyota timing belt kit for the 1KD-FTV. Belt, idler, hydraulic tensioner, both front seals and pivot bolt. Free express shipping Australia-wide.
Disclaimer: Common Rail Cowboys is not affiliated with Toyota Motor Corporation. Professional installation recommended. Follow Toyota service procedures and torque specifications.
