Ultimate Oil Separation • 2020+ 4JJ3-TCX 3.0L • PV645DPK
🔥 Heavy Duty Protection for Your 4JJ3 Diesel 🔥
Built to keep your 4JJ3 engine running cleaner, stronger, and longer. Defend your investment against oil contamination, carbon build-up, and the costly repairs that come with it.
✅ Engineered specifically for 4JJ3-TCX crankcase system (all three vehicles share the same engine)
How It Works: The ProVent separates oil and air from crankcase blow-by gases, preventing intake manifold and intercooler contamination. Cleaned air is recirculated, while captured oil can be drained or optionally returned clean back to the sump. This helps maintain peak engine efficiency and reliability while protecting your turbocharger and intake system from oil contamination.
Key Features:
💡 Why This Matters: Modern diesels fitted with exhaust gas recirculation (EGR) systems are vulnerable. Oil vapour from the crankcase mixes with dirty exhaust gases, creating thick carbon sludge that clogs your intake manifold and valves—leading to reduced performance, increased fuel consumption, and potential engine failure. The ProVent stops this damage before it starts, separating and redirecting oil mist out of the blow-by gas and keeping your intake system clean. Saves you money by avoiding costly future repairs.
The new 4JJ3 needs proactive protection. The 4JJ3-TCX is Isuzu's latest 3.0L turbo diesel—found in the 2020+ D-MAX, MU-X, and Mazda BT-50 (which shares Isuzu's platform). Like all modern diesels with EGR, it's vulnerable to intake contamination. Oil vapour from blow-by mixes with sooty EGR gases, creating thick carbon sludge that coats everything in your intake system.
Benefits:
💡 4JJ3 Protection: The 4JJ3-TCX represents Isuzu's latest evolution of the proven 3.0L turbo diesel platform. With modern emissions systems and sophisticated EGR, it needs proactive protection from intake contamination. By preventing oil vapour from mixing with EGR gases, the ProVent stops carbon sludge buildup and protects your turbo, intercooler, and intake system. Essential protection for maintaining this modern engine's performance and reliability—whether in your D-MAX, MU-X, or BT-50.

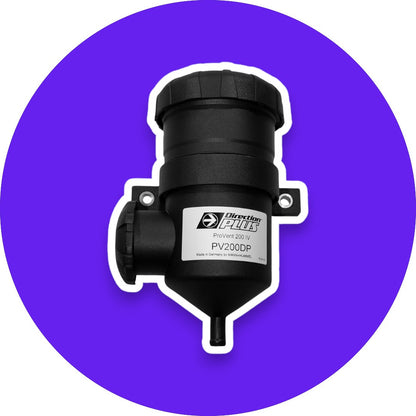

ProVent Ultimate Catch Can:
Performance:
✅ Vehicle-specific components for direct fitment on 4JJ3 engines
Recommended: Competent qualified mechanic or experienced DIYer
DIY Time: 2–3 hours
Installation Notes:
Important: Detailed installation guide included. Can be installed independently or as part of a comprehensive protection package. Professional installation recommended if not experienced with automotive work.
Maintenance Schedule:
💡 Pro Tip: The 2020+ D-MAX, MU-X, and BT-50 represent the latest generation of these proven workhorses. Regular ProVent maintenance takes just minutes and prevents the expensive intake system cleaning that modern EGR-equipped diesels often require. Keep your 4JJ3 breathing clean for legendary reliability, whether you're using it for work, towing, or adventure.
Q: Will this void my vehicle warranty?
A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law. This kit protects your engine without interfering with factory components. When installed correctly, a ProVent catch can does not void your vehicle's warranty.
Q: Does this fit all three vehicles (D-MAX, MU-X, and BT-50)?
A: Yes! All three vehicles share the same 4JJ3-TCX 3.0L engine and crankcase ventilation system. The 2020+ Mazda BT-50 is built on Isuzu's platform and uses the same engine as the D-MAX and MU-X. One catch can kit fits all three.
Q: Why does the Mazda BT-50 use the same kit as the Isuzu vehicles?
A: From 2020 onwards, the Mazda BT-50 is built on Isuzu's platform and uses the Isuzu 4JJ3-TCX engine (previous BT-50 models used Ford engines and different platforms). The 2020+ BT-50 shares its engine, platform, and many components with the D-MAX and MU-X.
Q: What's different about the 4JJ3 compared to the older 4JJ1?
A: The 4JJ3-TCX is Isuzu's latest evolution of the 3.0L turbo diesel, introduced in 2020. It features updated emissions systems, improved efficiency, and more power than the previous 4JJ1. Both engines benefit from catch can protection, but they require different mounting kits due to different engine bay layouts.
Q: Why does the 4JJ3 need a catch can?
A: The 4JJ3 uses modern EGR systems that recirculate sooty exhaust gases into the intake. When oil vapour from blow-by mixes with these sooty gases, it creates thick carbon sludge that coats your intercooler, manifolds, and intake valves. A catch can prevents the oil vapour from mixing with EGR gases, stopping this expensive problem.
Q: What is EGR carbon sludge and why is it a problem?
A: EGR (Exhaust Gas Recirculation) introduces sooty exhaust gases into your intake for emissions control. When this soot mixes with oil vapour from crankcase blow-by, it creates a sticky, tar-like sludge that builds up in intercoolers, intake manifolds, and on intake valves. This restricts airflow, reduces power, increases fuel consumption, and eventually requires expensive cleaning or component replacement.
Q: How does the ProVent prevent this sludge?
A: By capturing 98% of oil vapour BEFORE it enters the intake system, the ProVent prevents the oil from mixing with EGR soot. Clean air (without oil) can handle the soot much better—it doesn't stick and build up like oily sludge does.
Q: How often do I need to drain the catch can?
A: Check every 5,000–10,000 km. Drain frequency depends on your driving conditions and engine condition. The 4JJ3 typically collects moderate amounts of oil. If you've configured the optional sump return line, oil automatically recirculates and you rarely need to drain manually.
Q: Does the ProVent return oil to the sump automatically?
A: The kit includes components for an optional sump return line. You can configure it to either: (a) collect oil in the catch can for periodic draining, or (b) return clean oil back to the sump automatically for closed-loop operation. Your choice based on preference.
Q: Can I install this myself?
A: If you're mechanically competent and comfortable working with hoses and brackets, yes. Most DIYers complete installation in 2-3 hours using the included 4JJ3-specific brackets. Otherwise, any qualified mechanic can handle it. A detailed installation guide is included.
Q: Will this improve performance or fuel economy?
A: While not primarily designed for performance gains, keeping your intake system clean helps maintain optimal engine efficiency. By preventing sludge buildup, the ProVent helps your 4JJ3 maintain factory performance levels over time—especially important as the vehicle ages.
Q: How does this affect crankcase pressure?
A: The ProVent includes integrated crankcase pressure regulation. This maintains optimal crankcase pressure, reducing blow-by risk and preventing excessive pressure that can cause oil leaks. Proper pressure regulation is critical for engine longevity.
Q: What happens to my turbocharger without a catch can?
A: Oil vapour coats the turbocharger compressor wheel with a sticky film. Over time, this reduces efficiency and can cause imbalance. The ProVent keeps the compressor wheel clean, extending turbo life—important for maintaining the 4JJ3's performance.
Q: How often should I replace the filter element?
A: Replace the MANN+HUMMEL filter element every 40,000 km. Replacement elements are readily available. This is a simple maintenance item that ensures continued high performance.
Q: What is MANN+HUMMEL media?
A: MANN+HUMMEL is a world-leading manufacturer of filtration systems, supplying OEM filters to major automotive manufacturers. Their filtration media is engineered for maximum efficiency and longevity—professional-grade quality.
Q: Can I use this with other protection systems?
A: Yes! Many D-MAX, MU-X, and BT-50 owners run both a fuel pre-filter (or post-filter) AND a ProVent catch can for comprehensive protection. They protect different systems—fuel filtration protects your injectors, while the ProVent protects your intake system.
Q: Is this suitable for towing and heavy loads?
A: Absolutely essential. The D-MAX, MU-X, and BT-50 are serious workhorses designed for towing and heavy loads. These conditions increase blow-by and make oil vapour separation even more critical. The ProVent is built for exactly this kind of demanding work.
Q: What about intercooler cleaning?
A: By preventing oil vapour from entering the intake, the ProVent dramatically reduces intercooler fouling. Many diesel owners without catch cans find their intercoolers eventually need professional cleaning—an expensive service. The ProVent prevents this problem before it starts.
Q: Is this built for Australian conditions?
A: Yes! Direction-Plus™ engineering means this kit is specifically designed for Australian conditions—extreme heat, dust, and the serious work that these vehicles are used for. Built for the way Aussies actually use their D-MAX, MU-X, and BT-50 vehicles—whether for work, towing, or adventure.
Q: Does this fit both D-MAX ute and MU-X SUV?
A: Yes! Both vehicles share the same 4JJ3 engine and crankcase ventilation system. The same catch can kit fits the D-MAX ute, MU-X SUV, and BT-50 ute with 4JJ3-TCX engines.
Q: How much oil typically collects?
A: The 4JJ3 typically collects moderate amounts—perhaps 100-200ml between services depending on driving conditions and engine condition. Higher mileage engines or those used for towing may collect more. This is actually a good sign—it shows how much oil vapour the ProVent is keeping out of your intake system.
