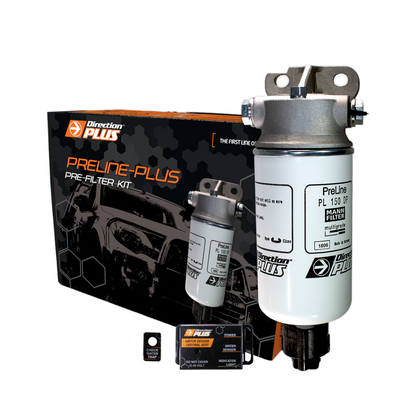

• Ford Ranger Next Gen pre-filter with in-cab alarm from Direction Plus, part of the Preline Kits, shown in a detailed product image.

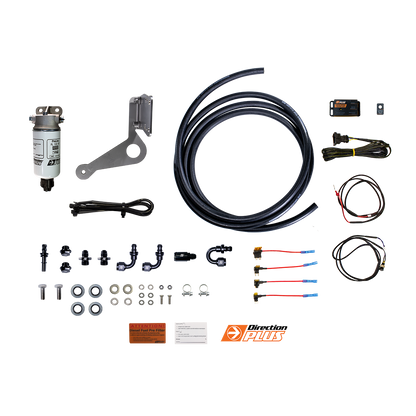

  • Ford Ranger Next Gen pre-filter kit with in-cab alarm from Direction Plus, showing the pre-line filter components and alarm system.

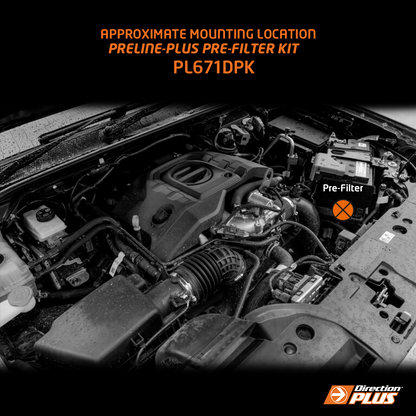

  • Ford Ranger Next Gen pre-filter with in-cab alarm from Direction Plus, showing the PL671DPK mounting location and installation details.

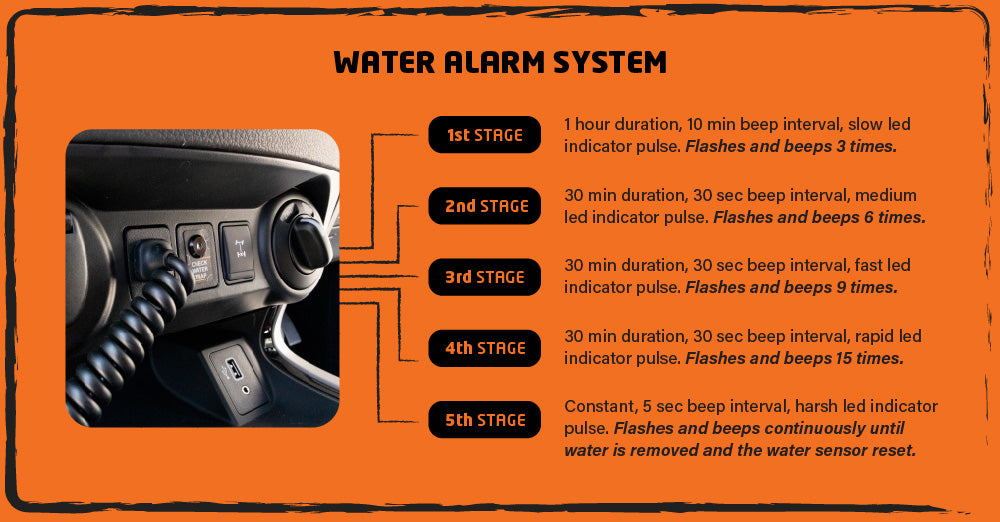

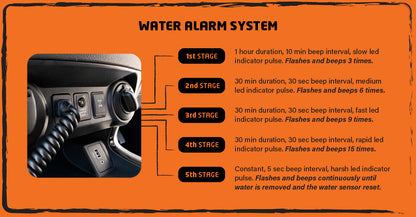

  • Ford Ranger Next Gen Preline water alarm system with in-cab alert, featuring stages and sensor display for water contamination detection.
1 5

Direction Plus

Ford Ranger Next Gen Pre-filter with In Cab Alarm

Ford Ranger Next Gen Pre-filter with In Cab Alarm

$648.00 NZD
$717.00 NZD $648.00 NZD
Sale Sold out

Taxes excluded. Shipping calculated at checkout.

Normally Ships in 0-2 Business Days

Ford Ranger/Everest Next-Gen PreLine-Plus Pre-Filter Kit (PL671DPK)

2022+ Models • 2.0L & 3.0L V6 Diesel

Direction-Plus™ — Australian-Engineered MANN+HUMMEL PreLine-Plus In-Cab Water Alert Premium Pack Compatible Free Express Shipping AU
✓ Version 2 Bracket (Nov 2023): Now compatible with Touring & Premium Pack models with auxiliary 6-switch pack (overhead switches) AND 2.0L 4-cylinder models.

Premium diesel pre-filtration for Next-Gen Ford Ranger and Everest. Protects against water and particle contamination with 100% water separation efficiency and integrated in-cab warning system.

Vehicle Compatibility

Ford Ranger Next-Gen (2022 onwards):

  • YN2S 2.0L 4-Cylinder Bi-Turbo Diesel (Version 2 bracket)
  • BF2S 3.0L V6 Twin-Turbo Diesel

Ford Next-Gen Ranger Superduty (2025 onwards):

  • BF2S 3.0L V6 Twin-Turbo Diesel

Ford Everest Next-Gen (2022 onwards):

  • YN2S 2.0L 4-Cylinder Bi-Turbo Diesel (Version 2 bracket)
  • BF2S 3.0L V6 Twin-Turbo Diesel

✔ Compatible with Touring & Premium Pack trim levels

✔ Compatible with auxiliary fuse box configurations

Protection Features
  • 100% water separation (based on 300 µm droplet size)
  • 98% particle separation (30 micron particles)
  • In-cab multi-stage water alert (visual + audible)
  • Protects against corrosion and abrasive wear
  • Spin-on style filter for easy servicing
  • Integrated bleed port for air-free installation
Technical Specifications
  • Filter Type: MANN+HUMMEL PreLine 150 (PL150WSDP)
  • Water Separation: 100% efficiency (300 µm droplet size)
  • Particle Filtration: 98% at 30 micron
  • Service Interval: Replace element every 40,000 km or per vehicle service schedule
  • Flow Rate: Up to 150 L/h
  • Fittings: M16x1.5 to -6AN adaptors with 3/8" quick-release connections
  • Fuel Line: 3500mm 3/8" EFI-rated hose included
  • Mounting: Passenger-side engine bay (two bracket versions available)
Kit Contents

Main Components:

  • MANN+HUMMEL PreLine 150 filter assembly with water sensor
  • Vehicle-specific mounting bracket (Version 1 or Version 2)

Hardware & Fittings:

  • 2 x M16x1.5 to -6AN adaptors with M16 aluminium washers
  • 2 x -6AN to 3/8" 90° push-lock fittings
  • 1 x -6AN to 3/8" 180° push-lock fitting
  • 1 x Male 3/8" quick-release to 3/8" adaptor
  • 1 x Female 3/8" quick-release to -6AN adaptor
  • 3500mm 3/8" EFI-rated fuel hose
  • 4 x 15-17mm stainless fuel clamps
  • Mounting hardware (M6, M10 bolts, washers, nuts)

Water Alarm Kit:

  • Complete wiring harness
  • In-cab warning light module
  • Short earth lead with eyelet
  • Add-a-fuse holder with 2A mini blade fuse
  • 20 x cable ties (100mm + 200mm)
Installation Overview

Recommended: Competent qualified mechanic

DIY Time: 2.5–3.5 hours

Location: Passenger-side engine bay

Required Tools:

  • Socket set and spanners
  • Screwdrivers and pliers
  • 20mm hole-saw (for in-cab warning light)
  • Hose cutters/snips
  • Loctite 567 or equivalent thread sealant
  • Small container for priming

Key Installation Steps:

  1. Remove battery tray bolt from radiator support panel
  2. Mount PreLine bracket using M6 hardware (Version 2: unclip accessory fuse box first)
  3. Install M16 adaptors to filter head with Loctite 567
  4. Mount PreLine 150 assembly to bracket
  5. Connect wiring harness to water sensor, route through firewall grommet
  6. Install 3/8" quick-release fittings and connect fuel lines
  7. Open bleed port and prime system to remove air
  8. Install in-cab warning light (20mm hole required)
  9. Connect alarm wiring (signal, earth, ignition power)
  10. Start vehicle and check for leaks
  11. Run engine 20 minutes to clear remaining air pockets

Important: Use Loctite 567 on all threaded connections. Ensure quick-release fittings seat fully.

Servicing & Maintenance

Filter Replacement: Every 40,000 km or per vehicle service schedule

Replacement Element: PL150DP (~$65–$85)

Water Draining: In-cab alarm alerts when water detected. Open drain tap to release.

Filter Changes: Spin-on design. Use bleed port to purge air during servicing.

Common Questions

Q: Will this void my Ford warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law.

Q: Does this fit models with the Premium Pack?

A: Yes. Version 2 bracket (released November 2023) is compatible with Touring & Premium Pack models that have the auxiliary fuse box and overhead switch pack.

Q: Does this fit 2.0L 4-cylinder models?

A: Yes. Version 2 bracket is compatible with both 2.0L 4-cylinder and 3.0L V6 models. Early Version 1 brackets had clearance issues with 2.0L radiator hoses, but this is resolved in Version 2.

Q: How do I know which bracket version I'll receive?

A: All kits shipped from November 2023 onwards include the updated Version 2 bracket with improved compatibility.

Q: Where do I mount the in-cab warning light?

A: Most customers install it in an empty switch location on the dashboard. A 20mm hole-saw is required.

Q: What's the difference between this and the older Ranger (PXIII) kit?

A: This PL671DPK is specifically for Next-Gen (2022+) Ranger/Everest models. The PXIII (2015-2022) models require the PL664DPK kit.
