Hilux N80 Trans Cooler

Hilux N80 Trans Cooler

(1)

$575.00 NZD
$599.00 NZD $575.00 NZD
Sale Sold out

Taxes excluded. Shipping calculated at checkout.

Normally Ships in 0-2 Business Days

Hilux N80 TransChill Transmission Cooler Kit – TCB628DPK



❄ Drops ATF ~33 °C 🧰 Bolt-On Brackets 🛡 150 PSI Pressure Tested 🚚 Free Express AU

🔥 Keep your Hilux or Fortuner cool under pressure. Stop heat-soak and protect your auto trans for the long haul.

🔎 Overview
The TransChill 32 mm 14-Row Cooler Kit (TCB628DPK) is engineered for Toyota Hilux N80 & Fortuner 1GD-FTV (2.8 L diesel) 2016-on. Designed to drop transmission temps, prevent ATF breakdown and extend gearbox life — perfect for towing, touring & off-road.
📋 Fitment
  • Hilux N80 1GD-FTV (2.8 L 4cyl) — 2016 onwards
  • Fortuner 1GD-FTV (2.8 L 4cyl) — 2016 onwards
  • Direct bolt-on fit with laser-cut brackets & pre-drilled plates
  • No cutting, no welding — DIY or workshop install
🔥 Why You Need It
  • 💥 ATF overheats quickly when towing or in sand
  • ⚠ Above 93 °C your trans life drops fast
  • ❄ Drops temps up to 33 °C — doubles ATF and clutch lifespan
📦 What’s Included
  • 32 mm 14-Row black powder-coated cooler
  • 4 mm laser-cut 5005-H34 alloy mount brackets
  • SAE J1019 high-pressure ATF hose (400 PSI burst)
  • Stainless hardware & M16 fittings
  • Pressure-tested to 150 PSI for leak-free confidence
  • 3-Year Manufacturer Warranty (conditions apply)
⚙ How It Works
The TransChill routes hot ATF through a fin-and-plate core with internal turbulators for maximum heat transfer. This keeps temps steady under load and stops trans fade or limp mode on tough climbs.
💳 Payments & 🚚 Shipping
  • Afterpay • Humm • Klarna • Zip available
  • Free Express Shipping Australia-Wide — fast dispatch with tracking
❓ FAQs

Do I need extra ATF?

Yes, a small top-up is usually needed after installation due to added volume.

Mounting location?

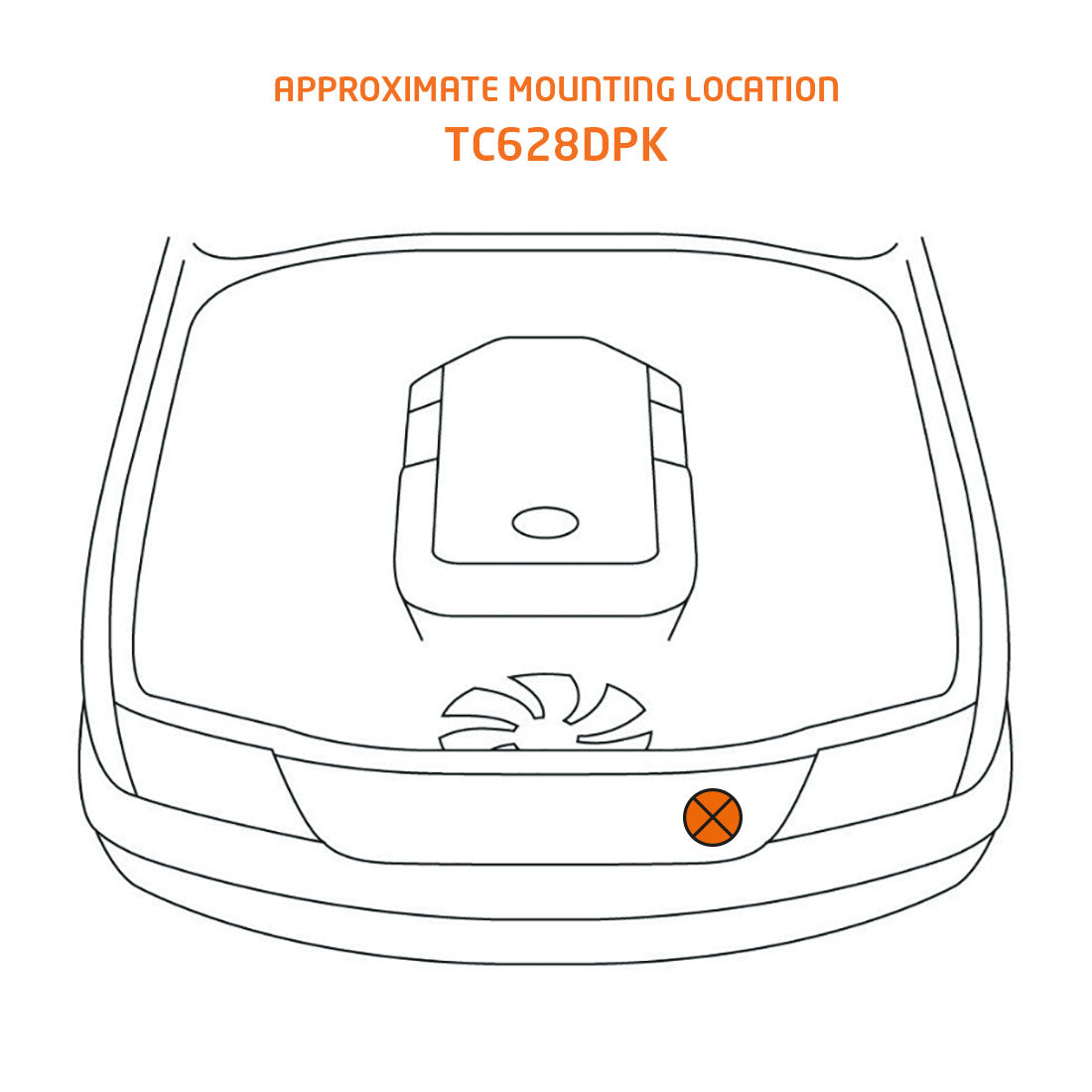

In front of the radiator/AC condenser for maximum airflow using supplied brackets.

Will it fit with a bullbar or winch?

Yes — ensure clear airflow and no kinked hoses.

Ideal operating temps?

70 – 90 °C for optimum performance and transmission longevity.

👉 Add TCB628DPK to cart today — protect your Hilux or Fortuner from heat damage and drive confidently.
