Two-Stage Filtration Protection • 2012–2020 4JJ1TCX 3.0L • FM601DPK
🛡️ Protect Your 4JJ1 Engine from Costly Injector Failure 🛡️
Your first line of defence against water and particulate contamination that leads to injector and pump failures.
✅ Engineered specifically for D-MAX 4JJ1TCX fuel system
How It Works: The Fuel Manager pre-filter strips out the bulk of water and particulate contaminants BEFORE they reach your factory filter. This creates a true two-stage filtration system—the pre-filter handles the heavy lifting (bulk contamination removal), while your OEM filter finishes the fine filtration. This extends OEM filter life and provides maximum protection for your expensive common rail injectors.
Key Features:
💡 Why This Matters: 72% of injector failures are caused by contaminated fuel (water, dirt, poor lubricity). Modern common rail diesel injectors operate at extremely high pressures (up to 2,000+ bar) and have ultra-tight tolerances measured in microns. Even microscopic contamination can cause catastrophic damage. The pre-filter strips out the bulk of contaminants, while your OEM filter finishes the fine filtration—creating a true two-stage filtration system for maximum protection. This is essential insurance for your expensive 4JJ1 fuel system.
Australian diesel fuel quality varies significantly. Even at major service stations, fuel can contain water, dirt, rust particles, algae, and other contaminants. In remote areas or when using farm diesel, the risks multiply. The D-MAX's 4JJ1TCX common rail system is sophisticated and powerful, but its high-pressure injectors are vulnerable to contamination.
The Problem:
Benefits:
💡 4JJ1TCX Protection: The 4JJ1TCX is Isuzu's proven 3.0L common rail turbo diesel—it's reliable and powerful when properly maintained. But like all modern diesels, it has zero tolerance for contaminated fuel. The Fuel Manager pre-filter is essential protection, especially if you: travel to remote areas, use farm diesel, tow heavy loads, or want to protect your investment from Australia's variable fuel quality. One bad tank of fuel can cost thousands in repairs—the pre-filter is cheap insurance.
Fuel Manager Pre-Filter:
Performance:
System Design:

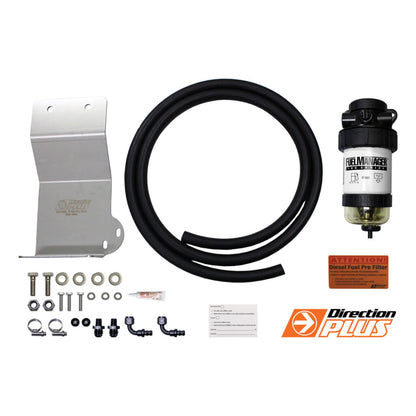

✅ Complete kit with vehicle-specific components for direct fitment
Recommended: Competent qualified mechanic or experienced DIYer
DIY Time: 2–3 hours
Installation Notes:
Important: Detailed installation guide included. Professional installation recommended if not experienced with fuel system work. Proper installation is critical for safety and performance.
Maintenance Schedule:
💡 Pro Tip: The D-MAX is a serious workhorse. Check and drain the water separator regularly—especially after fueling at unfamiliar stations or in remote areas. This simple 30-second check can save you thousands in injector repairs. Replace the pre-filter element based on fuel quality—if you're seeing a lot of contamination, service it more frequently. Prevention is always cheaper than repair.
Q: Will this void my Isuzu warranty?
A: No. Aftermarket fuel filtration devices don't void warranty under Australian Consumer Law. This kit protects your engine without interfering with factory components.
Q: Why do I need a pre-filter if I already have a factory filter?
A: The factory filter is designed for fine filtration, but it has limited capacity for bulk contamination. A pre-filter handles the heavy lifting (removing bulk water and particulates), which extends the life of your factory filter and provides much better overall protection. Think of it like a pre-filter on a vacuum cleaner—it catches the big stuff so the main filter can focus on the fine particles.
Q: What is two-stage filtration?
A: Two-stage filtration means having two filters in series. Stage 1 (the pre-filter) removes bulk contamination—water, large particles, rust, algae. Stage 2 (your factory filter) then performs fine filtration to protect injectors. This is far more effective than relying on a single filter alone, especially in Australian conditions.
Q: How does contaminated fuel damage injectors?
A: Common rail injectors operate at extremely high pressures (2,000+ bar) with ultra-tight tolerances measured in microns. Water causes corrosion and poor combustion. Particulates score injector tips, damage seals, and clog nozzles. Even microscopic contamination can cause catastrophic failure—and injector replacement is expensive ($500-800+ per injector).
Q: What does 72% of injector failures stat mean?
A: Industry studies show that 72% of common rail injector failures are caused by contaminated fuel rather than mechanical wear. This means most injector failures are preventable with proper filtration. A pre-filter is cheap insurance against this expensive problem.
Q: How often do I need to drain the water separator?
A: Check it weekly or before long trips. Drain frequency depends on fuel quality—you might go months without seeing water at city service stations, but see water immediately after fueling at a questionable source. It takes 30 seconds to check and drain if needed.
Q: How often do I replace the pre-filter element?
A: Generally every 20,000–30,000 km, but this depends on fuel quality. If you're frequently using farm diesel or fueling in remote areas, you may need to replace it more often. The beauty of having a pre-filter is that it shows you what it's catching—frequent replacement is a sign it's doing its job protecting your expensive injectors.
Q: Does this reduce fuel pressure or flow?
A: No. The Fuel Manager is designed with high-flow characteristics to maintain optimal fuel pressure and flow to your engine. Proper installation ensures no performance impact.
Q: Can I install this myself?
A: If you're mechanically competent and comfortable working with fuel systems, yes. Most DIYers complete installation in 2-3 hours. However, proper installation is critical for safety and performance—if you're not experienced with fuel system work, have a qualified mechanic install it.
Q: Is this suitable for remote area travel?
A: Absolutely essential. Remote area fuel can be significantly more contaminated than city fuel—older tanks, less turnover, more water contamination. The pre-filter gives you peace of mind when you're hundreds of kilometers from help. Many outback travelers won't leave without one.
Q: What about farm diesel or drum fuel?
A: Farm diesel and drum fuel are notorious for contamination—rust from drums, water from condensation, algae growth from long storage. A pre-filter is absolutely essential if you regularly use these fuel sources. It will save your injectors.
Q: How much does injector replacement cost?
A: Common rail injectors typically cost $500-800+ each, and the 4JJ1 has four injectors. That's $2,000-3,200+ for a full set, plus labor. If the high-pressure fuel pump is also damaged, add another $2,000-4,000+. A pre-filter kit is cheap insurance by comparison.
Q: Does this work with biodiesel?
A: The Fuel Manager handles biodiesel blends, but be aware that biodiesel is more prone to algae growth and water contamination. More frequent filter servicing may be required with biodiesel use.
Q: Can I add a catch can later?
A: Yes! Many D-MAX owners run both a Fuel Manager pre-filter AND a ProVent catch can for comprehensive protection. The pre-filter protects your fuel system, while the catch can protects your intake system. They're complementary systems.
Q: What if I see a lot of water in the separator?
A: That's the pre-filter doing its job! Drain it immediately and avoid fueling at that location again if possible. If you're consistently seeing water, consider reporting it to the service station—water in fuel is a serious issue. The pre-filter is catching it before it can damage your injectors.
Q: Is this built for Australian conditions?
A: Yes! Direction-Plus™ engineering means this kit is specifically designed for Australian conditions—variable fuel quality, remote area travel, extreme temperatures, and the serious work that D-MAX vehicles are used for. Proven protection for Australian conditions.
Q: What's the difference between this and a post-filter?
A: A pre-filter (like this Fuel Manager) installs BEFORE your factory filter and handles bulk contamination removal. A post-filter installs AFTER the factory filter for ultra-fine final filtration. Pre-filters are more important for general protection, while post-filters provide additional fine filtration. Many people run both for maximum protection.
Q: Does this fit 2020+ D-MAX with 4JJ3 engine?
A: No. This kit (FM601DPK) is specifically for 2012-2020 D-MAX with the 4JJ1TCX 3.0L engine. The 2020+ D-MAX uses the newer 4JJ3 3.0L engine and requires a different pre-filter kit. Contact us for current-generation D-MAX solutions.
Safeguard Your D-MAX from Fuel Contamination
Keep your 4JJ1 running strong for years to come
Essential two-stage filtration protection — cheap insurance for expensive injectors
