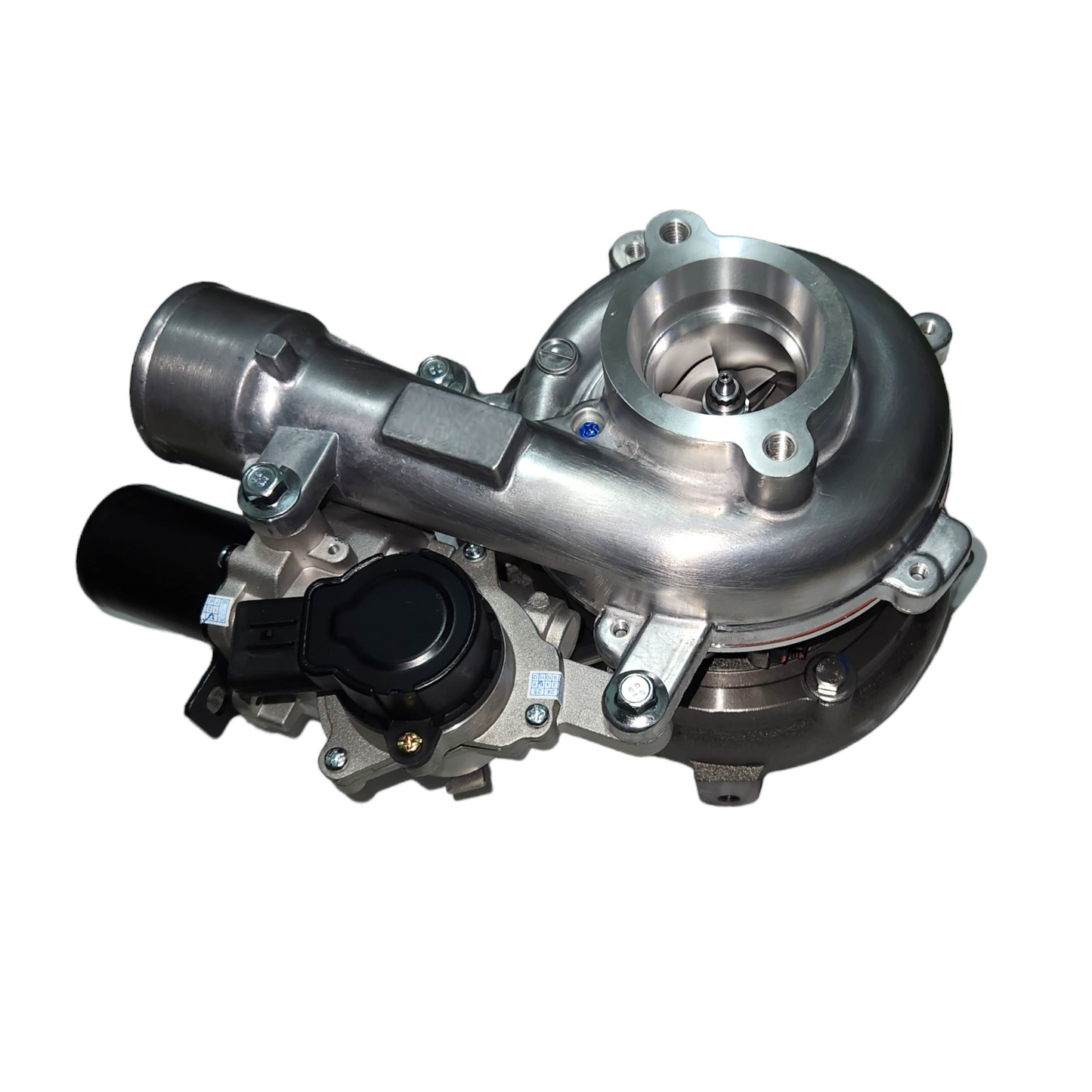

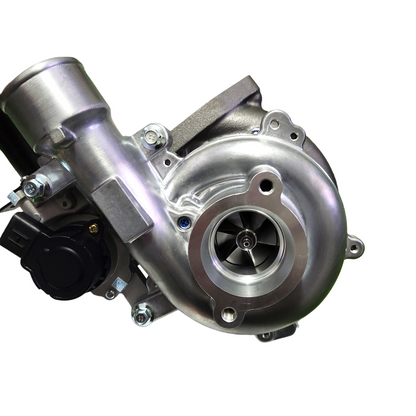

N70 Hilux Standard Replacement Turbo

🏆 CRC Standard Series OEM Spec CT16V ✅ VNT Actuator Pre-Installed 🔧 Gaskets Included 📦 💳 Afterpay • Humm • Klarna • Zip 🚚 Free Express AU Shipping

Genuine Alternative CT16V Turbo — Toyota Hilux KUN26 1KD-FTV (2005–2015)

When your 1KD turbo is beyond repair or a rebuild isn't the right call, this is the clean solution. Our OEM-spec CT16V replacement turbo is engineered to match factory performance, bolt straight in, and get your Hilux back on the road without the dealership markup or the wait.

Comes complete with new gaskets and a pre-installed VNT actuator — everything you need for a full turbo swap in one box. Each unit is built to meet original equipment specifications for the Toyota Hilux KUN26 1KD-FTV.

🚀 Want more power? We have a full range of upgraded turbos and turbo kits to suit your Hilux — including the popular 47mm VNT Stage 2 upgrade.

📦 What's Included
  • ✔️ CT16V Turbocharger – Part No. 17201-0L040
  • ✔️ New gaskets
  • ✔️ New VNT actuator (pre-installed)
  • ✔️ General installation advice & support

While you're in there — add the Turbo Gasket, Stud and Nut Kit:

Replace worn studs and nuts at the same time for a complete, professional install. Saves pulling things apart again later.

🛒 Add New Turbo Gasket, Stud and Nut Kit
✅ Vehicle Compatibility
  • Toyota Hilux N70 KUN26 – 1KD-FTV (2005–2015)

✅ Direct replacement: Engineered to OEM spec for the CT16V turbocharger fitted to 1KD-FTV engines. Part No. 17201-0L040.

🔧 Installation Notes
  • Direct bolt-in replacement — no modifications required
  • VNT actuator is pre-installed and calibrated
  • Replace all gaskets, studs and nuts during install (kit available above)
  • Pre-oil the turbo and prime the oil system before first startup — run the engine at idle briefly before driving
  • Clear any stored fault codes after installation
  • Professional installation recommended
  • DO NOT USE RTV/GASKET MAKER ON FLANGES.

⚠️ Important: Always use fresh oil and replace the oil feed line if worn. A contaminated oil supply is the leading cause of premature turbo failure.

💳 Payment & 🚚 Shipping
  • 💸 Buy Now, Pay Later: Afterpay, Humm, Klarna & Zip available
  • ✈️ Free Express Shipping Australia-Wide
  • 📦 Fast, trackable dispatch — same or next business day when in stock

🛒 GET YOUR HILUX BACK ON THE ROAD — ORDER TODAY

OEM-spec CT16V with VNT actuator pre-installed. Gaskets included. Free Express shipping Australia-wide.

Disclaimer: Common Rail Cowboys is not affiliated with Toyota Motor Corporation. Professional installation recommended.
