• Toyota Hilux N80 – 1GD-FTV 2.8L 4-Cylinder Turbo Diesel | 2016–on
• Toyota Fortuner – 1GD-FTV 2.8L 4-Cylinder Turbo Diesel | 2016–on
• Toyota Hilux – 2GD-FTV 2.4L 4-Cylinder Turbo Diesel | 2018–on

✅ Perfect fit for all 1GD-FTV (2.8L) and 2GD-FTV (2.4L) powered Hilux and Fortuner models

How It Works: Mounted between the tank and your factory filter, this pre-filter removes the bulk of water and dirt before it ever reaches your OEM filtration system. This provides 24/7 protection, 365 days a year.

Key Features:

• 95% water separation — defends against ULSD contamination
• Superior particle filtration before OEM filter
• Clear drain bowl — easily monitor and remove water
• No bypass protection — dirty fuel won't pass through, even if blocked
• Protects against corrosion and abrasive wear
• Prevents costly injector and pump damage
• Water-in-fuel alarm compatible (sold separately)

💡 Why This Matters: Water contamination in diesel fuel is one of the leading causes of expensive injector failures. With repair costs often exceeding $10,000, the Fuel Manager pays for itself by preventing just one major failure. Don't risk engine damage—protect your investment.

How It Works: Separates oil and air from blow-by gases before they enter your intake system, reducing carbon build-up and protecting vital components like your turbo, MAP sensor, and intercooler.

Key Features:

• 98% oil separation efficiency
• Prevents oil and soot entering clean air intake
• Protects turbocharger, EGR, and intake system
• Protects MAP sensor and intercooler from contamination
• Keeps intake system cleaner, longer
• Reduces oil mist, carbon sludge, and exhaust smoke
• Optional return to sump for closed-loop setups
• Regulates crankcase pressure
• Minimizes oil consumption

💡 Why This Matters: Oil vapour causes carbon build-up that restricts airflow, fouls sensors, and reduces power over time. The ProVent keeps your intake system clean, protecting your turbo and maintaining optimal performance for the long haul.

Fuel Manager Pre-Filter:

• Water Separation: 95% efficiency
• Filter Type: Replaceable element with clear bowl
• Clear bowl design for visual inspection
• No bypass valve — full filtration always active
• Designed for 1GD-FTV and 2GD-FTV fuel systems

ProVent Ultimate Catch Can:

• Oil Separation: 98% efficiency
• Filter: MANN+HUMMEL media
• Drain tap for oil collection
• Optional return line to sump for closed-loop operation
• Engineered specifically for 1GD and 2GD applications

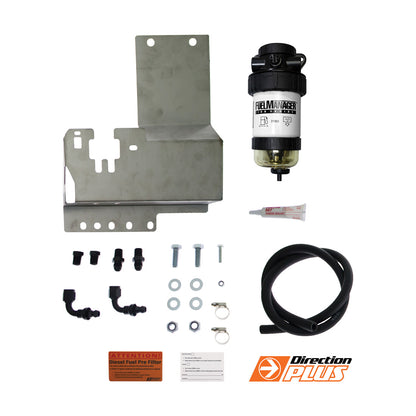

Fuel Manager Pre-Filter Kit:

• Fuel Manager filter assembly with clear bowl
• N80 Hilux/Fortuner-specific mounting bracket
• Complete fuel line and fitting kit
• Hose clamps and connectors
• Drain plugs
• Engine bay and windscreen warning labels
• Installation guide

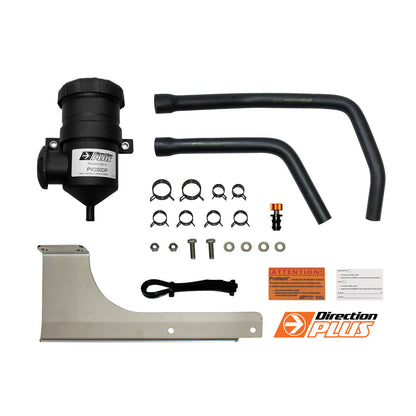

ProVent Ultimate Catch Can Kit:

• MANN+HUMMEL ProVent catch can
• N80 Hilux/Fortuner-specific mounting bracket
• Complete hose and fitting kit
• Drain tap assembly with hose
• Optional sump return line components
• Mounting hardware (bolts, washers, nuts)
• Spring clamps and cable ties
• Installation guide

Recommended: Competent qualified mechanic

Combined DIY Time: 4–5 hours (both systems)

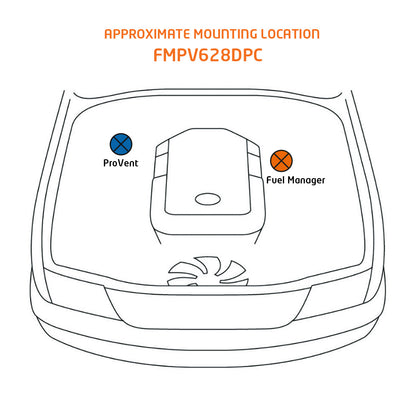

Fuel Manager Installation:

• Mounts in engine bay between fuel tank and OEM filter
• Uses N80-specific mounting bracket
• Fuel line connections with supplied fittings
• Clear bowl positioned for easy drainage access
• Simple bracket installation using factory mounting points

ProVent Installation:

• Mounts in engine bay
• Connects to crankcase ventilation system
• Drain tap routed for easy access
• Optional return line to sump can be configured
• All hoses and fittings included

Important: Both systems can be installed separately or together. Detailed installation guides included with each kit.

Fuel Manager Pre-Filter:

• Check clear bowl regularly for water accumulation
• Drain water bowl as needed (simple drain plug)
• Replace filter element per vehicle service schedule
• Optional water alarm (FMALARM) provides automatic warning
• Takes just minutes to check and drain

ProVent Catch Can:

• Check oil level every 5,000–10,000 km
• Drain collected oil via drain tap when needed
• If using sump return line, oil automatically recirculates
• Replace filter element every 40,000 km (replacement elements available)

💡 Pro Tip: Regular maintenance is simple and takes minutes. The transparent Fuel Manager bowl lets you see water at a glance, and the ProVent drain tap makes oil removal easy. Staying on top of maintenance ensures maximum protection for your 1GD or 2GD engine.

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law. These systems protect your engine without interfering with factory components.

Q: Does this fit both the 2.8L and 2.4L engines?

A: Yes! This combo kit is specifically designed to fit both the 1GD-FTV (2.8L) and 2GD-FTV (2.4L) engines in N80 Hilux and Fortuner models.

Q: How often do I need to drain the Fuel Manager?

A: It depends on your fuel quality. The clear bowl lets you visually inspect for water. Some users drain monthly, others less frequently. If you often fuel at country stations or during wet weather, check more often.

Q: Can I install these systems myself?

A: If you're mechanically competent and comfortable working with fuel lines, yes. Most DIYers complete installation in 4-5 hours. Otherwise, any qualified mechanic can handle it. Detailed installation guides are included.

Q: Do I need both systems or can I buy them separately?

A: You can buy either system separately, but the combo kit offers better value and comprehensive protection. The Fuel Manager protects your fuel system, while the ProVent protects your intake system—together they provide complete engine protection.

Q: Does the ProVent return oil to the sump automatically?

A: The kit includes components for an optional sump return line. You can configure it to either: (a) collect oil in the catch can for periodic draining, or (b) return clean oil back to the sump automatically. Your choice based on preference.

Q: Will this improve my fuel economy?

A: While not primarily designed for fuel economy, both systems can help maintain optimal engine performance. The Fuel Manager ensures clean fuel reaches your injectors, and the ProVent keeps your intake clean—both contributing to efficient combustion and sustained performance.

Q: Why is the Fuel Manager better than just using the factory filter?

A: The Fuel Manager works as a pre-filter, catching the bulk of contaminants before they reach your factory filter. This provides an extra layer of protection and extends the life of your OEM filter. With injector repairs costing $10,000+, it's cheap insurance against catastrophic fuel system failure.

Q: Is the water alarm included?

A: The water alarm is available as a separate accessory (FMALARM). It provides visual/audible warning when water is detected in the bowl—no more manual checking required.
