• Toyota Prado 150 Series – 1GD-FTV 2.8L Turbo Diesel | 2015+
• Toyota Prado 155 Series – 1GD-FTV 2.8L Turbo Diesel | 2015+

✅ Perfect fit for all 1GD-FTV powered Prados from 2015 onwards

How It Works: Installs between fuel tank and factory filter to remove water and particle contamination before it reaches your common rail injection system. The integrated water alarm alerts you immediately when water is detected—no more manual checks!

Key Features:

• 100% water separation efficiency* (based on 150μm droplet size)
• 98% particle separation — superior contamination removal
• Integrated in-cab visual + audible water alarm — automatic alerts
• No need to manually check for water in the bowl
• Protects against corrosion, abrasion, and injector damage
• Easy spin-on filter replacements
• Rock-solid first line of defense for your common rail system

💡 Why This Matters: Water in diesel fuel is one of the biggest causes of expensive injector failures. The PreLine-Plus catches it before damage occurs—and alerts you immediately so you can drain it.

How It Works: Catches blow-by oil mist and vapor before it gums up your intake system. The ProVent traps oil vapor before it fouls your EGR, turbo, or intercooler—keeping your engine breathing clean and running strong.

Key Features:

• 98% oil separation efficiency
• Prevents oil and soot entering clean air intake
• Protects turbocharger, EGR, and intake system
• Keeps intercooler, sensors, and throttle body clean
• Minimizes oil consumption
• Regulates crankcase pressure
• Reduces exhaust smoke and odours

💡 Why This Matters: Over time, oil vapor causes carbon build-up that robs power, increases repair costs, and reduces engine life. The ProVent keeps your internals clean—more power, fewer repairs, cleaner running.

PreLine-Plus Pre-Filter System:

• Water Separation: 100% efficiency* (150μm droplet size)
• Particle Separation: 98% efficiency
• Filter Type: Spin-on replaceable element
• Integrated water alarm: Visual + audible in-cab alert
• Automatic water detection — no manual checking required
• Full filtration always active

ProVent Ultimate Catch Can:

• Oil Separation: 98% efficiency
• Filter: MANN+HUMMEL media
• Drain tap for easy oil collection
• Designed for 1GD-FTV crankcase ventilation system

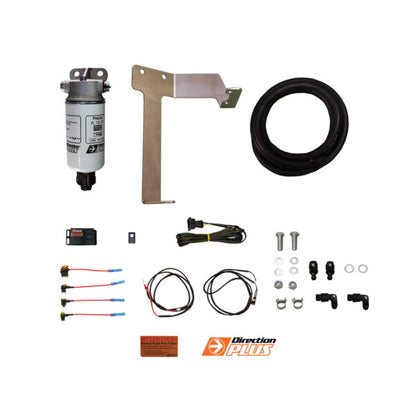

PreLine-Plus Pre-Filter Kit:

• PreLine-Plus pre-filter assembly with integrated water alarm
• In-cab water alarm module (visual + audible)
• Prado-specific mounting bracket
• Complete fuel line and fitting kit
• Wiring harness for alarm installation
• Mounting hardware
• Installation guide

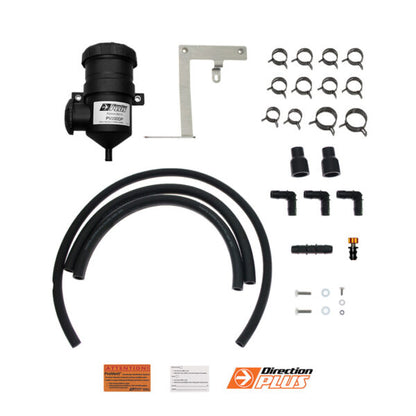

ProVent Ultimate Catch Can Kit:

• MANN+HUMMEL ProVent catch can
• Prado-specific mounting bracket
• Complete hose and fitting kit
• Drain tap assembly with hose
• Mounting hardware (bolts, washers, nuts)
• Spring clamps and cable ties
• Installation guide

Recommended: Competent qualified mechanic

Combined DIY Time: 4–5 hours (both systems)

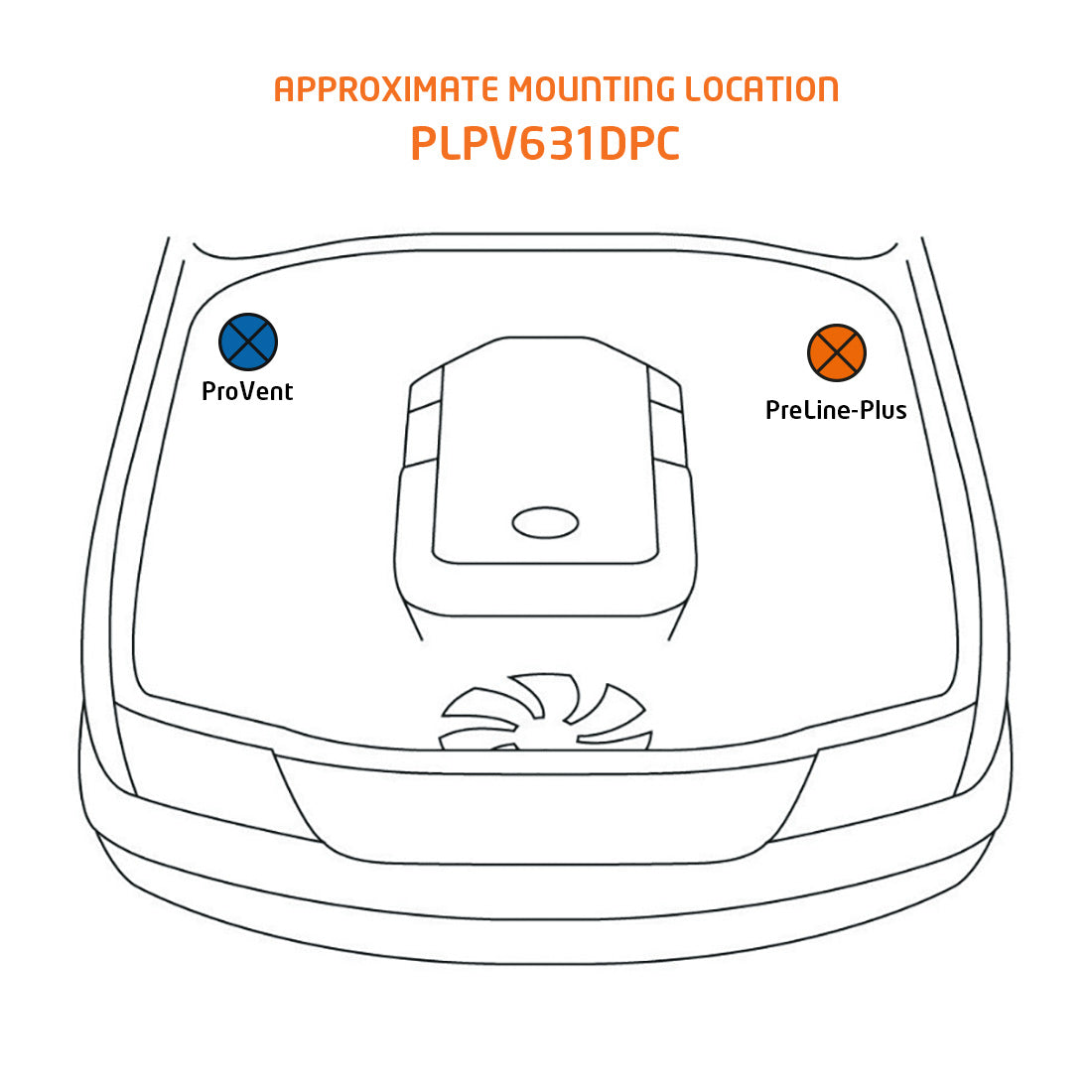

PreLine-Plus Installation:

• Mounts in engine bay in fuel line between tank and factory filter
• Water alarm module mounts in cab (dashboard or A-pillar)
• Wiring connects to cabin for visual/audible alerts
• Uses factory mounting points where possible

ProVent Installation:

• Mounts in engine bay
• Connects to crankcase ventilation system
• Drain tap routed for easy access
• All hoses and fittings included

Important: Both systems can be installed separately or together. Detailed installation guides included with each kit.

PreLine-Plus Pre-Filter:

• Water alarm will alert you automatically when water is detected
• Drain water bowl when alarm sounds (simple drain tap)
• Replace spin-on filter element per vehicle service schedule
• No manual checking required — alarm does the monitoring

ProVent Catch Can:

• Check oil level every 5,000–10,000 km
• Drain collected oil via drain tap when needed
• Replace filter element every 40,000 km (replacement elements available)

💡 Pro Tip: The water alarm eliminates guesswork. When it sounds, simply drain the bowl—takes 30 seconds. No more wondering if water has accumulated.

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law.

Q: How does the water alarm work?

A: The PreLine-Plus has an integrated sensor that detects water accumulation. When water is present, the in-cab module provides both a visual light and audible beep to alert you. No more manual checking!

Q: Can I install these myself?

A: If you're mechanically competent and comfortable working with fuel lines and basic wiring, yes. Most DIYers complete installation in 4-5 hours. Otherwise, a qualified mechanic can handle it easily.

Q: Can I buy these systems separately?

A: Yes. Individual PreLine-Plus and ProVent kits are available, but the combo kit offers better value and comprehensive protection.

Q: Why do I need both systems?

A: They protect different systems. PreLine-Plus protects your fuel injection system from water and contamination. ProVent protects your intake, turbo, and EGR from oil and carbon buildup. Together, they provide complete engine protection for your 1GD.

Q: What happens if I don't drain the water when the alarm sounds?

A: The alarm gives you early warning. If ignored, water could eventually reach the factory filter and potentially the injectors, causing expensive damage. The beauty of the system is it catches water before this happens.

Q: Does the ProVent return oil to the sump?

A: The ProVent collects oil in the catch can, which can be drained periodically via the drain tap. Some users drain it back into the sump, others dispose of it—your choice.
