Flex Pro R31-R V2 Turbo – Mini F55 – Low-Mount Turbo Kit – N70 Hilux



Signature Mini F55 Sound | Fast Spool | Built for Power

✅ 30–35 PSI Boost | ✅ Aggressive Sound | ✅ Complete Kit | ✅ Free Express Shipping

Elevate your 1KD N70 diesel build with the FLEX PRO R31-R V2 Turbo Low-Mount Kit, known as the Mini F55. This 44 mm gated turbo delivers rapid low–mid RPM spool, sharp response, and the iconic F55 whistle/“Stu Stu Stu” sound—ideal for daily, touring, and performance builds.

📦 What’s Included

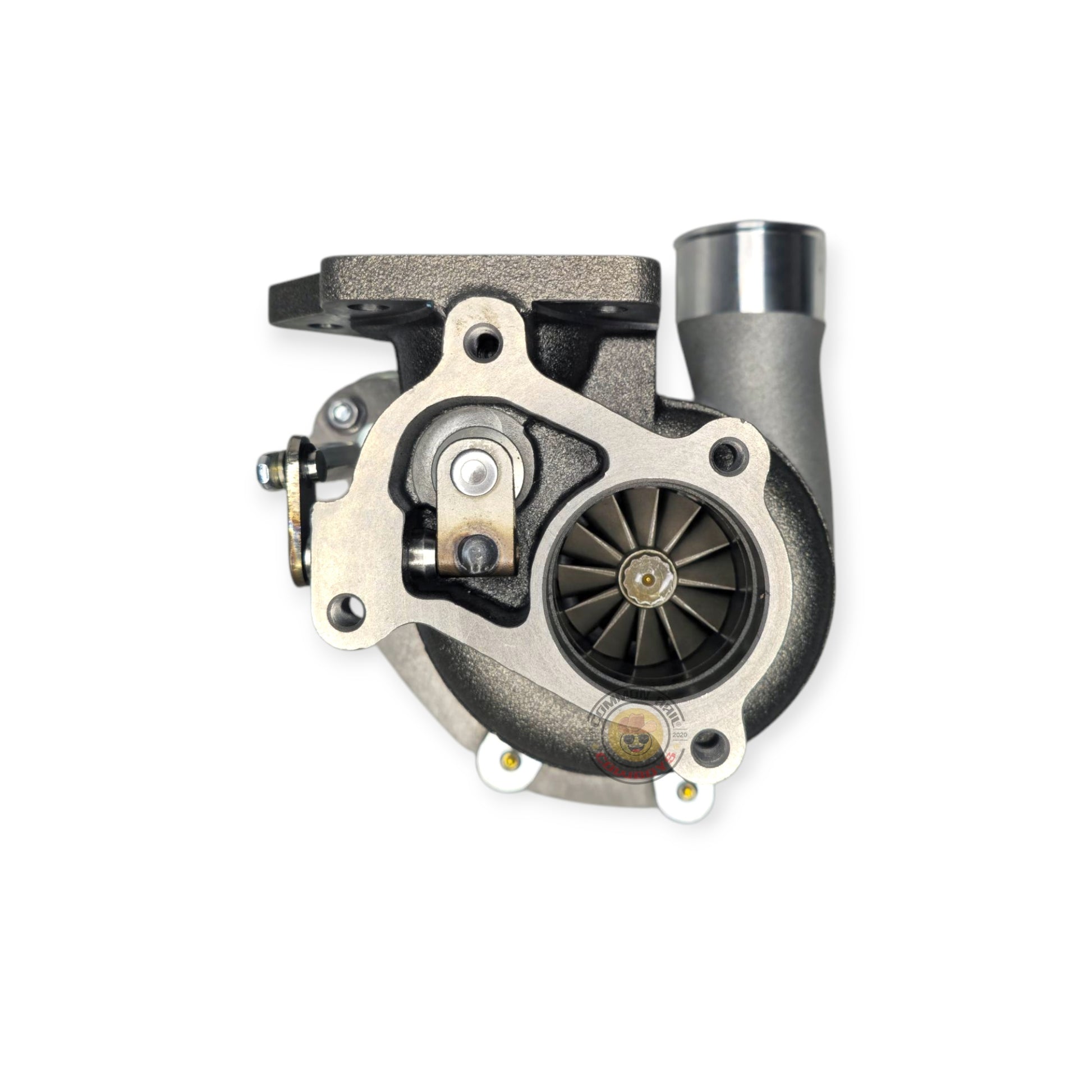

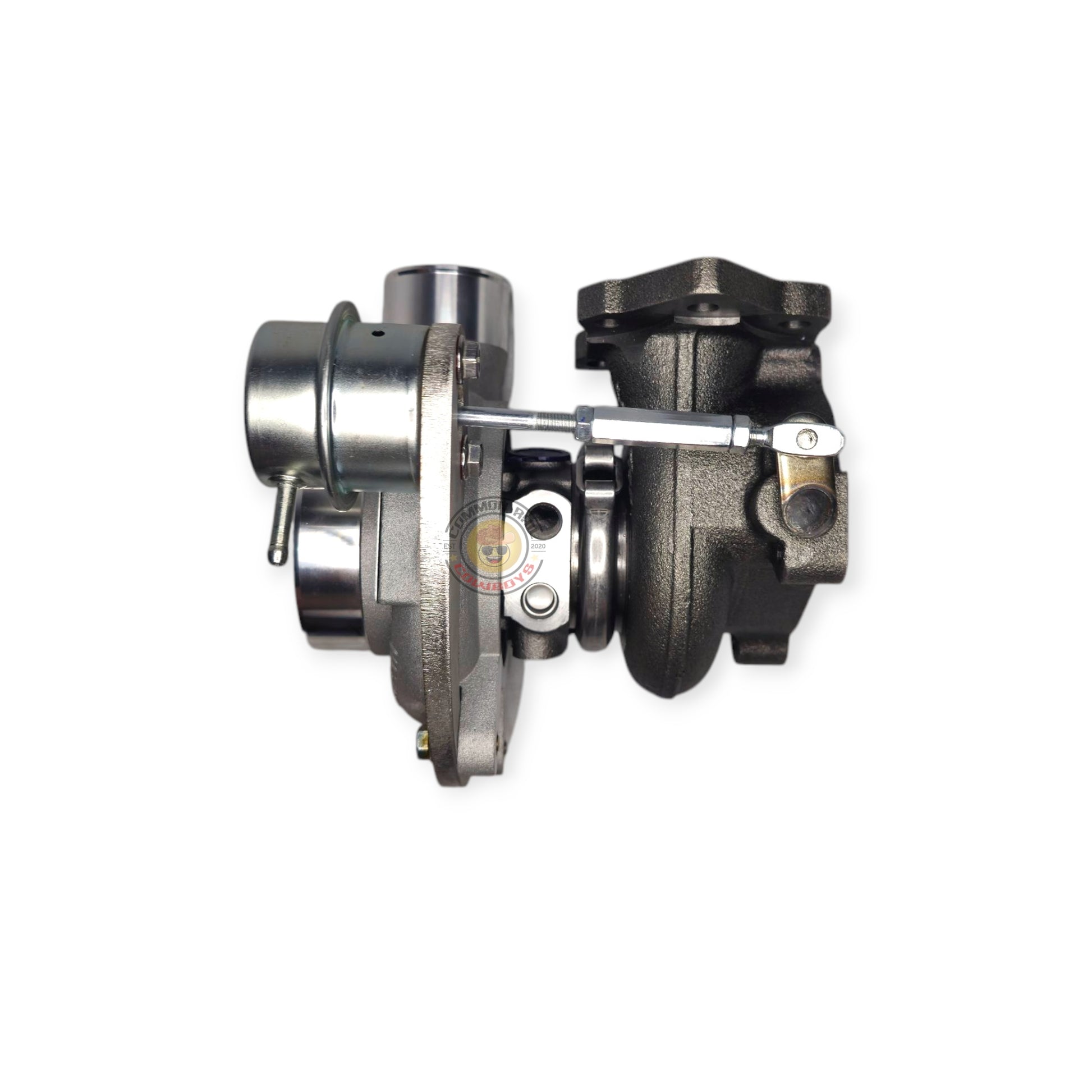

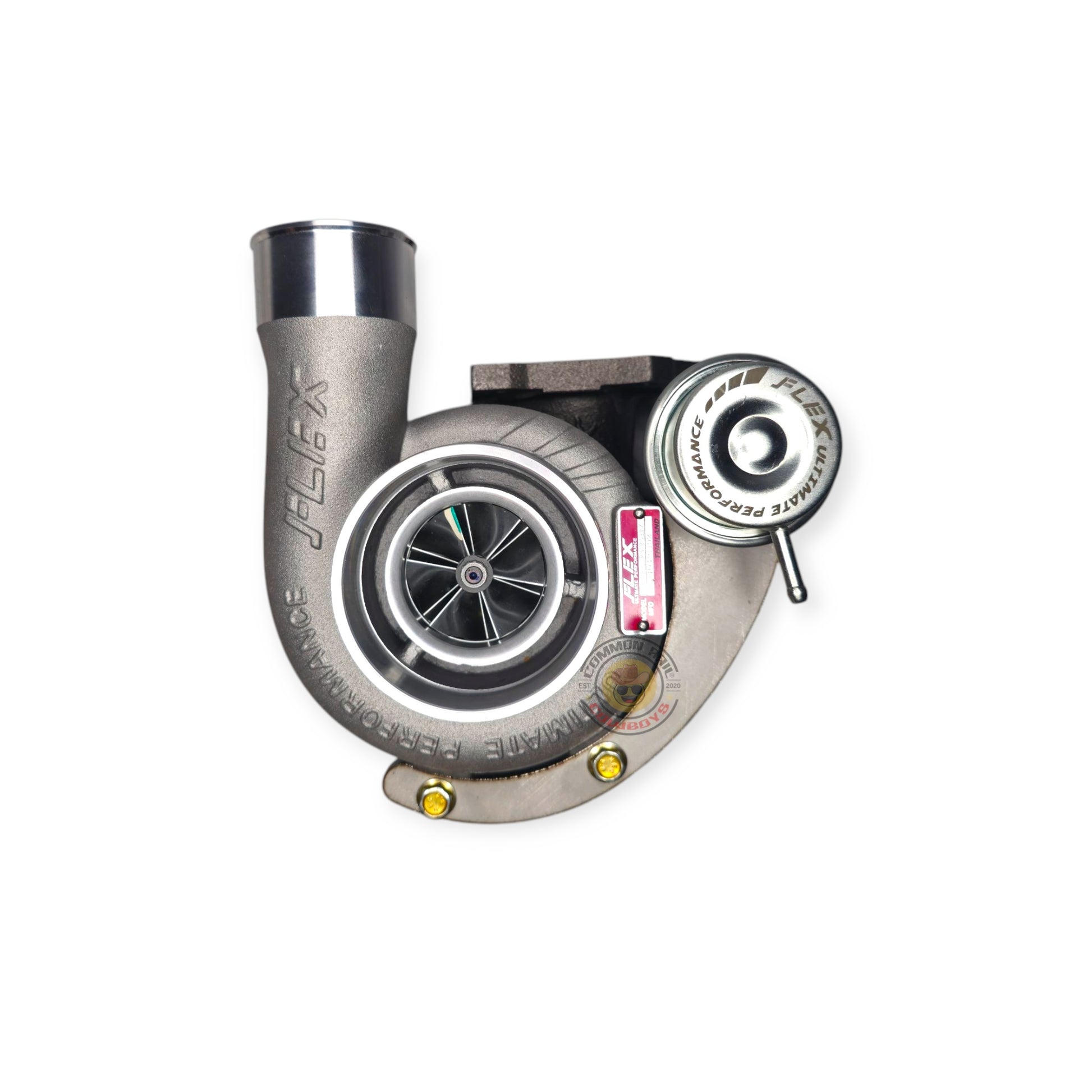

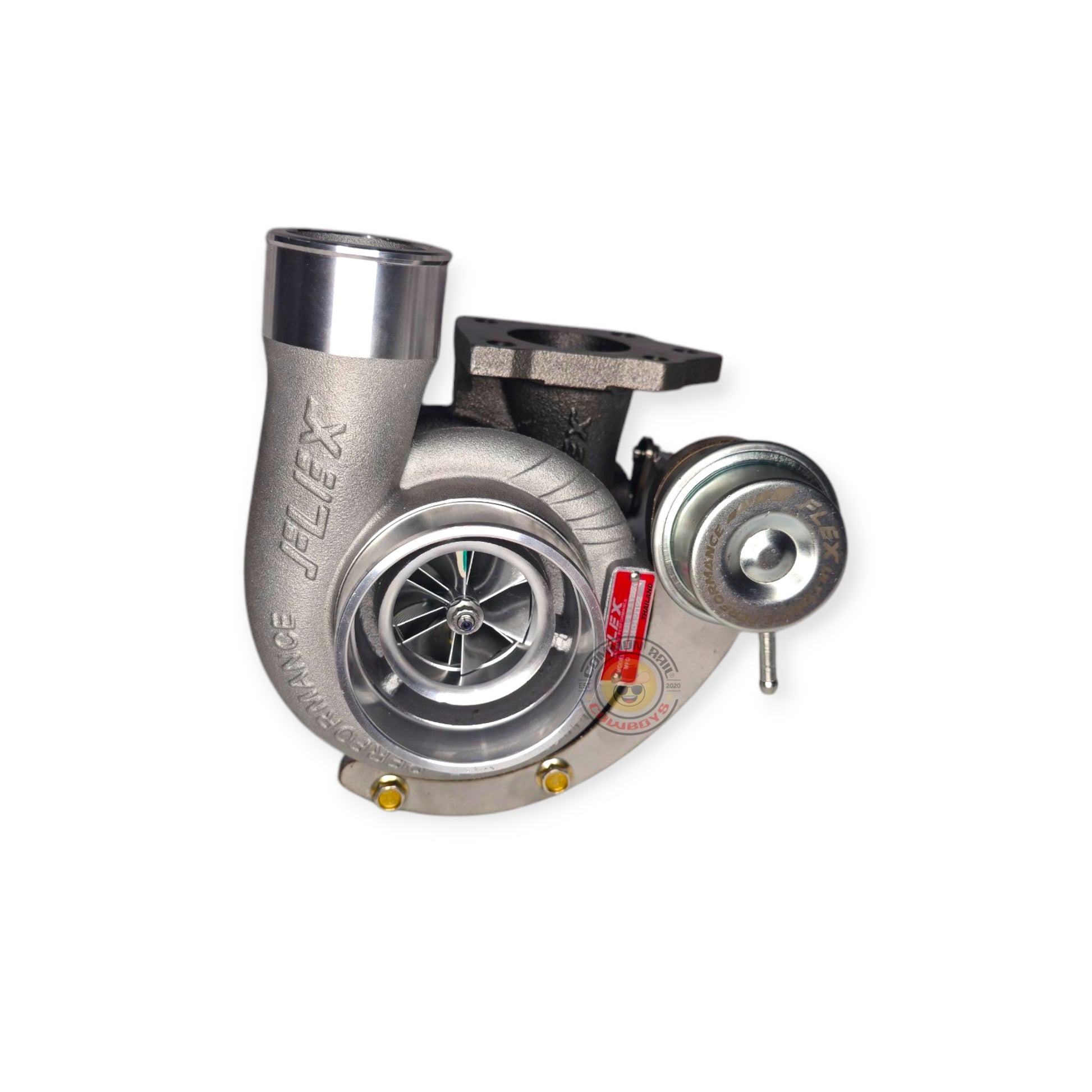

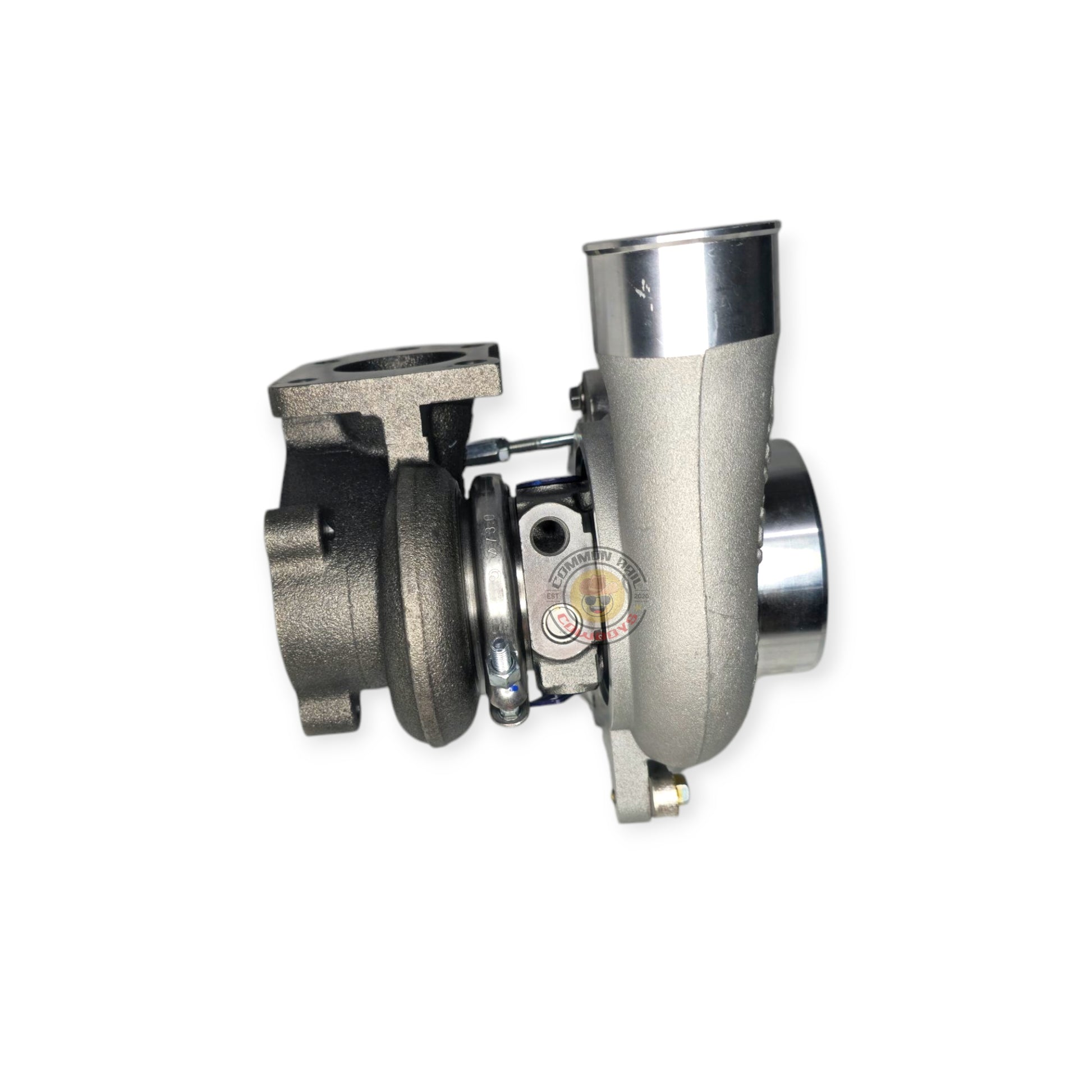

  • FLEX PRO R31-R V2 Turbo (Mini F55)
  • Laser-cut stainless actuator bracket
  • 35 PSI wastegate actuator
  • Turbo re-oriented for 1KD low-mount installation
  • FLEX dump pipe flange
  • Mounting bolts
  • Dump pipe studs and nuts
  • Turbo gaskets

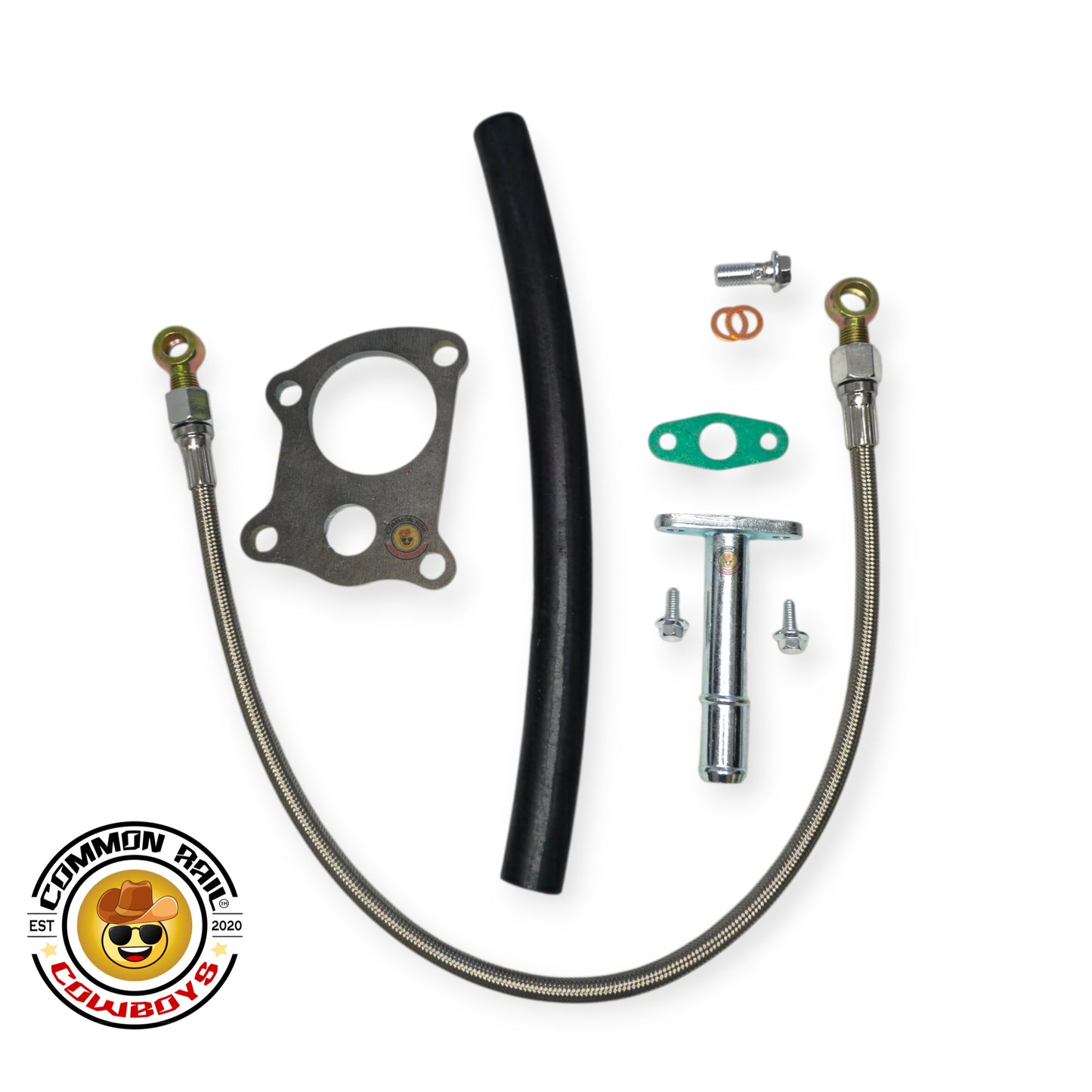

  • Oil feed line & oil return line and fittings
  • Liqui Moly pre-lube

More or less everything you need for an easy installation (intake and dump pipe fabrication required).

⚙️ Turbo Specs
  • Compressor wheel: 44.5 mm, 6-blade
  • Intake mouth: 79.5 mm
  • Turbine wheel: 46 mm, 12-blade
  • Rear flange: RHF4 D-MAX flange
  • Manifold side flange: 5-bolt multi-fit
  • Boost rating: up to 35 PSI
  • Wastegate actuator: fully assembled & pre-set
  • Sound: F55-style whistle & “Stu Stu Stu”
🔧 Compatible Vehicles
  • Toyota Hilux N70 (2005–2015) – 1KD-FTV

Dump pipe must be fabricated to suit OEM, aftermarket or 3″ exhausts.

💪 Why Choose Mini F55?
  • Iconic “Stu Stu Stu” sound – Mini F55 whistle and spool
  • Fast-spooling gated turbo – near-instant boost response
  • Built for reliable power – 35 PSI rating
  • Street & touring friendly – power, reliability and sound
  • Easy install – minimal mods compared with full custom setups
💳 Payment & 🚚 Shipping
  • Afterpay, Humm, Klarna, and Zip available
  • Free Express Shipping Australia-Wide — fast, trackable dispatch (typically same or next business day)

Frequently Asked Questions

Do I need custom fabrication?
Yes — you’ll need a custom dump pipe and intake to suit your vehicle/exhaust (OEM or 3-inch). The turbo, lines and hardware are included.
Is tuning required?
A professional ECU remap is highly recommended to make safe power and avoid limp mode, especially above stock boost.
What boost can it safely run?
The supplied actuator is set for performance use and the turbo is rated to around 35 PSI with the correct supporting mods, fueling and tuning.
Will it bolt to my factory manifold?
Yes — the unit is re-oriented for 1KD low-mount and includes brackets and flanges to suit the application.
Is this road-legal?
Modifications may affect compliance. This product is intended for off-road/competition use where permitted. Check local regulations.
