Hilux 1KD Turbo Actuator

🏆 CRC Performance Series High Quality Replacement ✅ Individually QC Tested 🔍 Stops P1251 P0046 P0047 ⚠️ 💳 Afterpay • Humm • Klarna • Zip 🚚 Free Express AU Shipping

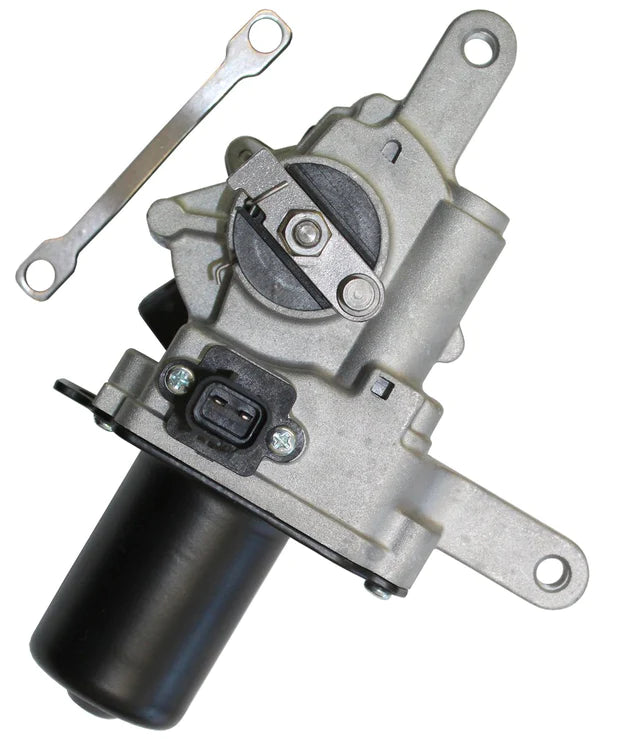

High-Quality Turbo Actuator to Suit Toyota Hilux 1KD-FTV (2005–2015)

A failed 1KD turbo actuator can cause a range of drivability issues and fault codes, including P1251, P0046 and P0047, often resulting in limp mode, poor boost control or inconsistent power delivery.

This Hilux 1KD Turbo Actuator is a reliable aftermarket replacement designed to restore correct VNT operation on N70 Hilux 1KD-FTV models. It offers an excellent balance of quality, reliability and value compared to replacing the complete turbo assembly.

Each unit is individually inspected and quality-checked before dispatch to ensure consistent operation and dependable performance out of the box.

🔧 Vehicle Compatibility
  • Toyota Hilux N70 – 1KD-FTV (2005–2015)

✅ Factory VNT compatible: Designed to suit factory style VNT turbochargers fitted to 1KD-FTV engines.

⚠️ Common Symptoms of a Failed Actuator
  • Check engine light or stored fault codes (P1251, P0046, P0047)
  • Limp mode under load
  • Poor boost response or inconsistent power
  • Turbo not responding correctly to ECU commands
  • Sluggish acceleration or loss of power
  • Black smoke under acceleration

⚠️ Professional diagnosis recommended: Confirm actuator failure before replacement to avoid unnecessary repairs.

🔧 Installation & Calibration Notes

Actuator calibration may be required during installation:

  1. Turn ignition key from OFF to ON
  2. Turn ignition key back to OFF
  3. Wait approximately 20 seconds
  4. Start engine and verify operation

Important notes:

  • This is a replacement actuator only – turbocharger not included
  • Professional installation recommended
  • Fault codes should be cleared after installation
  • Test drive recommended to verify proper boost operation
📦 What's Included
  • ✔️ 1× Hilux 1KD Turbo Actuator
  • ✔️ Individually QC tested unit
  • ✔️ Ready to install

While you're in there — add the Turbo Gasket & Stud Nut Kit:

Replace worn studs, nuts and gaskets at the same time. Saves pulling the turbo again later.

🛒 Add Turbo Gasket & Stud Nut Kit

Want more power while you're at it? — Flex 44mm VNT Turbo Upgrade:

Same fitment, serious upgrade. The Flex 44mm VNT is a direct drop-in that transforms throttle response and top-end pull — no fabrication, no tuning required (recommended).

⚡ Add Flex 44mm VNT Turbo Upgrade
💳 Payment & Shipping Options
  • 💸 Buy Now, Pay Later: Afterpay, Humm, Klarna & Zip available
  • ✈️ Free Express Shipping Australia-Wide
  • 📦 Fast dispatch – ships same or next business day

🛒 RESTORE PROPER BOOST CONTROL IN YOUR HILUX TODAY

A proven, cost-effective solution for 1KD actuator failure. Individually QC tested. Fixes P1251, P0046, P0047 fault codes.

Disclaimer: Common Rail Cowboys is not affiliated with Toyota Motor Corporation. Professional diagnosis and installation recommended.
