1KD F55 Low Mount Turbo Kit

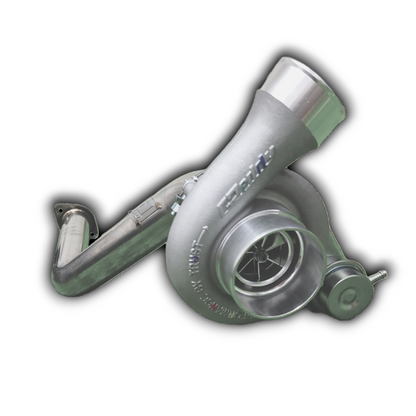

• Greddy 1KD F55 turbo (low-mount configuration)
• F55 wastegate actuator and bracket
• Stainless low-mount dump pipe, suits the standard N70 exhaust

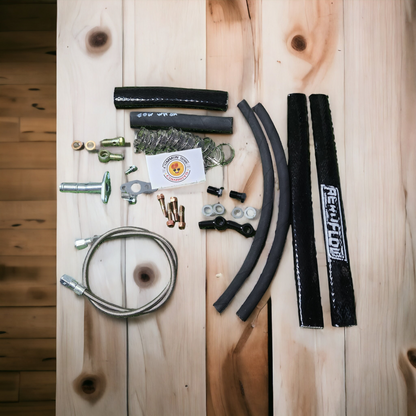

• Gaskets: turbo to manifold and dump pipe
• Turbo-to-manifold studs and bolts
• Turbo-to-dump studs and copper-coated nuts
• Stainless braided -4AN oil feed line with fittings (banjo, -4AN, O-rings)
• Aeroflow Series 500 oil return line with fittings, bolts and hose clamps
• Aeroflow coolant feed and return lines with fittings and banjo hardware
• Aeroflow heat guard sleeves for oil and coolant lines

• Toyota Hilux N70 / KUN26, 1KD-FTV (2005 to 2015)

Designed for front-mount intercooler setups.

• May require dump pipe modification for 3 inch exhaust systems. V-band reducer recommended
• A 1KD VNT simulator may be required to remove the factory stepper motor
• Factory oil return needs trimming and joins to the F55 oil drain hose
• Turbo may require minor clocking for best fit
• Tune required

• 1KD VNT simulator
• 1KD injector upgrade, +30% and +50%
• N70 Hilux intercooler kit (front mount)
• F55 dump pipe gasket (spare)

• Free express shipping Australia-wide, tracked.
• Afterpay, Humm, Klarna and Zip available at checkout.
• Returns and warranty are handled under our refund policy.

Does the dump pipe suit my exhaust?

The stainless low-mount dump suits the standard N70 exhaust. 3 inch systems may need dump pipe modification; a V-band reducer is recommended.

Do I need a VNT simulator?

One may be required if the factory stepper motor is removed.

What power is this kit built for?

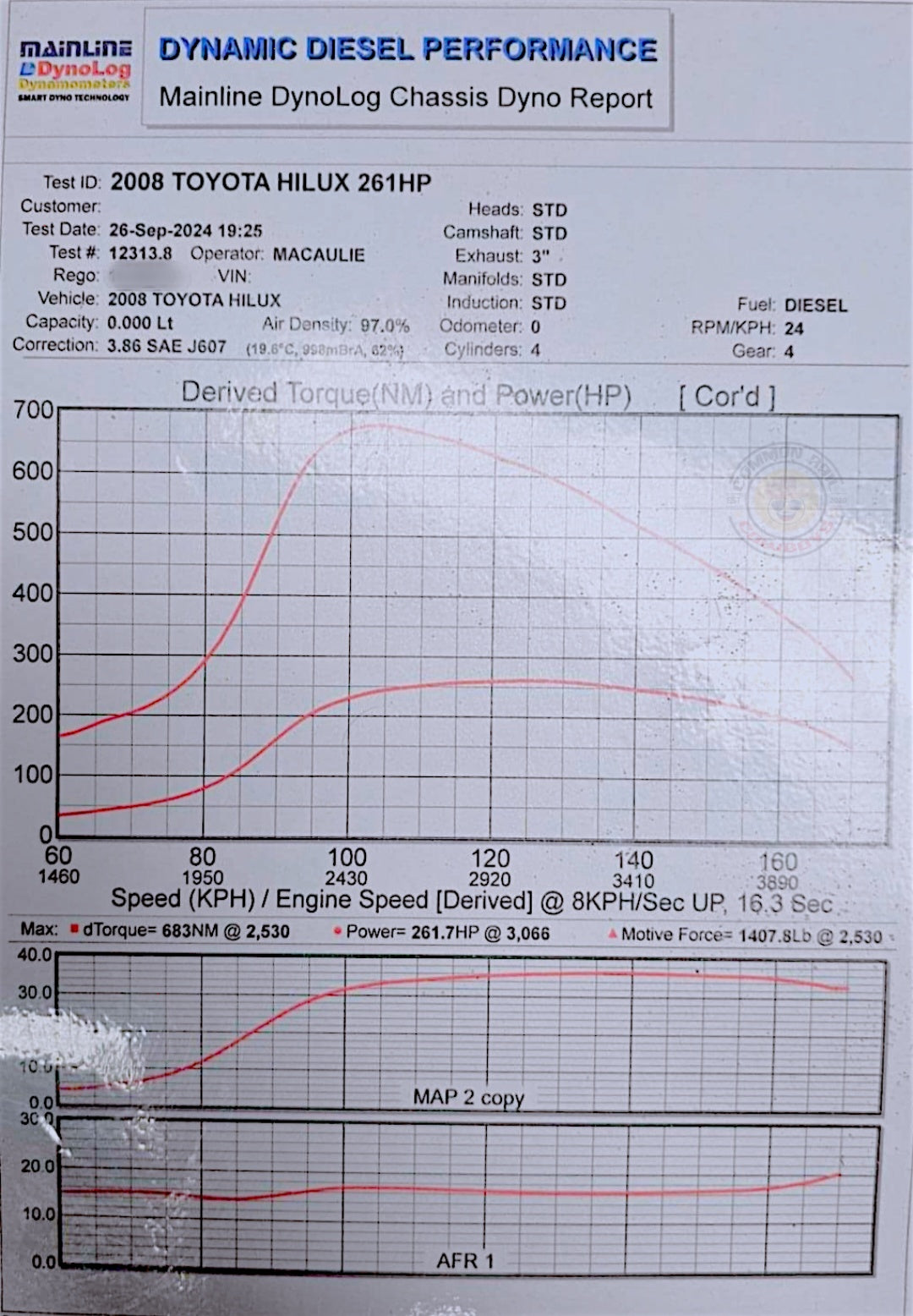

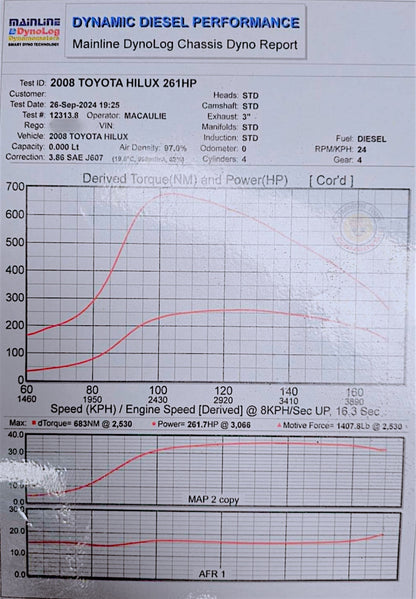

Builds targeting 200 to 250+ RWHP with supporting mods and appropriate tuning.
