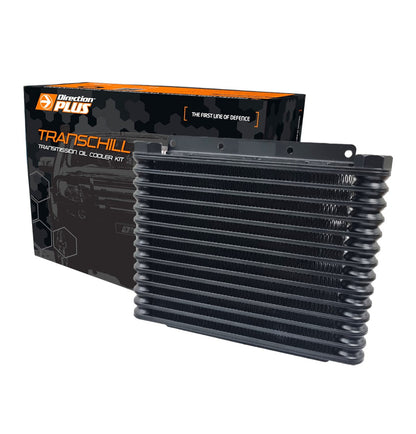

Arctic Black Series • 2007–2021 1VD-FTV 4.5L V8 • TCB615DPK
🔥 Keep Your 200 Series Cool Under Pressure 🔥
Whether towing the van, crossing soft sand, or battling summer heat—autos cop it hard. Slashes temps, protects ATF, and keeps your 200 shifting strong when it matters.
✅ OEM-style fitment with model-specific brackets and hardware
How It Works: Installs inline with your transmission cooling system, routing hot ATF through an advanced 32mm fin-and-plate core with internal turbulators. Whether towing the van, crossing soft sand, or in summer heat—this cooler protects your legendary V8's transmission from heat damage.
Key Features:
💡 Why This Matters: ATF over ~93°C = trouble—degraded fluid, failing seals, slipping clutches. The 200 Series is legendary, but it works hard when towing and touring. This cooler prevents overheating and failure, keeping your V8's transmission alive for the long haul. Lower temps = longer life. An ~11°C drop can dramatically extend service life—this cooler delivers up to 33°C reduction.
Heat destroys transmissions. The 200 Series is a serious touring and towing machine. Whether you're towing the caravan, tackling the Simpson, or just daily driving in summer—the V8's transmission works hard and generates massive heat.
Benefits:
💡 The Science: For every 10°C increase in transmission temperature above normal operating range, ATF life is cut in half. The 200 Series V8 generates serious heat when working hard. By dropping temps from 110°C+ down to the safe zone, this cooler can literally double or triple the life of your transmission. It's cheap insurance for an expensive component—and essential for the serious touring and towing the 200 is famous for.
Cooler Core:
Performance:
Mounting & Fittings:

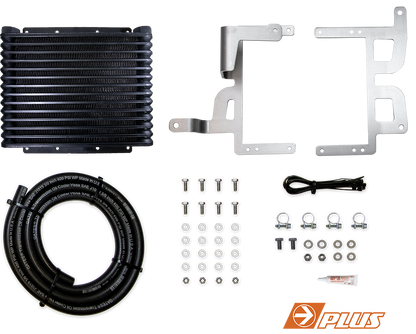

✅ Complete bolt-on kit — everything needed for installation included
Recommended: Competent qualified mechanic or experienced DIYer
DIY Time: 2–3 hours
Installation Notes:
Important Notes:
Important: Installation requires working with transmission fluid lines. If not comfortable with this type of work, professional installation is recommended. Detailed installation guide included with kit.
Maintenance Schedule:
💡 Pro Tip: The Arctic Black powder-coated finish is tough, but if you frequently drive in mud, water, or soft sand, occasionally rinse the cooler core with a gentle stream to prevent debris buildup. This ensures maximum airflow and cooling efficiency—especially important for desert crossings and beach driving where dust and sand accumulate quickly.
Q: Will this void my Toyota warranty?
A: No. Aftermarket transmission coolers don't void warranty under Australian Consumer Law. They're a common upgrade for vehicles used for towing or heavy-duty work.
Q: Do I really need a transmission cooler on my 200 Series?
A: If you tow caravans, boats, or trailers, drive in soft sand, tackle desert crossings, or drive in hot climates—absolutely. The 200 Series is built for serious work, and a transmission cooler is essential protection for that work. It's cheap insurance for an expensive component.
Q: How much cooler will my transmission run?
A: This cooler can drop ATF temperatures by up to 33°C under heavy load. This dramatic reduction keeps your transmission well below the critical 93°C threshold and dramatically extends gearbox life.
Q: What happens at 93°C?
A: Above 93°C, automatic transmission fluid degrades rapidly—oxidation accelerates, seals harden and fail, clutches slip and wear, and expensive damage occurs. This cooler prevents these problems by keeping temps in the safe zone.
Q: How does an 11°C drop extend service life?
A: For every 10°C reduction in ATF temperature, service life approximately doubles. An 11°C drop can dramatically extend the life of your ATF, seals, clutches, and entire transmission. This cooler delivers up to 33°C reduction—potentially tripling transmission lifespan.
Q: Do I need to add extra ATF?
A: Yes — a small top-up is required to account for the cooler and hose volume (typically 0.5-1L). After installation, check ATF level hot, in Park, after cycling through all gears. Top up to the correct level on the dipstick.
Q: Can I install this myself?
A: If you're mechanically competent and comfortable working with transmission lines, yes. The kit is OEM-style fitment with 200 Series-specific brackets. Most DIYers complete installation in 2-3 hours. Otherwise, any qualified mechanic can handle it.
Q: What makes plate and fin coolers better than tube and fin?
A: Plate and fin design has up to 50% more surface area for heat transfer in the same size package. This means better cooling efficiency in a more compact unit—critical for the 200 Series' engine bay.
Q: What are internal turbulators?
A: Turbulators are internal baffles that create turbulent flow through the cooler core. This increases heat transfer efficiency by preventing laminar flow—meaning better cooling performance from the same size cooler.
Q: Why is 150 PSI pressure testing important?
A: Transmission systems operate at high pressures, especially under load. A 150 PSI pressure test ensures no leaks under normal or extreme operating conditions. Quality construction means reliability you can trust—critical when you're 500km from help.
Q: What's the Arctic Black finish?
A: The Arctic Black powder-coated finish provides excellent corrosion resistance—especially important for serious touring in Australian conditions with mud, water, salt, and harsh weather. It also looks professional and resists rock chips.
Q: Will this fit with my bull bar or accessories?
A: Generally yes. The kit is designed to work with most aftermarket accessories. Ensure proper airflow and avoid hose kinks during installation. The compact 32mm design helps with fitment.
Q: What prevents limp mode and heat-soak?
A: When transmission temps get too high, modern automatics enter "limp mode" to protect themselves—limiting power and speed. Heat-soak occurs when ATF can't cool between gear changes. By keeping temps in the safe zone, this cooler prevents both problems.
Q: Is this suitable for towing heavy caravans?
A: Absolutely essential. The 200 Series is a serious towing machine, and heavy caravans generate massive transmission heat. If you regularly tow at or near your 200's capacity (3500kg braked), a transmission cooler is mandatory protection.
Q: What about desert crossings and soft sand?
A: Perfect for serious outback work. Soft sand driving and desert crossings are some of the hardest workouts for transmissions—constant slip, high loads, and extreme ambient temperatures. This cooler is essential protection for serious touring.
Q: Will this help with shift quality?
A: Yes! The 200 Series' automatic transmission shifts better when ATF is in the optimal temperature range. Overheated fluid affects shift quality and feel. A transmission cooler helps maintain smooth, consistent shifts, especially under load.
Q: Does this work with both manual and automatic transmissions?
A: This kit is designed for automatic transmissions (which have fluid cooling systems). Manual transmissions don't typically use fluid coolers. The 200 Series came with a 6-speed automatic transmission with the V8.
Q: What's included in the 3-year warranty?
A: The cooler comes with a 3-year manufacturer warranty covering defects in materials and workmanship. Conditions apply—see included documentation for full warranty terms.
Q: Is this kit built for Aussie conditions?
A: Yes! Direction-Plus™ engineering means this kit is specifically designed for Australian conditions—extreme heat, dust, corrugations, towing, and serious outback touring. Built for the way Aussies actually use their 200 Series.
Protect Your 200 Series Transmission
Protect your 200's biggest asset — stop heat damage before it starts
Essential for towing caravans, desert crossings, and serious touring
