Fortuner 1GD Post Filter and Catch Can Kit - PFPV628DPC

• Toyota Fortuner, 1GD-FTV 2.8L 4-cylinder: 2016 to 2025

Direction Plus also lists this kit for the Toyota Hilux 1GD-FTV 2.8L (2016 to 2024) and 2GD-FTV 2.4L (2018 to 2024). Hilux owners: see the Hilux N80 listing.

Exclusions (per Direction Plus): not for 48V mild hybrid V-Active versions. On the Hilux 1GD, not compatible with the factory dual battery tray fitted after late 2024, or with battery trays that have accessories mounted to the side of the battery.

Fitment per Direction Plus as of October 2026. Check the fitment guide or send us your VIN if unsure.

The factory filter does the bulk work. The Fuel Manager post-filter is the second, finer stage after it, catching the fine particles and traces of water that get through before they reach the pump and injectors.

• Particle removal down to 2 micron (nominal). Direction Plus notes some post-filter kits use 5 micron assemblies to meet fuel flow requirements.
• Clear water drainage bowl: see what it has caught and drain it in seconds.
• No filter bypass: only filtered fuel gets to the injectors.
• Sits after the factory filter, between the factory filter and the engine.

Crankcase blow-by carries oil mist straight back into the intake. Mixed with EGR soot it turns into the sludge that chokes manifolds and coats the intercooler. The ProVent separates the oil out before the air goes back in.

• Up to 98% oil separation: keeps oily vapour out of the intake.
• Protects the turbo, intercooler, intake and sensors from oil mist and soot build-up.
• Regulates crankcase pressure.
• Collected oil drains from the can, or can be returned to the sump. Direction Plus notes the reduced oil consumption benefit only applies where oil is returned to the sump.

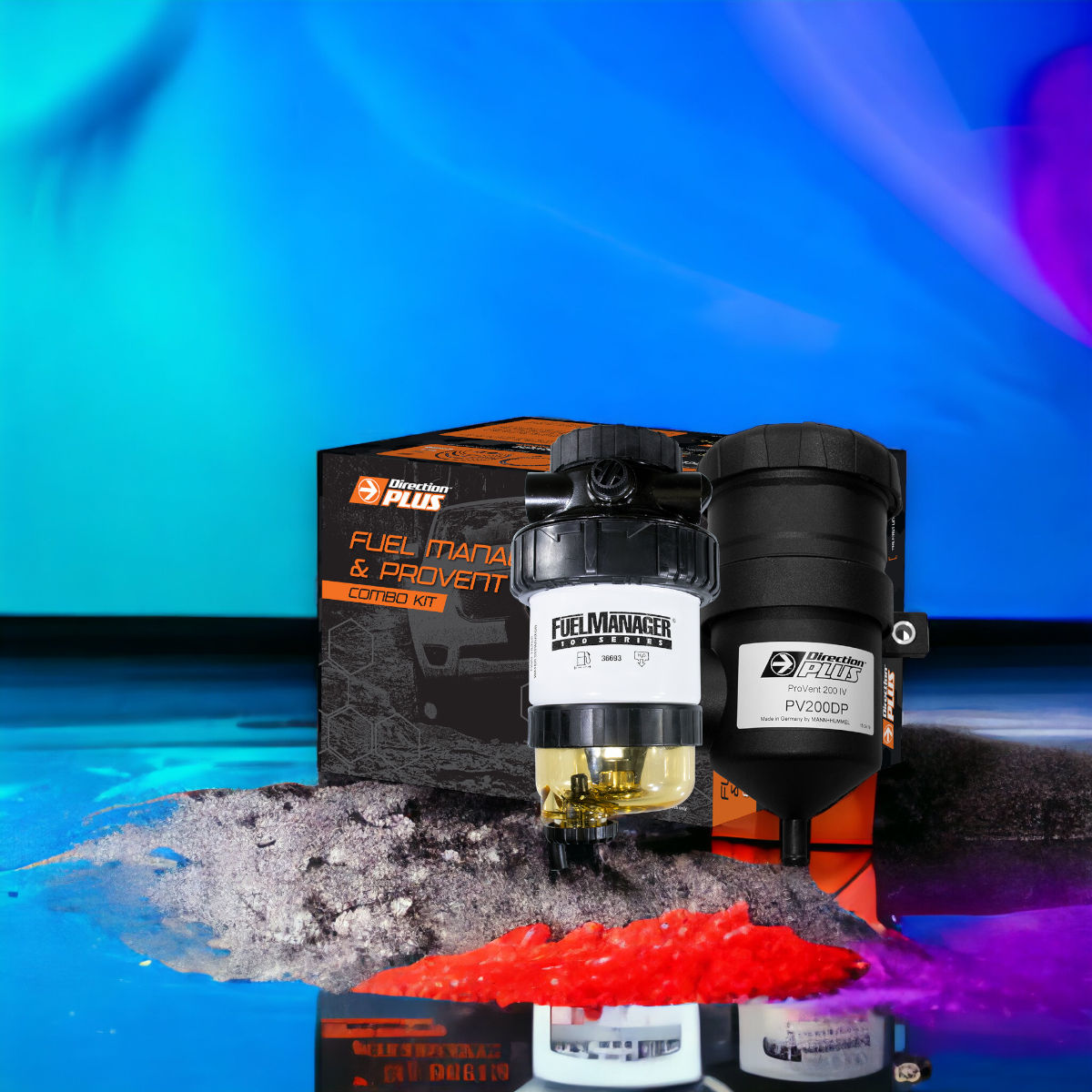

• Fuel Manager post-filter kit with clear water drainage bowl
• ProVent Ultimate catch can kit
• Vehicle-specific mounting brackets and hardware for both

Not included: a pre-filter, or spare replacement elements. Those are sold separately.

• Both systems mount in the engine bay with vehicle-specific brackets. Fit them together or one at a time.
• Post-filter goes after the factory fuel filter. You are working on diesel fuel lines: prime the system after fitting and check every joint for weeps at idle before driving. If that is outside your comfort zone, get a workshop to fit it.
• Catch can plumbs into the crankcase breather line. Route hoses clear of heat and secure them.
• Service: drain the fuel bowl when water shows and change the element on your service schedule. Drain the catch can regularly and replace its element when due.

Only after the fuel side? The PF628DPK Fuel Manager post-filter kit is the same post-filter on its own.

• Free express shipping Australia-wide, tracking number sent as soon as it is on its way.
• Afterpay, Humm, Klarna and Zip available at checkout, plus all major cards and PayPal.
• Returns, change of mind and warranty claims are handled under our refund policy.

Does it fit the V-Active 48V models?
No. Direction Plus excludes the 48V mild hybrid V-Active versions from this kit.

Does it fit the Hilux as well?
Yes. Direction Plus lists the same kit for the Hilux 1GD-FTV 2016 to 2024 and 2GD-FTV 2018 to 2024, with the exclusions listed in the fitment section.

Do I need both?
They protect different things. The post-filter protects the pump and injectors from fine particles and water. The catch can protects the intake, turbo and EGR side from oil mist.

Can the ProVent return oil to the sump?
Yes. Direction Plus offers the option to return separated oil to the sump instead of draining it from the can.

How do I confirm it fits my vehicle?
Check the Direction Plus fitment guide linked above, or send us your VIN before ordering and we will confirm.
