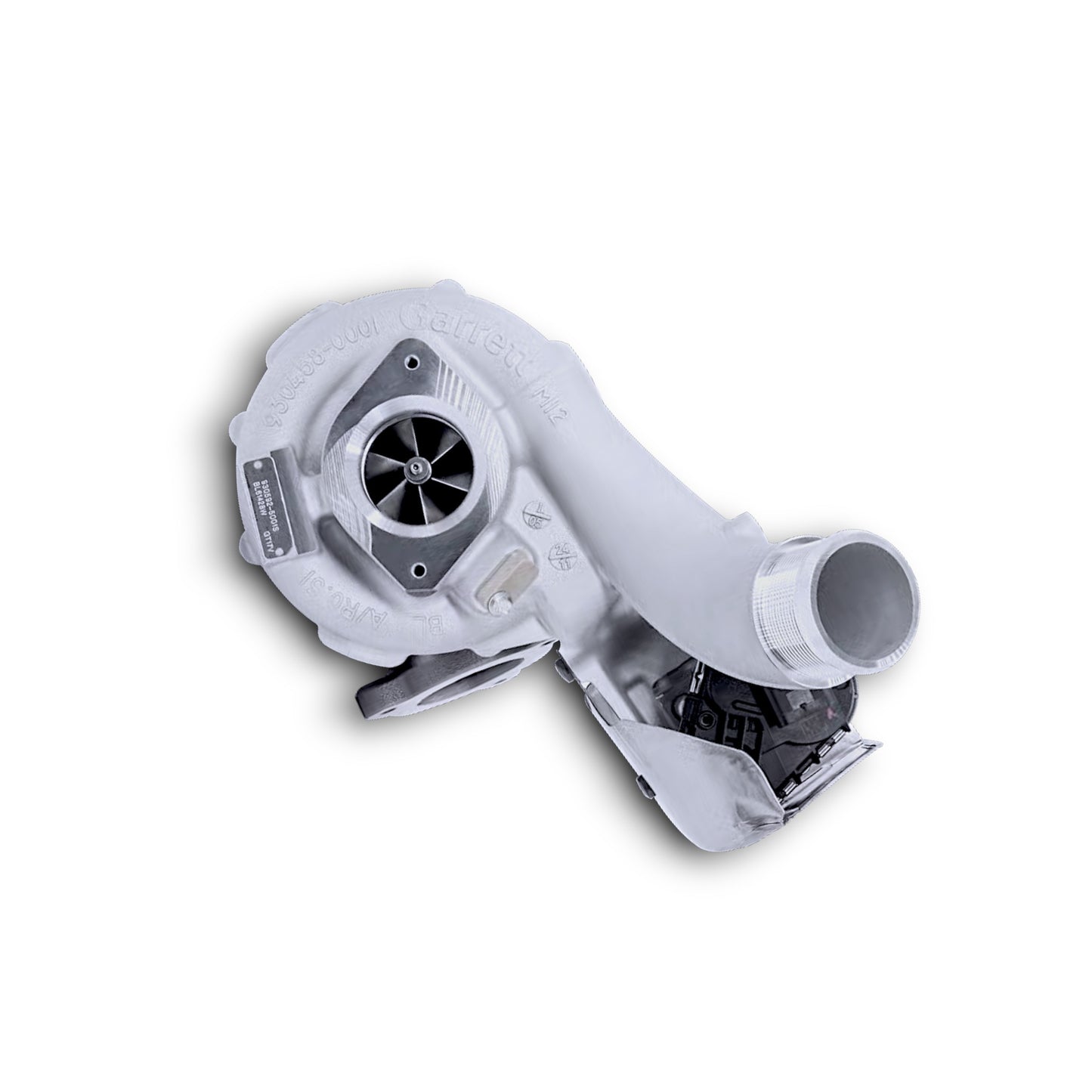

Garrett PowerMax Next-Gen Turbo - Ford Ranger 3.0L V6 (2022-On)
Garrett PowerMax Next-Gen Turbo - Ford Ranger 3.0L V6 (2022-On)
Taxes excluded. Shipping calculated at checkout.
Complete the install
Couldn't load pickup availability
GTD2060V | Direct-Fit PowerMax Upgrade | Calibrated Electronic Actuator | 930592-5001S
The Garrett PowerMax Next-Gen turbo is a direct-fit upgrade for the RA Ford Ranger 3.0L V6 Lion TDI (2022 on). It installs exactly like the factory turbo and delivers a meaningful increase in airflow and power without compromising drivability or reliability.
Supplied as a complete, fully assembled unit with a factory-calibrated electronic actuator. Bolts straight on using OEM locations, sensors and connections. No fabrication. Factory ECU compatible.
Power and Boost
- Tested output: 292hp (218kW)
- Approximately 20% gain over the factory 244hp
- +27% compressor flow versus the OE turbo
- Validated on a completely stock vehicle
- No tuning required to operate correctly
Testing was completed using a stock intercooler, stock downpipe, factory airbox and standard ECU calibration. Tuning may further optimise performance if desired.
What Is Included
- Garrett PowerMax GTD2060V turbocharger (930592-5001S)
- Pre-calibrated electronic actuator, fitted
- All required ancillary components for OEM installation
Supplied as a complete ready-to-install assembly. No actuator setup, calibration or additional hardware required.
Vehicle Fitment
- Ford Ranger 3.0L V6 BF2S TDI
- Model years: 2022 on (Next-Gen / GEN5)
- OEM replacement: MB3Q-6K682-AB
- Garrett reference: 903552-0002 / 903552-5002S
Direct bolt-on replacement. Retains factory exhaust, intake, oil and coolant connections.
Turbocharger Engineering
- Modernised compressor wheel aero for improved efficiency
- Turbine wheel manufactured from Inconel 713C
- Turbine wheel temperature rating up to 950 degrees C
- Ductile iron turbine housing rated to 830 degrees C
- Fully machined speed sensor port for OE-level control
Shipping and Payment
- Free express shipping Australia-wide, fast dispatch with tracking
- Afterpay, Humm, Klarna and Zip available at checkout
- Warranty and returns terms are on our refund policy page
Frequently Asked Questions
Is this a true bolt-on replacement?
Yes. It is engineered as a direct OEM-style replacement and installs using factory mounting points, sensors and connections.
Do I need tuning to run this turbo?
No tuning is required for operation. The turbo has been validated on a stock ECU, though tuning may further optimise performance if desired.
Is the actuator pre-calibrated?
Yes. The electronic actuator is factory calibrated and supplied already installed.
What type of driving is this suited for?
Daily driving, towing, touring and off-road use where improved response and reliability are wanted without sacrificing OEM behaviour.
218kW On a Stock Truck. No Tune. Bolt It On.
Garrett PowerMax GTD2060V for the Next-Gen Ranger 3.0L V6. Complete assembly, calibrated actuator, free express shipping Australia-wide.
