GCG TDX Stage 3 Turbo Upgrade – Ball Bearing GTA23 Replacement for 1VD-FTV LandCruiser 79 Series

GCG TDX Stage 3 Turbo Upgrade – Ball Bearing GTA23 Replacement for 1VD-FTV LandCruiser 79 Series

$7,114.00 NZD
$7,114.00 NZD
Sale Sold out

Taxes excluded. Shipping calculated at checkout.

Usually ships within 1–2 weeks

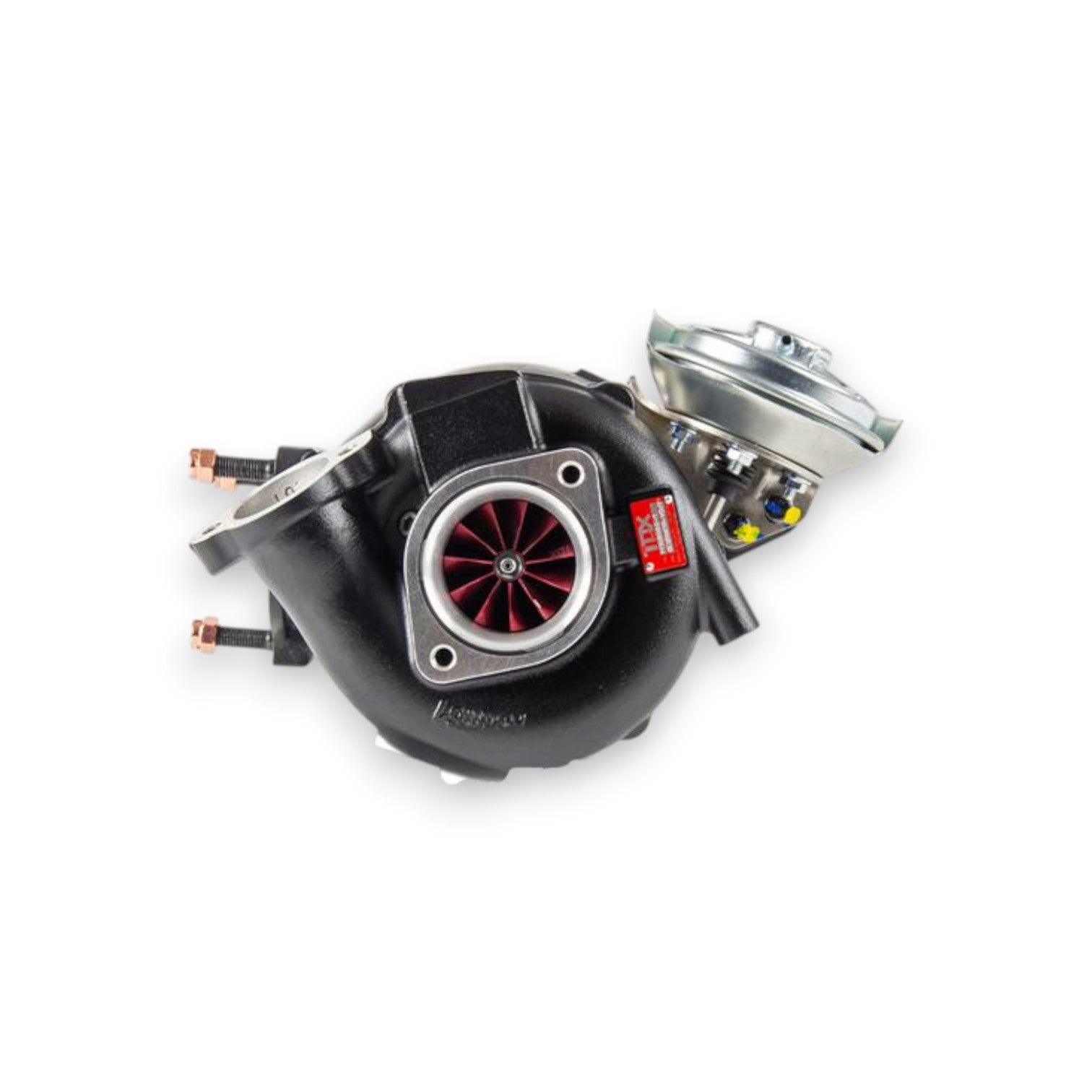

GCG5867R Ball Bearing Turbocharger – Toyota LandCruiser 1VD-FTV

(70 Series, 2007-on)

Direct-fit performance turbo for the 4.5L 1VD-FTV V8. Billet TDX wheel, T51R surge slot housing, dual ceramic bearings, and 0.72 A/R turbine for up to +50% airflow vs OEM. Built for serious horsepower and rapid response.

🏆 Best Seller 🛠️ Direct Replacement
🚚 Fast Dispatch from Australia (orders before 1pm AEST) 🛡️ 2-Year Manufacturer Warranty & CRC Support ✅ Tuning Required • Off-road use only
Heads-up: This turbo supports 160,000 rpm compressor speed and up to 40+ psi. We recommend adding a Garrett-style screw-in speed sensor for safer, more precise tuning.

Why Upgrade to the GCG5867R

  • Dual 8 mm ceramic ball bearings – reduced friction, faster spool, stronger transient response (~500 rpm earlier).
  • 6061-T6 billet TDX compressor wheel (11+0) – 67/50 mm vs OEM 59.45/44.5 mm; up to +50% flow.
  • T51R surge-slot compressor housing – iconic sound + anti-surge response.
  • Stainless redesigned VNT with custom blade tech – smoother actuation & stability under heat/pressure.
  • 0.72 A/R turbine housing (vs 0.64 factory) – lowers back-pressure & EGTs, reduces overspeed risk.
  • 58/54 mm turbine wheel, 9+0 blade Inconel 600 – strength & durability at high tune loads.
  • Pre-drilled speed sensor port – Garrett screw-in compatible.
  • Gasket/Fitting kit included • JLM Turbo Pre Lube 20ml • 2-Year Warranty

Technical Specs

Compressor Wheel Billet TDX 11+0, 67/50 mm (OEM 59.45/44.5 mm)
Compressor Housing T51R surge-slot intake
Bearing System Dual ceramic ball bearing, 8 mm
Turbine Housing A/R 0.72 (factory 0.64), ceramic coated
Turbine Wheel 58/54 mm, 9+0 Inconel 600
Max Compressor Speed 160,000 rpm
Supported Boost 40+ psi
Speed Sensor Pre-drilled (Garrett screw-in type)

Fitment

  • Engine: Toyota 1VD-FTV (4.5L V8 Diesel)
  • Vehicle: LandCruiser VDJ79 / VDJ78 (2007-on)
  • Direct Replacement For: Garrett GTA23V (G842127-5001S)
  • OEM PNs: 17201-51011 / 51010 series
  • Turbo PN: GCG5867R-VDJ79

Recommended Supporting Mods

  • Upgraded intercooler (HPD / FMIC)
  • High-flow exhaust system
  • Snorkel + performance airbox
  • Oil catch can
  • Heavy-duty clutch
  • +30% or larger high-flow injectors
  • Professional ECU tune (required)
⚠️ Off-road / Motorsport use only. Check local laws before road use. Professional installation & tuning strongly recommended.
