Gu Patrol Pre-Filter - Preline-Plus Kit - PL626DPK
Gu Patrol Pre-Filter - Preline-Plus Kit - PL626DPK
Taxes excluded. Shipping calculated at checkout.
Complete the install
Couldn't load pickup availability
Nissan Patrol GU ZD30DDTi 3.0L | In-Cab Water Alarm | 2006 to 2018
The PreLine-Plus system sits ahead of the factory fuel filter and strips water and particles out before they reach the pump and injectors. It tells you when it finds water instead of waiting for you to check. Built for bad fuel and hard conditions.
The PL626DPK is the vehicle-specific kit for the common rail ZD30 GU Patrol.

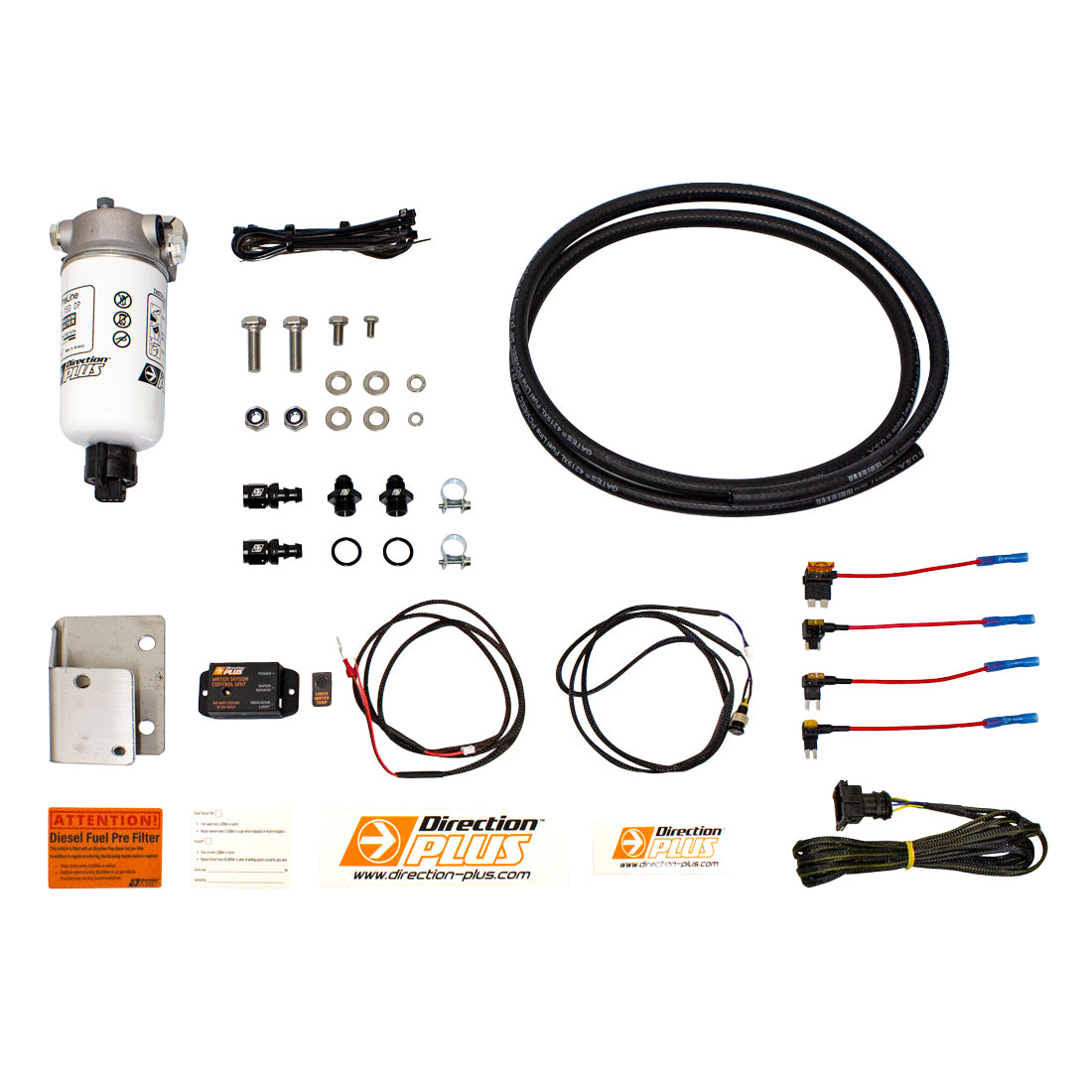

What Is Included

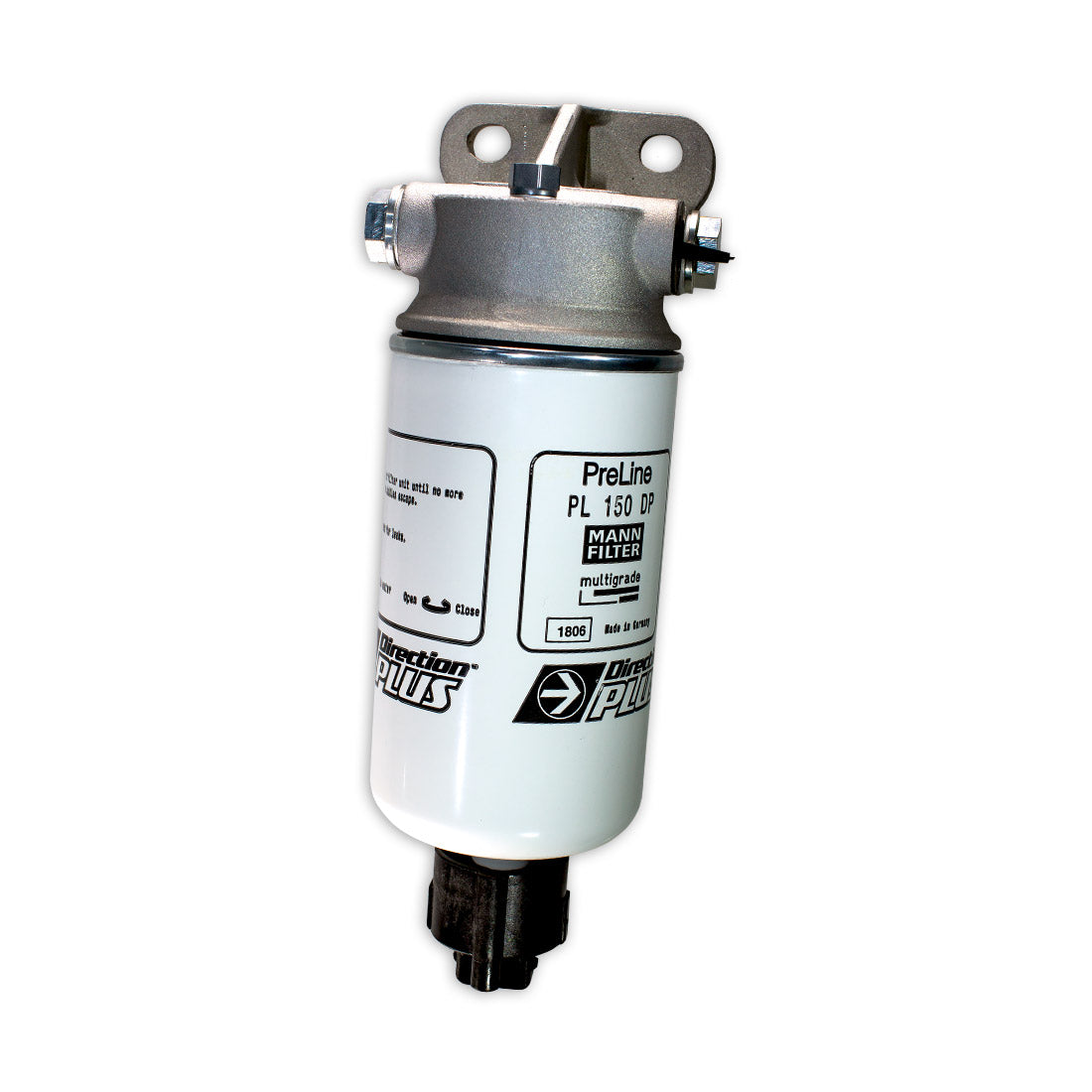

- PreLine-Plus filter head with integrated water sensor and spin-on element
- Vehicle-specific mounting bracket and hardware
- Fuel hose, fittings and clamps

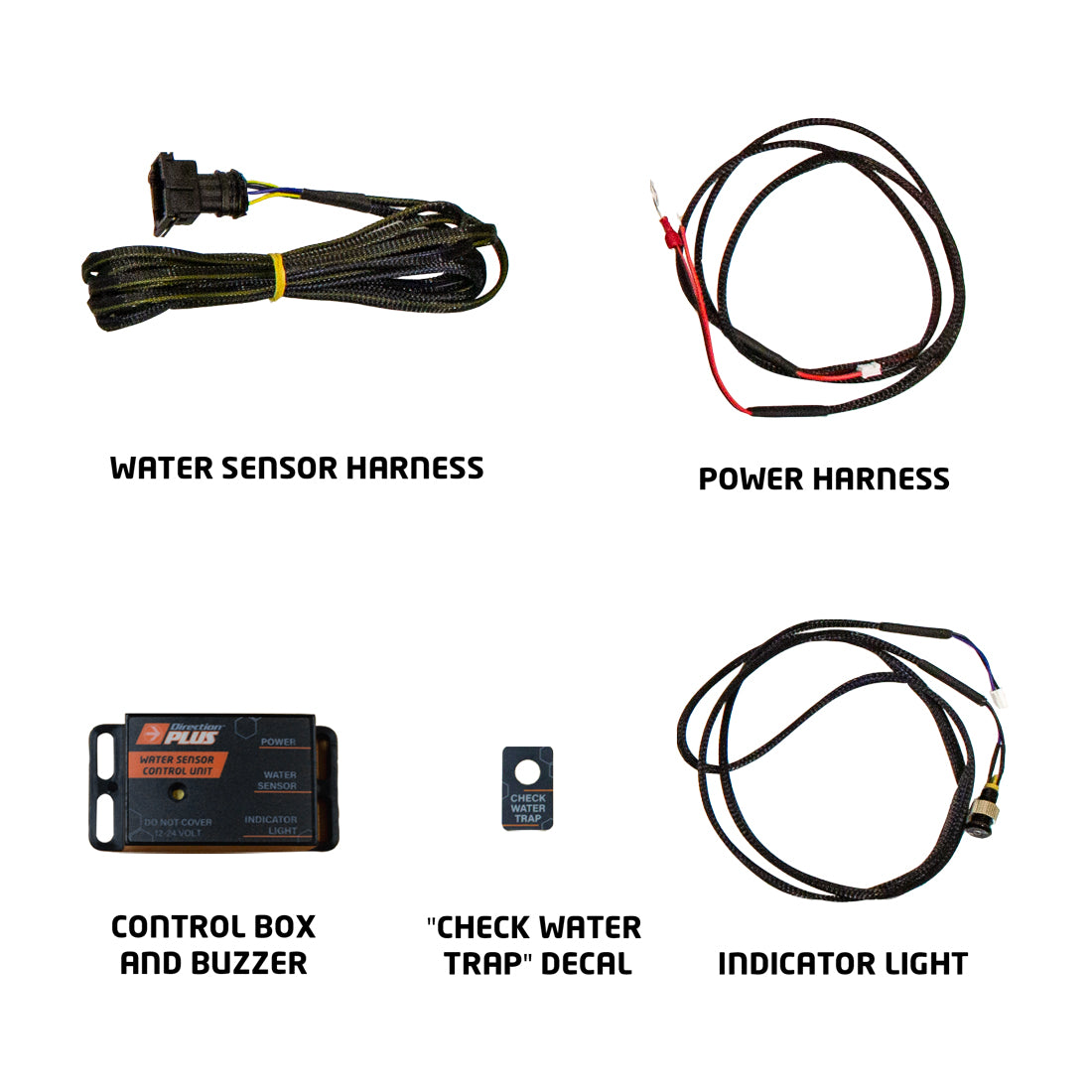

- In-cab multi-stage water alarm kit (loom, LED and buzzer)
- Installation instructions
Kit contents are set by Direction Plus and may change with component availability or refinement.
Key Features
- 100% water separation efficiency (Direction Plus figure, based on 150 to 300 micron droplet size)
- 98% particle separation (based on 30 micron particles)

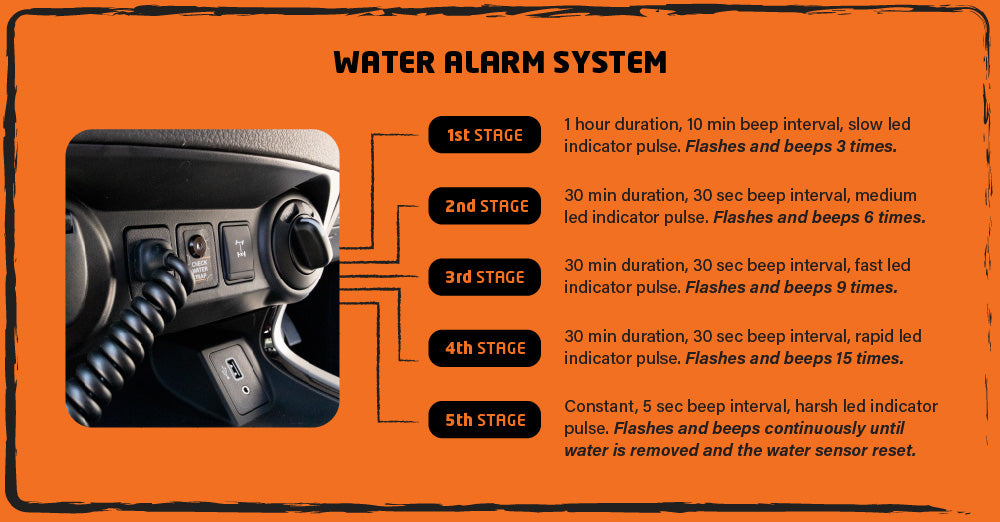

- Remote multi-stage in-cab water alert, visual and audible. No manual bowl checks.
- Spin-on element for quick, clean servicing
- Built for poor fuel quality, towing, touring and remote refuelling
- Ships with the PreLine-Plus 150 element
Vehicle Fitment
- Nissan Patrol GU ZD30DDTi 3.0L 4cyl, 2006 to 2018
Fitment per Direction Plus as of October 2026. Check the fitment guide or send us your VIN if unsure.
Fitting Notes
- Installs between the fuel tank and the factory fuel filter.
- Installation by a competent person is recommended. Direction Plus publishes an installation guide for this kit.
- Prime the system and check for leaks before driving.
Servicing
- Replace the element every 40,000 km or as per your vehicle's service schedule, whichever comes first. Replacement part: PreLine-Plus 150 element.
- When the in-cab alarm activates, drain the collected water through the drain tap. If there is a lot of water, look hard at your fuel source.
- Prime the system after an element change and check all connections for leaks before driving.
Shipping and Payment
- Free express shipping Australia-wide.
- Afterpay, Humm, Klarna and Zip available at checkout.
- Returns and warranty are handled under our refund policy.
Frequently Asked Questions
Q: Does this replace the factory fuel filter?
A: No. It installs between the tank and the factory filter as a first stage. Water and large particles are caught before the factory filter, which then does the final polishing.
Q: What happens when the alarm goes off?
A: Stop when it is safe, open the drain tap at the base of the filter and drain the water. If a lot comes out, inspect your fuel source before carrying on.
Q: What is the difference between PreLine-Plus and the Fuel Manager or Ryco kits?
A: PreLine-Plus is the higher-spec Direction Plus system: 100% water separation efficiency and a multi-stage in-cab alarm as standard. Message us if you want a straight comparison for your Patrol.
Q: How do I confirm it fits my vehicle?
A: Check the Direction Plus fitment guide or send us your VIN and we will confirm before you order.
100% Water Separation, With an Alarm
Direction Plus PreLine-Plus PL626DPK for the GU Patrol ZD30. Multi-stage water alert included. Free express shipping Australia-wide.
