GU Patrol Preline-Plus Pre-Filter + ProVent Catch Can Kit - PLPV626DPC

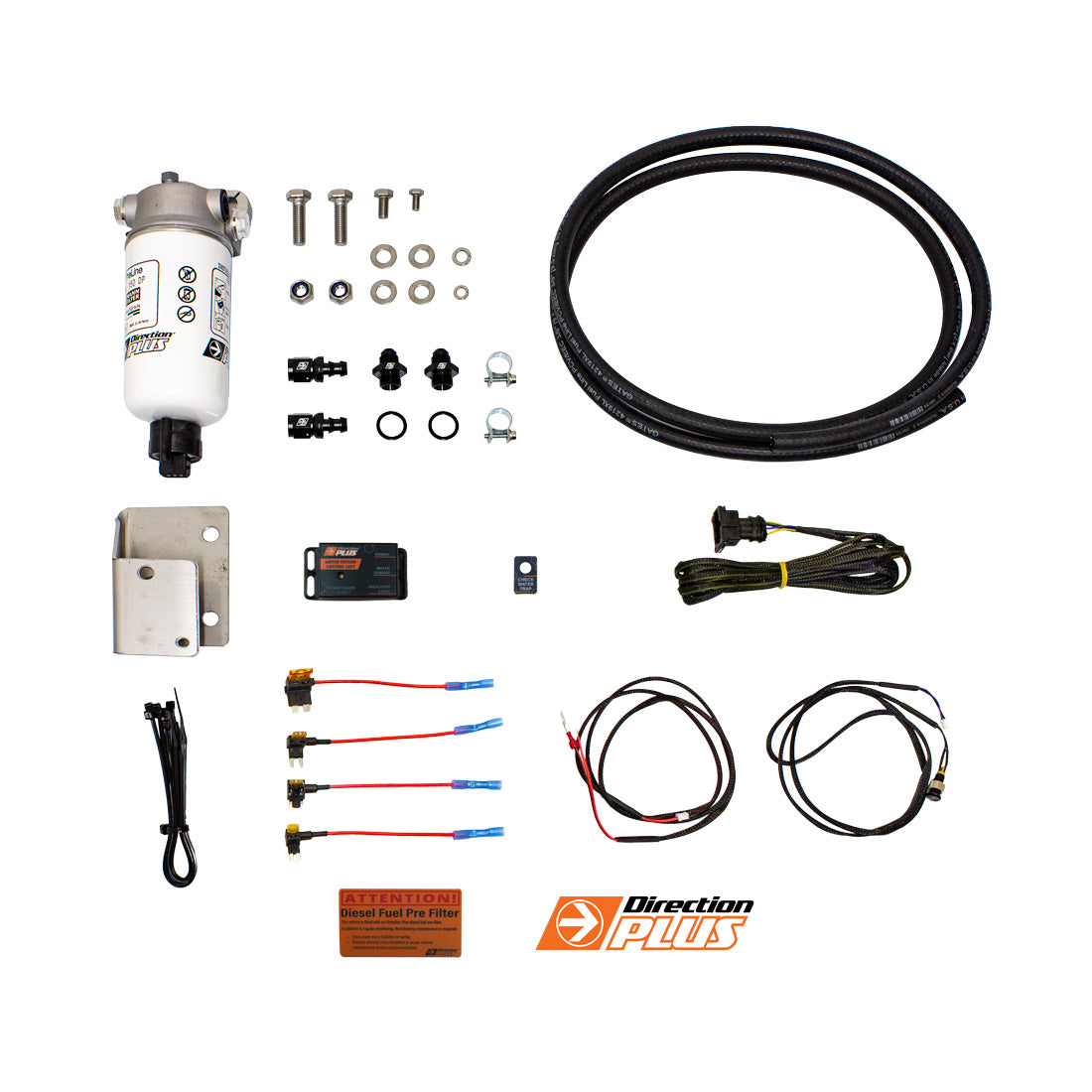

PreLine-Plus Pre-Filter Kit

• PreLine-Plus pre-filter assembly with spin-on filter
• Multi-stage in-cab water alarm module (visual and audible) with wiring harness
• Patrol GU ZD30-specific mounting bracket
• Fuel line and fitting kit, hose clamps and connectors
• Mounting hardware and installation guide

ProVent Ultimate Catch Can Kit

• MANN+HUMMEL ProVent catch can
• Patrol GU ZD30-specific mounting bracket
• Hose and fitting kit
• Drain tap assembly with hose
• Optional sump return line components
• Mounting hardware, spring clamps and cable ties, installation guide

Mounts between the tank and the factory filter. The in-cab alarm tells you when water is in the fuel, so there is no manual checking.

• 100% water separation efficiency (Direction Plus figure, based on 150 micron droplet size).
• 98% particle separation (based on 30 micron particles).
• Remote multi-stage water alert, visual and audible, in the cab.
• Spin-on filter element for quick changes.
• No bypass, so contaminated fuel does not get through to the injectors.

Separates oil mist and blow-by gas before it enters the intake, protecting the turbo, intercooler and intake manifold from oil and carbon build-up.

• 98% oil separation efficiency.
• MANN+HUMMEL media, drain tap for oil collection.
• Optional return line to the sump.
• Regulates crankcase pressure.
• Reduces oil consumption where the oil is returned to the sump.
• Reduces exhaust smoke.

• Nissan Patrol GU, ZD30DDTi 3.0L 4-cylinder turbo diesel, 2006 to 2018

Not suitable for Ti models with ABS. Brake and fuel lines may inhibit installation. Check that the ABS piping does not interfere before ordering.

Fitment per Direction Plus as of October 2026. Check the fitment guide or send us your VIN if unsure.

• We recommend a competent mechanic. Allow around 4 to 5 hours for both systems.
• PreLine-Plus mounts in the engine bay between the tank and the factory filter. The alarm module mounts in the cab (dash or A-pillar) and is wired in for the visual and audible alert.
• ProVent mounts in the engine bay and connects to the crankcase ventilation. The drain tap is routed for easy access and the sump return line is optional.
• Ti models with ABS: check clearances around the brake and fuel line routing before you start.
• The two systems can be fitted together or separately.

• PreLine-Plus: drain when the water alarm sounds. Replace the spin-on element at your vehicle service interval.
• ProVent: check the oil level every 5,000 to 10,000 km and drain through the tap as needed. Replace the element every 40,000 km. With the sump return line fitted, oil recirculates automatically.

• Free express shipping Australia-wide.
• Pay in full or split it with Afterpay, Humm, Klarna or Zip at checkout.
• Tracking is sent as soon as the kit is on its way.
• Returns and warranty are handled under our refund policy.

Q: Why is it not suitable for Ti models with ABS?
A: On Ti models with ABS, the brake and fuel line routing can obstruct the pre-filter mounting location. Check clearances or ask your installer before ordering.

Q: How often do I need to drain water?
A: When the alarm sounds. Frequency depends on fuel quality, especially if you fuel at remote stations.

Q: Is the water alarm included?
A: Yes. The multi-stage in-cab water alarm comes with the PreLine-Plus kit and gives a visual and audible alert when water is detected.

Q: How does the PreLine-Plus differ from the Fuel Manager?
A: The PreLine-Plus is rated at 100% water separation (Fuel Manager: 95%), includes the in-cab water alarm and uses a spin-on element for faster servicing.

Q: Can I install it myself?
A: If you are competent with fuel lines and basic wiring, yes. Allow 4 to 5 hours. Otherwise any qualified mechanic can fit it. Installation guides are included.

Q: Does the ProVent return oil to the sump automatically?
A: Your choice. Run it as a catch can and drain it periodically, or fit the included sump return components to send the oil back to the sump.

Q: Do I need both systems?
A: They protect different things. The pre-filter keeps water and dirt out of the fuel system, the catch can keeps oil and soot out of the intake. Either can be bought separately, the combo gets you both in one order.
