• Toyota Hilux N70 – 1KD-FTV 3.0L 4-Cylinder Turbo Diesel | 2011–2015

⚠️ VSC Models ONLY: This kit fits vehicles with the updated master cylinder (equipped with Vehicle Stability Control). Non-VSC models are not compatible.

How It Works: Installs between fuel tank and factory filter to remove water and particle contamination before it reaches your injection system.

Key Features:

• 95% water separation — superior particle removal
• Separates emulsified water from ULSD
• Clear drainage bowl — easily identify collected water
• No filter bypass — contaminated fuel never reaches engine
• Protects against corrosion and abrasive wear

How It Works: Separates and redirects oil and air from blow-by gas produced in the crankcase, with option to return oil to sump.

Key Features:

• 98% oil separation efficiency
• Prevents oil and soot entering clean air intake
• Excellent turbocharger protection
• Minimizes oil consumption
• Prevents oil buildup in intercooler
• Regulates crankcase pressure
• Reduces exhaust smoke and odours

Fuel Manager Pre-Filter:

• Water Separation: 95% efficiency
• Clear bowl design for visual inspection
• No bypass valve — full filtration always active
• Service interval: Per vehicle schedule or as needed

ProVent Catch Can:

• Oil Separation: 98% efficiency
• MANN+HUMMEL filtration media
• Drain tap for oil collection
• Service interval: Check every 5,000–10,000 km

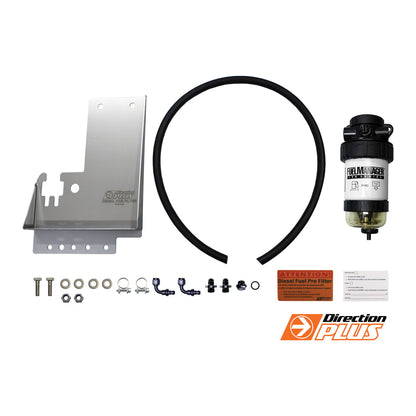

Fuel Manager Pre-Filter Kit:

• Fuel Manager filter assembly with clear bowl
• N70-specific mounting bracket
• Complete fuel line and fitting kit
• Mounting hardware

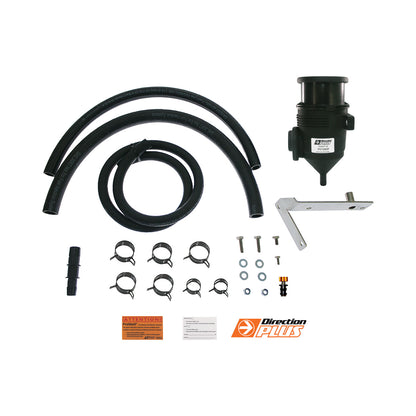

ProVent Ultimate Catch Can Kit:

• MANN+HUMMEL ProVent 200 catch can
• Vehicle-specific mounting bracket
• Complete hose and fitting kit
• Drain tap assembly with hose
• Mounting hardware and cable ties

Installation:

• Detailed installation guides for both systems

Recommended: Competent qualified mechanic

Combined DIY Time: 4–5 hours (both systems)

Installation Includes:

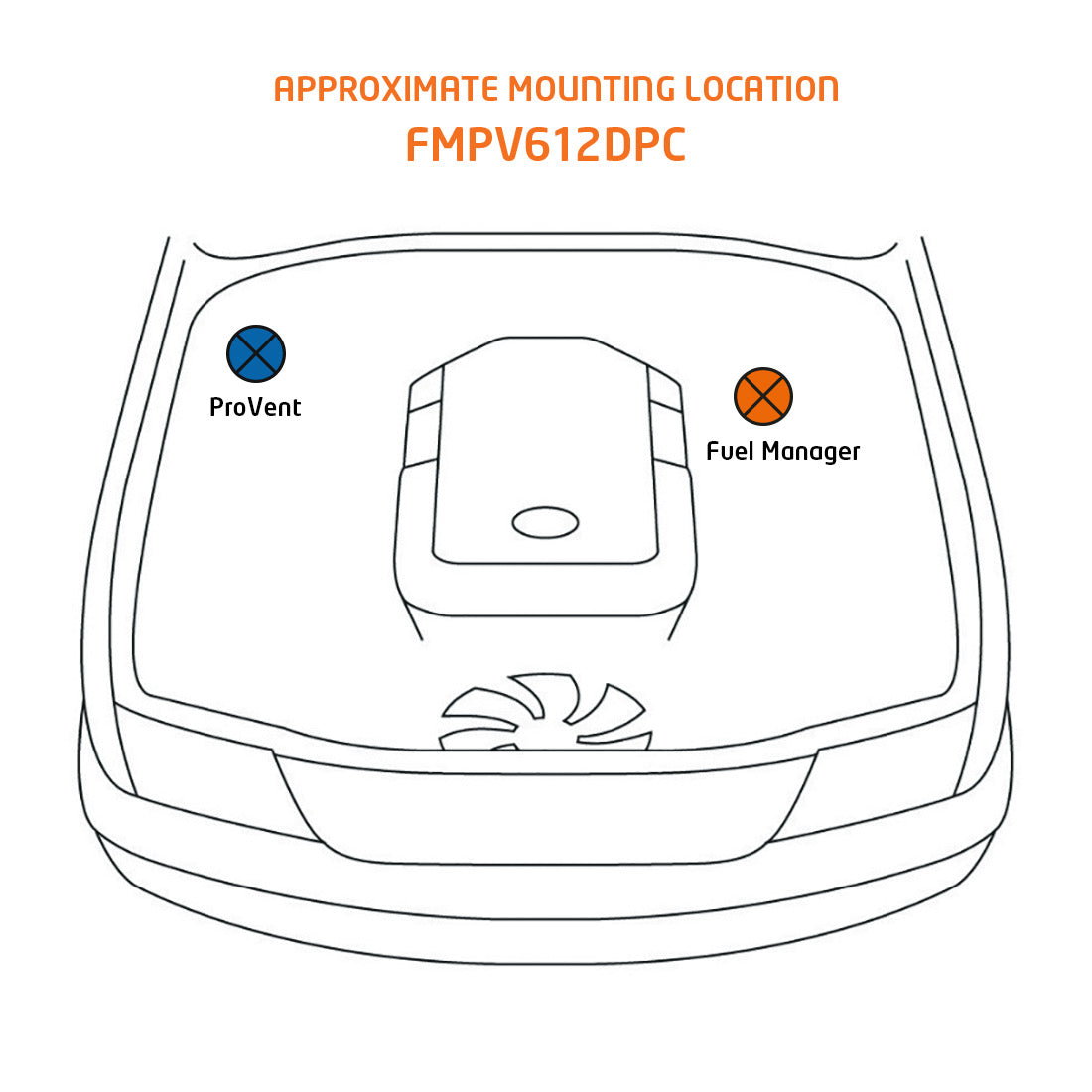

• Fuel Manager mounting and fuel line routing
• ProVent mounting and crankcase hose connections
• System testing and leak checking

Important: Both systems can be installed separately or together. Professional installation recommended for optimal performance.

Fuel Manager:

• Drain water bowl as needed (clear bowl allows visual inspection)
• Replace filter element per vehicle service schedule

ProVent Catch Can:

• Check oil level every 5,000–10,000 km
• Drain collected oil via drain tap when needed
• Replace PVE200DP element every 40,000 km (~$90)

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law.

Q: How do I know if my Hilux has VSC?

A: VSC (Vehicle Stability Control) models have a VSC button on the dashboard and an updated master cylinder. Check your owner's manual or VIN plate. This kit ONLY fits VSC-equipped models (2011-2015).

Q: Can I buy these systems separately?

A: Yes. Individual Fuel Manager and ProVent kits are available separately, but the combo kit offers better value.

Q: Why do I need both systems?

A: They protect different systems. Fuel Manager protects your fuel injection system from water/contamination. ProVent protects your intake and turbo from oil/carbon buildup. Together, they provide comprehensive engine protection.

Q: How often do I need to drain the ProVent?

A: Check every 5,000–10,000 km. Frequency depends on driving conditions and engine condition. The drain tap makes servicing quick and easy.

Q: Does the Fuel Manager have a water alarm?

A: Water alarm is available as a separate accessory (FMALARM). It provides visual/audible warning when water is detected.
