High Performance Diesel
HPD N80 Front Mount Intercooler Upgrade Kit - 2020 - On
HPD N80 Front Mount Intercooler Upgrade Kit - 2020 - On
Taxes excluded. Shipping calculated at checkout.
Complete the install
Couldn't load pickup availability
Toyota Hilux N80 and Fortuner 1GD-FTV 2.8L | 500 x 300 x 76 mm Bar and Plate Core | 63 mm Piping | Australian Made
Big cooling for the 2020-on 1GD. HPD's front mount kit replaces the thin factory core with a 500 x 300 x 76 mm bar and plate core: 56% more surface area and 98% more core volume. HPD quotes a typical result of around 6 kW at the wheels on the stock tune and around 20 degrees C lower intake temps under load.
Direct bolt-in to factory locations, no cutting, drilling or welding. Australian made. Does not fit the 2024-on 48V mild-hybrid Hilux.

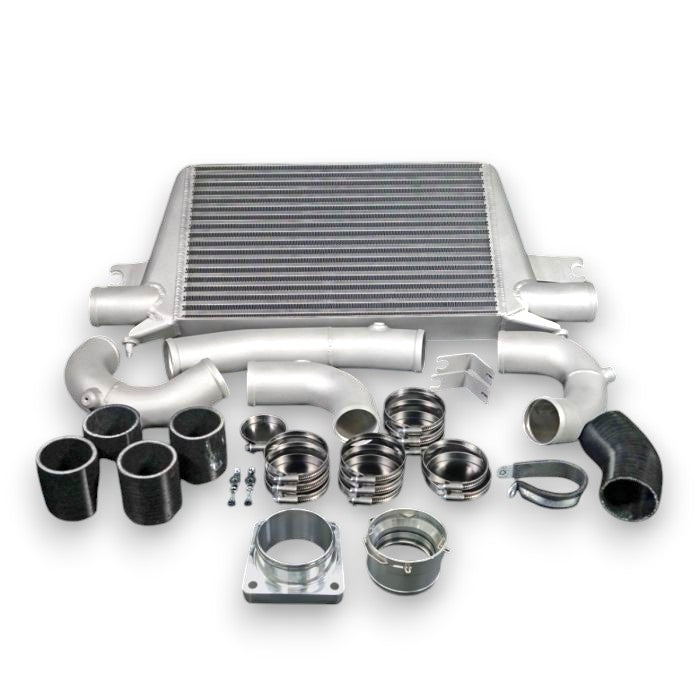

What Is Included
- HPD front mount intercooler, 500 x 300 x 76 mm bar and plate core
- Mandrel-bent 63 mm alloy piping
- CNC-machined billet sensor boss, accepts the factory IAT sensor
- Silicone hoses and German load-rated clamps
- Stainless laser-cut brackets, using the factory rubber mounts
Performance
- Around 6 kW at the wheels on the stock tune (HPD's typical result)
- Around 20 degrees C lower intake temps under load compared with the factory cooler
- Supports 200 kW plus builds with turbo, injectors and tuning
Results vary with tune, ambient temps, vehicle condition and load. Figures are supplier figures.
Factory vs HPD Core
| Spec | Factory Intercooler | HPD Intercooler |
|---|---|---|
| Core size | 640 x 150 x 60 mm | 500 x 300 x 76 mm |
| Surface area | 960 sq cm | 1500 sq cm |
| Volume | 5760 cc | 11,400 cc |
56% more surface area, 98% more core volume, improved cooling and airflow.
Vehicle Fitment
- Toyota Hilux 2.8L 4x4 1GD-FTV, 2020 on
- Toyota Fortuner 2.8L 1GD-FTV, 2020 on
Does not fit the 48V mild-hybrid Hilux (2024 on).
For 2015 to 2020 pre-facelift Hilux, see the HPD N80 2015 to 2020 intercooler kit.
Fitting Notes
- Direct bolt-in to factory locations. No cutting, drilling or welding.
- Re-torque the clamps after the initial heat cycles.
- Best results with an appropriate ECU calibration.
- The kit sits forward of the engine and is compatible with most snorkel and airbox setups. Check piping clearances on custom setups.
Shipping and Payment
Free express shipping Australia-wide with tracking. Dispatch is typically 1 to 2 weeks from order.
Afterpay, Humm, Klarna and Zip accepted at checkout. Returns and warranty are covered by our refund policy.
Frequently Asked Questions
Do I need a tune after fitting this?
Not required, but a quality tune will optimise boost and fuelling strategies to maximise the cooler's benefit.
Will it work with a snorkel and aftermarket airbox?
Yes. The kit sits forward of the engine and is compatible with most snorkel and airbox setups. Always check piping clearances on custom setups.
What power can it support?
The core and piping comfortably support 200 kW plus builds on the 1GD with suitable turbo, fuel and calibration.
Does it fit the 48V mild-hybrid Hilux?
No. This kit does not fit the 2024-on 48V mild-hybrid Hilux.
20 Degrees Cooler. Australian Made.
HPD front mount intercooler for the 2020-on N80 Hilux and Fortuner 1GD-FTV. Free express shipping Australia-wide.
Common Rail Cowboys is not affiliated with Toyota Motor Corporation. High Performance Diesel (HPD) is a trademark of its owner and is used here to identify the product. Power and temperature figures are supplier figures that depend on tune, supporting mods, fuel and conditions. Treat them as targets, not promises. Installation should be carried out by a competent person. Confirm fitment for your vehicle before ordering; fitment is the buyer's responsibility. Modifications may affect vehicle warranty and compliance.
