• Toyota LandCruiser 200 Series – 1VD-FTV 4.5L V8 Diesel
• Model Years: 2008–2022 (all variants)
• ✓ Dual battery compatible
• ✓ Works with all aftermarket exhaust systems
• ✓ Does not interfere with engine bay accessories

Your factory fuel filter does a good job — but only after water and large particles have already passed through pumps and lines. The PreLine-Plus intercepts contamination at the source:

1. First Stage: MANN+HUMMEL media separates 100% of free water (droplets 150–300 micron)
2. Second Stage: Removes 98% of particles down to 30 micron
3. Alert Stage: Integrated sensor triggers visual + audible alarm when water detected
4. Manual Priming: Built-in pump ensures easy filter changes without air locks
5. Protection: Clean fuel reaches your factory filter and injectors

Result? Your expensive common-rail components stay clean, your factory filter lasts longer, and you're warned immediately if bad fuel enters your system.

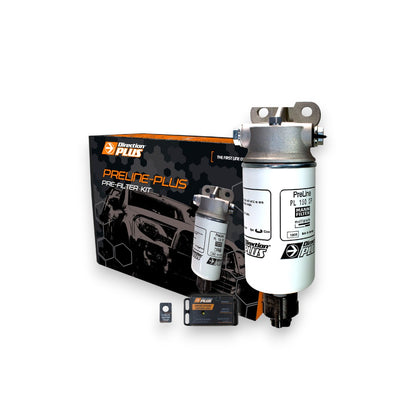

• Filter Type: MANN+HUMMEL PreLine-Plus with Multigrade High Performance media
• Water Separation: 100% efficiency (based on 300 µm droplet size)
• Particle Filtration: 98% at 30 micron
• Filter Element: Spin-on cartridge — replacement part: PLE150DP or FM615DPK
• Service Interval: Every 40,000 km or as per your vehicle's service schedule
• Flow Rate: Up to 150 L/h — exceeds OEM requirements for 1VD-FTV engine

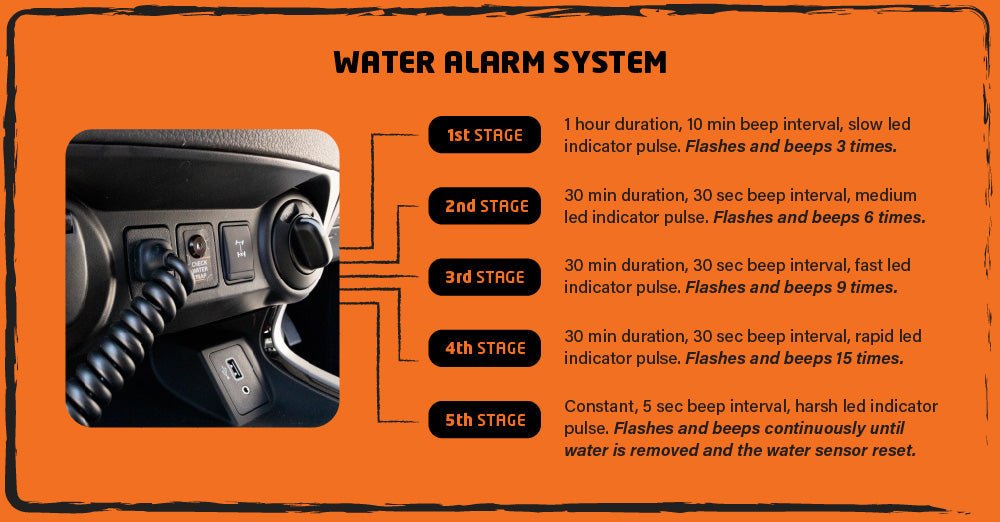

• Alert System: Multi-stage (LED indicator + audible alarm)
• Mounting Hardware: Vehicle-specific brackets (LC200PL150 + LC200PL150.1) with alloy support shaft
• Fittings: M16x1.5 to -8AN adaptors with 90° push-lock hose fittings
• Drain Tap: Integrated for easy water removal
• Priming Pump: Manual pump on filter head for easy installation and servicing

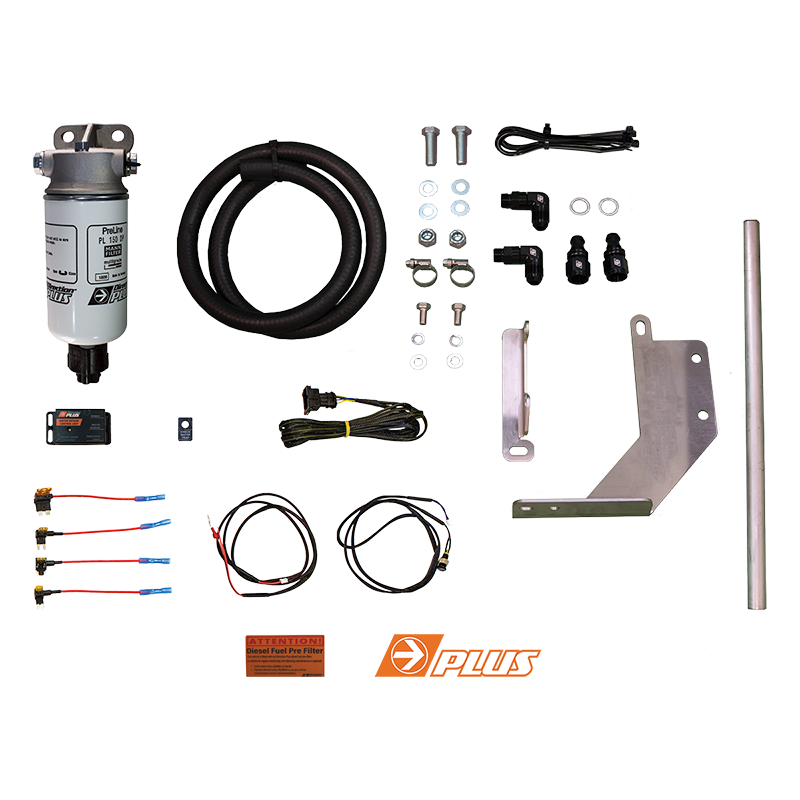

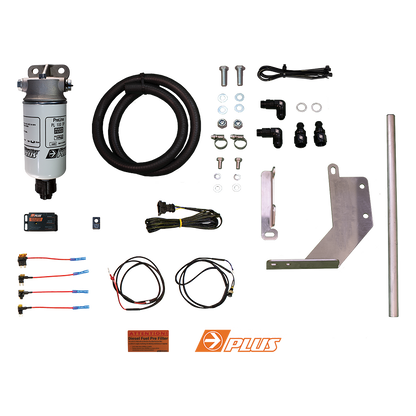

Pre-Assembled Components:

• MANN+HUMMEL PreLine-Plus pre-filter with integrated water sensor
• Pre-filled filter cartridge (saves time during installation)
• Manual priming pump (built into filter head)

Hardware Bag:

• 2 x M16x1.5 to -8AN adaptors with aluminium washers
• 2 x -8AN to ½" hose 90° push-lock fittings
• 2 x M8x16 bolts, spring washers, and flat washers
• 4 x 18-20mm stainless EFI fuel clamps
• 1 x 500mm ½" fuel hose (high-quality EFI-rated)

PreLine Mounting Kit Bag:

• 2 x vehicle-specific mounting brackets (LC200PL150 + LC200PL150.1)
• 1 x alloy support shaft
• 2 x M10x30 bolts + M10 nyloc nuts + M10 flat washers

Wiring Bag:

• Complete wiring harness with signal wire, earth lead, and add-a-fuse holder (2A mini blade fuse included)
• In-cab warning light module (LED + audible alarm)
• 10 x 100mm cable ties for neat installation

Documentation:

• Detailed installation manual with step-by-step photos

Recommended Installation: By a competent qualified mechanic

DIY-Friendly: Yes — experienced home mechanics can complete installation

Estimated Time: 2–3 hours for first-time DIY install (workshop install faster)

Tools Required:

• Socket set + spanners (standard sizes)
• 20mm hole-saw (for dashboard warning light mounting)
• Wire strippers and crimpers
• Loctite 567 or equivalent thread sealant
• Drill + 8mm bit (for alarm module)

Installation Location: Passenger-side firewall (rear of engine bay)

Key Installation Steps:

1. Mount primary bracket to firewall (reuses factory wiring harness bracket location)
2. Install secondary bracket to factory fuel filter bolts
3. Connect alloy support shaft between brackets
4. Install M16x1.5 fittings to PreLine head (with Loctite 567 + aluminium washers)
5. Mount assembled filter to brackets using supplied M10 hardware
6. Route fuel lines from tank supply to PreLine inlet, then PreLine outlet to factory filter
7. Wire in-cab alert module (signal wire via firewall grommet, earth to chassis, power to ignition fuse)
8. Mount warning light in dashboard (20mm hole — fits factory blank switch locations)
9. Prime system using manual pump until fuel reaches outlet hose
10. Complete final connections and check for leaks
11. Critical: Run vehicle for 20 minutes minimum to purge air from fuel system

Professional Install: Most diesel workshops charge $200–$350 for fitment (1.5–2 hours labour).

Important Note: Does NOT void Toyota warranty when installed correctly (complies with Australian Consumer Law).

Plus: Fuel system failures often happen in remote areas, adding towing costs ($500–$2,000+) and days of downtime. Prevention is always cheaper than repair.

Filter Replacement Interval: Every 40,000 km or as per your vehicle's service schedule (whichever comes first)

Replacement Filter Element: PLE150DP or FM615DPK (approximately $65–$85)

Water Draining:

• Check water level whenever the warning light activates
• Simply open drain tap at bottom of filter to release collected water
• If large amounts present, inspect your fuel source and consider draining tank
• No need for routine visual checks — the alarm does the work

Filter Changes:

• Simple spin-on design — no tools required for cartridge removal
• Use manual priming pump to pre-fill new filter (prevents air locks)
• Prime until fuel appears at outlet before starting engine
• Run engine 20 minutes after service to ensure no air in system

Q: Will this void my Toyota warranty?

A: No. Under Australian Consumer Law, manufacturers cannot void warranty for aftermarket parts unless they can prove that part caused the failure. The PreLine-Plus is a pre-filter (protection device) and does not modify factory components.

Q: How often do I need to replace the filter?

A: Every 40,000 km or as per your vehicle's service schedule. Replacement cartridges (PLE150DP or FM615DPK) cost approximately $65–$85. If you frequently encounter water, you may need to drain the bowl between services — but the alarm will tell you when.

Q: Will it affect fuel economy or performance?

A: No. The PreLine-Plus is designed with a flow rate up to 150 L/h, which exceeds the 1VD-FTV engine's requirements. You won't notice any difference in power or economy — only protection.

Q: What happens if the alarm goes off?

A: Stop driving as soon as safe. Open the drain tap at the bottom of the filter to release collected water. If large amounts of water are present, inspect your fuel source and consider draining your fuel tank before continuing. The alarm is your early warning system — use it.

Q: Can I install this if I have a dual battery system?

A: Yes — fully compatible. The alarm module draws minimal current (2A fuse) and can connect to either battery via the add-a-fuse holder supplied in the kit.

Q: Is MANN+HUMMEL a good brand?

A: MANN+HUMMEL is a German OEM filter manufacturer that supplies major automotive brands globally. They're one of the most trusted names in filtration technology. Direction-Plus chose them specifically for the PreLine-Plus due to their proven reliability and water separation performance.

Q: Do I need Loctite 567?

A: Yes — it's specified in the installation manual for the M16x1.5 and -8AN thread fittings. This ensures leak-free connections under the vibration and heat of the engine bay. Available at any hardware store.

Q: Can I install the warning light anywhere?

A: The kit is designed to fit into the factory blank switch locations in your LandCruiser 200 dashboard (requires 20mm hole). This keeps the installation looking factory and professional.

Q: Do you ship to remote areas?

A: Yes — free express shipping covers all Australia Post destinations. Typical delivery: 2–5 business days metro, 3–7 days regional/remote.
