• Toyota Prado 150 Series – 1KD-FTV 3.0L 4-Cylinder Turbo Diesel | 2009–2015

✅ Designed specifically for 1KD-powered Prado 150 models with plug-and-play installation

How It Works: Installed between the fuel tank and factory filter, the PreLine-Plus stops water before it reaches your injectors. The in-cab multi-stage water alarm provides real-time alerts for complete peace of mind—no manual checking required.

Key Features:

• 100% water separation efficiency* — stops water before it reaches injectors
• 98% particle removal — adds a robust first line of defence before OEM filter
• In-cab multi-stage water alarm — real-time alerts for peace of mind
• Spin-on filter design — hassle-free maintenance
• Corrosion and abrasion protection — built to last
• No bypass system — only clean fuel reaches your engine

*Based on 150μm droplet size

💡 Why This Matters: The 1KD-FTV common rail system in your Prado 150 operates at extreme pressures and is highly sensitive to water contamination. With injector repair costs exceeding $10,000, the PreLine-Plus with integrated water alarm is essential protection that pays for itself by preventing just one failure.

How It Works: The ProVent separates oil mist and blow-by gases before they enter your intake system, keeping your intake, turbo, and intercooler clean for optimal performance and engine longevity.

Key Features:

• 98% oil separation efficiency
• Keeps intake, turbo, and intercooler clean
• Minimizes oil consumption
• Reduces exhaust smoke
• Regulates crankcase pressure for stable engine operation
• Protects turbo and extends engine life
• Prevents oil and soot entering clean air intake
• Improves emissions and driveability

💡 Why This Matters: Oil vapour causes carbon deposits that restrict airflow, foul sensors, and reduce power over time. The ProVent keeps your Prado's intake system clean, protecting vital components and maintaining the reliable performance you expect from your 150 Series.

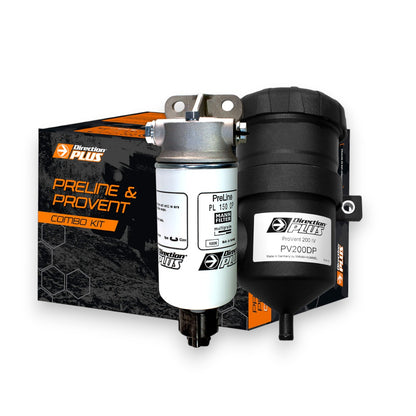

PreLine-Plus Pre-Filter System:

• Water Separation: 100% efficiency (based on 150μm droplet size)
• Particle Removal: 98% efficiency
• Filter Type: Spin-on replaceable element
• In-cab multi-stage water alarm: Real-time visual + audible alerts
• No bypass valve — full filtration always active
• Designed for 1KD-FTV fuel system specifications

ProVent Ultimate Catch Can:

• Oil Separation: 98% efficiency
• Filter: MANN+HUMMEL media
• Drain tap for oil collection
• Optional return line to sump
• Engineered specifically for Prado 150 1KD crankcase system
• Australian-designed and engineered

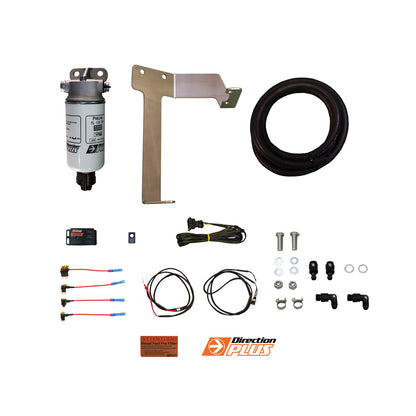

PreLine-Plus Pre-Filter Kit:

• PreLine-Plus pre-filter assembly with spin-on filter
• In-cab multi-stage water alarm module (visual + audible)
• Prado 150 1KD-specific mounting bracket
• Complete fuel line and fitting kit
• Wiring harness for alarm installation
• Hose clamps and connectors
• Mounting hardware
• Installation guide

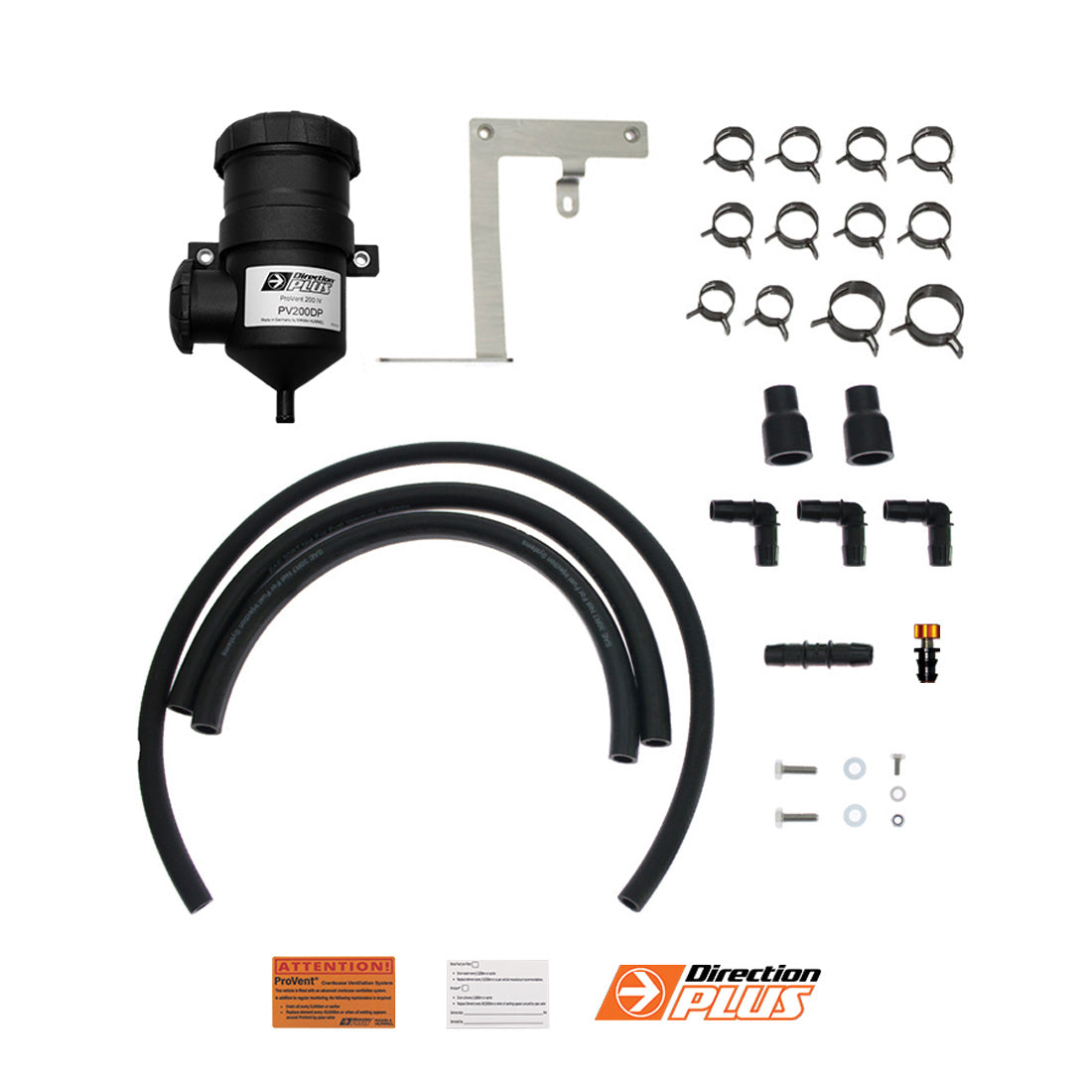

ProVent Ultimate Catch Can Kit:

• MANN+HUMMEL ProVent catch can
• Prado 150-specific mounting bracket
• Complete hose and fitting kit
• Drain tap assembly with hose
• Optional sump return line components
• Mounting hardware (bolts, washers, nuts)
• Spring clamps and cable ties
• Installation guide

✅ Plug-and-play installation with vehicle-specific components

Recommended: Competent qualified mechanic

Combined DIY Time: 4–5 hours (both systems)

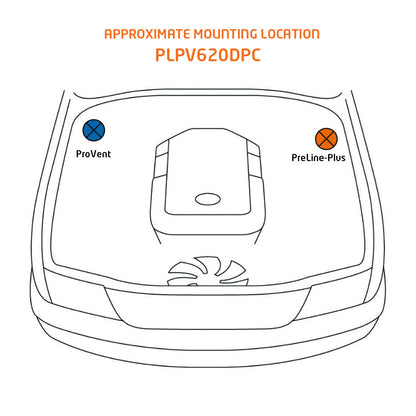

PreLine-Plus Installation:

• Mounts in engine bay between fuel tank and OEM filter
• Uses Prado 150-specific mounting bracket for perfect fit
• Water alarm module mounts in cab (dashboard or A-pillar)
• Wiring connects to cabin for real-time visual/audible alerts
• Spin-on filter design for easy maintenance
• Vehicle-specific components ensure plug-and-play installation

ProVent Installation:

• Mounts in engine bay
• Connects to crankcase ventilation system
• Uses Prado 150-specific mounting bracket
• Drain tap routed for easy access
• Optional return line to sump can be configured
• All hoses and fittings included

Important: Both systems can be installed separately or together. Detailed installation guides included with each kit for straightforward DIY or professional installation.

PreLine-Plus Pre-Filter:

• Water alarm will alert you automatically when water is detected
• Drain water when alarm sounds (simple drain procedure)
• Replace spin-on filter element per vehicle service schedule
• No manual checking required — alarm provides real-time monitoring
• Fast, hassle-free filter changes thanks to spin-on design

ProVent Catch Can:

• Check oil level every 5,000–10,000 km
• Drain collected oil via drain tap when needed
• If using sump return line, oil automatically recirculates
• Replace filter element every 40,000 km (replacement elements available)

💡 Pro Tip: The integrated water alarm eliminates guesswork—when it sounds, simply drain the water in minutes. The spin-on filter design makes replacements quick and easy. Keep your Prado 150 protected with minimal maintenance effort.

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law. These systems protect your engine without interfering with factory components.

Q: Does this fit all Prado 150 models?

A: This kit is specifically designed for 2009–2015 Prado 150 Series models with the 1KD-FTV 3.0L engine. For newer Prado models with the 1GD-FTV 2.8L engine (2015+), please see alternative kits.

Q: Is the water alarm included or sold separately?

A: The in-cab multi-stage water alarm is included with this kit! It provides real-time visual and audible alerts when water is detected—complete peace of mind with no manual checking required.

Q: How does the PreLine-Plus differ from the Fuel Manager?

A: The PreLine-Plus offers superior 100% water separation efficiency (vs 95%) and comes with an integrated water alarm system. It also features a convenient spin-on filter design for faster, hassle-free maintenance.

Q: How often do I need to drain water?

A: The water alarm will alert you automatically when water is detected. Simply drain when the alarm sounds—no scheduled checking required. Frequency depends on fuel quality and driving conditions.

Q: Can I install these systems myself?

A: If you're mechanically competent and comfortable working with fuel lines and basic wiring, yes. Most DIYers complete installation in 4-5 hours. Otherwise, any qualified mechanic can handle it. Detailed installation guides are included.

Q: Do I need both systems or can I buy them separately?

A: You can buy either system separately, but the combo kit offers better value and comprehensive protection. The PreLine-Plus protects your fuel system, while the ProVent protects your intake system—together they provide complete engine protection.

Q: Does the ProVent return oil to the sump automatically?

A: The kit includes components for an optional sump return line. You can configure it to either: (a) collect oil in the catch can for periodic draining, or (b) return clean oil back to the sump automatically. Your choice based on preference.

Q: What makes this kit "plug-and-play"?

A: All brackets, fittings, and components are specifically designed for the Prado 150 with 1KD engine. No cutting, drilling, or modification required—everything fits using factory mounting points where possible.

Q: Is this suitable for touring and off-road use?

A: Absolutely. The Prado 150 is a popular touring vehicle, and this kit is engineered for harsh Aussie conditions including remote touring, variable fuel quality, and demanding off-road use. The water alarm is especially valuable when fueling at remote stations.

Q: Will this affect my Prado's performance?

A: These systems maintain performance by preventing contamination. You won't notice immediate power gains, but you will prevent the gradual performance loss that comes from carbon build-up and fuel system contamination over time.
