Ryco Pre-Filter Kit N80 Hilux / Fortuner (RC628DPK)
Ryco Pre-Filter Kit N80 Hilux / Fortuner (RC628DPK)
Taxes excluded. Shipping calculated at checkout.
Complete the install
Couldn't load pickup availability
Toyota 1GD-FTV 2.8L | 2GD-FTV 2.4L | 10 Micron Pre-Filter
Water in diesel kills injectors and pumps. The factory filter has its limits against water. This kit fixes that.
The Ryco RC628DPK pre-filter kit puts a 10 micron, water separating first stage between the tank and the factory filter on the N80 Hilux and Fortuner. Water and coarse contaminants get caught early, the factory filter does the final polishing, and the 1GD and 2GD fuel system sees cleaner fuel.
Designed and assembled in Australia for touring, towing, off-road use and remote refuelling.

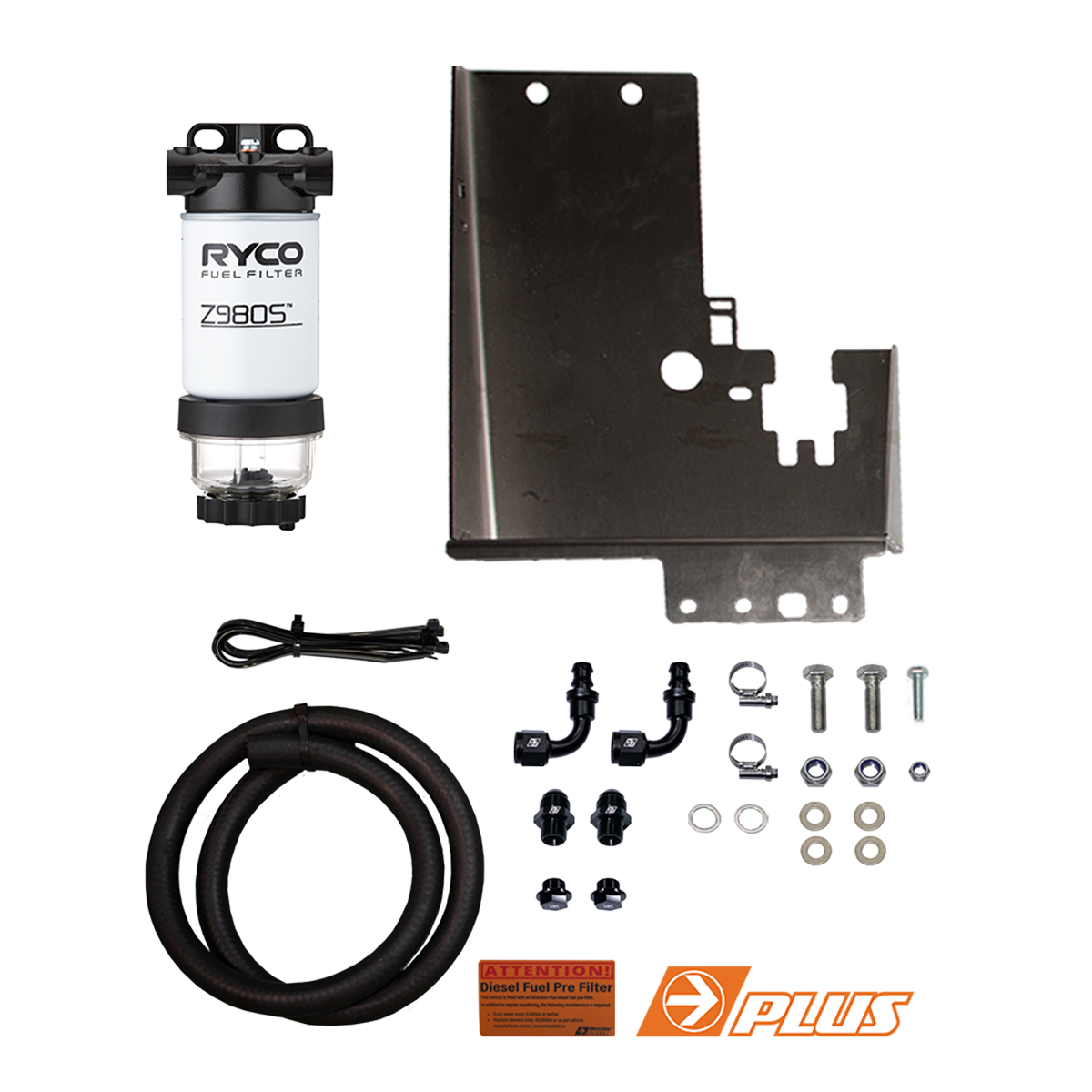

What Is Included
Complete vehicle-specific Ryco pre-filter kit for the N80 Hilux and Fortuner, with 10 micron element.
Not included: wireless water sensor kit (optional, sold separately).
Key Features
- Installs between the fuel tank and the factory fuel filter for two-stage filtration
- 10 micron, water resistant silicone coated filter media
- Ryco rated to remove up to 99% water and 98% particles
- Maximum working pressure 87 PSI (6 bar, 600 kPa)
- Tested by Ryco to meet or exceed OE equivalents and ISO and SAE standards
- Designed for modern high pressure common rail systems with an in-tank lift pump
- Drain port lets you bleed off trapped water as often as you need
- Extends factory fuel filter life by taking the load off it
- Wireless water sensor compatible for in-cab water alerts (sensor kit sold separately)
Vehicle Fitment
- Toyota Hilux N80 1GD-FTV (2.8L 4cyl): 2016 to 2025
- Toyota Hilux N80 2GD-FTV (2.4L 4cyl): 2018 to 2024
- Toyota Fortuner 1GD-FTV (2.8L 4cyl): 2016 to 2025
Excludes: Mild Hybrid 48V V-Active versions. Not compatible with the factory dual battery tray after late 2024, or battery trays with accessories mounted to the side of the battery.
Fitment per Direction Plus as of October 2026. Check the fitment guide or send us your VIN if unsure.
Fitting Notes
- Installs inline between the tank and the factory filter. It does not replace the factory filter.
- Follow the flow direction arrows, prime the system after fitting and check all clamps.
- Check and drain the pre-filter regularly, especially after remote refuelling.
- Installation by a competent person is recommended.
Shipping and Payment
- Afterpay, Humm, Klarna and Zip available at checkout
- Free Express Shipping Australia-wide
- Tracking sent as soon as your order is on its way
- Returns and warranty: see our refund policy
Frequently Asked Questions
Does this replace the factory fuel filter?
No. It installs before the factory filter as a first-stage pre-filter, so you end up with two-stage filtration.
Will this fit my Hilux or Fortuner?
It suits the N80 Hilux 1GD-FTV 2.8L 2016 to 2025, the N80 Hilux 2GD-FTV 2.4L 2018 to 2024, and the Fortuner 1GD-FTV 2.8L 2016 to 2025.
What is the micron rating?
10 micron, with water resistant silicone coated media. Ryco rates it to remove up to 99% water and 98% particles.
Does it include a water sensor?
No. The kit is compatible with the Ryco wireless water sensor kit for in-cab alerts, sold separately.
Does it fit the V-Active hybrid?
No. Mild Hybrid 48V V-Active versions are excluded.
Will it work with my dual battery tray?
Not with the factory dual battery tray after late 2024, or with battery trays that have accessories mounted to the side of the battery.
How often should I drain it?
Check it regularly, especially after remote refuelling. Drain immediately if water is present and follow your service schedule.
Catch The Water Before The Injectors Do.
Ryco 10 micron pre-filter kit for the N80 Hilux and Fortuner. Free express shipping Australia-wide.
