How much does the Phat Bars kit lower the diff?

It lowers the front differential by 30mm to correct CV angles and prevent premature CV wear on lifted Hilux N70 and N80 models.

Do I need a wheel alignment after fitting a diff drop?

No wheel alignment is required after installation. The diff drop only alters the diff position, not the suspension geometry.

What is included in the Hilux diff drop kit?

You receive the full Phat Bars 30mm diff drop kit with all bushes, bolts, and an extended 4mm breather hose for the ADD unit.

Do I need a diff drop on a lifted Hilux?

A diff drop is recommended for Hilux N70 and N80 vehicles with a 2 inch or greater suspension lift, to correct driveline angles and reduce strain on the CV joints.

1 1

Phat Bars

Toyota Hilux N70 / N80 Diff Drop - Phat Bars

$794.00 NZD

Sale Sold out

Taxes excluded. Shipping calculated at checkout.

Allow 1–3 weeks for shipment

Secure Checkout

Phat Bars Hilux Diff Drop Kit, N70 / N80

Australian-made 30mm diff drop kit for lifted Toyota Hilux N70 and N80

Protect your CVs before they fail. The Phat Bars 30mm diff drop is the go-to kit for lifted Hilux models across Australia, proven to save thousands of CVs by correcting driveline angles and keeping them right under pressure. If you have lifted your N70 or N80 Hilux more than 2 inches, this is the one upgrade you should not skip. Simple bolt-in install with no wheel alignment required afterwards.

Specifications
Fitment	Toyota Hilux N70 (2005 to 2015) and N80 (2015 on), recommended for 2 inch plus suspension lifts
SKU	11501-N70/N80-DD-PHAT-BARS
Drop	30mm, corrects CV angles and reduces strain on joints
Construction	Made in Australia, black powder coat finish for corrosion resistance

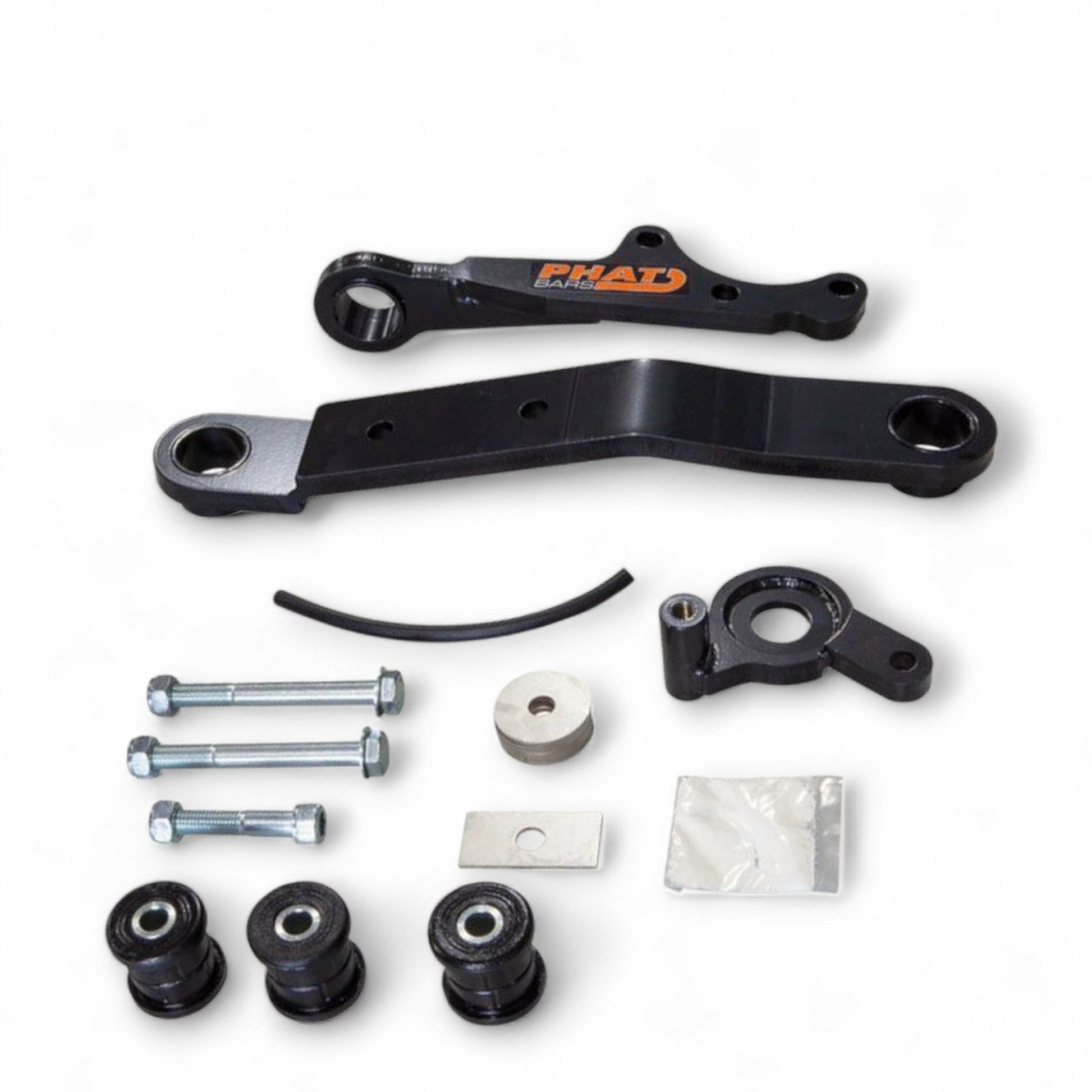

In the Box	Phat Bars 30mm diff drop kit, bushes and bolts, extended 4mm ADD unit breather hose
Alignment	No wheel alignment required after installation

Fitment Notes

Suits Toyota Hilux N70 (2005 to 2015) and N80 (2015 onwards).
Recommended for vehicles with a 2 inch or greater suspension lift.
Not compatible with strengthened arms that state "Do not use with spacer diff drops." The compatible Phat Bars strengthened driver's side arm is available separately.

Installation Notes

Simple bolt-in installation using the supplied hardware. No cutting, welding, or wheel alignment required. Designed for standard subframe setups, with an extended 4mm hose included for lengthening the ADD unit breather line.

Warranty & Returns

Covered under our standard policies. Full details on our Refund Policy page.

Shipping

Free express shipping Australia-wide with tracking on dispatch. Afterpay, Zip, Humm and Klarna available.

Free Express Shipping Australia-Wide. Save your CVs before they save you a tow bill.

Ensure compatibility before purchase. Common Rail Cowboys and Phat Bars are not liable for misuse or installation alongside incompatible components.
