1KD Electronic Pressure Relief Valve
Electronic Rail Relief for 1KD Euro 4 Fuel Systems

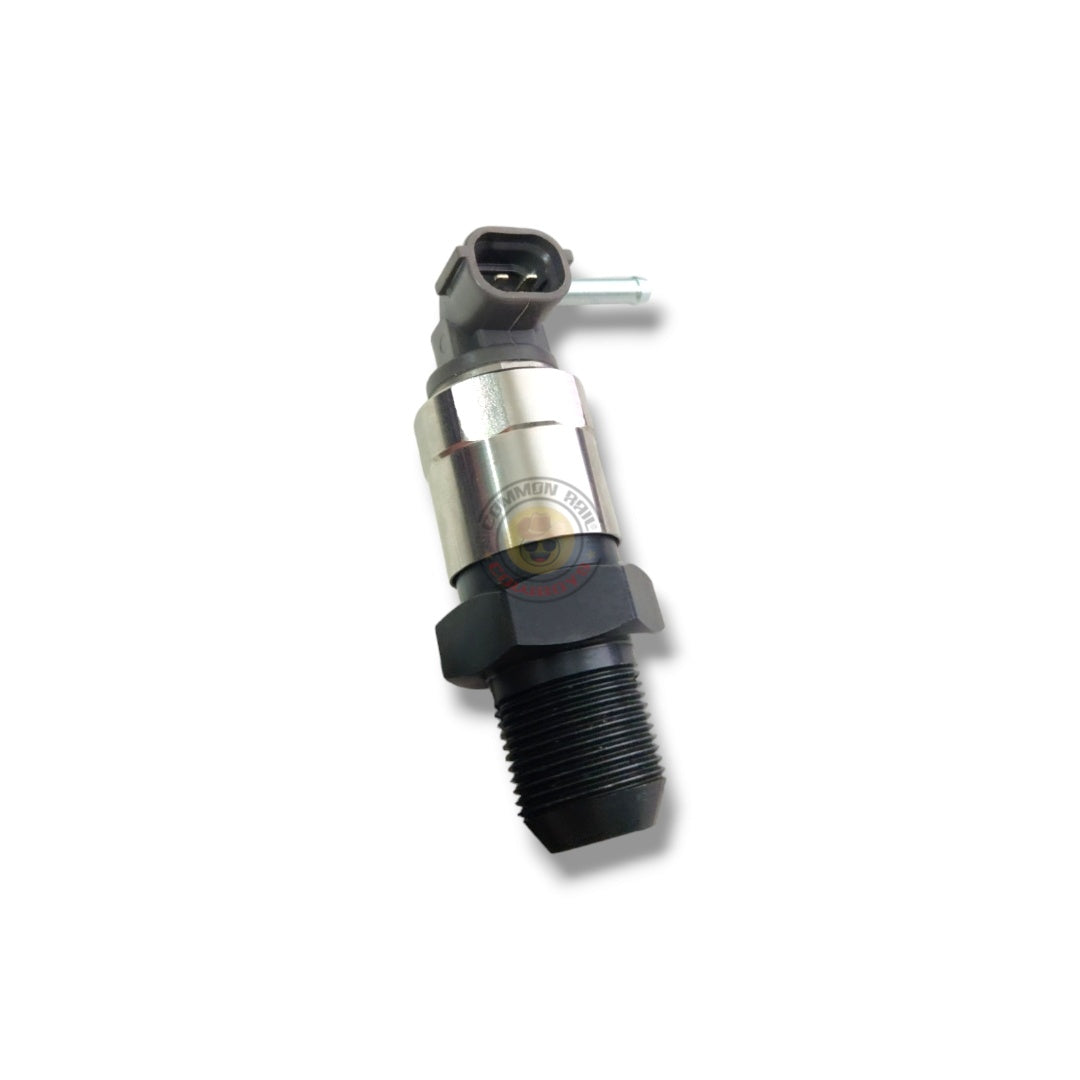

The 1KD Electronic Pressure Relief Valve is an OEM-style, electronically controlled valve found on the rear of Euro 4 1KD-FTV fuel rails. Suits Toyota rail PN: 23810-30100. A direct-fit replacement to restore correct pressure control and eliminate limp mode issues.
👉 Need a new rail instead? Click here to view our brand new 1KD fuel rails
✅ Vehicle Compatibility
- 🚙 Toyota Hilux N70 08/2006–2015 – 1KD-FTV Euro 4
- 🚗 Toyota Prado 120 – 1KD-FTV Euro 4
- 🚗 Toyota Prado 150 – 1KD-FTV Euro 4
Must be Euro 4 specification with electronic pressure relief valve on fuel rail PN 23810-30100.
💡 Why Replace This Valve?
- ✅ Restores proper rail pressure regulation – maintains optimal fuel delivery
- ✅ Prevents random limp mode & error codes – eliminates discharge valve faults
- ✅ Direct bolt-on replacement – no tuning or modifications required
- ✅ Built for OEM durability & reliability – high quality replacement part
🔧 Fitment Tip – Plug & Barb Orientation (If Needed)
Depending on stock availability, you may receive a valve where the electrical plug or fuel barb need rotating to match your installation. This is a very simple 2-minute adjustment — here's how:
To rotate the electrical plug (solenoid):
- Mark the top silver solenoid body to the bottom screw-in section with a marker
- Loosen the silver section slightly until the plug rotates with almost no resistance
- Rotate the plug to your desired position
- Tighten the solenoid body until your marks align again
To rotate the fuel barb fitting:
- Grab the base of the barb fitting (not the barb itself) with pliers
- Twist to your desired orientation
💡 Easy DIY adjustment: This takes 2 minutes max and requires no special tools. Most customers won't need to adjust anything, but if yours does, it's a quick job.
🚚 Shipping & Payment
- 📦 Fast Dispatch — ships from our Australian warehouse
- 🚚 Free Express Shipping Australia-Wide — full tracking included
- 💳 Buy Now, Pay Later: Afterpay, Humm, Klarna & Zip
- 🇦🇺 All major credit cards accepted
❓ Frequently Asked Questions
Q: What fuel rail does this suit?
A: It suits Toyota fuel rail PN 23810-30100, used on Euro 4 1KD engines (Hilux N70, Prado 120/150).
Q: Will this fit my Hilux N70?
A: Yes, if your N70 is 08/2006–2015 and Euro 4 spec (13 or 18 code injectors) with electronic pressure relief valve, this is the correct fit.
Q: Do I need tuning after replacement?
A: No, this is a direct OEM replacement and does not require ECU tuning.
Q: Is this a new part or reconditioned?
A: This is a new electronic pressure relief valve, built to OEM specification.
Q: What symptoms indicate I need a new relief valve?
A: Common symptoms include random limp mode, P0087 (fuel rail pressure too low) or P0088 (fuel rail pressure too high) error codes, rough idle, or loss of power.
Q: Do I need to rotate the plug or barb?
A: Most installations won't require adjustment. If needed, it's a simple 2-minute job — see the "Fitment Tip" section above for easy instructions.
Q: Can I install this myself?
A: Yes — it's a straightforward bolt-on replacement. Basic mechanical skills required. Ensure engine is cool and depressurise the fuel system before starting.
Fix Your Fuel Rail Issues Fast
OEM-style electronic pressure relief valve. Direct bolt-on. Eliminates limp mode. Free express shipping AU.
Disclaimer: Common Rail Cowboys is not affiliated with Toyota Motor Corporation. This is an aftermarket replacement part built to OEM specification.
