1KD Forged Rods - I-Beam Conrods for 1KD-FTV
1KD Forged Rods - I-Beam Conrods for 1KD-FTV
Taxes included. Shipping calculated at checkout.
Couldn't load pickup availability
1KD Forged Rods – I-Beam Conrods for 1KD-FTV
✅ 40CrMoNiA Forged | ✅ ARP2000 7/16" Bolts | ✅ Balanced ±2g

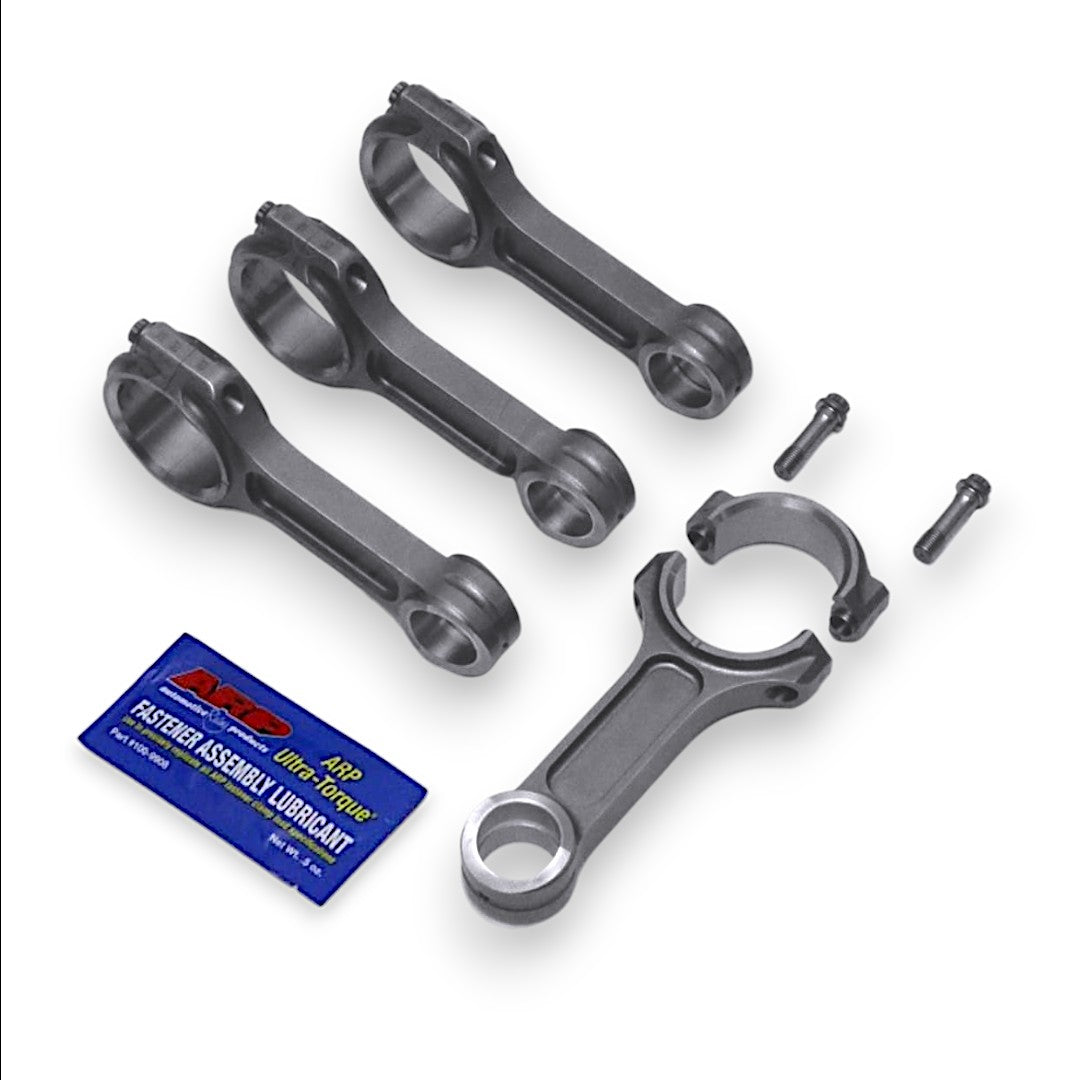

Set of 4 high-performance I-Beam conrods to suit Toyota 1KD-FTV. Billet-machined forgings from 40CrMoNiA steel for strength and reliability in high boost builds. Supplied balanced to within ±2 grams and fitted with 7/16" ARP2000 rod bolts.
⚙️ Technical Specs
- Material: 40CrMoNiA forged steel, billet machined
- Design: I-Beam for high tensile strength and stability
- Bolts: 7/16" ARP2000 (8 included)
- Balancing: Matched set, ±2g
- Finish: Shot-peened & honed small/big ends
📦 What’s Included
- 4 × 1KD Forged I-Beam Conrods
- 8 × 7/16" ARP2000 Rod Bolts
🔧 Fitment & Notes
- Suits Toyota 1KD-FTV engines (Hilux / Prado / Hiace variants)
- Professional installation required; verify clearances, side play & bolt stretch/torque
- Check big-end housing and pin sizes match your crank & pistons
- Recommended for forged/boosted builds; pair with quality pistons, bearings & lubrication
🛠️ Assembly Tips
- Measure bolt stretch to ARP2000 spec (use stretch gauge where possible)
- Use ARP Ultra-Torque or equivalent assembly lube on threads & under-head
- Confirm bearing crush & oil clearance with plastigauge/micrometer
- Verify rod/piston orientation and chamfer direction during install
💳 Payment & 🚚 Shipping
- 💳 Pay later with Afterpay, Humm, Klarna & Zip
- 🚚 Free Express Shipping Australia-Wide
- 📦 Secure packaging & fast dispatch
Frequently Asked Questions
Will these rods fit all 1KD-FTV engines?
Yes, they’re designed for 1KD-FTV platforms. Always verify big-end/pin sizes against your crank and pistons before assembly.
Are ARP2000 bolts included?
Yes — a full set of 7/16" ARP2000 rod bolts (8) is included.
Do I need machine work before installation?
We recommend checking and, if needed, lightly honing big/small ends for perfect roundness and confirming bearing clearances to spec.
What power/boost are these suitable for?
They’re engineered for high-boost forged builds. Final limits depend on tune, fuel, pistons, bearings and assembly quality.
