How do I know if my 1KD needs the 6-pin rail pressure sensor?

All 1KD-FTV engines from August 2006 onward running 13-code or 18-code injectors use the 6-pin rail pressure sensor. Earlier engines with 11-code injectors use the 3-pin version. Check the connector on your rail before ordering.

Is this a genuine Toyota or Denso sensor?

No. This is a premium aftermarket sensor built to OE specification with the correct output curve and connector, and it is priced accordingly. It is a direct plug-and-play replacement for OE part numbers 89458-60011 and 89458-60010.

Will this fix limp mode on my 1KD Hilux?

If the cause is a failing rail pressure sensor, yes. Common symptoms of a failing sensor are limp mode under load, hard starting and erratic or unstable rail pressure readings. If actual rail pressure is genuinely low, the fault lies with the pump or injectors instead.

Does the 1KD rail pressure sensor need programming?

No. It is a direct plug-and-play replacement with no coding, calibration or adaptation required.

1 1

Common Rail Cowboys

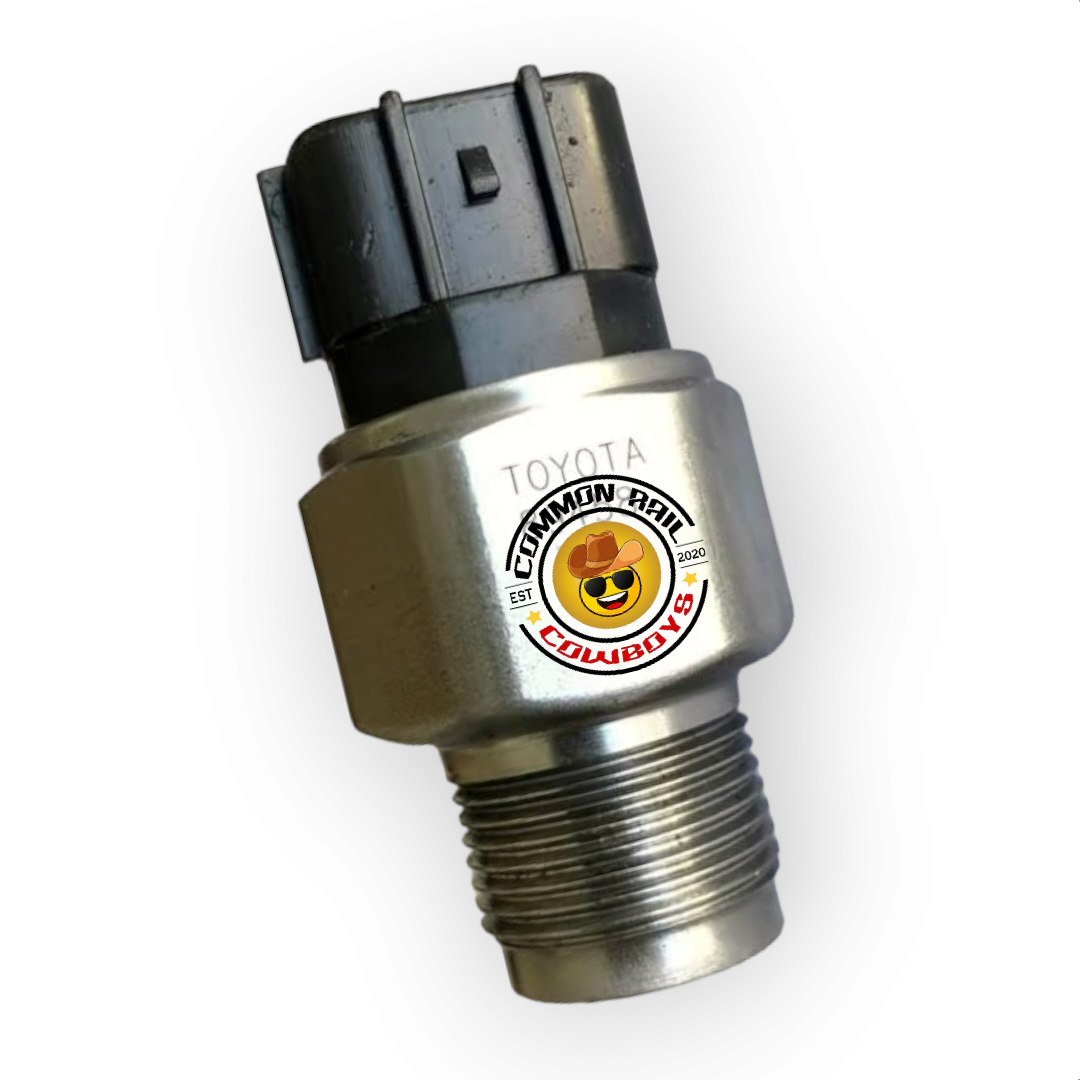

1KD Rail Pressure Sensor - 6 Pin

$295.00 AUD

~~$370.23 AUD~~ $295.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Ships Same or Next Business Day

Secure Checkout

Correct 6-Pin Sensor Suits 13-Code & 18-Code Injectors Plug & Play

The correct 6-pin rail pressure sensor for late-model 1KD-FTV Hilux and Prado (08/2006 onward). The rail pressure sensor reports fuel rail pressure to the ECU thousands of times a second, and when it drifts you get limp mode under load, hard starting, unstable rail pressure and tuning inconsistencies. This is a premium OE-spec aftermarket unit: correct output curve, correct connector, direct plug-and-play replacement with no coding or calibration required.

Specifications

1KD Rail Pressure Sensor, 6 Pin
Engine	Toyota 1KD-FTV 3.0L
Connector	6-pin
Suits	Hilux N70 (08/2006 onward), Prado 120 & 150 1KD-FTV with 13-code or 18-code injectors
Replaces OE part numbers	89458-60011, 89458-60010
Type	Premium OE-spec aftermarket
In the box	1 x rail pressure sensor

Fitment Notes

All 1KD engines from August 2006 onward running 13-code or 18-code injectors use this 6-pin sensor. Early 1KD engines with 11-code injectors use the 3-pin version, listed separately. Count the pins on your plug before ordering. Fitment guide only, verification is the buyer's responsibility.

Installation Notes

Disconnect the battery before replacement, keep the connector clean, and torque to factory spec without overtightening. Fully plug-and-play, no programming or adaptation required.

Warranty & Returns

Covered under our standard warranty. Full terms at our Refund, Returns & Warranty Policy.

Payment & Shipping

Free express shipping Australia-wide with same-day dispatch on in-stock items. Afterpay, Zip, Humm and Klarna available at checkout.

In stock and ready to ship. Free express shipping Australia-wide.
