Next-Level Boost for 1KD, 4JJ1 & 4JJ3 Performance Builds

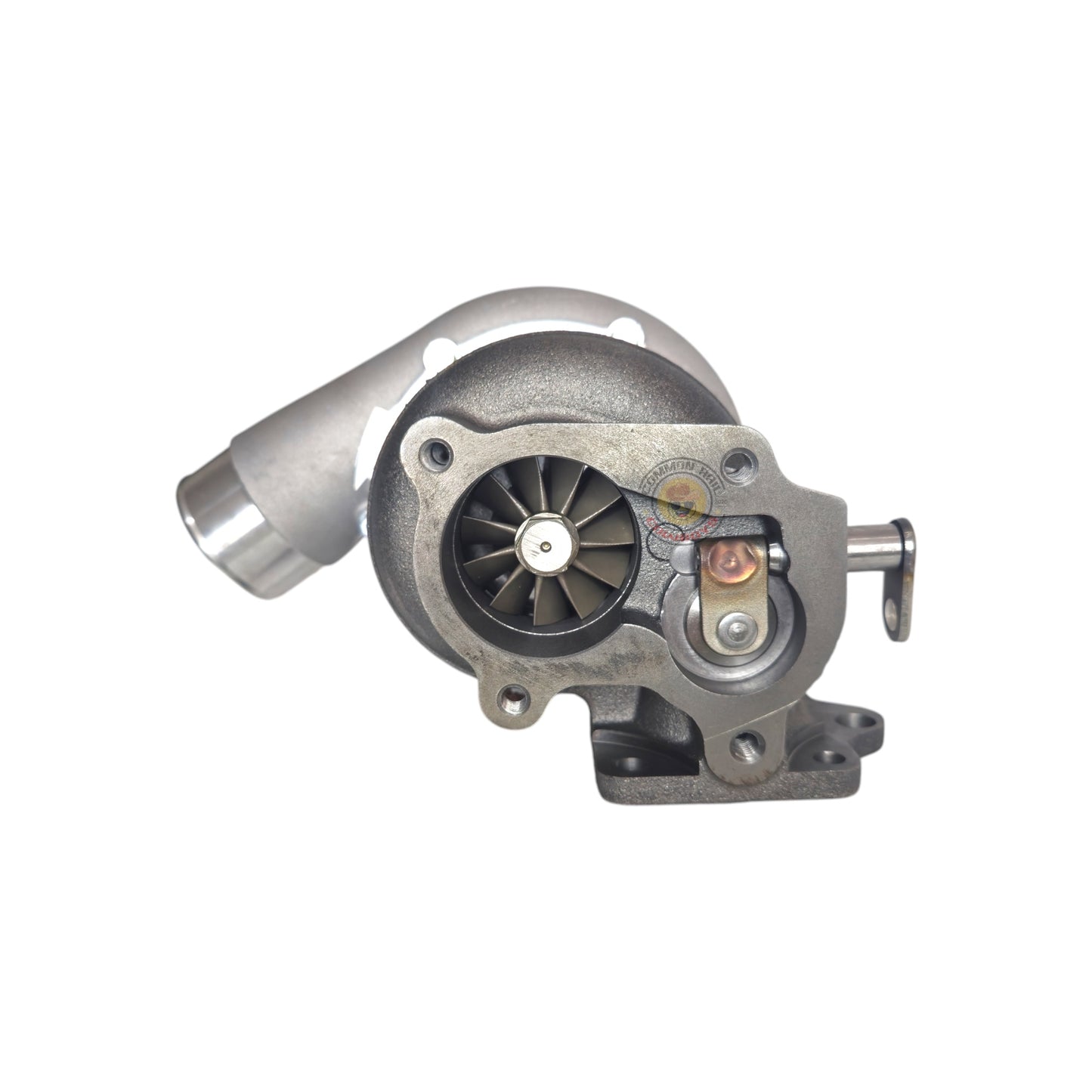

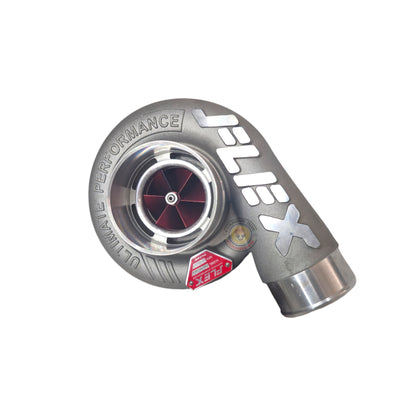

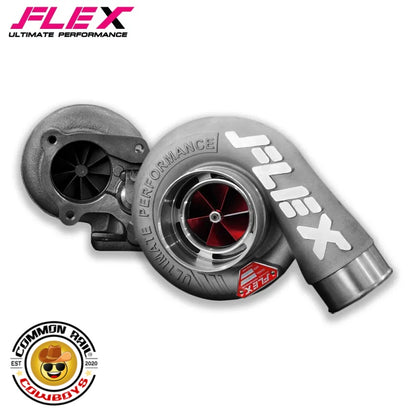

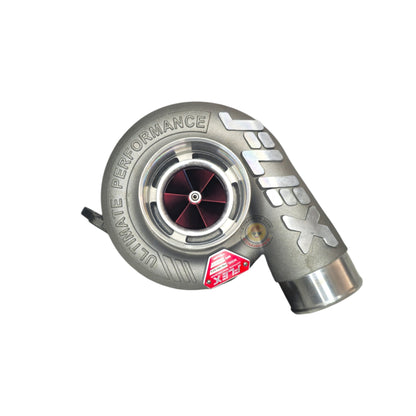

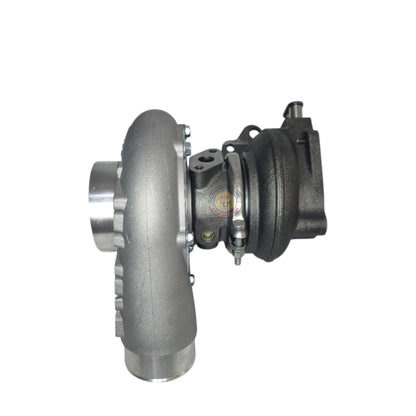

Unleash serious performance with the 2024 FLEX F66 Turbo from Siam Motorsports — engineered for enthusiasts chasing big power, high boost, and bold style. Featuring a precision billet compressor wheel, upgraded A/R front cover, and high-temp Inconel turbine, this turbo is built to deliver maximum airflow, durability, and response.
| Compressor | Billet 6-blade, ~52.5mm, anodised red |
| Turbine | Inconel 11-blade, ~52.5mm |
| Turbine Housing | F55 flange, No. 14.5 |
| Front Cover | Upgraded A/R for efficiency |
| Boost Rating | Max: Up to 45 PSI (with tuning) |
⚠️ IMPORTANT: Designed for high-mount turbo manifold setups — custom fabrication required. Not a direct bolt-on replacement.
Gaskets, lines, fittings, manifold/dump pipe not included unless specified.
Get the most from your FLEX F66:
For off-road / competition use only. Turbo modifications may affect compliance. Check local regulations before purchase.
Q: Is this a direct bolt-on turbo?
A: No — the F66 requires a high-mount turbo manifold and custom fabrication for dump pipe, intake, and intercooler alignment. Not a drop-in replacement.
Q: What makes the F66 different from the F55 or VNT 44mm?
A: The F66 features larger wheels (52.5mm vs 48.5mm/44mm), Inconel turbine for high-temp durability, and 45 PSI rating. Designed for extreme builds requiring maximum airflow.
Q: Do I need a tune?
A: Yes — ECU tuning is mandatory. The F66's boost capability requires professional calibration for safe fueling, timing, and EGT management.
Q: What power can I expect?
A: Power depends entirely on supporting modifications (injectors, fuel system, intercooler, exhaust) and tuning. Capable of supporting very high-output builds with proper setup.
Q: Will this fit my factory manifold?
A: No — the F66 uses an F55 flange and requires a custom high-mount manifold. Professional fabrication required.
Q: What's included in the kit?
A: F66 turbocharger assembly only. Gaskets, oil/coolant lines, manifold, dump pipe, and other hardware sold separately.
Q: Is this suitable for daily driving?
A: When properly tuned and installed, yes — but this is an extreme performance turbo designed for enthusiasts chasing maximum power. Consider supporting mods carefully.
FLEX F66 turbo. 45 PSI rated. Billet & Inconel. High-mount setup. Professional tune & fabrication required. Ultimate power.
Disclaimer: Common Rail Cowboys is not affiliated with Toyota Motor Corporation, Isuzu Motors, or Siam Motorsports. Installation should be performed by a qualified technician. Custom fabrication, professional tuning and supporting modifications are the buyer's responsibility.
