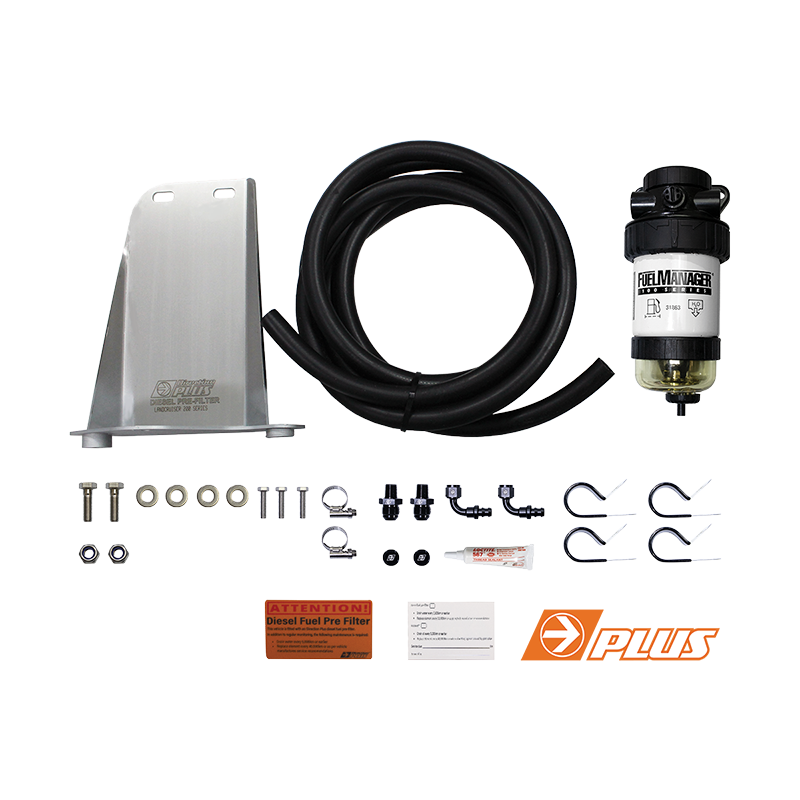

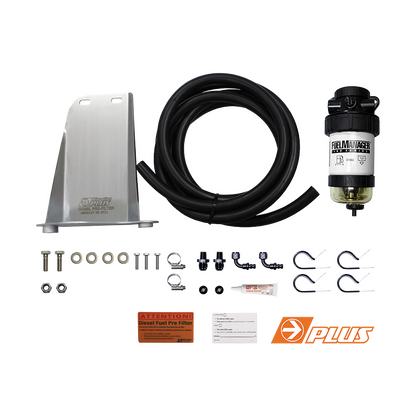

Two-Stage Filtration Protection • 2007–2022 1VD-FTV 4.5L V8 • FM614DPK
🛡️ Protect Your Engine — Drive with Confidence 🛡️
Designed in Australia to safeguard your Land Cruiser 200 Series against costly injector failure and fuel contamination.
FM614DPK suits:
✅ 3 Battery Compatible — This kit can be fitted on 200 Series with triple battery setups
⚠️ IMPORTANT FITMENT NOTES:
ℹ️ Note: If you need both fuel filtration AND catch can protection, you cannot fit both this pre-filter and the PV614DPK catch can due to mounting location conflicts. Consider a combined kit or post-filter option if available.
How It Works: Installed between the tank and OEM filter, the Fuel Manager unit removes the majority of water and particles BEFORE they reach your factory filter. Your factory filter then performs the final fine filtration—a two-stage system for maximum protection, 24/7. The clear drainage bowl allows quick visual checks, and the no-bypass design ensures contaminated fuel never reaches the engine.
Key Features:
💡 Why This Matters: Fuel contamination isn't just a problem "out in the bush." In fact, 72% of diesel injection failures are caused by water contamination and lubricity issues. Modern common rail diesel injectors operate at extremely high pressures with ultra-tight tolerances. Even microscopic contamination can cause catastrophic damage. Installing a Fuel Manager Pre-Filter Kit gives you the first line of defence—reducing wear & tear and helping you avoid repair bills exceeding $10,000. Essential insurance for your 200 Series investment.
The 200 Series deserves premium protection. The Land Cruiser 200 Series with its legendary 1VD-FTV 4.5L V8 is an icon of Australian touring and adventure. It's built for the toughest conditions, but even the 1VD-FTV's robust fuel system is vulnerable to contaminated fuel. In remote areas, at questionable service stations, or when using farm diesel, the risks multiply.
The Problem:
Benefits:
💡 1VD-FTV V8 Protection: The 1VD-FTV 4.5L V8 twin-turbo is Toyota's legendary touring diesel—powerful, reliable, and built for serious expedition work. But with 8 injectors instead of 4, contaminated fuel is even more costly to fix. The 200 Series is often used for remote area travel where fuel quality is questionable. The Fuel Manager pre-filter is essential protection for this iconic touring rig—it's cheap insurance compared to the cost of V8 injector replacement in the middle of nowhere.
Fuel Manager Pre-Filter:
Performance:
System Design:
Fitment Notes:
⚠️ Additional Required Parts (not included): 2x 90° fittings (DPP0090-08) required for clearance with Donaldson airbox. These must be ordered separately.
✅ Complete kit with vehicle-specific components for 200 Series fitment
Recommended: Competent qualified mechanic or experienced DIYer
DIY Time: 2–3 hours
Installation Notes:
⚠️ Important: You MUST order 2x 90° fittings (DPP0090-08) separately if you have a Donaldson airbox. Detailed installation guide included. Professional installation recommended if not experienced with fuel system work.
Maintenance Schedule:
💡 Pro Tip: The 200 Series is an expedition icon. If you're heading remote, check the clear drainage bowl before departure and regularly during your trip. The bowl shows you exactly what the pre-filter is catching—water, sediment, contamination. If you see a lot of water, drain it immediately. This simple 30-second check can save you from being stranded with injector failure in the middle of nowhere. The 1VD-FTV V8 is legendary for reliability, but it needs clean fuel to deliver that reliability.
Q: Will this void my Toyota warranty?
A: No. Aftermarket fuel filtration devices don't void warranty under Australian Consumer Law. This kit protects your engine without interfering with factory components.
Q: Why can't I fit both FM614DPK and PV614DPK?
A: Both the Fuel Manager pre-filter (FM614DPK) and the ProVent catch can (PV614DPK) use the same mounting location in the 200 Series engine bay. You must choose one or the other. If you need both fuel and intake protection, consider a combined kit if available, or install a post-filter instead of a pre-filter.
Q: Should I choose Fuel Manager or ProVent for my 200 Series?
A: Fuel Manager protects your fuel system (8 injectors, pump) from water and contamination. ProVent protects your intake system from oil vapour and EGR sludge. Both are important but protect different systems. If you can only fit one, prioritize based on your use: remote areas/questionable fuel = Fuel Manager; lots of towing/hard work/EGR issues = ProVent.
Q: What are the 90° fittings (DPP0090-08) for?
A: These special 90-degree fittings provide clearance between the fuel lines and the Donaldson airbox (if fitted). Without these fittings, the fuel lines may contact or rub against the airbox. They must be ordered separately—they're not included in the kit.
Q: Do I need the 90° fittings if I don't have a Donaldson airbox?
A: If you have the factory Toyota airbox, you may not need the 90° fittings. However, if you have a Donaldson aftermarket airbox (common upgrade on 200 Series), you'll need these fittings for proper clearance. Check your engine bay or ask us if unsure.
Q: What is 3 battery compatible?
A: Many 200 Series owners run triple battery setups for serious expedition touring (winches, fridges, camp lighting, etc.). This Fuel Manager kit is designed to fit even with 3 batteries installed—the mounting location doesn't conflict with the battery tray area.
Q: Why does the 200 Series need a pre-filter?
A: The 200 Series is often used for remote area travel, Simpson Desert crossings, Cape York trips, and serious expedition work. In these environments, fuel quality is highly variable. The 1VD-FTV V8 has 8 injectors (vs 4 in a 4-cylinder), making contaminated fuel even more expensive to fix. A pre-filter is essential insurance for remote travel.
Q: What does 72% of injector failures stat mean?
A: Industry studies show that 72% of common rail injector failures are caused by contaminated fuel (water, particulates, poor lubricity) rather than mechanical wear. This means most injector failures are preventable with proper filtration. A pre-filter is cheap insurance.
Q: What is the no-bypass design?
A: Many filters have a bypass valve that opens if the filter gets clogged, allowing unfiltered fuel to pass through. The Fuel Manager has NO bypass—all fuel must pass through the filter. This ensures contaminated fuel never reaches your 8 injectors, though it means you must maintain the filter properly.
Q: How often do I need to drain the water?
A: Check the clear bowl weekly or before long trips. Drain frequency depends on fuel quality—you might go months without seeing water at city service stations, but see water immediately after fueling at a questionable outback roadhouse. The clear bowl makes checking easy—just look at it.
Q: How do I drain the water?
A: Simply open the drain valve at the bottom of the clear bowl. Water (being heavier than diesel) collects at the bottom. Open the valve, let the water drain into a container, close the valve when you see clean diesel. Takes about 30 seconds.
Q: How often do I replace the filter element?
A: Generally every 20,000–30,000 km, but this depends on fuel quality. If you're frequently traveling remote or using farm diesel, you may need to replace it more often. The clear bowl helps you monitor contamination levels.
Q: Does this reduce fuel pressure or flow?
A: No. The Fuel Manager is designed with high-flow characteristics to maintain optimal fuel pressure and flow to your V8. Proper installation and maintenance ensures no performance impact.
Q: Can I install this myself?
A: If you're mechanically competent and comfortable working with fuel systems, yes. Most DIYers complete installation in 2-3 hours. However, proper installation is critical for safety and performance—if you're not experienced with fuel system work, have a qualified mechanic install it. Don't forget to order the 90° fittings if needed.
Q: How much do V8 injector repairs cost on a 200 Series?
A: The 1VD-FTV V8 has 8 injectors instead of 4. At $500-1,000+ per injector, a complete set could cost $4,000-8,000+. Add high-pressure pump failure ($2,000-4,000+) and labor, and complete fuel system repairs can easily exceed $10,000. A pre-filter kit is cheap insurance by comparison.
Q: Is this suitable for remote area travel?
A: Absolutely essential. The 200 Series is THE remote area touring rig in Australia. Whether you're crossing the Simpson, heading to Cape York, or touring the Kimberley, remote fuel can be heavily contaminated. The clear bowl is especially valuable remote—you can monitor fuel quality and drain contamination before it reaches your 8 injectors. Many serious tourers won't leave without one.
Q: What about farm diesel or drum fuel?
A: Farm diesel and drum fuel are notorious for contamination—rust from drums, water from condensation, algae growth from long storage. A pre-filter is absolutely essential if you regularly use these fuel sources. Check and drain the bowl more frequently with these fuels.
Q: Does this work with biodiesel?
A: The Fuel Manager handles biodiesel blends, but be aware that biodiesel is more prone to algae growth and water contamination. More frequent filter servicing and bowl draining may be required with biodiesel use.
Q: Can I add a catch can later if I choose the pre-filter?
A: No—the PV614DPK catch can uses the same mounting location as the FM614DPK pre-filter. You must choose one or the other at the outset. If you think you might want both, consider alternative solutions like a post-filter (which doesn't conflict with catch can mounting) or a combined kit.
Q: What if I see a lot of water in the clear bowl?
A: That's the pre-filter doing its job! Drain it immediately and avoid fueling at that location again if possible. If you're consistently seeing water at a particular service station, consider reporting it—water in fuel is a serious issue that affects all diesel vehicles.
Q: Is this built for Australian conditions?
A: Yes! Direction-Plus™ engineering means this kit is specifically designed for Australian conditions—variable fuel quality, remote area travel, extreme temperatures, dust, corrugations, and the serious expedition work that 200 Series vehicles are legendary for. Proven protection for the toughest touring in the world.
Q: What's the difference between a pre-filter and post-filter?
A: A pre-filter (like this Fuel Manager) installs BEFORE your factory filter and handles bulk contamination removal (especially water). A post-filter installs AFTER the factory filter for ultra-fine final filtration. Pre-filters are more important for water separation and general protection, especially for remote travel. Many people run both for maximum protection.
📝 Remember: If you have a Donaldson airbox, order 2x 90° fittings (DPP0090-08) separately for proper clearance.
Protect Your Land Cruiser Today
Extend your diesel system's life — drive with peace of mind
Essential protection for serious expedition touring
