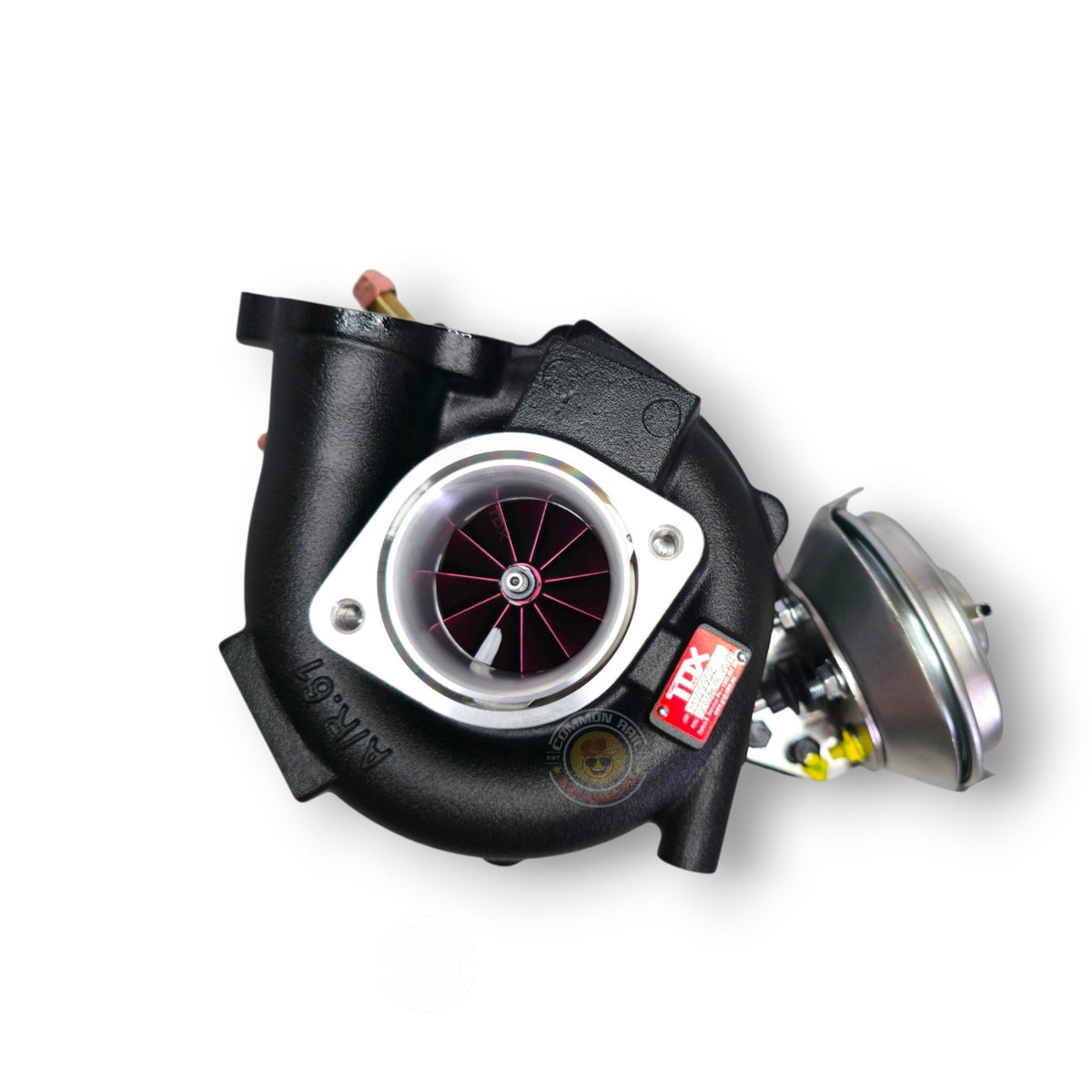

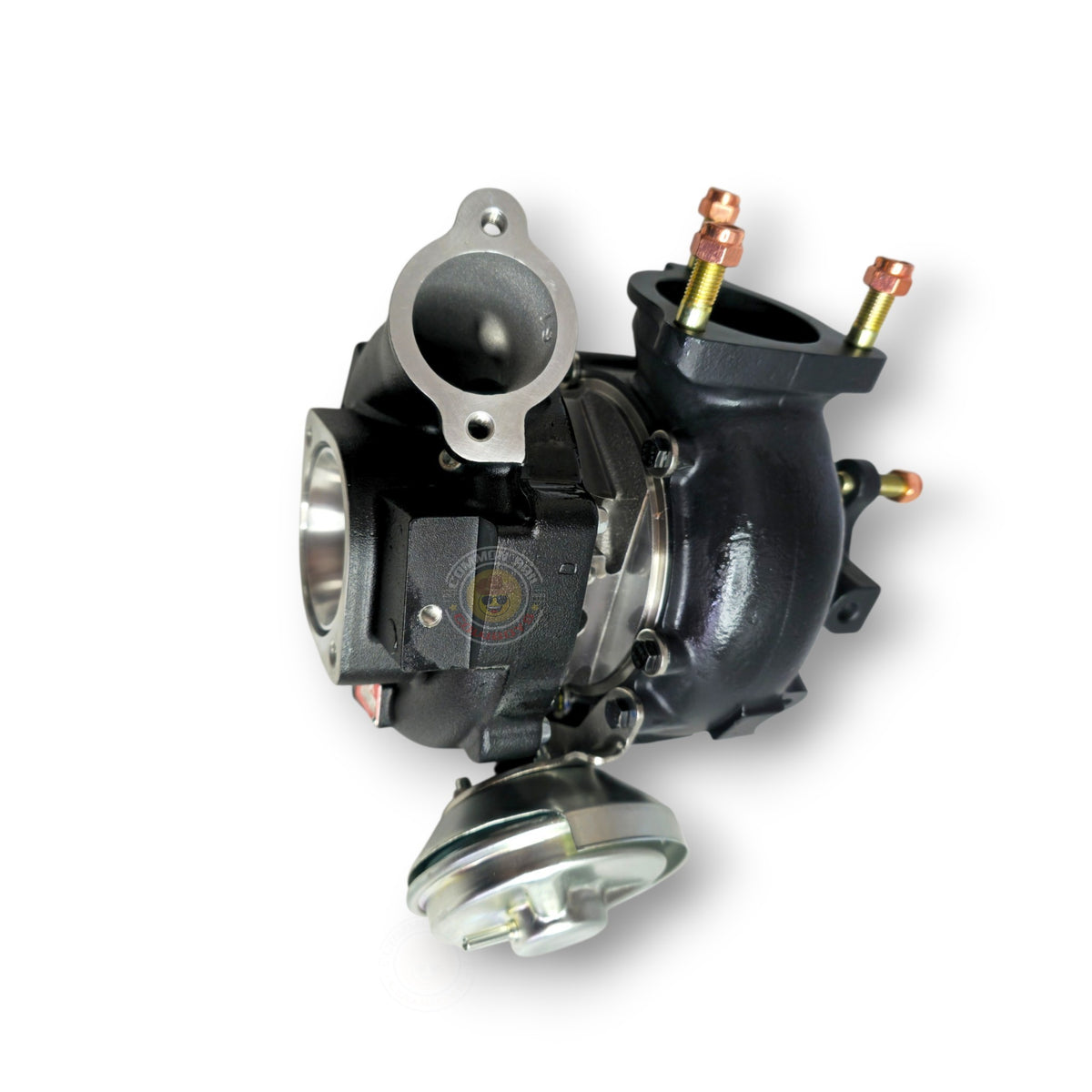

GCG TDX Stage 3 Turbo Upgrade – Ball Bearing GTA23 Replacement for 1VD-FTV LandCruiser 79 Series
GCG TDX Stage 3 Turbo Upgrade – Ball Bearing GTA23 Replacement for 1VD-FTV LandCruiser 79 Series
Taxes included. Shipping calculated at checkout.
Couldn't load pickup availability
Stage 3 Ball Bearing Upgrade
GCG5867R Ball Bearing Turbocharger
Toyota 1VD-FTV LandCruiser 70 Series
Direct bolt-on replacement for the factory Garrett GTA23V on the VDJ76, VDJ78 and VDJ79 LandCruiser. Billet TDX compressor wheel, T51R surge slot housing, dual ceramic ball bearings and a 0.72 A/R turbine deliver up to 50 percent more airflow than the OEM unit, with spool arriving roughly 500 rpm earlier.
This unit has supported 970 Nm and 350 rwhp (fuel limited) with peak torque around 2200 rpm, on appropriate supporting mods and a professional tune.
Why Upgrade to the GCG5867R
- Dual 8 mm ceramic ball bearings: reduced friction, faster spool and stronger transient response, roughly 500 rpm earlier than factory.
- 6061-T6 billet TDX compressor wheel (11+0): 67/50 mm versus OEM 59.45/44.5 mm for up to 50 percent more flow.
- T51R surge slot compressor housing: the iconic sound plus genuine anti-surge behaviour.
- Stainless redesigned VNT with custom blade tech for smoother actuation and stability under heat and pressure.
- 0.72 A/R turbine housing (factory 0.64), ceramic coated: lower back pressure and EGTs, reduced overspeed risk.
- 58/54 mm turbine wheel, 9+0 blade Inconel 600 for strength at high tune loads.
- Pre-drilled speed sensor port, Garrett screw-in compatible.
- In the box: gasket and fitting kit, JLM Turbo Pre Lube 20 ml, 2 year manufacturer warranty.
Technical Specs
| Spec | Detail |
|---|---|
| Compressor Wheel | Billet TDX 11+0, 67/50 mm (OEM 59.45/44.5 mm) |
| Compressor Housing | T51R surge slot intake |
| Bearing System | Dual ceramic ball bearing, 8 mm |
| Turbine Housing A/R | 0.72 (factory 0.64), ceramic coated |
| Turbine Wheel | 58/54 mm, 9+0 Inconel 600 |
| Max Compressor Speed | 160,000 rpm |
| Supported Boost | 40+ psi |
| Speed Sensor | Pre-drilled port, Garrett screw-in type |
| Turbo PN | GCG5867R-VDJ79 |
Fitment Notes ▾
Engine: Toyota 1VD-FTV 4.5L V8 Diesel. Vehicle: LandCruiser VDJ76 / VDJ78 / VDJ79, 2007 on. Direct replacement for the factory Garrett GTA23V (G842127-5001S), OEM part numbers 17201-51011 / 51010 series. No fabrication required for a standard replacement fit.
Installation and Tuning ▾
A professional ECU tune is required. Recommended supporting mods: upgraded intercooler (HPD or FMIC), high flow exhaust, performance airbox, NPC heavy duty clutch, and +30 percent or larger high flow injectors. Prime the turbo with the supplied JLM pre lube before first start. Professional installation strongly recommended.
Off-road and motorsport use only. Check local laws before road use.
Warranty and Returns ▾
This turbocharger is covered by a 2 year manufacturer warranty, backed by CRC support. Full terms are on our Warranty and Returns policy page.
