Two-Stage Filtration Protection • 2006–2018 TD42T 4.2L & ZD30DDTi 3.0L • FM626DPK
🛡️ Front-Line Defence Against Contaminated Diesel 🛡️
Gives your Nissan Patrol GU TD42T & ZD30DDTi the protection it needs, extending injector life and preventing costly repairs.
FM626DPK suits:

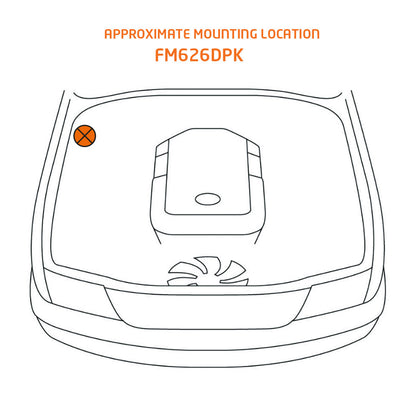

⚠️ IMPORTANT FITMENT CHECK: Check ABS piping before installation to ensure clearance. Some GU Patrol configurations may have ABS brake line routing that conflicts with the pre-filter mounting location. Inspect your engine bay before ordering or contact us with photos if unsure.
✅ One kit covers both GU Patrol engines from 2006-2018
How It Works: The Fuel Manager Pre-Filter installs between your fuel tank and factory filter, removing most contaminants before they can cause harm. With up to 95%+ water separation and superior particulate removal, it acts as a critical pre-filtration stage—removing water and debris before they reach your OEM filter and injectors. The clear drain bowl allows easy inspection and draining, while the no-bypass design ensures unfiltered fuel never reaches your engine.
Key Features:
💡 Why This Matters: Contaminated diesel is the biggest threat to common-rail engines (ZD30DDTi) and causes problems even in mechanically injected engines (TD42T). With up to 72% of failures linked to fuel quality, the FM626DPK acts as critical protection. Modern common rail injectors have zero tolerance for contamination, while even the robust TD42T benefits from clean fuel. A pre-filter saves thousands by preventing injector and pump damage. It's the simplest, most effective way to protect your GU Patrol's fuel system for years to come.
The GU Patrol deserves premium fuel protection. Whether you have the legendary TD42T 4.2L inline-six or the ZD30DDTi 3.0L common rail diesel, contaminated fuel is your biggest enemy. Australian diesel fuel quality varies significantly—even at major service stations, fuel can contain water, dirt, rust particles, and algae. In remote areas or when using farm diesel, the risks multiply dramatically.
The Problem:
Benefits:
💡 Dual Engine Protection: The FM626DPK protects both TD42T and ZD30DDTi engines. The TD42T is the legendary 4.2L inline-six—mechanically injected, renowned for durability and torque. The ZD30DDTi is the 3.0L common rail diesel—more modern but sensitive to contamination. Both engines benefit greatly from pre-filter protection. The GU Patrol is often used for serious outback touring where fuel quality is questionable. A pre-filter is essential insurance for maintaining GU reliability in the toughest conditions.

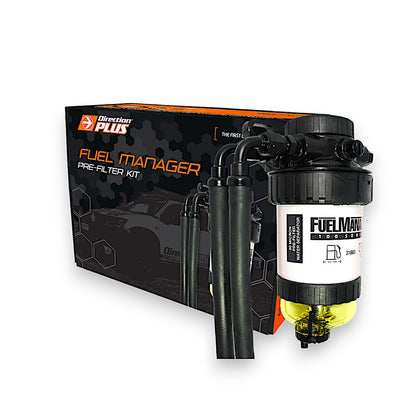

Fuel Manager Pre-Filter:
Performance:
System Design:
Fitment Notes:

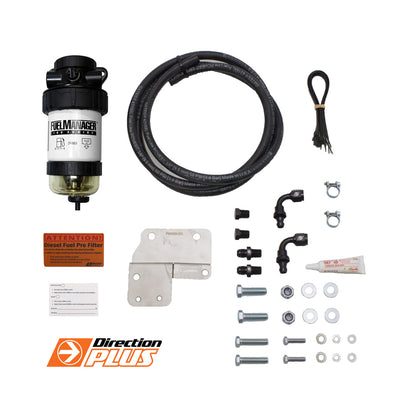

✅ Complete kit with components for both TD42T and ZD30DDTi GU Patrol models
Recommended: Competent qualified mechanic or experienced DIYer
DIY Time: 2–3 hours
Installation Notes:
⚠️ Important: Check ABS piping clearance before installation. Some GU configurations may have brake line routing that requires adjustment or relocation. Detailed installation guide included. Professional installation recommended if not experienced with fuel system work.
Maintenance Schedule:
💡 Pro Tip: The GU Patrol is an Australian icon—both the TD42T and ZD30DDTi are proven in the toughest conditions when properly maintained. The clear drainage bowl makes monitoring easy—you can see exactly what the pre-filter is catching. Check it regularly, especially after fueling at unfamiliar stations or in remote areas. For the ZD30DDTi especially, if you see water or sediment, drain it immediately. For the TD42T, clean fuel means your injection pump lasts longer. This simple 30-second check can save you thousands in repairs.
Q: Will this void my Nissan warranty?
A: No. Aftermarket fuel filtration devices don't void warranty under Australian Consumer Law. This kit protects your engine without interfering with factory components.
Q: What's the difference between the TD42T and ZD30DDTi?
A: The TD42T is the legendary 4.2L inline-six turbo diesel—mechanically injected, renowned for durability, torque, and simplicity. The ZD30DDTi is the 3.0L four-cylinder common rail diesel—more modern, more efficient, but sensitive to contamination. Both are excellent engines when properly maintained, and both benefit from pre-filter protection.
Q: Does one kit really fit both engines?
A: Yes! The FM626DPK is designed to fit both TD42T and ZD30DDTi GU Patrol models from 2006-2018. The mounting location and fuel system routing allows one kit to cover both engines.
Q: What is the ABS piping clearance issue?
A: Some GU Patrol configurations have ABS brake line routing that may be close to the pre-filter mounting location. Before installation, check that there's adequate clearance for the pre-filter without interfering with brake lines. Most installations have no issues, but it's important to check your specific vehicle first.
Q: Why does the TD42T need a pre-filter if it's mechanically injected?
A: While the TD42T doesn't have the ultra-tight tolerances of common rail injectors, its injection pump is still expensive to rebuild and sensitive to contamination. Water and particulates can damage the pump, reduce efficiency, and cause poor running. Clean fuel extends injection pump life significantly and maintains the TD42T's legendary reliability.
Q: Why is the ZD30DDTi particularly sensitive to contamination?
A: The ZD30DDTi common rail diesel has a reputation for being sensitive to contamination and requiring careful maintenance. Clean fuel is essential for this engine's longevity. Water and particulate contamination can cause issues more quickly than in some other engines. A pre-filter is especially important insurance for the ZD30DDTi.
Q: Why do I need a pre-filter if I already have a factory filter?
A: The factory filter is designed for fine filtration, but it has limited capacity for bulk contamination. A pre-filter handles the heavy lifting (removing bulk water and particulates), which extends the life of your factory filter and provides much better overall protection. For both the TD42T and ZD30DDTi, this two-stage approach is especially valuable.
Q: What is two-stage filtration?
A: Two-stage filtration means having two filters in series. Stage 1 (the pre-filter) removes bulk contamination—water, large particles, rust, algae. Stage 2 (your factory filter) then performs fine filtration to protect injectors and pumps. This is far more effective than relying on a single filter alone.
Q: What does 72% of failures linked to fuel quality mean?
A: Industry studies show that up to 72% of diesel engine failures are linked to fuel quality issues (water, particulates, poor lubricity) rather than mechanical wear. This means most fuel system failures are preventable with proper filtration. A pre-filter is cheap insurance against this expensive problem.
Q: What is the no-bypass design?
A: Many filters have a bypass valve that opens if the filter gets clogged, allowing unfiltered fuel to pass through. The Fuel Manager has NO bypass—all fuel must pass through the filter. This ensures contaminated fuel never reaches your engine, though it means you must maintain the filter properly.
Q: How often do I need to drain the water?
A: Check the clear bowl weekly or before long trips. Drain frequency depends on fuel quality—you might go months without seeing water at city service stations, but see water immediately after fueling at a questionable outback roadhouse. The clear bowl makes checking easy—just look at it.
Q: How do I drain the water?
A: Simply open the drain valve at the bottom of the clear bowl. Water (being heavier than diesel) collects at the bottom. Open the valve, let the water drain into a container, close the valve when you see clean diesel. Takes about 30 seconds.
Q: How often do I replace the filter element?
A: Generally every 20,000–30,000 km, but this depends on fuel quality. If you're frequently traveling remote or using farm diesel, you may need to replace it more often. The clear bowl helps you monitor contamination levels.
Q: Does this reduce fuel pressure or flow?
A: No. The Fuel Manager is designed with high-flow characteristics to maintain optimal fuel pressure and flow to your engine. Proper installation and maintenance ensures no performance impact for both TD42T and ZD30DDTi.
Q: Can I install this myself?
A: If you're mechanically competent and comfortable working with fuel systems, yes. Most DIYers complete installation in 2-3 hours. Check ABS piping clearance first. However, proper installation is critical for safety and performance—if you're not experienced with fuel system work, have a qualified mechanic install it.
Q: What happens if I don't drain the water?
A: If water accumulates and isn't drained, it can eventually be drawn into your fuel system, defeating the purpose of the pre-filter. For the ZD30DDTi, this could cause serious damage. For the TD42T, it can damage the injection pump. Worse, in cold weather, water in the bowl can freeze. Check and drain regularly—it takes 30 seconds.
Q: Is this suitable for remote area travel?
A: Absolutely essential. Remote area fuel can be significantly more contaminated than city fuel—older tanks, less turnover, more water contamination. The GU Patrol is often used for serious outback touring. The clear drainage bowl is especially valuable in remote areas, allowing you to monitor fuel quality before it reaches your engine. Many GU owners won't tour remote without one.
Q: What about farm diesel or drum fuel?
A: Farm diesel and drum fuel are notorious for contamination—rust from drums, water from condensation, algae growth from long storage. A pre-filter is absolutely essential if you regularly use these fuel sources. Check and drain the bowl more frequently with these fuels.
Q: How much do repairs cost?
A: For the ZD30DDTi: Common rail injector failures can be extremely expensive ($500-1,000+ per injector × 4 injectors). For the TD42T: Injection pump rebuilds are expensive ($2,000-4,000+). A pre-filter kit is cheap insurance by comparison for both engines.
Q: Does this work with biodiesel?
A: The Fuel Manager handles biodiesel blends, but be aware that biodiesel is more prone to algae growth and water contamination. More frequent filter servicing and bowl draining may be required with biodiesel use.
Q: Can I add a catch can later?
A: Yes! Many GU Patrol owners run both a Fuel Manager pre-filter AND a ProVent catch can for comprehensive protection. The pre-filter protects your fuel system, while the catch can protects your intake system. They're complementary systems—both are particularly valuable for the ZD30DDTi.
Q: What if I see a lot of water in the clear bowl?
A: That's the pre-filter doing its job! Drain it immediately and avoid fueling at that location again if possible. If you're consistently seeing water, consider reporting it to the service station. For both TD42T and ZD30DDTi, seeing water caught by the pre-filter means you've prevented potentially serious engine damage.
Q: Is this built for Australian conditions?
A: Yes! Direction-Plus™ engineering means this kit is specifically designed for Australian conditions—variable fuel quality, remote area travel, extreme temperatures, dust, and the serious touring work that GU Patrol vehicles are legendary for. Proven protection for iconic Australian 4WDs.
Q: What's the difference between a pre-filter and post-filter?
A: A pre-filter (like this Fuel Manager) installs BEFORE your factory filter and handles bulk contamination removal (especially water). A post-filter installs AFTER the factory filter for ultra-fine final filtration. Pre-filters are more important for water separation and general protection. Many people run both for maximum protection.
Q: What years does this fit?
A: This kit (FM626DPK) fits GU Patrol with TD42T 4.2L (2006-2017) and ZD30DDTi 3.0L (2006-2018). These are the final years of these legendary engines in the GU platform.
Keep Your GU Patrol Running Strong
Essential protection for both TD42T and ZD30DDTi engines
Protect your diesel from water, dirt, and costly injector damage
