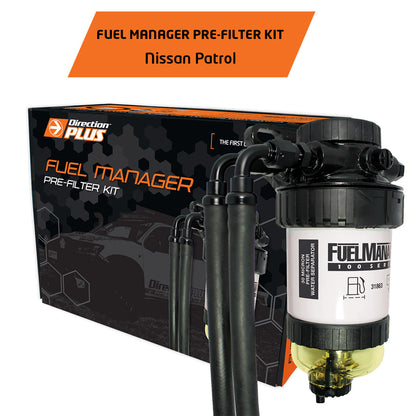

Two-Stage Filtration Protection • 2007–2018 ZD30DDTi 3.0L • FM619DPK
🛡️ First-Line Fuel Protection — 95% Water Separation 🛡️
Engineered in Australia to protect Patrol GU ZD30DDTi from water and particulate contamination. Helps prevent costly injector and pump damage.

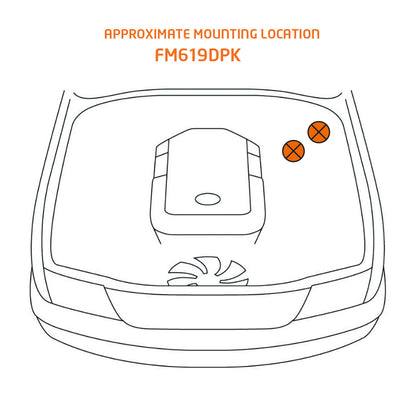

📍 Mount Location: Passenger side
✅ Engineered specifically for GU Patrol ZD30DDTi fuel system
How It Works: Mounted between the tank and OEM filter, the pre-filter removes most water and particles BEFORE they reach your factory filter. The OEM filter then completes the job, delivering cleaner fuel to your common-rail system for 24/7 protection. The clear drain bowl allows quick visual checks, and the no-bypass design ensures unfiltered fuel never reaches the engine.
Key Features:
💡 Why This Matters: Fuel contamination doesn't only happen "in the bush." Water and poor lubricity account for a large share of diesel injection failures. Modern common rail diesel injectors operate at extremely high pressures with ultra-tight tolerances. Even microscopic contamination can cause catastrophic damage. The ZD30DDTi in particular is sensitive to fuel quality and contamination. A pre-filter adds a critical first defence so the OEM filter can focus on fine filtration—creating a true two-stage system. This helps avoid repair bills that can exceed $10,000. Essential insurance for your GU's fuel system.
The ZD30DDTi needs premium fuel protection. The GU Patrol with its ZD30DDTi 3.0L common rail diesel is an iconic Australian 4WD, but the engine is known for being sensitive to contamination and requiring careful maintenance. Australian diesel fuel quality varies significantly—even at major service stations, fuel can contain water, dirt, rust particles, and algae. In remote areas or when using farm diesel, the risks multiply dramatically.
The Problem:
Benefits:
💡 ZD30DDTi Protection: The ZD30DDTi common rail diesel is known for being sensitive to fuel quality and contamination. It requires proactive maintenance and clean fuel to deliver reliable service. The Fuel Manager pre-filter is essential protection for this engine, especially if you: travel to remote areas, use farm diesel, tow heavy loads, or want to protect your investment from Australia's variable fuel quality. The ZD30DDTi doesn't tolerate contaminated fuel well—one bad tank can cause serious damage. The pre-filter is cheap insurance for GU reliability.
Fuel Manager Pre-Filter:
Performance:
System Design:
Fitment Notes:

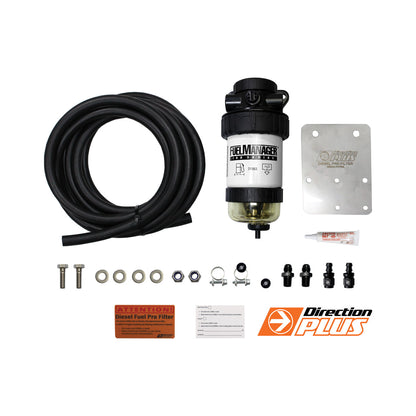

✅ Complete kit with vehicle-specific components for GU Patrol fitment
Recommended: Competent qualified mechanic or experienced DIYer
DIY Time: 2–3 hours
Installation Notes:
Important: Detailed installation guide included. Professional installation recommended if not experienced with fuel system work. Proper installation is critical for safety and performance.
Maintenance Schedule:
💡 Pro Tip: The GU Patrol is an Australian icon. The clear drainage bowl makes monitoring easy—you can see exactly what the pre-filter is catching. Check it regularly, especially after fueling at unfamiliar stations or in remote areas. The ZD30DDTi is sensitive to contamination, so if you see water or sediment, drain it immediately. This simple 30-second check can save you thousands in repairs and prevent being stranded. Proactive maintenance is essential for ZD30DDTi longevity.
Q: Will this void my Nissan warranty?
A: No. Aftermarket fuel filtration devices don't void warranty under Australian Consumer Law. This kit protects your engine without interfering with factory components.
Q: Why is the ZD30DDTi particularly sensitive to fuel contamination?
A: The ZD30DDTi common rail diesel has a reputation for being sensitive to contamination and requiring careful maintenance. Clean fuel is essential for this engine's longevity. Water and particulate contamination can cause issues more quickly than in some other engines. A pre-filter is especially important insurance for the ZD30DDTi.
Q: Why do I need a pre-filter if I already have a factory filter?
A: The factory filter is designed for fine filtration, but it has limited capacity for bulk contamination. A pre-filter handles the heavy lifting (removing bulk water and particulates), which extends the life of your factory filter and provides much better overall protection. For the sensitive ZD30DDTi, this two-stage approach is especially valuable.
Q: What is two-stage filtration?
A: Two-stage filtration means having two filters in series. Stage 1 (the pre-filter) removes bulk contamination—water, large particles, rust, algae. Stage 2 (your factory filter) then performs fine filtration to protect injectors. This is far more effective than relying on a single filter alone, especially for sensitive engines like the ZD30DDTi.
Q: How does contaminated fuel damage injectors?
A: Common rail injectors operate at extremely high pressures with ultra-tight tolerances measured in microns. Water causes corrosion and poor combustion. Particulates score injector tips, damage seals, and clog nozzles. Even microscopic contamination can cause catastrophic failure—and injector replacement is expensive.
Q: What is the no-bypass design?
A: Many filters have a bypass valve that opens if the filter gets clogged, allowing unfiltered fuel to pass through. The Fuel Manager has NO bypass—all fuel must pass through the filter. This ensures contaminated fuel never reaches your sensitive ZD30DDTi injectors, though it means you must maintain the filter properly.
Q: How often do I need to drain the water?
A: Check the clear bowl weekly or before long trips. Drain frequency depends on fuel quality—you might go months without seeing water at city service stations, but see water immediately after fueling at a questionable outback roadhouse. The clear bowl makes checking easy—just look at it. For the ZD30DDTi, regular checks are especially important.
Q: How do I drain the water?
A: Simply open the drain valve at the bottom of the clear bowl. Water (being heavier than diesel) collects at the bottom. Open the valve, let the water drain into a container, close the valve when you see clean diesel. Takes about 30 seconds.
Q: How often do I replace the filter element?
A: Generally every 20,000–30,000 km, but this depends on fuel quality. If you're frequently traveling remote or using farm diesel, you may need to replace it more often. The clear bowl helps you monitor contamination levels. For the ZD30DDTi, err on the side of more frequent servicing.
Q: Does this reduce fuel pressure or flow?
A: No. The Fuel Manager is designed with high-flow characteristics to maintain optimal fuel pressure and flow to your engine. Proper installation and maintenance ensures no performance impact.
Q: Can I install this myself?
A: If you're mechanically competent and comfortable working with fuel systems, yes. Most DIYers complete installation in 2-3 hours. However, proper installation is critical for safety and performance—if you're not experienced with fuel system work, have a qualified mechanic install it.
Q: What happens if I don't drain the water?
A: If water accumulates and isn't drained, it can eventually be drawn into your fuel system, defeating the purpose of the pre-filter. For the ZD30DDTi, this could cause serious damage. Worse, in cold weather, water in the bowl can freeze. Check and drain regularly—it takes 30 seconds.
Q: Is this suitable for remote area travel?
A: Absolutely essential. Remote area fuel can be significantly more contaminated than city fuel—older tanks, less turnover, more water contamination. The GU Patrol is often used for serious outback touring. The clear drainage bowl is especially valuable in remote areas, allowing you to monitor fuel quality and drain contamination before it reaches your injectors. Many GU owners won't tour remote without one.
Q: What about farm diesel or drum fuel?
A: Farm diesel and drum fuel are notorious for contamination—rust from drums, water from condensation, algae growth from long storage. A pre-filter is absolutely essential if you regularly use these fuel sources. For the sensitive ZD30DDTi, this is non-negotiable. Check and drain the bowl more frequently with these fuels.
Q: How much do injector repairs cost on a GU Patrol?
A: Common rail injector failures can be extremely expensive. Individual injectors can cost $500-1,000+ each, and the ZD30DDTi has four injectors. Complete fuel system repairs including pump replacement can exceed $10,000 in worst cases. Given the ZD30DDTi's sensitivity, preventive protection is especially wise. A pre-filter kit is cheap insurance by comparison.
Q: Does this work with biodiesel?
A: The Fuel Manager handles biodiesel blends, but be aware that biodiesel is more prone to algae growth and water contamination. More frequent filter servicing and bowl draining may be required with biodiesel use. For the ZD30DDTi, use caution with biodiesel blends.
Q: Can I add a catch can later?
A: Yes! Many GU Patrol owners run both a Fuel Manager pre-filter AND a ProVent catch can for comprehensive protection. The pre-filter protects your fuel system, while the catch can protects your intake system. They're complementary systems and both are particularly valuable for the ZD30DDTi.
Q: What if I see a lot of water in the clear bowl?
A: That's the pre-filter doing its job! Drain it immediately and avoid fueling at that location again if possible. If you're consistently seeing water, consider reporting it to the service station—water in fuel is a serious issue. For the ZD30DDTi, seeing water caught by the pre-filter is especially reassuring—it means you've prevented potentially serious engine damage.
Q: Is this built for Australian conditions?
A: Yes! Direction-Plus™ engineering means this kit is specifically designed for Australian conditions—variable fuel quality, remote area travel, extreme temperatures, dust, and the serious touring work that GU Patrol vehicles are legendary for. Proven protection for iconic Australian 4WDs.
Q: What's the difference between a pre-filter and post-filter?
A: A pre-filter (like this Fuel Manager) installs BEFORE your factory filter and handles bulk contamination removal (especially water). A post-filter installs AFTER the factory filter for ultra-fine final filtration. Pre-filters are more important for water separation and general protection. Many people run both for maximum protection, especially with sensitive engines like the ZD30DDTi.
Q: What years of GU Patrol does this fit?
A: This kit (FM619DPK) is specifically for GU Patrol with the ZD30DDTi 3.0L engine from 2007-2018. Earlier GU models with different engines may require different pre-filter kits. Contact us if you have an earlier GU.
Q: Why is proactive maintenance so important for the ZD30DDTi?
A: The ZD30DDTi has a reputation for requiring careful, proactive maintenance. It's not an engine that tolerates neglect or contamination well. Clean fuel, regular oil changes, proper cooling system maintenance—all are essential. A pre-filter is part of this proactive approach, preventing fuel contamination issues before they can cause damage. Many ZD30DDTi owners who practice proactive maintenance enjoy reliable service from their engines.
Protect Your GU Patrol Properly
24/7 first-line defence — drive with confidence
Essential two-stage filtration for ZD30DDTi longevity
