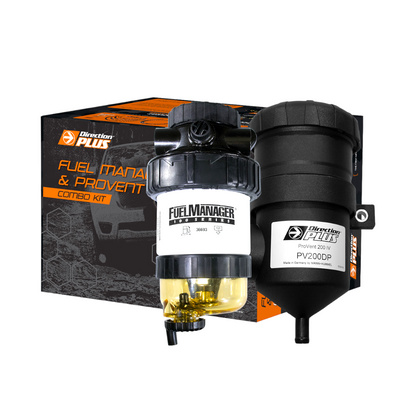

Complete Protection • 2007–2022 1VD-FTV 4.5L V8 Turbo Diesel • PFPV614DPC
🛠️ Total Diesel Protection for Your V8 🛠️
Built for the 1VD-FTV V8, this dual kit defends your 200 Series from fuel contamination, oil mist, and carbon build-up—all in one upgrade.
✅ Engineered specifically for 200 Series with the legendary 1VD-FTV 4.5L V8
⚠️ Fitment Note: Not compatible with some Kaymar rear bar setups. Please verify clearances before ordering.
How It Works: Installed AFTER your OEM filter, the Fuel Manager Post-Filter captures fine fuel contaminants that the factory filter misses. This ultra-fine filtration ensures only clean fuel reaches your V8's injectors and high-pressure pumps.
Key Features:
*Some variants may use 5-micron elements depending on flow requirements
💡 Why This Matters: The 1VD-FTV V8's common rail system operates at extreme pressures with tight tolerances. Even particles that pass through your OEM filter can cause expensive injector damage. This post-filter provides final-stage protection—avoiding $10,000+ injector and fuel-system repair bills.
How It Works: The ProVent separates oil vapour from blow-by gases before they enter your intake system. Keeps your intercooler, turbo, and intake clean under Aussie conditions—regulating crankcase pressure for smoother V8 operation.
Key Features:
💡 Why This Matters: Oil vapour causes carbon deposits that restrict airflow and coat sensors. In the 200 Series V8, keeping the intake clean is critical for maintaining performance and preventing expensive intake system repairs. The ProVent filters fine fuel contaminants and separates oil vapour—keeping your 1VD-FTV running strong.
Fuel Manager Post-Filter System:
ProVent Ultimate Catch Can:
*Element micron rating may vary based on fuel flow requirements for the V8

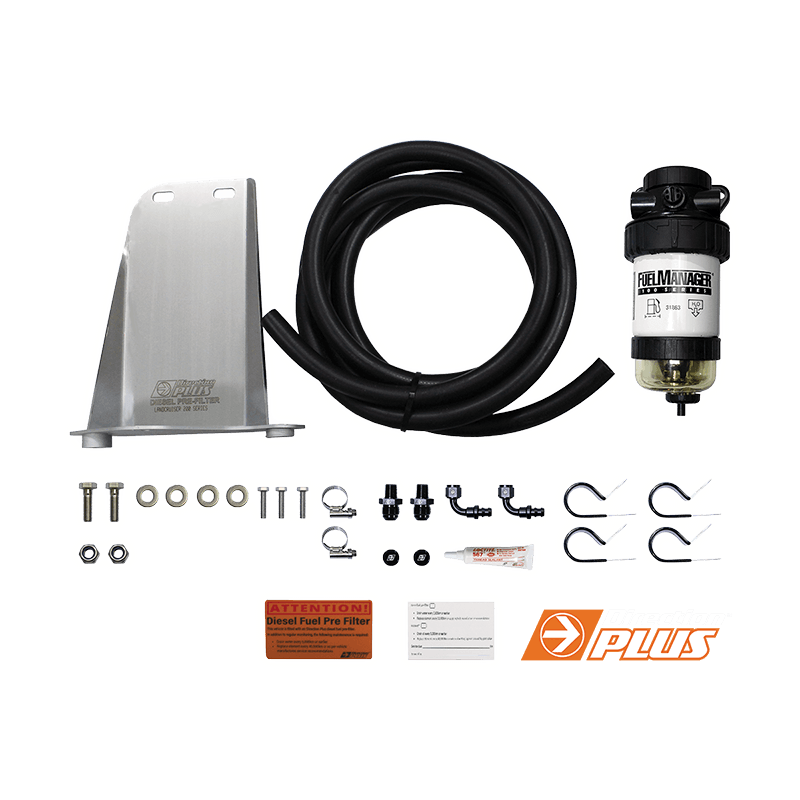

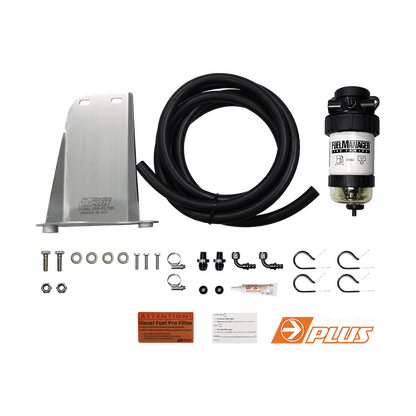

Fuel Manager Post-Filter Kit (PF614DPK):
ProVent Ultimate Catch Can Kit (PV614DPK):
✅ All hoses, brackets, and hardware for full installation included
Recommended: Competent qualified mechanic
Combined DIY Time: 4–5 hours (both systems)
Post-Filter Installation:
ProVent Installation:
⚠️ Important: May not be compatible with some Kaymar rear bar configurations. Verify clearances before installation. Both systems can be installed separately or together. Detailed installation guides included.
Fuel Manager Post-Filter:
ProVent Catch Can:
💡 Pro Tip: The 200 Series is built for serious touring. Regular maintenance of these systems takes just minutes and ensures your V8 stays protected through remote Australia and beyond. The clear bowl and drain taps make servicing quick and easy.
Q: Will this void my Toyota warranty?
A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law. These systems protect your engine without interfering with factory components.
Q: Why might there be interference with Kaymar rear bars?
A: Some Kaymar rear bar configurations may have components that conflict with the post-filter mounting location. If you have a Kaymar bar (or plan to install one), we recommend verifying clearances before ordering.
Q: What's the difference between a pre-filter and a post-filter?
A: A pre-filter installs BEFORE your OEM filter and catches bulk contamination first. A post-filter installs AFTER your OEM filter and provides ultra-fine filtration (2-5 microns) as a final defense. Many 200 Series owners run both for maximum protection.
Q: Do I need both a pre-filter/post-filter AND a catch can?
A: Yes, they protect different systems. The post-filter protects your fuel injection system from ultra-fine particles, while the ProVent protects your intake, turbo, and EGR from oil contamination. Together they provide comprehensive V8 protection.
Q: Why does this use 2-micron OR 5-micron elements?
A: Element micron rating is matched to the V8's fuel flow requirements. Some applications require 5-micron elements to maintain proper flow rates for the larger displacement engine. Both provide excellent protection—the kit is configured correctly for the 1VD-FTV.
Q: Will this restrict fuel flow to the V8?
A: No. The post-filter is designed to provide ultra-fine filtration without restricting fuel flow to the V8. When properly maintained, it has no impact on performance while providing superior injector protection.
Q: How often do I need to replace the filter elements?
A: Replace post-filter element per your vehicle service schedule (typically every 10,000–20,000 km). Replace ProVent element every 40,000 km. The clear bowl allows visual monitoring of post-filter condition.
Q: Can I install these systems myself?
A: If you're mechanically competent and comfortable working with fuel lines, yes. Most DIYers complete installation in 4-5 hours for both systems. Otherwise, any qualified mechanic can handle it. Detailed installation guides are included.
Q: Does the ProVent return oil to the sump automatically?
A: The kit includes return-to-sump line components. You can configure it to either: (a) collect oil in the catch can for periodic draining, or (b) return clean oil back to the sump automatically for closed-loop operation.
Q: How much does 1VD-FTV injector replacement cost?
A: V8 common rail injector replacement can easily exceed $10,000 when you include parts, labor, and associated repairs. The post-filter is cheap insurance against this expensive failure on your 200 Series.
Q: Is this suitable for heavy-duty touring?
A: Absolutely essential for serious touring. The 200 Series is legendary for remote travel, and this dual protection system keeps your V8 running strong with variable fuel quality. Many serious tourers consider both post-filter and catch can as mandatory protection.
Q: Can I buy these systems separately?
A: Yes, you can buy the post-filter or catch can individually, but the combo kit offers better value and comprehensive protection. Together they defend both your fuel system and intake system.
Complete Protection for Your 200 Series V8
Protect your V8 from fuel and oil damage before it's too late
Dual-stage defense for the legendary 1VD-FTV
