• Toyota LandCruiser 200 Series – 1VD-FTV 4.5L V8 Turbo Diesel | 2007–2022

⚠️ Not compatible with Kaymar rear bar setups

How It Works: Installs between fuel tank and factory filter to remove water and particle contamination before it reaches your injection system.

Key Features:

• 30 micron filtration — superior particle removal
• 95% water separation efficiency
• Clear drainage bowl — easily identify collected water
• No filter bypass — contaminated fuel never reaches engine
• Protects against corrosion and abrasive wear
• Water-in-fuel alarm compatible (sold separately)

How It Works: Separates and redirects oil and air from blow-by gas produced in the crankcase, with option to return oil to sump.

Key Features:

• 98% oil separation efficiency
• Prevents oil and soot entering clean air intake
• Protects turbocharger, EGR, and intake system
• Keeps intercooler, sensors, and throttle body clean
• Minimizes oil consumption
• Regulates crankcase pressure
• Reduces exhaust smoke and odours

Fuel Manager Pre-Filter:

• Filter Type: FM100 30 micron assembly
• Water Separation: 95% efficiency
• Fittings: 12mm straight push-on adaptors
• Clear bowl design for visual inspection
• No bypass valve — full filtration always active

ProVent 200 Catch Can:

• Oil Separation: 98% efficiency
• Filter: MANN+HUMMEL media
• Hose Size: 16mm connections
• Drain tap for oil collection
• Mounting: Driver-side engine bay (horn relocation required)

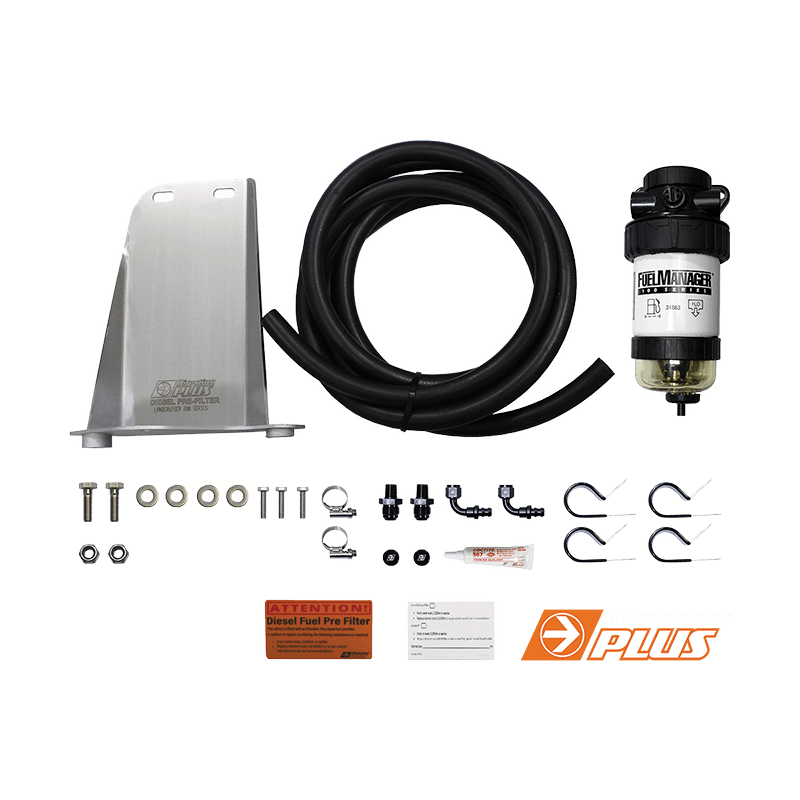

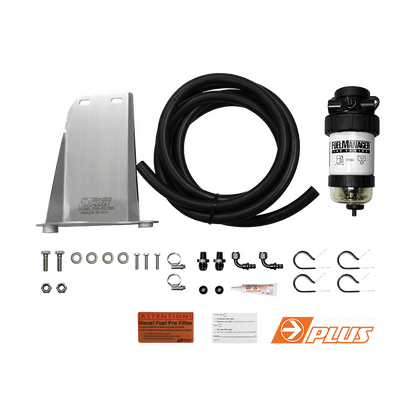

Fuel Manager Pre-Filter Kit:

• FM100 30 micron filter assembly with clear bowl
• LC200-specific mounting bracket
• DFL12 fuel line rubber hose (12mm)
• 2 x 12mm push-on straight fittings
• 2 x 12mm hose clamps
• 2 x plugs
• Engine bay and windscreen labels

ProVent Ultimate Catch Can Kit:

• MANN+HUMMEL ProVent 200 catch can
• LC200-specific mounting bracket (horn relocation)
• Complete 16mm hose and fitting kit
• 16mm 90° joiner + 19-16mm reducing elbow
• Drain tap assembly with hose
• Mounting hardware (M8 bolts, washers, nuts)
• Spring clamps and cable ties

Installation:

• Detailed installation guides for both systems

Recommended: Competent qualified mechanic

Combined DIY Time: 4–5 hours (both systems)

Fuel Manager Installation:

• Mounts on top of factory fuel filter (or underneath for bonnet clearance on some 2007+ models)
• 12mm fuel line connections
• Simple bracket installation using factory mounting points

ProVent Installation:

• Mounts driver-side engine bay
• Requires horn relocation to new bracket (included)
• 16mm crankcase hose connections
• Drain tap routed underneath vehicle

Important: Both systems can be installed separately or together. Horn must be relocated for ProVent installation.

Fuel Manager:

• Drain water bowl as needed (clear bowl allows visual inspection)
• Replace filter element per vehicle service schedule
• Optional water alarm (FMALARM) provides automatic warning

ProVent Catch Can:

• Check oil level every 5,000–10,000 km
• Drain collected oil via drain tap when needed
• Replace PVE200DP element every 40,000 km (~$90)

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law.

Q: Why is it not compatible with Kaymar rear bars?

A: The Fuel Manager mounting location may interfere with certain Kaymar rear bar configurations. Check clearances before ordering.

Q: Do I need to relocate the horn?

A: Yes, for ProVent installation. A new bracket is included that remounts the horn to a different location while using factory mounting points.

Q: Can I buy these systems separately?

A: Yes. Individual Fuel Manager and ProVent kits are available, but the combo kit offers better value.

Q: Does the Fuel Manager have a water alarm?

A: Water alarm is available as a separate accessory (FMALARM — ~$180). It provides visual/audible warning when water is detected.

Q: Why do I need both systems?

A: They protect different systems. Fuel Manager protects your fuel injection system from water/contamination. ProVent protects your intake, turbo, and EGR from oil/carbon buildup. Together, they provide comprehensive engine protection.

Q: Will the Fuel Manager fit under the bonnet?

A: Most models mount on top of the factory filter. Some 2007+ models may require under-mounting for bonnet clearance. Check fitment during installation.
