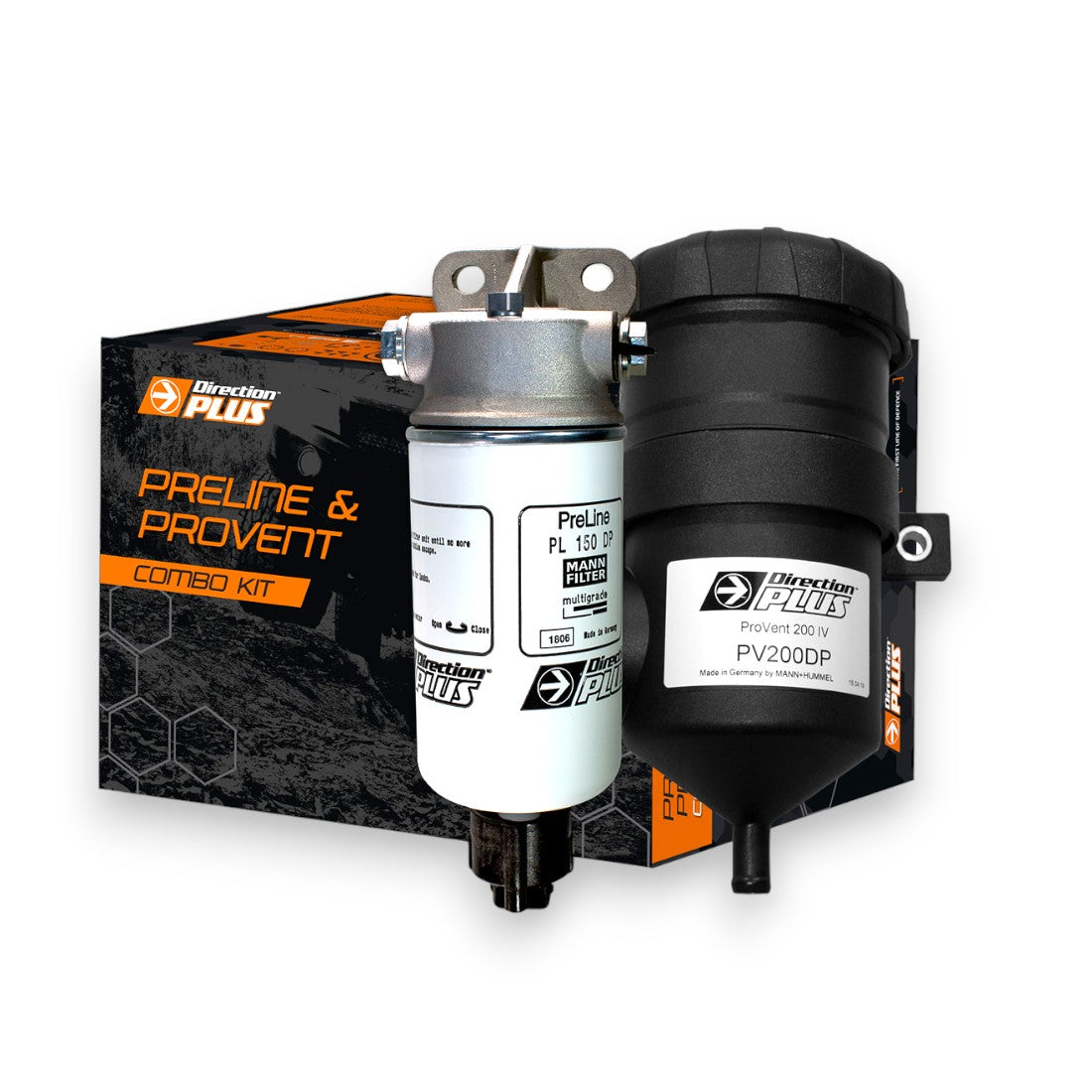

• Toyota Land Cruiser 200 Series – 1VD-FTV 4.5L V8 Turbo Diesel | 2007–2022

✅ Designed and tested specifically for Australian 4x4 conditions

⚠️ Not compatible with Kaymar rear bar setups — fuel filter bracket may interfere with certain Kaymar rear bar configurations.

How It Works: Installed between the fuel tank and factory filter, the PreLine-Plus provides superior fuel system protection with up to 100% water separation efficiency. The multi-stage in-cab water alarm provides both audible and visual alerts when water is detected—no manual checking required.

Key Features:

• Up to 100% water separation* — stops water before damage occurs
• ~98% particle removal — robust secondary filtration
• In-cab multi-stage water alert — audible and visual warning
• Spin-on filter design — quick, easy DIY servicing
• Meets OEM injector manufacturer specs
• No bypass system — contaminants never reach your engine
• Protects against corrosion and abrasive wear
• Prevents injector and pump damage

*Lab-rated efficiency. Real-world results may vary with fuel quality and service practices.

💡 Why This Matters: The 1VD-FTV V8 uses an advanced common rail system operating at extreme pressures. Even small amounts of water can cause catastrophic injector failure costing $10,000+. The PreLine-Plus with integrated alarm catches contamination before it becomes a costly repair bill.

How It Works: The ProVent separates oil mist and blow-by gases before they enter your intake system, keeping your intake, turbo, and intercooler clean. Cleaner air means longer engine life and sustained performance for your V8.

Key Features:

• ~98% oil separation efficiency
• Keeps intake, turbo, and intercooler clean
• Prevents oil and soot entering clean air intake
• Protects turbocharger, EGR, and intake system
• Reduces oil consumption and exhaust smoke
• Regulates crankcase pressure
• Smoother, more efficient running
• Minimizes oil consumption

💡 Why This Matters: Oil vapour causes carbon deposits that restrict airflow and coat sensitive sensors. In the 200 Series V8 system, keeping the intake clean is critical for maintaining performance, fuel efficiency, and preventing expensive intake system repairs.

PreLine-Plus Pre-Filter System:

• Water Separation: Up to 100% efficiency (lab-rated)
• Particle Removal: ~98% efficiency
• Filter Type: Spin-on replaceable element
• Multi-stage in-cab water alarm: Audible + visual alerts
• No bypass valve — full filtration always active
• Meets OEM injector manufacturer specifications
• Designed for 1VD-FTV fuel system specifications

ProVent Ultimate Catch Can:

• Oil Separation: ~98% efficiency
• Filter: MANN+HUMMEL media
• Drain tap for oil collection
• Optional return line to sump
• Engineered specifically for 1VD-FTV V8 crankcase system
• Built to handle Australian touring conditions

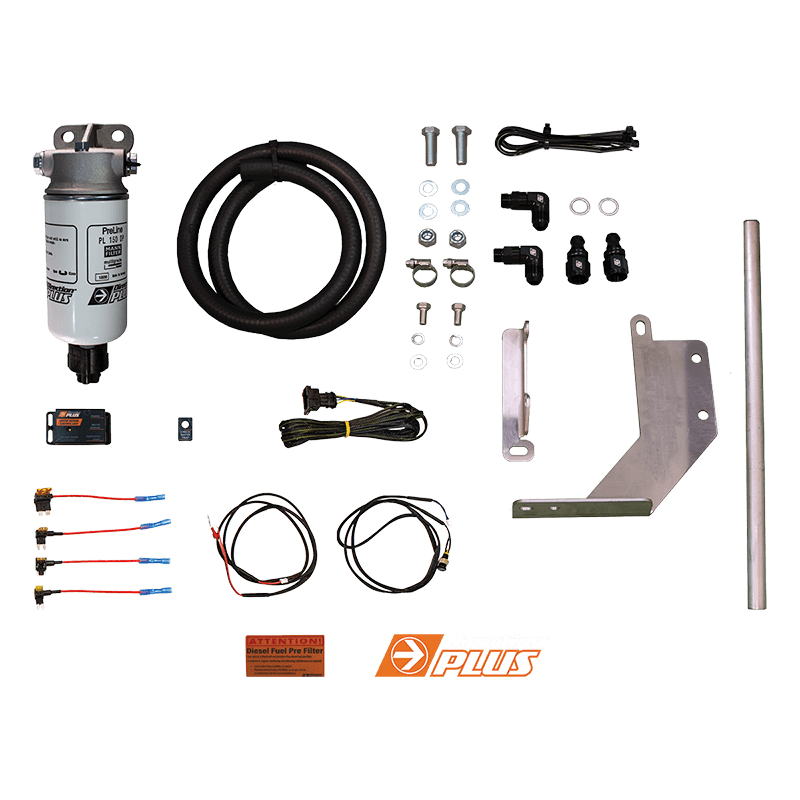

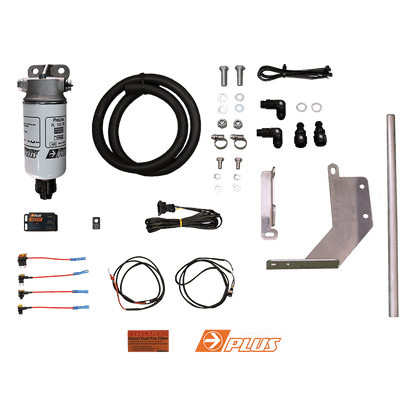

PreLine-Plus Pre-Filter Kit:

• PreLine-Plus pre-filter assembly with spin-on filter
• Multi-stage in-cab water alarm module (audible + visual)
• LC200-specific mounting bracket
• Complete fuel line and fitting kit
• Wiring harness for alarm installation
• Hose clamps and connectors
• Mounting hardware
• Engine bay and windscreen labels
• Installation guide

ProVent Ultimate Catch Can Kit:

• MANN+HUMMEL ProVent catch can
• LC200-specific mounting bracket
• Complete hose and fitting kit
• Drain tap assembly with hose
• Optional sump return line components
• Mounting hardware (bolts, washers, nuts)
• Spring clamps and cable ties
• Installation guide

✅ Fast, easy installation — no cutting or custom mods required

Recommended: Competent qualified mechanic

Combined DIY Time: 4–5 hours (both systems)

PreLine-Plus Installation:

• Mounts on top of factory fuel filter (or underneath for bonnet clearance on some 2007+ models)
• Uses LC200-specific mounting bracket
• Water alarm module mounts in cab (dashboard or A-pillar)
• Wiring connects to cabin for audible/visual alerts
• Spin-on filter design for easy maintenance

ProVent Installation:

• Mounts in engine bay
• Connects to V8 crankcase ventilation system
• Drain tap routed for easy access
• Optional return line to sump can be configured
• All hoses and fittings included

⚠️ Important: Check fitment if you have a Kaymar rear bar installed. Both systems can be installed separately or together. Detailed installation guides included.

PreLine-Plus Pre-Filter:

• Water alarm will alert you automatically when water is detected
• Drain water when alarm sounds (simple drain procedure)
• Replace spin-on filter element per vehicle service schedule
• No manual checking required — alarm does the monitoring
• Fast filter changes thanks to spin-on design

ProVent Catch Can:

• Check oil level every 5,000–10,000 km
• Drain collected oil via drain tap when needed
• If using sump return line, oil automatically recirculates
• Replace filter element every 40,000 km (replacement elements available)

💡 Pro Tip: The LC200 is built for long-distance touring. The integrated water alarm and spin-on filter design make maintenance quick and easy—perfect for remote Australia. Regular servicing ensures your V8 stays protected wherever you roam.

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law. These systems protect your engine without interfering with factory components.

Q: Why might there be interference with Kaymar rear bars?

A: Some Kaymar rear bar configurations have components that may conflict with the PreLine-Plus mounting location. If you have a Kaymar bar (or plan to install one), we recommend verifying clearances before ordering.

Q: Is the water alarm included or sold separately?

A: The multi-stage in-cab water alarm is included with this PreLine-Plus kit! It provides both audible and visual alerts when water is detected—no need to manually check the filter.

Q: How does the PreLine-Plus differ from the Fuel Manager?

A: The PreLine-Plus offers superior up to 100% water separation efficiency (vs 95%) and comes with an integrated water alarm system. It also features a convenient spin-on filter design for faster maintenance.

Q: How often do I need to drain water?

A: The water alarm will alert you automatically when water is detected. Simply drain when the alarm sounds—no scheduled checking required. Frequency depends on fuel quality and touring conditions.

Q: Can I install these systems myself?

A: If you're mechanically competent and comfortable working with fuel lines and basic wiring, yes. Most DIYers complete installation in 4-5 hours. Otherwise, any qualified mechanic can handle it. Detailed installation guides are included.

Q: Do I need both systems or can I buy them separately?

A: You can buy either system separately, but the combo kit offers better value and comprehensive protection. The PreLine-Plus protects your fuel system, while the ProVent protects your intake system—together they provide complete engine protection.

Q: Does the ProVent return oil to the sump automatically?

A: The kit includes components for an optional sump return line. You can configure it to either: (a) collect oil in the catch can for periodic draining, or (b) return clean oil back to the sump automatically. Your choice based on preference.

Q: Why is the LC200's V8 particularly vulnerable to these issues?

A: The 1VD-FTV is a sophisticated V8 with advanced common rail injection operating at extreme pressures. This precision engineering means tighter tolerances and greater sensitivity to contamination. Modern diesels require modern protection.

Q: Is this suitable for heavy-duty touring and towing?

A: Absolutely. The LC200 is built for serious touring and towing, and these systems are designed to protect your V8 through remote Australia, varying fuel quality, and harsh conditions. They're essential protection for long-distance adventuring with heavy loads.

Q: Will the PreLine-Plus fit under my bonnet?

A: Most models mount on top of the factory filter. Some 2007+ models may require under-mounting for bonnet clearance. Check fitment during installation.
