• LandCruiser 300 Series – F33A-FTV 3.3L V6 Twin-Turbo Diesel | 2022+

⚠️ Fitment Note: Not compatible with vehicles fitted with Kaymar rear bar. Please verify clearances if you have or plan to install a Kaymar rear bar.

How It Works: Mounted AFTER the OEM filter, this post-filter serves as the final stage of protection against fine contaminants that can destroy injectors and pumps. Ensures only clean, dry diesel reaches the heart of your twin-turbo V6 engine.

Key Features:

• 2-micron filtration* — captures ultra-fine contaminants
• Clear drain bowl — easy water check and drain
• No-bypass design — unfiltered fuel never enters the system
• Protects F33A-FTV injectors from micro-contamination
• Extends fuel-system life
• Maintains optimal fuel pressure and combustion
• Additional water separation for extra protection

*Some variants use 5μm elements depending on flow requirements

💡 Why This Matters: The LC300's F33A-FTV twin-turbo V6 is an advanced, high-pressure common rail system with extremely tight tolerances. Even tiny particles that pass through your factory filter can trigger injector wear and catastrophic failure. A 2-micron post-filter ensures only clean, dry diesel reaches your precision injection components—preventing $10,000+ repairs.

Modern common-rail systems run extreme pressures. The LC300's twin-turbo V6 operates at pressures exceeding 2,000 bar with microscopic tolerances. Even particles that slip through your OEM filter can cause expensive damage over time.

Benefits:

• 💰 Save thousands — prevents $10k+ injector and pump repairs
• 🔍 2-micron filtration* catches what OEM filters miss
• 💧 Additional water separation for extra V6 protection
• ⚙️ Protects high-pressure components from premature wear
• 🚫 No-bypass design ensures full protection always
• 🛡️ Peace of mind — final defense for your twin-turbo V6

💡 Post-Filter vs Pre-Filter: A pre-filter protects your OEM filter by catching bulk contamination first. A post-filter provides ultra-fine filtration AFTER the OEM filter for maximum injector protection. For ultimate LC300 protection, many owners run both.

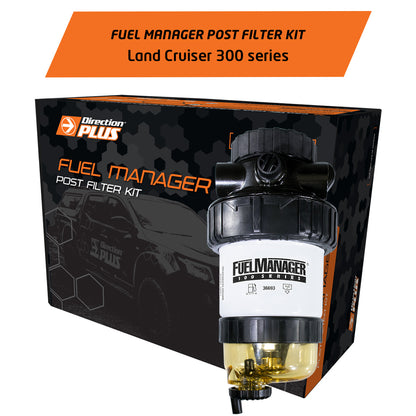

Fuel Manager Post-Filter System:

• Filtration Rating: 2 microns* (some applications use 5μm elements)
• Filter Type: Replaceable element with clear bowl
• Clear bowl design for visual water inspection
• No-bypass valve — full filtration even when blocked
• Water drain tap for easy maintenance
• Designed specifically for F33A-FTV twin-turbo V6 specifications
• Australian-engineered for local conditions

*Element micron rating may vary based on fuel flow requirements

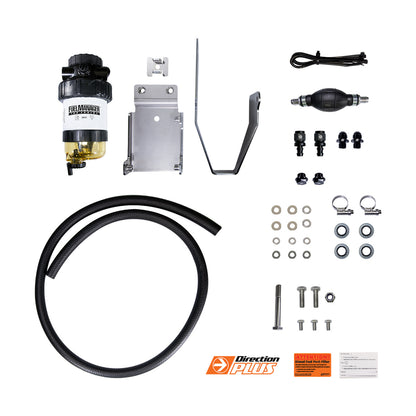

• Fuel Manager Post-Filter assembly
• Clear water drainage bowl
• LC300-specific mounting hardware and fittings
• Complete fuel line and fitting kit
• Hose clamps and connectors
• Drain plugs
• Installation guide

✅ Engineered specifically for LC300 twin-turbo V6 diesel

Recommended: Competent qualified mechanic

DIY Time: 2–3 hours

Installation Notes:

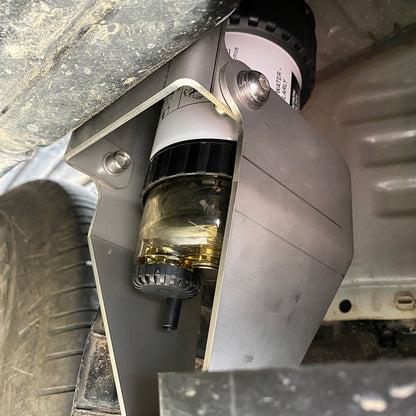

• Mounts in engine bay AFTER the OEM fuel filter
• Uses LC300-specific mounting hardware
• Fuel line connections with supplied fittings
• Clear bowl positioned for easy drainage access
• Check clearances if Kaymar rear bar is fitted

⚠️ Important: Not compatible with Kaymar rear bar installations. Verify clearances before purchasing if you have or plan to install a Kaymar rear bar. Detailed installation guide included.

Maintenance Schedule:

• Check clear bowl regularly for water accumulation
• Drain water bowl as needed (simple drain tap)
• Replace filter element per vehicle service schedule
• Visual inspection takes just seconds
• Water drainage takes just minutes

💡 Pro Tip: The clear bowl lets you see water and contamination at a glance. Regular checks are quick and easy—especially important when touring or fueling at remote stations. The LC300 is built for serious touring, and keeping your post-filter maintained ensures maximum V6 protection.

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law. This system protects your engine without interfering with factory components.

Q: Why isn't this compatible with Kaymar rear bars?

A: Some Kaymar rear bar configurations have components that may conflict with the post-filter mounting location. If you have a Kaymar bar (or plan to install one), we recommend verifying clearances before ordering or consulting with your installer.

Q: What's the difference between a pre-filter and a post-filter?

A: A pre-filter installs BEFORE your OEM filter and catches bulk contamination (water and large particles) first. A post-filter installs AFTER your OEM filter and provides ultra-fine filtration (2-5 microns) as a final defense. Many LC300 owners run both for maximum protection.

Q: Do I need both a pre-filter and a post-filter?

A: While not required, running both provides maximum protection for your LC300's advanced twin-turbo V6. The pre-filter handles bulk contamination, while the post-filter ensures ultra-fine particles don't reach your injectors. For ultimate protection, especially during remote touring, both are recommended.

Q: Why is this critical for the F33A-FTV V6?

A: The LC300's F33A-FTV is a sophisticated twin-turbo V6 with advanced common rail injection operating at extreme pressures (2,000+ bar). This precision engineering means tighter tolerances and greater sensitivity to contamination than older diesels. Ultra-fine post-filtration is essential protection.

Q: Will this restrict fuel flow or affect performance?

A: No. The Fuel Manager Post-Filter is designed to provide ultra-fine filtration without restricting fuel flow to the twin-turbo V6. When properly maintained, it has no impact on performance while providing superior injector protection.

Q: Why does this use 2-micron OR 5-micron elements?

A: Element micron rating is matched to your specific engine's fuel flow requirements. The twin-turbo V6 has high fuel demands, so some applications require 5-micron elements to maintain proper flow rates. Both provide excellent protection—the kit is configured correctly for the LC300.

Q: How often do I need to replace the filter element?

A: Replace per your vehicle service schedule (typically every 10,000–20,000 km depending on fuel quality and driving conditions). The clear bowl allows visual monitoring of filter condition.

Q: Can I install this myself?

A: If you're mechanically competent and comfortable working with fuel lines, yes. Most DIYers complete installation in 2-3 hours. Otherwise, any qualified mechanic can handle it. A detailed installation guide is included.

Q: How much does LC300 injector replacement cost?

A: Twin-turbo V6 injector replacement can easily exceed $10,000 when you include parts, labor, and associated repairs. The Fuel Manager Post-Filter is cheap insurance against this expensive failure on your premium LC300.

Q: What is the no-bypass design?

A: With a no-bypass design, even if the filter becomes blocked, contaminated fuel cannot bypass the filter and reach your engine. This ensures your V6 injectors are always protected, unlike systems that allow bypass when filters are clogged.

Q: Is this suitable for heavy-duty touring?

A: Absolutely essential for serious touring. The LC300 is built for remote travel, and variable fuel quality makes ultra-fine filtration critical. The clear bowl also lets you monitor fuel quality on the road—invaluable when you're far from help. Many serious LC300 tourers run both pre- and post-filters.
