• Toyota LandCruiser 300 Series – F33A-FTV 3.3L V6 Turbo Diesel | 2022+

⚠️ Fitment Note: Fuel filter bracket may interfere with some Kaymar rear bars. Please verify clearances if you have or plan to install a Kaymar rear bar.

How It Works: Installed between the fuel tank and factory filter, this pre-filter kit removes over 95% of water and coarse particles before they reach your injectors. It's your first line of defense against $10K+ repair bills caused by water-contaminated fuel.

Key Features:

• 95% water separation rate
• Superior particle filtration before OEM filter
• Transparent bowl for quick water checks
• No filter bypass = full protection always active
• Removes emulsified water from ULSD
• Prevents injector and fuel pump wear
• Protects against corrosion and abrasive damage
• Water-in-fuel alarm compatible (sold separately)

💡 Why This Matters: The LC300's F33A-FTV V6 uses an advanced common rail system operating at extreme pressures. Even small amounts of water can cause catastrophic injector failure costing $10,000+. The Fuel Manager catches contamination before it becomes a costly repair bill.

How It Works: This unit separates oil mist and blow-by gas before it can gum up your intake and intercooler. Less sludge, better airflow, and longer engine life for your LC300's advanced V6 turbo diesel.

Key Features:

• 98% oil separation efficiency*
• Prevents oil from entering the intake
• Keeps EGR and intake system cleaner
• Reduces intercooler oil contamination
• Protects turbo and valves
• Regulates crankcase pressure
• Minimizes oil consumption
• Reduces exhaust smoke and odours
• Optional oil return to sump

*When oil return is plumbed back to the sump

💡 Why This Matters: Oil vapour causes carbon deposits that restrict airflow and coat sensitive sensors. In the LC300's complex V6 system, keeping the intake clean is critical for maintaining performance, fuel efficiency, and preventing expensive intake system repairs.

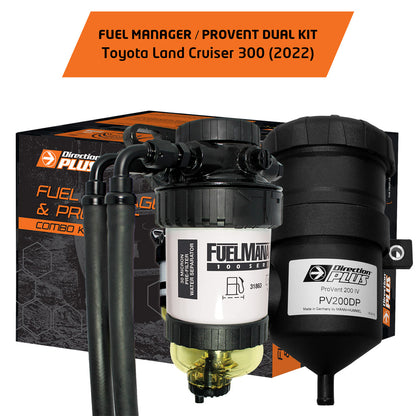

Fuel Manager Pre-Filter:

• Water Separation: 95% efficiency
• Filter Type: Replaceable element with transparent bowl
• Clear bowl design for visual inspection
• No bypass valve — full filtration always active
• Designed for F33A-FTV fuel system specifications
• Engineered for LC300 V6 turbo diesel

ProVent Ultimate Catch Can:

• Oil Separation: 98% efficiency (with sump return)
• Filter: MANN+HUMMEL media
• Drain tap for oil collection
• Optional return line to sump
• Designed specifically for LC300 V6 crankcase system
• Built to handle Australian touring conditions

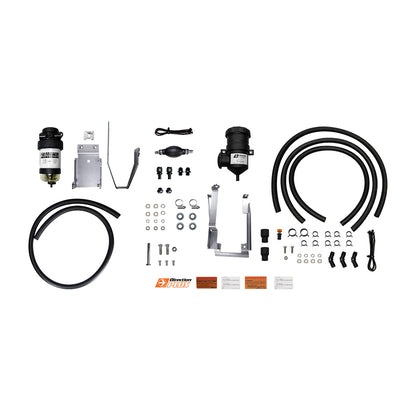

Fuel Manager Pre-Filter Kit:

• Fuel Manager filter assembly with transparent bowl
• LC300-specific mounting bracket
• Complete fuel line and fitting kit
• Hose clamps and connectors
• Drain plugs
• Engine bay and windscreen warning labels
• Installation guide

ProVent Ultimate Catch Can Kit:

• MANN+HUMMEL ProVent catch can
• LC300-specific mounting bracket
• Complete hose and fitting kit
• Drain tap assembly with hose
• Optional sump return line components
• Mounting hardware (bolts, washers, nuts)
• Spring clamps and cable ties
• Installation guide

Recommended: Competent qualified mechanic

Combined DIY Time: 4–5 hours (both systems)

Fuel Manager Installation:

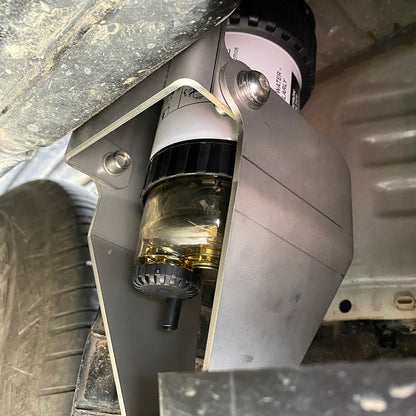

• Mounts in engine bay between fuel tank and OEM filter
• Uses LC300-specific mounting bracket for perfect fitment
• Fuel line connections with supplied fittings
• Transparent bowl positioned for easy drainage access
• Check clearances if Kaymar rear bar is fitted

ProVent Installation:

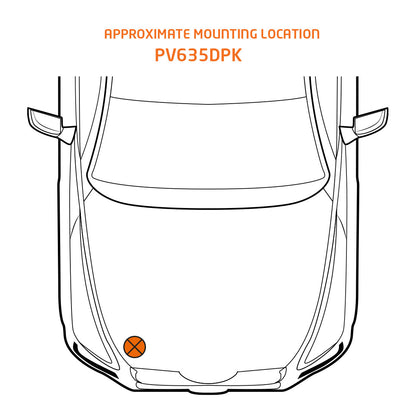

• Mounts in engine bay
• Connects to V6 crankcase ventilation system
• Drain tap routed for easy access
• Optional return line to sump can be configured
• All hoses and fittings included

⚠️ Important: If you have a Kaymar rear bar or plan to install one, verify clearances before purchasing. Both systems can be installed separately or together. Detailed installation guides included.

Fuel Manager Pre-Filter:

• Check transparent bowl regularly for water accumulation
• Drain water bowl as needed (simple drain plug)
• Replace filter element per vehicle service schedule
• Optional water alarm (FMALARM) provides automatic warning
• Takes just minutes to check and drain

ProVent Catch Can:

• Check oil level every 5,000–10,000 km
• Drain collected oil via drain tap when needed
• If using sump return line, oil automatically recirculates
• Replace filter element every 40,000 km (replacement elements available)

💡 Pro Tip: The LC300 is built for long-distance touring. Regular maintenance of these systems takes just minutes and ensures your V6 turbo diesel stays protected through remote Australia and beyond.

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law. These systems protect your engine without interfering with factory components.

Q: Why might there be interference with Kaymar rear bars?

A: Some Kaymar rear bar configurations have components that may conflict with the Fuel Manager mounting location. If you have a Kaymar bar (or plan to install one), we recommend verifying clearances before ordering or consulting with your installer.

Q: Is this specifically designed for the LC300's V6 engine?

A: Yes! This kit is engineered specifically for the F33A-FTV 3.3L V6 turbo diesel found in the LandCruiser 300 Series. The brackets, fittings, and specifications are all LC300-specific.

Q: How often do I need to drain the Fuel Manager?

A: It depends on your fuel quality. The transparent bowl lets you visually inspect for water. Remote touring or wet weather typically requires more frequent checks. The optional water alarm (FMALARM) can alert you automatically.

Q: Can I install these systems myself?

A: If you're mechanically competent and comfortable working with fuel lines, yes. Most DIYers complete installation in 4-5 hours. Otherwise, any qualified mechanic can handle it. Detailed installation guides are included.

Q: Do I need both systems or can I buy them separately?

A: You can buy either system separately, but the combo kit offers better value and comprehensive protection. The Fuel Manager protects your fuel system, while the ProVent protects your intake system—together they provide complete engine protection.

Q: Does the ProVent return oil to the sump automatically?

A: The kit includes components for an optional sump return line. You can configure it to either: (a) collect oil in the catch can for periodic draining, or (b) return clean oil back to the sump automatically for 98% efficiency rating.

Q: Why is the LC300's V6 particularly vulnerable to these issues?

A: The F33A-FTV is a sophisticated twin-turbo V6 with advanced common rail injection operating at extreme pressures. This precision engineering means tighter tolerances and greater sensitivity to contamination. Modern diesels require modern protection.

Q: Will this affect my LC300's performance?

A: These systems maintain performance by preventing contamination. You won't notice immediate power gains, but you will prevent the gradual performance loss that comes from carbon build-up and fuel system contamination over time.

Q: Is this suitable for heavy-duty touring?

A: Absolutely. The LC300 is built for serious touring, and these systems are designed to protect your engine through remote Australia, varying fuel quality, and harsh conditions. They're essential protection for long-distance adventuring.
