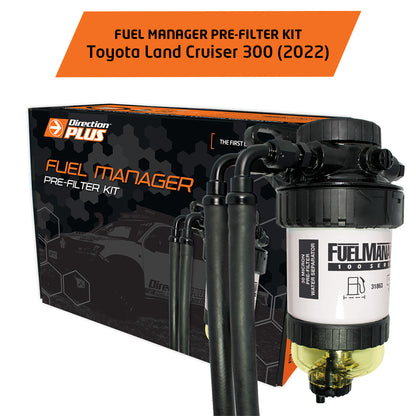

Two-Stage Filtration Protection • 2022+ F33A-FTV 3.3L V6 Twin Turbo • FM635DPK
🛡️ Ultimate First Line of Defence 🛡️
Engineered for Toyota's most advanced diesel. Protects your injectors, pump, and engine from costly damage in Australia's toughest environments.
FM635DPK suits:
⚠️ CRITICAL EXCLUSION:
✅ Engineered specifically for LC300 F33A-FTV fuel system

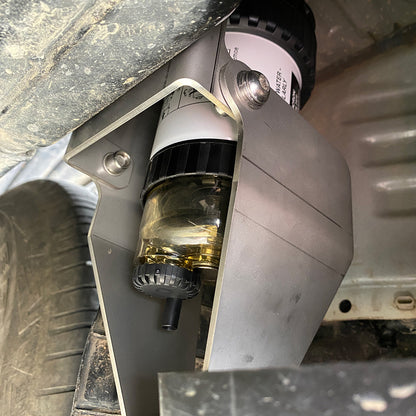

How It Works: Installed between the fuel tank and OEM filter, the pre-filter traps larger contaminants and water. Working as part of a two-stage filtration setup, it allows your factory filter to handle finer particles for maximum engine protection. The clear drain bowl allows easy inspection and draining, while the no-bypass design ensures unfiltered fuel never reaches your injectors.
Key Features:
💡 Why This Matters: Diesel contamination is a major cause of injector and pump failures in modern common-rail systems. The F33A-FTV is Toyota's most advanced diesel engine—a sophisticated 3.3L V6 twin-turbo with ultra-high-pressure injection. This level of sophistication demands premium fuel protection. The FM635DPK acts as the first defence, catching water and debris before your OEM filter—ensuring reliable fuel delivery in Australia's toughest environments. Essential insurance for your LC300 investment.
The LC300 deserves premium protection. The LandCruiser 300 Series represents Toyota's flagship expedition vehicle, powered by their most advanced diesel ever—the F33A-FTV 3.3L V6 twin-turbo. This engine features ultra-high-pressure injection, sophisticated emissions systems, and complex fuel delivery. It's designed for extreme reliability, but only with clean fuel. Australian diesel fuel quality varies significantly—contamination is a real risk.
The Problem:
Benefits:
💡 F33A-FTV Protection: The F33A-FTV 3.3L V6 twin-turbo replaced the legendary 1VD-FTV V8. It's Toyota's most sophisticated diesel—more efficient, more powerful, and packed with technology. But this sophistication demands clean fuel. Ultra-high-pressure injection systems have zero tolerance for contamination. The LC300 is often used for serious expedition touring where fuel quality is questionable—Simpson Desert, Cape York, Kimberley, Gibb River Road. A pre-filter is essential insurance for maintaining LC300 reliability in Australia's toughest conditions. Don't risk your flagship investment on questionable fuel.
Fuel Manager Pre-Filter:
Performance:
System Design:
Fitment Notes:

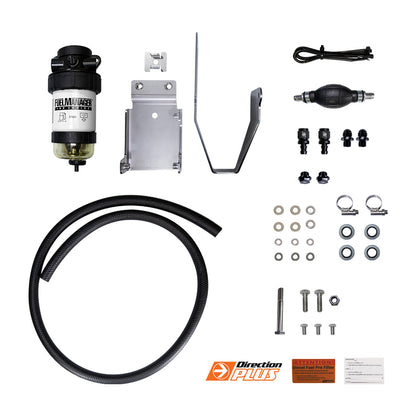

✅ Complete kit with LC300-specific components for direct fitment
Recommended: Competent qualified mechanic or experienced DIYer
DIY Time: 2–3 hours
Installation Notes:
⚠️ Important: NOT compatible with Kaymar rear bars. Ensure you don't have a Kaymar rear bar before ordering. Detailed installation guide included. Professional installation recommended if not experienced with fuel system work on LC300.
Maintenance Schedule:
💡 Pro Tip: The LC300 is THE expedition touring vehicle in Australia. If you're heading remote—Simpson, Cape York, Kimberley, Gibb River Road—check the clear drainage bowl before departure and regularly during your trip. The bowl shows you exactly what the pre-filter is catching—water, sediment, contamination. If you see a lot of water, drain it immediately. This simple 30-second check can prevent being stranded with injector failure thousands of kilometers from help. The F33A-FTV V6 is Toyota's most advanced diesel—protect it properly with proactive maintenance.
Q: Will this void my Toyota warranty?
A: No. Aftermarket fuel filtration devices don't void warranty under Australian Consumer Law. This kit protects your engine without interfering with factory components.
Q: Why won't this fit with Kaymar rear bars?
A: Kaymar rear bars are popular aftermarket accessories for LC300, but their mounting structure conflicts with the pre-filter's mounting location. If you have a Kaymar rear bar, this kit will not fit. Check your vehicle before ordering or contact us if unsure.
Q: What is the F33A-FTV engine?
A: The F33A-FTV is Toyota's most advanced diesel engine—a 3.3L V6 twin-turbo that replaced the legendary 1VD-FTV V8 in the LC300. It features ultra-high-pressure injection, sophisticated emissions systems, twin turbochargers, and advanced fuel delivery. It's powerful, efficient, and reliable—but demands clean fuel to deliver that reliability.
Q: Why does the V6 have 6 injectors instead of the V8's 8?
A: The F33A-FTV V6 has 6 cylinders (hence 6 injectors), while the previous 1VD-FTV V8 had 8 cylinders (8 injectors). While fewer injectors means slightly lower total replacement cost, each injector is still expensive ($800-1,200+), so total replacement could still cost $5,000-7,000+ plus labor. A pre-filter is still essential insurance.
Q: What is ultra-high-pressure injection?
A: Modern common rail diesels like the F33A-FTV operate at extremely high injection pressures—2,500+ bar (36,000+ PSI). This allows for better combustion, efficiency, and emissions. But these ultra-high pressures demand ultra-tight tolerances measured in microns. Even microscopic contamination can cause catastrophic injector failure. Zero tolerance for dirty fuel.
Q: Why do I need a pre-filter if I already have a factory filter?
A: The factory filter is designed for fine filtration, but it has limited capacity for bulk contamination. A pre-filter handles the heavy lifting (removing bulk water and particulates), which extends the life of your factory filter and provides much better overall protection. For the sophisticated F33A-FTV, this two-stage approach is essential.
Q: What is two-stage filtration?
A: Two-stage filtration means having two filters in series. Stage 1 (the pre-filter) removes bulk contamination—water, large particles, rust, algae. Stage 2 (your factory filter) then performs fine filtration to protect injectors. This is far more effective than relying on a single filter alone, especially for advanced engines like the F33A-FTV.
Q: How does contaminated fuel damage the F33A-FTV?
A: Ultra-high-pressure injection systems operate at pressures exceeding 2,500 bar with tolerances measured in microns. Water causes corrosion, cavitation damage, and poor combustion. Particulates score injector tips, damage seals, clog nozzles, and wear the high-pressure pump. Even microscopic contamination can cause catastrophic failure costing thousands to repair.
Q: What is the no-bypass design?
A: Many filters have a bypass valve that opens if the filter gets clogged, allowing unfiltered fuel to pass through. The Fuel Manager has NO bypass—all fuel must pass through the filter. This ensures contaminated fuel never reaches your 6 injectors, though it means you must maintain the filter properly.
Q: How often do I need to drain the water?
A: Check the clear bowl weekly or before long trips. Drain frequency depends on fuel quality—you might go months without seeing water at city service stations, but see water immediately after fueling at a remote roadhouse. The clear bowl makes checking easy—just look at it. For expedition touring, check daily.
Q: How do I drain the water?
A: Simply open the drain valve at the bottom of the clear bowl. Water (being heavier than diesel) collects at the bottom. Open the valve, let the water drain into a container, close the valve when you see clean diesel. Takes about 30 seconds.
Q: How often do I replace the filter element?
A: Generally every 20,000–30,000 km, but this depends on fuel quality. If you're frequently traveling remote or using questionable fuel, you may need to replace it more often. The clear bowl helps you monitor contamination levels. For the F33A-FTV, don't skimp on maintenance.
Q: Does this reduce fuel pressure or flow?
A: No. The Fuel Manager is designed with high-flow characteristics to maintain optimal fuel pressure and flow to your V6. The F33A-FTV has sophisticated fuel delivery demands—proper installation and maintenance ensures no performance impact.
Q: Can I install this myself?
A: If you're mechanically competent and comfortable working with fuel systems, yes. Most DIYers complete installation in 2-3 hours. However, the LC300 is a sophisticated vehicle—if you're not experienced with fuel system work, have a qualified mechanic install it. Proper installation is critical for safety and performance.
Q: What happens if I don't drain the water?
A: If water accumulates and isn't drained, it can eventually be drawn into your fuel system—potentially catastrophic for the ultra-high-pressure F33A-FTV fuel system. Worse, in cold weather, water in the bowl can freeze. Check and drain regularly—it takes 30 seconds and could save your engine.
Q: Is this suitable for remote area travel?
A: Absolutely essential. The LC300 is THE remote area touring vehicle. Whether you're crossing the Simpson, heading to Cape York, or exploring the Kimberley, remote fuel can be heavily contaminated. The clear drainage bowl is especially valuable remote—you can monitor fuel quality and drain contamination before it reaches your 6 injectors. Most serious LC300 tourers won't leave without one.
Q: What about farm diesel or drum fuel?
A: Farm diesel and drum fuel are notorious for contamination—rust from drums, water from condensation, algae growth from long storage. A pre-filter is absolutely essential if you regularly use these fuel sources. For the sophisticated F33A-FTV, this is non-negotiable. Check and drain the bowl more frequently with these fuels.
Q: How much do LC300 injector repairs cost?
A: F33A-FTV injectors can cost $800-1,200+ each. With 6 injectors, a complete set could cost $5,000-7,000+ plus labor. If the high-pressure fuel pump is also damaged, add another $3,000-5,000+. Complete fuel system repairs can exceed $10,000. A pre-filter kit is cheap insurance by comparison for a vehicle this expensive.
Q: Does this work with biodiesel?
A: The Fuel Manager handles biodiesel blends, but be aware that biodiesel is more prone to algae growth and water contamination. More frequent filter servicing and bowl draining may be required. For the F33A-FTV, use caution with biodiesel blends—consult your owner's manual for approved blends.
Q: Can I add a catch can later?
A: Yes! Many LC300 owners run both a Fuel Manager pre-filter AND a ProVent catch can for comprehensive protection. The pre-filter protects your fuel system, while the catch can protects your intake system. They're complementary systems and both are valuable for the sophisticated F33A-FTV.
Q: What if I see a lot of water in the clear bowl?
A: That's the pre-filter doing its job! Drain it immediately and avoid fueling at that location again if possible. If you're consistently seeing water, consider reporting it to the service station. For the F33A-FTV, seeing water caught by the pre-filter is especially reassuring—it means you've prevented potentially catastrophic engine damage.
Q: Is this built for Australian conditions?
A: Yes! Direction-Plus™ engineering means this kit is specifically designed for Australian conditions—variable fuel quality, remote area travel, extreme temperatures, dust, corrugations, and the serious expedition touring that LC300 vehicles are purpose-built for. Proven protection for Toyota's flagship.
Q: What's the difference between a pre-filter and post-filter?
A: A pre-filter (like this Fuel Manager) installs BEFORE your factory filter and handles bulk contamination removal (especially water). A post-filter installs AFTER the factory filter for ultra-fine final filtration. Pre-filters are more important for water separation and general protection. Many people run both for maximum protection, especially for premium vehicles like the LC300.
Q: How does this compare to the 200 Series pre-filter?
A: The LC300 (FM635DPK) and 200 Series (FM614DPK) have different pre-filter kits due to different fuel system layouts and engine bay configurations. The LC300's F33A-FTV V6 requires specific fitment. Don't attempt to use the 200 Series kit on an LC300 or vice versa.
Keep Your LC300 Safe from Contaminated Fuel
Protect your V6 diesel for years to come — essential expedition protection
Premium fuel protection for Toyota's flagship touring vehicle
👉 ADD TO CART NOW 👈
