• Toyota Hilux N80 – 1GD-FTV 2.8L Turbo Diesel | 2016 onwards
• Toyota Hilux N80 – 2GD-FTV 2.4L Turbo Diesel | 2018 onwards
• Toyota Fortuner – 1GD-FTV 2.8L Turbo Diesel | 2016 onwards

✔ Dual battery compatible

• 100% water separation (based on 300 µm droplet size)
• 98% particle separation (30 micron particles)
• In-cab multi-stage water alert (visual + audible)
• Protects against corrosion and abrasive wear
• Spin-on style filter for easy servicing
• No manual water level checks required

• Filter Type: MANN+HUMMEL PreLine-Plus (PL150DP)
• Water Separation: 100% efficiency (300 µm droplet size)
• Particle Filtration: 98% at 30 micron
• Drain Interval: Every 5,000–10,000 km
• Service Interval: Replace element every 40,000 km
• Flow Rate: Up to 150 L/h (standard) or 250 L/h (optional upgrade)
• Fittings: M16 adapters with 10mm push-on 90° fittings
• Mounting: Passenger-side inner guard (dual battery compatible)

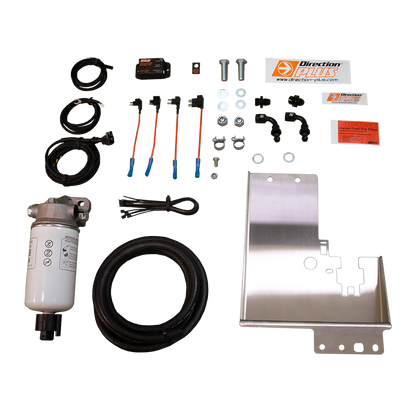

• PL150DP PreLine-Plus filter with integrated water sensor
• Hilux-specific mounting bracket
• 2 x M16 adapters (10mm)
• 2 x Push-on 90° fittings (10mm)
• 2 x M16 flat washers
• DFL10 fuel line rubber hose (10mm)
• 2 x 10mm hose clamps (stainless)
• Mounting hardware (bolts, nuts, washers)

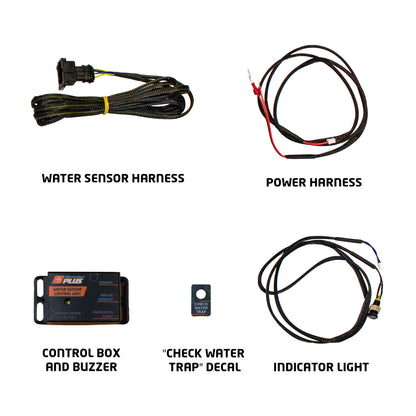

• Water alarm kit with wiring
• Engine bay label + windscreen reminder label

*Kit contents subject to change based on availability

Recommended: Competent qualified mechanic

DIY Time: 2–2.5 hours

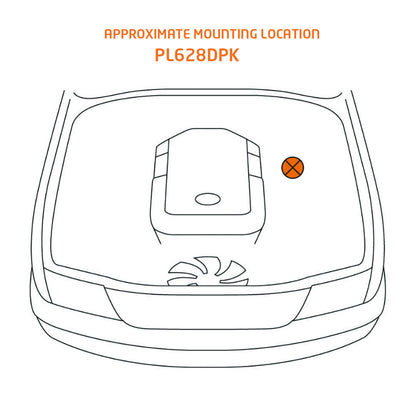

Location: Passenger-side inner guard (next to factory fuel filter)

Key Steps:

1. Remove factory fuel filter mounting bracket
2. Install PreLine mounting bracket in same location
3. Reinstall factory filter to new bracket
4. Mount PL150DP assembly on engine side of bracket
5. Install M16 adapters to filter head (facing rear of vehicle)
6. Connect fuel lines: tank → PreLine inlet → PreLine outlet → factory filter
7. Bleed system using factory filter hand primer
8. Install water alarm system (separate guide)

Important: Lubricate fittings with diesel fuel or WD-40 during assembly. Retain factory hose for future use.

Water Draining: Check and drain every 5,000–10,000 km

Filter Replacement: Every 40,000 km or per vehicle service schedule

Replacement Element: PL150DP (~$65–$85)

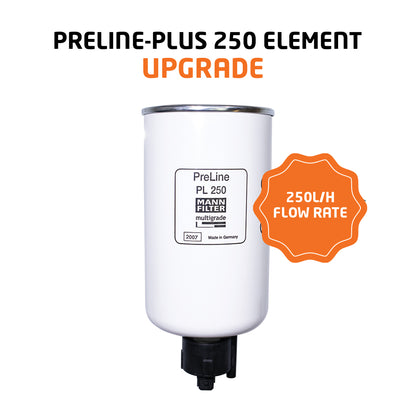

Upgrade Option: PL250DP for 250 L/h flow rate (performance applications)

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law.

Q: Does it work with dual battery systems?

A: Yes. The kit mounts on the engine side of the bracket specifically to allow dual battery fitment.

Q: What's the difference between PL150DP and PL250DP?

A: PL150DP flows up to 150 L/h (standard), PL250DP flows up to 250 L/h (for performance-tuned engines).

Q: How do I know when to drain water?

A: The in-cab alarm alerts you when water is detected. No guesswork required.
