Two-Stage Filtration Protection • 2002–2009 YD25DDTi 2.5L • FM617DPK
🔥 95% Water Separation — Two-Stage Protection 🔥
The ultimate shield for your Navara D22 YD25DDTi. Protects injectors, pumps, and rails from contamination-related failure.
FM617DPK suits:
⚠️ CRITICAL EXCLUSION:
✅ Engineered specifically for D22 Navara YD25DDTi fuel system
How It Works: Mounted between the tank and OEM filter, the pre-filter removes most water and particles BEFORE they reach your factory filter. The OEM filter then completes the job, delivering cleaner fuel to your common-rail system. The clear drain bowl allows quick visual checks, and the no-bypass design ensures unfiltered fuel never reaches the engine.
Key Features:
💡 Why This Matters: Fuel contamination isn't only a "bush" problem—water and poor lubricity cause a large share of diesel injection failures. Modern common rail diesel injectors operate at extremely high pressures with ultra-tight tolerances. Even microscopic contamination can cause catastrophic damage. A pre-filter provides vital first-line defence so the factory filter can focus on fine filtration—creating a true two-stage system. This helps avoid repair bills that can exceed $10,000. Essential protection for your D22's YD25DDTi fuel system.
The YD25DDTi needs premium fuel protection. The D22 Navara with its YD25DDTi 2.5L common rail diesel is a capable workhorse, but like all modern diesels, the fuel system is vulnerable to contamination. Australian diesel fuel quality varies significantly—even at major service stations, fuel can contain water, dirt, rust particles, and algae. In remote areas or when using farm diesel, the risks multiply.
The Problem:
Benefits:
💡 YD25DDTi Protection: The YD25DDTi common rail diesel powered the D22 Navara through its final years and into the D40. It's a capable engine when properly maintained, but like all modern diesels, it has zero tolerance for contaminated fuel. The Fuel Manager pre-filter is essential protection, especially if you: travel to remote areas, use farm diesel, tow heavy loads, or want to protect your investment from Australia's variable fuel quality. One bad tank of fuel can cost thousands in repairs—the pre-filter is cheap insurance for D22 reliability.
Fuel Manager Pre-Filter:
Performance:
System Design:
Fitment Notes:

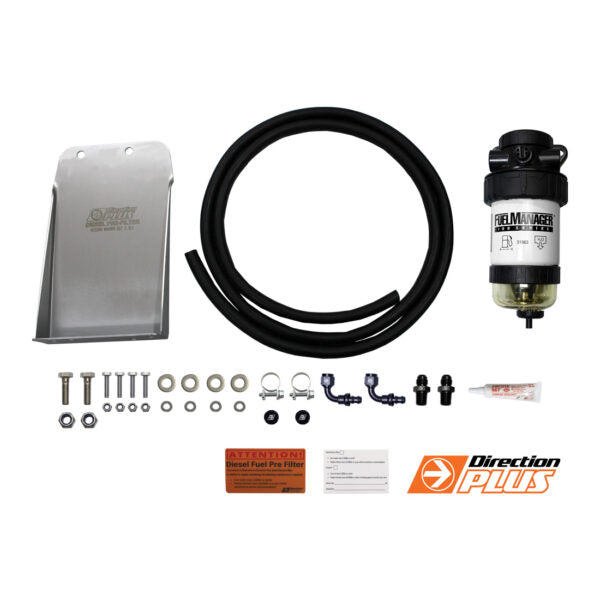

✅ Complete kit with vehicle-specific components for D22 fitment
Recommended: Competent qualified mechanic or experienced DIYer
DIY Time: 2–3 hours
Installation Notes:
⚠️ Important: Ensure your vehicle does NOT have dual batteries before ordering. Detailed installation guide included. Professional installation recommended if not experienced with fuel system work.
Maintenance Schedule:
💡 Pro Tip: The D22 Navara is a proven workhorse. The clear drainage bowl makes monitoring easy—you can see exactly what the pre-filter is catching. Check it regularly, especially after fueling at unfamiliar stations or in remote areas. If you see water or sediment, drain it immediately. This simple 30-second check can save you thousands in injector repairs and keep your D22 running reliably for years to come.
Q: Will this void my Nissan warranty?
A: No. Aftermarket fuel filtration devices don't void warranty under Australian Consumer Law. This kit protects your engine without interfering with factory components.
Q: Why won't this fit with dual batteries?
A: The Fuel Manager's mounting location conflicts with the space required for dual battery installations in the D22 Navara. If you have dual batteries, this kit will not fit. Check your engine bay before ordering.
Q: Why do I need a pre-filter if I already have a factory filter?
A: The factory filter is designed for fine filtration, but it has limited capacity for bulk contamination. A pre-filter handles the heavy lifting (removing bulk water and particulates), which extends the life of your factory filter and provides much better overall protection. Think of it as a team—the pre-filter catches the big stuff so the factory filter can focus on the fine particles.
Q: What is two-stage filtration?
A: Two-stage filtration means having two filters in series. Stage 1 (the pre-filter) removes bulk contamination—water, large particles, rust, algae. Stage 2 (your factory filter) then performs fine filtration to protect injectors. This is far more effective than relying on a single filter alone, especially in Australian conditions.
Q: How does contaminated fuel damage injectors?
A: Common rail injectors operate at extremely high pressures with ultra-tight tolerances measured in microns. Water causes corrosion and poor combustion. Particulates score injector tips, damage seals, and clog nozzles. Even microscopic contamination can cause catastrophic failure—and injector replacement is expensive.
Q: What is the no-bypass design?
A: Many filters have a bypass valve that opens if the filter gets clogged, allowing unfiltered fuel to pass through. The Fuel Manager has NO bypass—all fuel must pass through the filter. This ensures contaminated fuel never reaches your injectors, though it means you must maintain the filter properly.
Q: What is emulsified water?
A: Emulsified water is water that's mixed so finely into fuel that it appears cloudy rather than separating into distinct layers. Modern ULSD (Ultra-Low Sulfur Diesel) is more prone to emulsification. The Fuel Manager is designed to separate this emulsified water that other filters might miss.
Q: How often do I need to drain the water?
A: Check the clear bowl weekly or before long trips. Drain frequency depends on fuel quality—you might go months without seeing water at city service stations, but see water immediately after fueling at a questionable source. The clear bowl makes checking easy—just look at it.
Q: How do I drain the water?
A: Simply open the drain valve at the bottom of the clear bowl. Water (being heavier than diesel) collects at the bottom. Open the valve, let the water drain into a container, close the valve when you see clean diesel. Takes about 30 seconds.
Q: How often do I replace the filter element?
A: Generally every 20,000–30,000 km, but this depends on fuel quality. If you're frequently using farm diesel or fueling in remote areas, you may need to replace it more often. The clear bowl helps you monitor contamination levels.
Q: Does this reduce fuel pressure or flow?
A: No. The Fuel Manager is designed with high-flow characteristics to maintain optimal fuel pressure and flow to your engine. Proper installation and maintenance ensures no performance impact.
Q: Can I install this myself?
A: If you're mechanically competent and comfortable working with fuel systems, yes. Most DIYers complete installation in 2-3 hours. However, proper installation is critical for safety and performance—if you're not experienced with fuel system work, have a qualified mechanic install it.
Q: What happens if I don't drain the water?
A: If water accumulates and isn't drained, it can eventually be drawn into your fuel system, defeating the purpose of the pre-filter. Worse, in cold weather, water in the bowl can freeze. Check and drain regularly—it takes 30 seconds.
Q: Is this suitable for remote area travel?
A: Absolutely essential. Remote area fuel can be significantly more contaminated than city fuel—older tanks, less turnover, more water contamination. The clear drainage bowl is especially valuable in remote areas, allowing you to monitor fuel quality and drain contamination before it reaches your injectors.
Q: What about farm diesel or drum fuel?
A: Farm diesel and drum fuel are notorious for contamination—rust from drums, water from condensation, algae growth from long storage. A pre-filter is absolutely essential if you regularly use these fuel sources. Check and drain the bowl more frequently with these fuels.
Q: How much do injector repairs cost on a D22 Navara?
A: Common rail injector failures can be extremely expensive. Individual injectors can cost $500-1,000+ each, and the YD25DDTi has four injectors. Complete fuel system repairs including pump replacement can exceed $10,000 in worst cases. A pre-filter kit is cheap insurance by comparison.
Q: Does this work with biodiesel?
A: The Fuel Manager handles biodiesel blends, but be aware that biodiesel is more prone to algae growth and water contamination. More frequent filter servicing and bowl draining may be required with biodiesel use.
Q: Can I add a catch can later?
A: Yes! Many D22 Navara owners run both a Fuel Manager pre-filter AND a catch can for comprehensive protection. The pre-filter protects your fuel system, while the catch can protects your intake system. They're complementary systems and don't conflict with each other's mounting locations.
Q: What if I see a lot of water in the clear bowl?
A: That's the pre-filter doing its job! Drain it immediately and avoid fueling at that location again if possible. If you're consistently seeing water, consider reporting it to the service station—water in fuel is a serious issue that affects all diesel vehicles.
Q: Is this built for Australian conditions?
A: Yes! Direction-Plus™ engineering means this kit is specifically designed for Australian conditions—variable fuel quality, remote area travel, extreme temperatures, and the serious work that D22 Navara vehicles are used for. Proven protection for Australian conditions.
Q: What's the difference between a pre-filter and post-filter?
A: A pre-filter (like this Fuel Manager) installs BEFORE your factory filter and handles bulk contamination removal (especially water). A post-filter installs AFTER the factory filter for ultra-fine final filtration. Pre-filters are more important for water separation and general protection. Many people run both for maximum protection.
Q: Does this fit D40 Navara?
A: No. This kit (FM617DPK) is specifically for D22 Navara with the YD25DDTi 2.5L engine (2002-2009). The D40 Navara (which also uses the YD25DDTi and later the YD25DDTTi) requires different pre-filter kits due to different engine bay layouts. Contact us for D40 solutions.
Protect Your D22 Navara Properly
24/7 first-line defence — drive with confidence
Essential two-stage filtration for YD25DDTi reliability
