Why Upgrade From Factory Ranger / BT-50 Clutch?

The Problem With Factory Ranger & BT-50 Clutches

The Ford Ranger PX and Mazda BT-50 (PX1, PX2, PX3) came from the factory with clutches designed for stock power levels and normal use. While adequate for an unmodified engine, the factory clutch becomes a limitation once you start tuning your 3.2L P5AT or 2.2L P4AT diesel for performance or pushing it hard with heavy loads.

Common factory clutch problems on modified Rangers and BT-50s:

• Clutch slip under load — power loss when towing, accelerating, or climbing hills
• Glazed friction surface — heat damage creates smooth surface that won't grip
• Premature wear — factory clutch lifespan dramatically reduced with ECU tune or turbo upgrade
• Burning smell — overheated clutch material from excessive slip
• High engagement point — worn clutch engages near top of pedal travel
• Failed concentric slave cylinder — common weak point on PX Rangers

If you're running an ECU tune, larger turbo, performance exhaust, or regularly towing heavy loads, the factory clutch won't last. Even mildly modified Rangers (180+ kW at wheels) will quickly exceed stock clutch capacity.

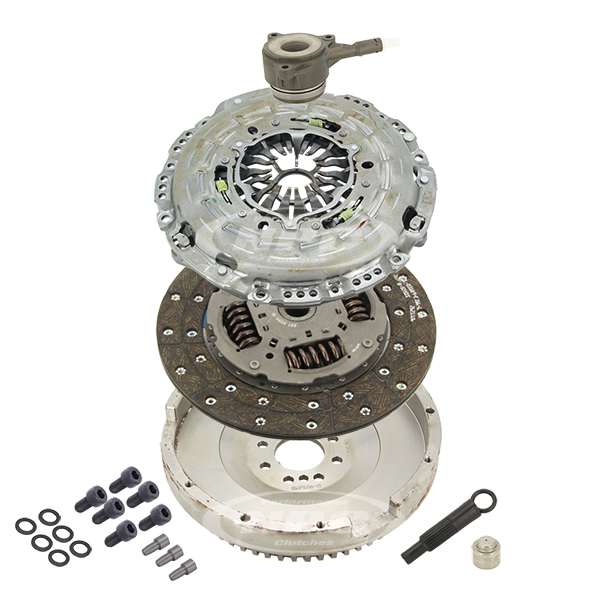

NPC 850Nm Heavy Duty Clutch & Flywheel Kit — Built For Modified Rangers

The NPC Performance 850Nm Clutch & Flywheel Package (NPC8627-1B) is specifically engineered for modified Ford Ranger PX and Mazda BT-50 vehicles that demand more from their drivetrain. Designed and tested in Australia by NPC Performance — specialists in heavy-duty clutch systems for modified diesels — this complete kit delivers the torque capacity you need.

850Nm @ Flywheel — Serious Torque Capacity

With an 850Nm (627 lb-ft) torque rating at the flywheel, this clutch kit provides substantial headroom over factory specifications. This capacity supports:

• Tuned 3.2L P5AT engines — common tunes add 40-60kW over stock
• Modified 2.2L P4AT engines — supports turbo upgrades and heavy use
• Turbo upgrades and intercooler systems
• Heavy towing applications — trailers, caravans, machinery
• Off-road and 4WD competition use
• Commercial and trade applications — toolboxes, trays, heavy loads

The 850Nm rating is sustainable torque capacity that the clutch handles repeatedly without degradation — not just a peak number. This means consistent performance whether launching with a load, towing up mountain passes, or off-road rock crawling.

Premium Organic Friction — Daily Drivable Performance

Unlike aggressive puck-style or ceramic clutches, the NPC kit uses premium organic friction material that delivers performance without sacrificing comfort:

• Smooth, progressive engagement — easy modulation for daily driving
• Quiet operation — no chatter or noise during engagement
• Excellent heat resistance — maintains grip even when hot from towing or off-road use
• Long service life — organic material wears gradually and predictably
• Forgiving bite point — ideal for traffic, reversing trailers, rock crawling

This makes the NPC 850Nm kit perfect for dual-purpose Rangers and BT-50s — trucks that see daily commute duty and weekend towing or 4WD adventures. You don't sacrifice drivability to gain torque capacity.

Modified OE Pressure Plate — 20-40% Higher Clamp Force

NPC starts with a premium quality OE (original equipment) pressure plate and modifies it to increase clamp force by 20-40% above standard specifications. This provides:

• Positive engagement under all conditions — no slip when loaded, wet, or hot
• Reinforced diaphragm spring — maintains consistent pressure over clutch life
• Heat-treated components — resists warping and hot spots
• Balanced assembly — reduces vibration, ensures even wear

Despite the increased clamping force, pedal effort remains manageable for daily driving in most cases — NPC's engineering balances performance with usability.

Billet Steel Flywheel — Engineered For Higher Torque

The included dedicated billet steel flywheel must be fitted as a set with this clutch kit. It's precision-engineered to handle the increased torque loads:

• Precision-machined friction surface — optimal for organic friction material
• Billet steel construction — handles increased torque without flexing
• Heat dissipation design — manages thermal stress from hard use
• Balanced to tight tolerances — smooth operation, no vibration
• Compatible with factory starter — direct bolt-in replacement

Concentric Slave Cylinder Included

A new concentric slave cylinder (CSC) is included in this complete kit — a critical component on Ranger PX and BT-50 models. The CSC is a common failure point, and replacing it during clutch installation is essential preventative maintenance.

Vehicle Compatibility — Which Rangers & BT-50s Does This Fit?

Complete Clutch & Flywheel Package — What's Included

Installation Requirements & Break-In Procedure

Clutch and flywheel replacement requires gearbox removal, which is a significant mechanical job on Rangers and BT-50s. Professional installation is strongly recommended unless you have proper tools, equipment, and mechanical experience.

Professional Installation Recommended

This job typically requires:

• Vehicle hoist or jack stands — safe access underneath vehicle
• Transmission jack — supporting and removing heavy manual gearbox
• Flywheel holding tool — preventing rotation during bolt removal
• Torque wrench — critical for pressure plate and flywheel bolts
• Clutch alignment tool — included in kit, essential for gearbox reinstallation
• Workshop manual — correct torque specifications and procedures

NPC fitting notes are available — refer to NPC fitting sheets specific to Ranger/BT-50 2.2L and 3.2L models.

Break-In Procedure — Critical For Longevity

1000km of regular day-to-day driving is required to properly bed in your new NPC clutch:

• First 1000km: Regular driving, lots of gear changes, around-town use ideal
• Avoid during break-in: Burnouts, flat changes, hard launches, extended slip, heavy towing
• It's the engagement that beds in the clutch — frequent gear changes help seating process
• After 1000km: Full performance use permitted once friction surfaces are properly seated

Proper break-in ensures the organic friction material mates correctly with flywheel and pressure plate surfaces, maximizing grip and service life.

Recommended Additional Parts

While the gearbox is out, consider replacing:

• Rear main seal — prevents oil leak from crankshaft (cheap insurance)
• Gearbox input shaft seal — prevents gearbox oil leak
• Gearbox fluid — fresh fluid after reassembly

Technical Specifications — NPC8627-1B

Who Needs An 850Nm Clutch Kit?

Upgrade Your Ranger / BT-50 to 850Nm Capacity

Complete kit with billet flywheel and CSC. Australian stock, same-day dispatch for orders before 2pm AEST.
