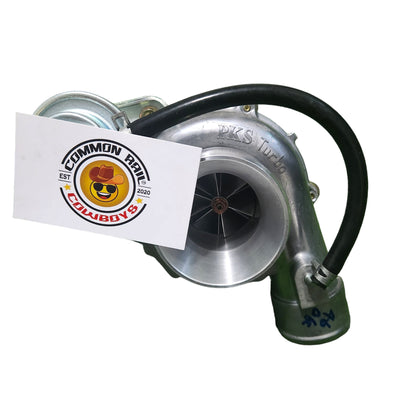

• PKS 46mm Turbo for 1KD and 4JJ1 engines, showing the compact turbocharger with turbine and compressor wheels.

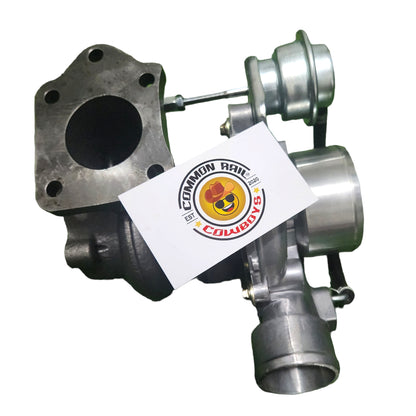

  • PKS 46mm Turbo for 1KD and 4JJ1 engines, showing a high-performance automotive turbocharger with polished turbine housing.

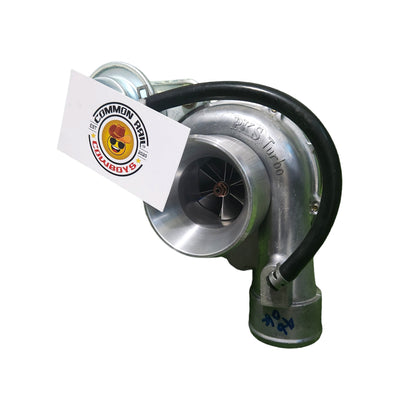

  • PKS 46mm Turbo for 1KD and 4JJ1 engines, showing the compact turbocharger with turbine and compressor housing.
1 3

PKS

PKS 46mm Turbo - 1KD - 4JJ1

PKS 46mm Turbo - 1KD - 4JJ1

$2,058.97 AUD
$2,250.00 AUD $2,058.97 AUD
Sale Sold out

Taxes included. Shipping calculated at checkout.

Normally Ships in 0-2 Business Days
Secure Checkout
VISA Pay Pay

PKS 46mm Turbo – 1KD / 4JJ1

PKS Modified Turbo 40 PSI • 300+ RWHP Capable 🚚 Free Express AU 💳 Afterpay • Humm • Klarna • Zip

The PKS 46mm turbo is a compact, high-performance unit capable of holding 40 PSI and supporting 300+ rwhp with the right fueling and tune. Built in Thailand using billet compressor and turbine wheels, this turbo delivers strong power, fast response and long-term reliability.

🧩 Overview

This turbo punches far above its size. With custom PKS compressor and turbine housings, it offers excellent airflow, stable boost control and smooth drivability — making it a smart upgrade over factory-style high-flow units for both 1KD and 4JJ1 engines.

  • Holds ~40 PSI with correct supporting mods
  • 300+ rwhp capable (fueling/tune dependent)
  • Balanced for smooth and reliable high-boost operation
🔧 Suits / Compatibility
  • Toyota 1KD-FTV (factory-style manifolds – minor mods may be required)
  • Isuzu 4JJ1 – D-MAX, MU-X, RC Colorado, RA7 Rodeo

Most factory 1KD and 4JJ1 exhaust manifolds will accept this turbo. In some builds, supporting pipework or adapter plates may be required.

✨ Features
  • Billet compressor wheel for improved spool and strength
  • Billet turbine wheel for durability at high exhaust temps
  • Custom PKS housings engineered for smooth, efficient airflow
  • Excellent upgrade over worn factory turbos or small high-flow units
  • Suitable for touring, towing and high-power builds
📦 What’s Included
  • PKS 46mm turbocharger assembly
  • Pre-balanced CHRA
  • Actuator (as supplied by PKS)

Installation hardware varies by vehicle — ensure you have gaskets and studs on hand.

🛠 Install Notes
  • Tuning is required to safely reach full performance
  • Upgraded injectors and fuel system components may be necessary above ~300 rwhp
  • Check oil feed/return lines and replace if worn
  • Intercooler upgrade recommended for high-boost use
⚠ Important Notes
  • This is a performance turbo — not a direct OEM replacement
  • Power results depend on tuner, fuel quality, engine condition and supporting mods
  • Ensure correct oil priming procedure before first start
💳 Payment & 🚚 Shipping
  • Afterpay, Humm, Klarna & Zip available
  • Free Express Shipping Australia-Wide
  • Tracking provided on dispatch

❓ FAQs

How much power can the PKS 46mm support?
With correct fueling, intercooling and a quality tune, it supports 300+ rwhp.
Will it bolt to my factory manifold?
Yes — it suits most 1KD and 4JJ1 factory manifolds. Some builds may need small adjustments or fabrication.
Do I need upgraded injectors?
For moderate power levels, stock injectors may cope. For high-power goals (300+ rwhp), larger injectors are recommended.
Is this turbo laggy?
No. The billet wheels and PKS housings keep response fast while still giving strong top-end power.
Is this a good upgrade from a factory high-flow turbo?
Yes. It offers more strength, boost capability and reliability than small high-flowed OEM units.
