Toyota Hilux N70 Pre-Filter - With In Cab Alarm

• PreLine-Plus filter head with integrated water sensor and spin-on element
• Vehicle-specific mounting bracket and hardware
• Fuel hose, fittings and clamps

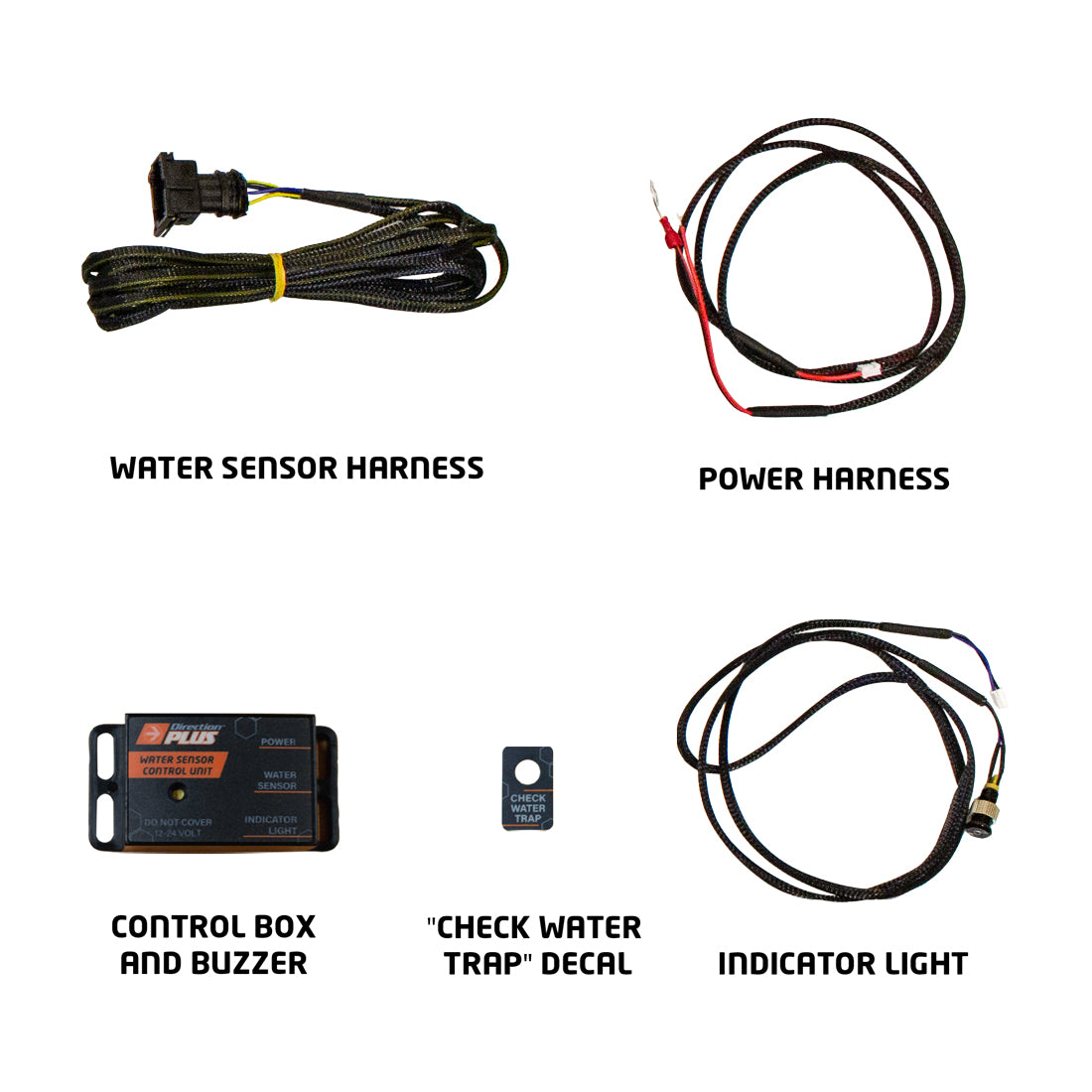

• In-cab multi-stage water alarm kit (loom, LED and buzzer)
• Installation instructions

Kit contents are set by Direction Plus and may change with component availability or refinement.

• 100% water separation efficiency (Direction Plus figure, based on 150 to 300 micron droplet size)
• 98% particle separation (based on 30 micron particles)
• Remote multi-stage in-cab water alert, visual and audible. No manual bowl checks.
• Spin-on element for quick, clean servicing
• Built for poor fuel quality, towing, touring and remote refuelling
• Ships with the PreLine-Plus 150 element
• Optional PreLine-Plus 250 element upgrade for tuned or high-output engines, volume flow rate up to 250 L/h

• Toyota Hilux N70 1KD-FTV 3.0L 4cyl, 2004 to 2006
• Toyota Hilux N70 1KD-FTV 3.0L 4cyl, 2008 to 2015

Note: Direction Plus's fitment table lists 2004 to 2006 and 2008 to 2015, while its description says 2004 to 2015. If you have a 2007 build, send us your VIN and we will confirm before you order.

Fitment per Direction Plus as of October 2026. Check the fitment guide or send us your VIN if unsure.

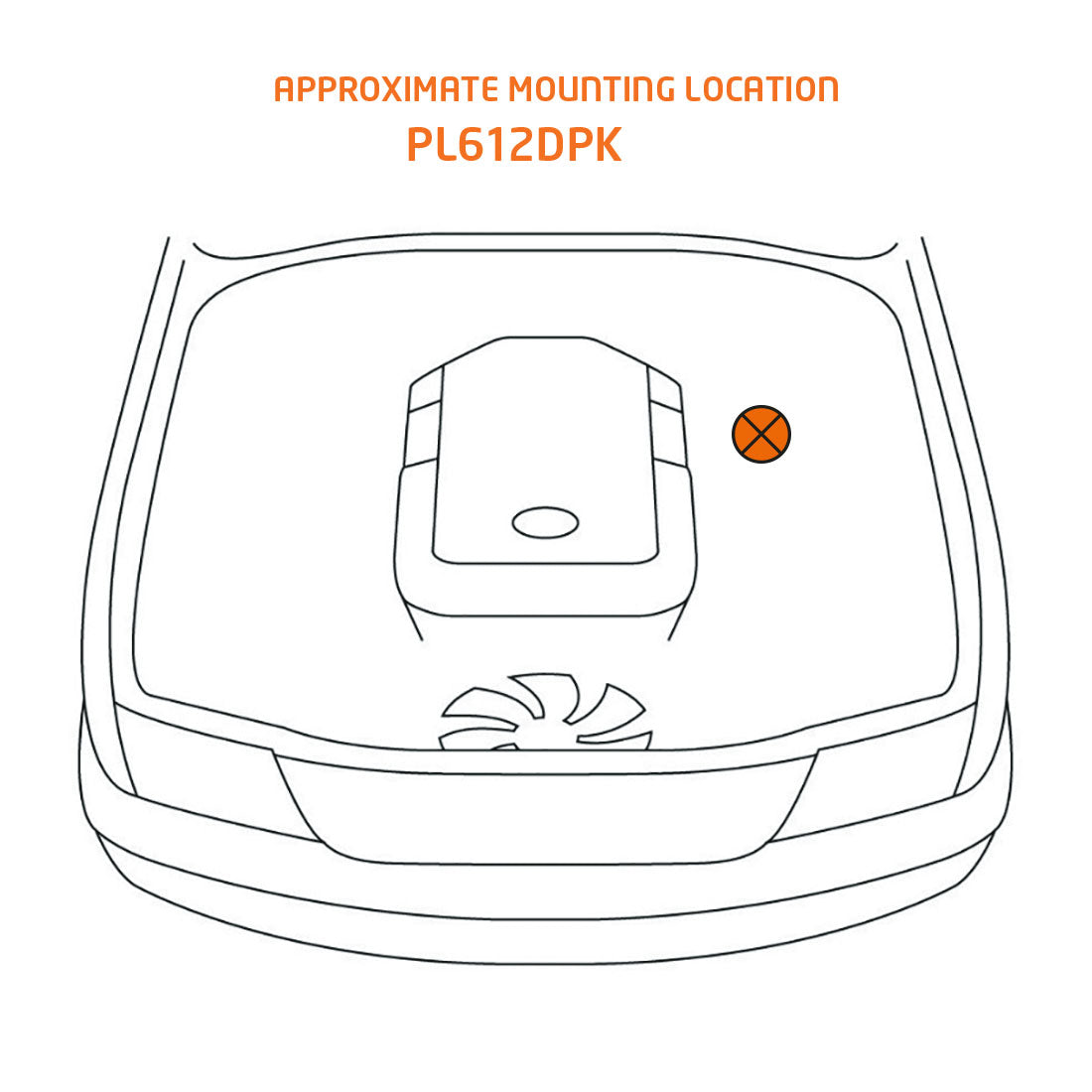

• Installs between the fuel tank and the factory fuel filter.
• Installation by a competent person is recommended. Direction Plus publishes an installation guide for this kit.
• Prime the system and check for leaks before driving.

• Replace the element every 40,000 km or as per your vehicle's service schedule, whichever comes first. Replacement part: PreLine-Plus 150 element.
• When the in-cab alarm activates, drain the collected water through the drain tap. If there is a lot of water, look hard at your fuel source.
• Prime the system after an element change and check all connections for leaks before driving.

• Ryco Pre-Filter Kit RC612DPK: Hilux N70
• 1KD Modified Injectors: Hilux / Prado

• Free express shipping Australia-wide.
• Afterpay, Humm, Klarna and Zip available at checkout.
• Returns and warranty are handled under our refund policy.

Q: What is the PreLine-Plus 250 element upgrade?

A: The kit ships with the PreLine-Plus 150 element. For tuned or high-output engines, Direction Plus offers the 250 element with a volume flow rate up to 250 L/h. Message us if you want it supplied with the kit.

Q: Does this replace the factory fuel filter?

A: No. It installs between the tank and the factory filter as a first stage. Water and large particles are caught before the factory filter, which then does the final polishing.

Q: What happens when the alarm goes off?

A: Stop when it is safe, open the drain tap at the base of the filter and drain the water. If a lot comes out, inspect your fuel source before carrying on.

Q: What is the difference between PreLine-Plus and the Fuel Manager or Ryco kits?

A: PreLine-Plus is the higher-spec Direction Plus system: 100% water separation efficiency and a multi-stage in-cab alarm as standard. Message us if you want a straight comparison for your Hilux.

Q: How do I confirm it fits my vehicle?

A: Check the Direction Plus fitment guide or send us your VIN and we will confirm before you order.
