Toyota Landcruiser 70 Series 1VD Intercooler - Series 2

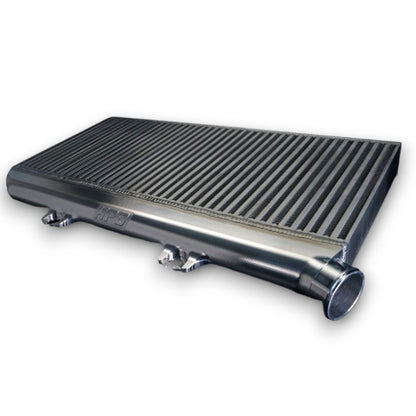

• HPD Series 2 top mount intercooler assembly, bar and plate core approx. 300 x 700 x 60 mm

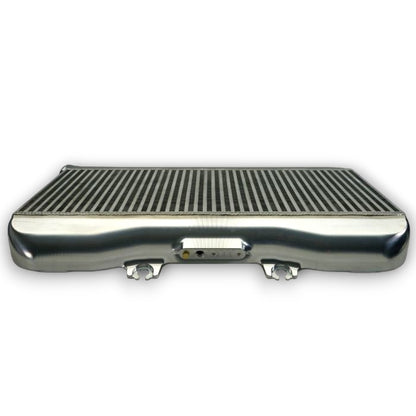

• Billet CNC-machined end tanks and intake elbows

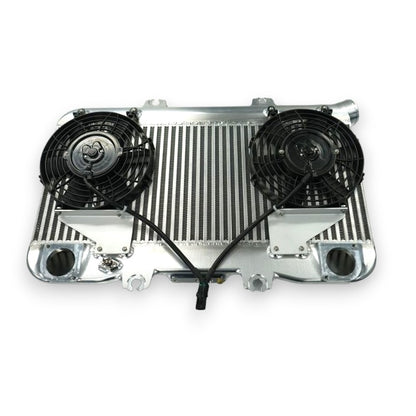

• Twin Davies Craig 9 inch thermo fans with wiring loom, relay and thermo switch
• Vacuum-formed under-bonnet air tray / shroud
• Silicone hoses and German clamps
• Mounting brackets and hardware
• Installation guide

• Bar and plate core for efficient heat rejection and cooler intake temperatures
• End tank geometry designed for even flow distribution across the core
• Thermo-switch controlled fans only run when needed, reducing load and noise when cruising
• Under-bonnet tray channels airflow through the core
• Precision-fit bracketry with instructions
• Australian made in Edwardstown, Adelaide

• Toyota LandCruiser 70 Series: VDJ76 / VDJ78 / VDJ79
• Engine: 1VD-FTV 4.5L V8 turbo diesel

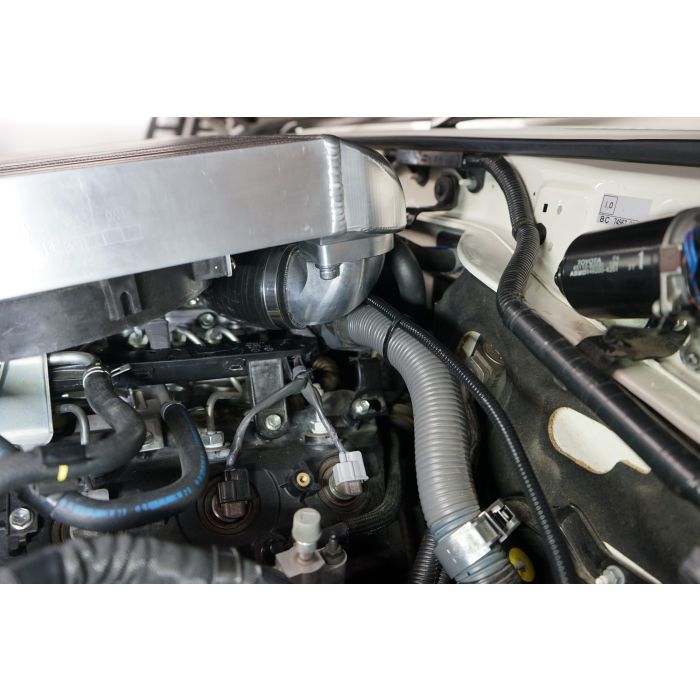

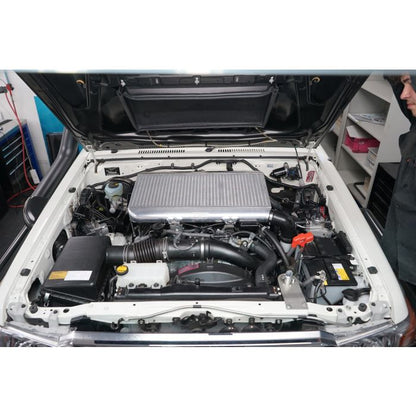

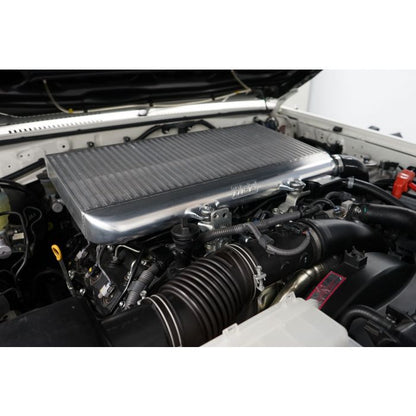

• Suits the factory top mount layout
• Pre 2015 (low bonnet) and 2016-on (high bonnet) variants available: select the correct one for your vehicle

Check clearances with snorkels or aftermarket intake piping if fitted. Not sure on fitment? Drop your VIN or rego and state in the order notes and we will confirm before dispatch.

1. Remove the factory top mount intercooler and shroud (if fitted) and prepare the mounting points.
2. Fit the brackets, set the core in place, then align the shroud / air tray.
3. Plumb the silicone hoses and torque the clamps evenly.
4. Wire the fans via the supplied loom and relay, then verify the thermo switch operates.
5. Road test and check for hose rub, boost leaks and fan cycling.

Basic hand tools, trim tools and a torque wrench are all that is needed. Check bonnet and snorkel duct clearances before final tightening, and recheck the clamps after the first heat cycle.

Free express shipping Australia-wide with tracking. In-stock kits typically ship same or next business day; during peak demand allow 1 to 3 weeks. On a tight deadline? Message us before ordering. International shipping available on quote.

Afterpay, Humm, Klarna and Zip accepted at checkout. Returns and warranty are covered by our refund policy.

Which variant do I need?
Pre 2015 70 Series use the low bonnet version. 2016-on vehicles use the high bonnet version. If unsure, send us your VIN or rego and state and we will confirm.

Do the fans run all the time?
No. The twin Davies Craig 9 inch fans are thermo-switch controlled and only run when intake temperatures call for it.

Is it Australian made?
Yes. HPD manufactures the Series 2 kit in Edwardstown, Adelaide.

Will it clear my snorkel?
The kit suits the factory top mount layout. Check clearances with snorkels or aftermarket intake piping before final tightening.
