1VD Suction Control Valve - 294200-0693

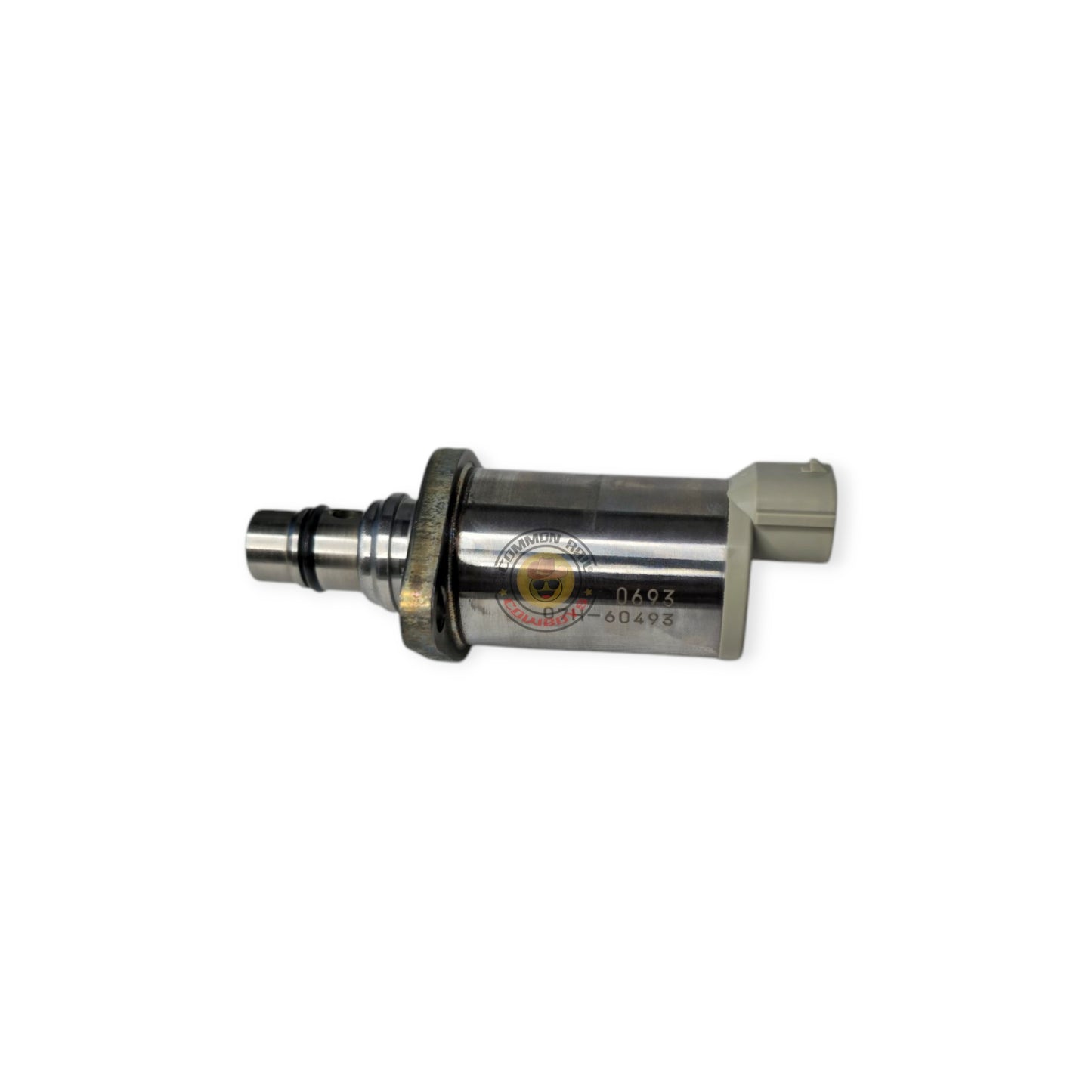

• 1 x Genuine Denso suction control valve, PN 294200-0693
• New O-ring seal

All HP4 pumps accept multiple SCV supersessions. Some may need adapter kits (not provided). Message us if you need help confirming fitment.

• Toyota LandCruiser 70 Series, 1VD-FTV 4.5L V8 diesel
• Toyota LandCruiser 200 Series, 1VD-FTV 4.5L V8 diesel

If you are replacing a short SCV you will need an adapter kit: SCV Adapter Plate Kit. Most 1VD-FTV LandCruisers have long SCV fitment. If unsure, send us a photo of your current SCV or your VIN.

• Precision fuel regulation, maintains stable high-pressure supply to injectors
• Genuine Denso build, direct OEM fit, no modifications needed
• Helps reduce consumption and emissions
• Built for heat, vibration and high rail pressure
• Reduces pressure fluctuation and surging

Tools: basic hand tools, lint-free wipes, catch tray and safety glasses, clean diesel for O-ring lubrication.

1. Depressurise fuel system per Toyota service procedure
2. Disconnect SCV electrical connector
3. Remove old valve and O-ring from pump housing
4. Clean mounting bore thoroughly with lint-free cloth
5. Lightly lubricate new O-ring with clean diesel fuel
6. Install new O-ring and seat the new SCV squarely into housing
7. Tighten to OEM specification (do not over-torque)
8. Reconnect electrical connector
9. Prime fuel system and start engine

Post-install checks: verify idle stability, check commanded versus actual rail pressure with a scan tool, clear stored DTCs and road test under load.

Generally in stock. During peak demand, allow 1 to 3 weeks. On a tight deadline? Message us before ordering to confirm availability. International shipping: message us for a quote before ordering.

Free express shipping Australia-wide with tracking. Afterpay, Humm, Klarna and Zip available at checkout, plus all major cards.

Covered by our standard warranty alongside your guarantees under the Australian Consumer Law. Full terms are on our Refund, Returns and Warranty Policy page. Delivery details are on our Shipping Policy page.

Will this SCV fit my LandCruiser?
Yes. Suits 1VD-FTV in 70 and 200 Series with factory long SCV fitment. If unsure, leave your VIN or rego and state and we will confirm before dispatch.

Do I need calibration or coding after install?
Generally no coding required. Follow the OEM depressurise and prime procedure, then verify commanded versus actual rail pressure with a scan tool and clear any DTCs.

What symptoms indicate a failing SCV?
Hard starting, rough idle, throttle hesitation, surging, limp mode, poor fuel economy, or rail pressure deviation codes (P0087/P0088) are common signs.

Is this a genuine Denso part?
Yes. This is a Genuine Denso SCV (PN 294200-0693) supplied with the correct O-ring seal.

Will other part numbers cross over?
Common supersessions include 294200-0690, 294200-0691, 294200-0692 and some 294200-0669x series for HP4 pumps. If in doubt, contact us with your VIN.

Do I need an adapter kit?
Only if your existing SCV is the short version. Most 1VD-FTV LandCruisers have long SCV fitment. If unsure, send us a photo of your current SCV or your VIN.

Can I install this myself?
Yes, it is a straightforward replacement if you are comfortable with basic diesel fuel system work. Follow proper fuel system depressurisation procedure and torque specifications.

How long does an SCV typically last?
Lifespan varies with fuel quality, operating conditions and maintenance. Symptoms typically appear after 200,000 to 300,000 plus km.
