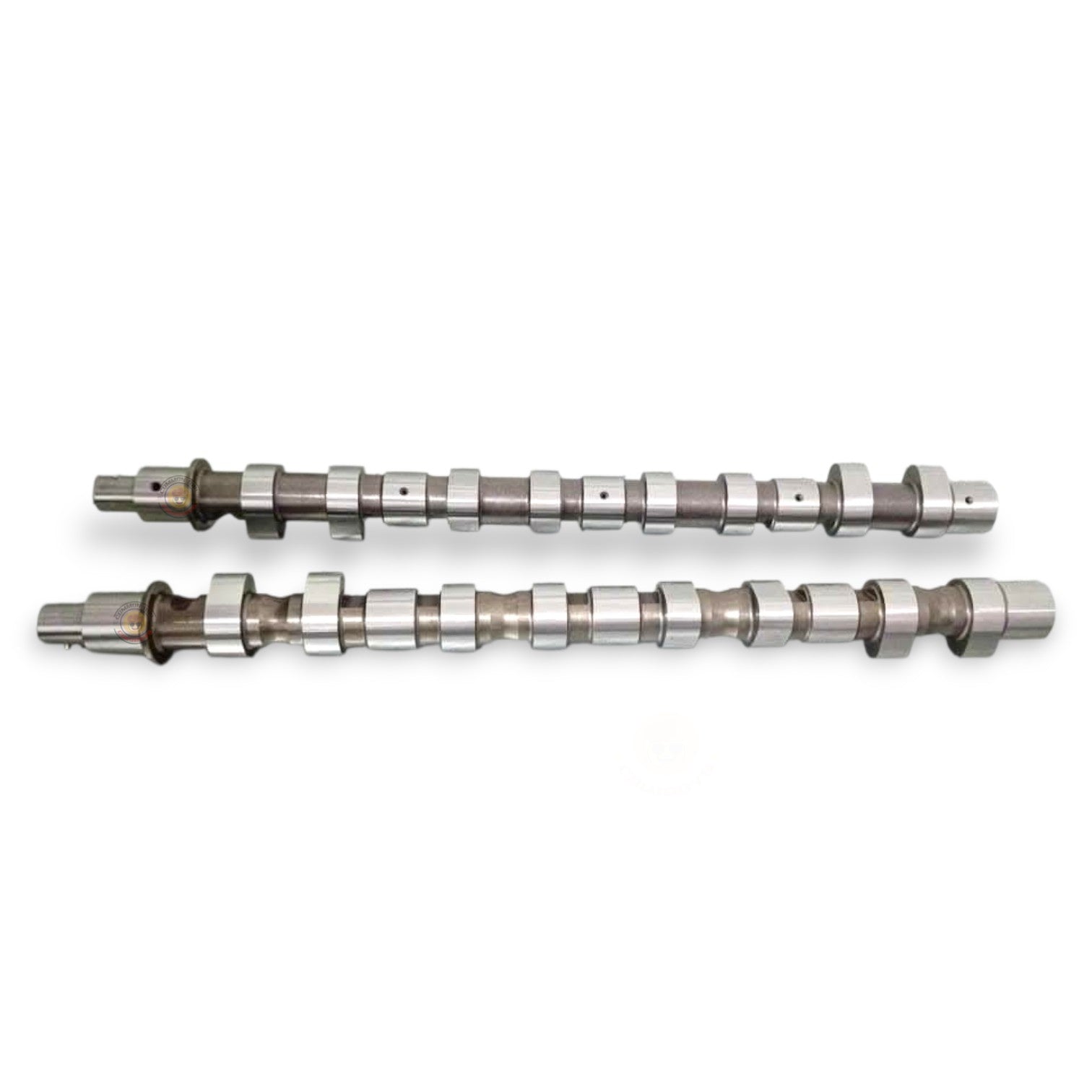

🌀 4JJ1 (2017–2020 DPF) / 4JJ3 Performance Camshaft Set – Intake + Exhaust
More Duration. More Airflow. Fits the Engines Nobody Else Covers | FuseTech
The camshaft upgrade for the 4JJ1s and 4JJ3s the rest of the market left behind.
Most aftermarket 4JJ1 performance cams only suit the early aluminium rocker cover engines. This FuseTech intake + exhaust camshaft set is built for the DPF-era 4JJ1-TCX — the Euro 5 engine introduced with the MY17 update (plastic rocker cover, roller rocker valvetrain) — and the 4JJ3 in the current-generation D-MAX, MU-X and BT-50. Revised lobe profiles run more lift and duration than the factory sticks, moving more air in and more exhaust energy out for stronger response and top-end pull on tuned builds.
⚠️ PERFORMANCE UPGRADE: Professional installation strongly recommended. Factory camshaft gears must be transferred onto these camshafts, and cam timing must be set correctly. ECU tuning recommended to get the full benefit.
| Spec Snapshot | |
|---|---|
| Configuration | Matched intake + exhaust camshaft pair |
| Profile | Increased lift & duration over stock |
| Engine fitment | 4JJ1-TCX DPF (2017–2020, incl. late-2016 MU-X builds) & 4JJ3 (2020+) |
| Replaces OE (2017–2020 4JJ1) | Intake 8-98288-940-0 / 8-98003-129-3 • Exhaust 8-98288-946-1 / 8-98003-130-3 |
| Cam gears | Factory gears transferred to new camshafts (reused) |
| Brand | FuseTech Performance |
✅ Key Features
- 🌀 Complete Set: Intake and exhaust camshafts, matched as a pair
- 📈 More Lift & Duration: Revised lobe profiles over the factory camshafts for improved airflow and response
- 🧩 DPF-Era & 4JJ3 Fitment: Suits the plastic rocker cover engines most aftermarket cams don't cover
- 🔥 Turbo-Friendly: More exhaust energy to spool larger turbos on upgraded builds
- 🧰 Reuses Factory Gears: No proprietary drive gear required — factory cam gears transfer across
🔧 Vehicle Compatibility
- Isuzu D-MAX – 4JJ1-TCX DPF (MY17 update, 2017–2020)
- Isuzu MU-X – 4JJ1-TCX DPF (MY16.5/MY17 on, 2017–2021)
- Isuzu D-MAX RG – 4JJ3 (2020+)
- Isuzu MU-X – 4JJ3 (2021+)
- Mazda BT-50 TF – 4JJ3 (2020+)
Quick fitment check: plastic rocker cover + DPF fitted + injector codes starting “9F” = you're in the right place. Aluminium rocker cover (2005–2016 pre-DPF 4JJ1) = this set is not for you. Message us with your VIN if unsure.
📦 What's Included
- 1 × FuseTech Performance Intake Camshaft
- 1 × FuseTech Performance Exhaust Camshaft
Factory camshaft gears are reused — transfer from your original camshafts during installation.
🛠️ Installation & Requirements
- Professional installation strongly recommended — correct cam timing is critical
- Factory camshaft gears must be transferred to the new camshafts
- ECU tuning recommended to take full advantage of the revised profiles
- Best paired with supporting mods — upgraded turbo, exhaust, intercooling and fuel system on high-output builds
- Contact us to confirm stock availability if timing is critical
🛡️ Warranty & Returns
Covered under our standard policy — see our Refund, Returns & Warranty Policy for full terms.
💳 Payment & Shipping Options
- 💸 Buy Now, Pay Later: Afterpay, Humm, Klarna & Zip available
- ✈️ Free Express Shipping Australia-Wide
- 📦 Diesel performance specialists — not general parts resellers
⚠️ Legal Notice
For off-road / competition use only. Engine modifications may affect compliance, including DPF-related emissions requirements. Check local regulations before purchase.
❓ Frequently Asked Questions
Q: Will these camshafts fit my 2017–2020 D-MAX with the DPF?
A: Yes — that's exactly what this set is designed for. The MY17-on 4JJ1-TCX DPF engine uses a revised valvetrain (plastic rocker cover, roller rockers) that most aftermarket 4JJ1 cams don't cover.
Q: Do these suit the 4JJ3 in the 2020+ D-MAX and BT-50?
A: Yes. The set fits the 4JJ3 as found in the current-generation Isuzu D-MAX, MU-X and Mazda BT-50.
Q: Will they fit my 2012–2016 D-MAX?
A: No. Pre-DPF 4JJ1s (aluminium rocker cover, 2005–2016) use the earlier valvetrain and need a different camshaft set. Check your rocker cover and injector codes if unsure.
Q: Do I need to reuse my factory cam gears?
A: Yes. The factory camshaft gears are transferred from your original camshafts onto the FuseTech camshafts during installation.
Q: Do I need a tune after fitting performance camshafts?
A: ECU tuning is recommended. You'll feel some improvement from the profiles alone, but the set delivers its best results paired with tuning and supporting airflow mods.
⚡ WAKE UP YOUR 4JJ1 / 4JJ3
FuseTech intake + exhaust performance camshaft set. DPF-era 4JJ1 & 4JJ3 compatible. Professional install & tuning recommended.
Disclaimer: Common Rail Cowboys is not affiliated with Isuzu Motors, Mazda Motor Corporation, or Denso Corporation. OE part numbers are shown for cross-reference only. Installation should be performed by a qualified technician. Fitment verification, correct cam timing and proper tuning are the buyer's responsibility.
