Land Cruiser 300 Series Pre-Filter - With In Cab Alarm

• PreLine-Plus filter assembly (PL150DP element)
• LC300-specific mounting brackets (3 pieces)
• 2 x M16x1.5 to -8AN adaptors and 4 x M16 aluminium washers
• 2 x -8AN to 1/2 inch straight hose fittings
• 2 x M16x1.5 plugs
• 1500 mm of 1/2 inch EFI-rated fuel hose and 2 x 18 to 20 mm stainless fuel clamps
• Mounting hardware (M10 and M8 bolts, washers, nuts)
• Inline hand priming pump
• Water alarm kit with wiring and in-cab warning (visual and audible)
• 10 x 200 mm cable ties

Kit contents are set by Direction Plus and may change with component availability.

• 100% water separation efficiency (Direction Plus figure, based on 150 to 300 micron droplet size)
• 98% particle separation (based on 30 micron particles)

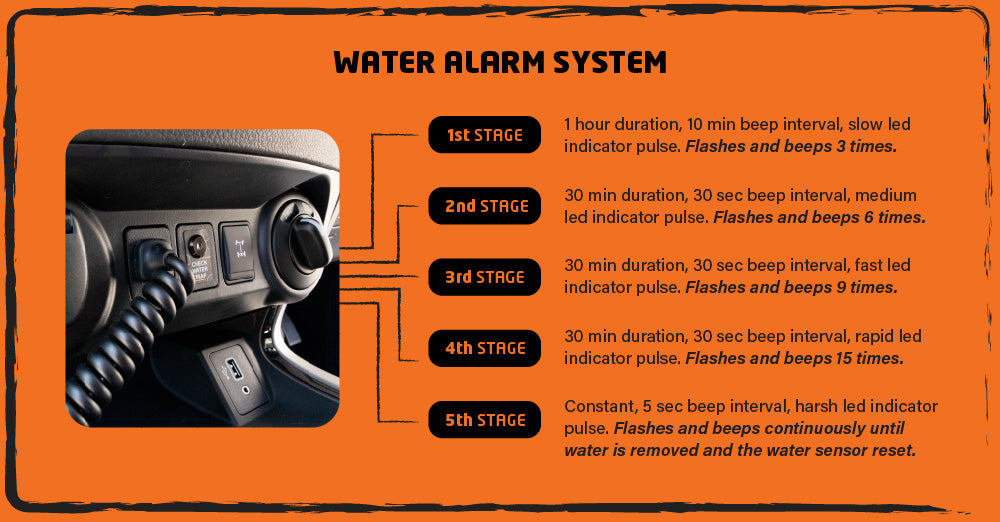

• Remote multi-stage in-cab water alert, visual and audible. No manual water checks.
• Spin-on element for quick, clean servicing, flow up to 150 L/h
• Protects against corrosion and abrasive wear in the fuel system

• Toyota Land Cruiser 300 Series F33A-FTV 3.3L V6 diesel, 2022 to 2026

Check before ordering: not compatible with a Kaymar rear. Bracket fitment may be an issue on vehicles fitted with remote reservoir shock absorbers.

Fitment per Direction Plus as of October 2026. Check the fitment guide or send us your VIN if unsure.

• Mounts to the chassis rail under the driver's rear quarter panel. Remove the spare tyre for access.
• Fit the M16 adaptors to the PreLine head with Loctite 567 or equivalent thread sealant. Use it on all threaded connections and keep the -8AN threads clean.
• Fuel path: tank hard line, PreLine inlet, PreLine outlet, factory filter.
• Prime with the inline hand pump, then the factory primer. Fit the filter cover bracket, run the vehicle for 20 minutes to clear air, then refit the spare.
• Tools: socket set, spanners, screwdrivers, pliers, hose cutters, thread sealant and a small container for priming.
• Installation by a competent qualified mechanic is recommended. Allow 2.5 to 3.5 hours for a DIY install.

• Replace the element every 40,000 km or per your vehicle service schedule. Replacement: PL150DP.
• When the in-cab alarm activates, open the drain tap and release the water.
• Keep the inline hand pump: you use it to prime the system after element changes.

• Fuel Manager Pre-Filter: Land Cruiser 300 Series
• Ryco Pre-Filter Kit RC635DPK: Land Cruiser 300 Series
• Fuel Manager Post-Filter Kit: Land Cruiser 300 Series

• Free express shipping Australia-wide.
• Afterpay, Humm, Klarna and Zip available at checkout.
• Returns and warranty are handled under our refund policy.

Q: Will it fit with a Kaymar rear?

A: No. Direction Plus lists the PL635DPK as not compatible with a Kaymar rear.

Q: I have remote reservoir shocks. Will it fit?

A: Possibly not. Direction Plus notes bracket fitment may be an issue with remote reservoir shock absorbers. Check your clearance or message us first.

Q: Do I need to remove the spare tyre?

A: Yes. The spare has to come out for access to the mounting location.

Q: What is the inline hand pump for?

A: Priming the system at install and after element changes. Keep it with the vehicle.

Q: How do I confirm it fits my vehicle?

A: Check the Direction Plus fitment guide or send us your VIN and we will confirm before you order.
