4JJ1 DPF (2016-2020) / 4JJ3 Performance Camshaft Set (Intake + Exhaust) - Fuse Tech
4JJ1 DPF (2016-2020) / 4JJ3 Performance Camshaft Set (Intake + Exhaust) - Fuse Tech
Taxes included. Shipping calculated at checkout.
Couldn't load pickup availability
More Lift and Duration | Plastic Rocker Cover Engines | Isuzu 4JJ1-TCX and 4JJ3
The camshaft upgrade for the 4JJ1s and 4JJ3s the rest of the market left behind.
Most aftermarket 4JJ1 performance cams only suit the early aluminium rocker cover engines. This FuseTech intake and exhaust set is built for the DPF-era 4JJ1-TCX (the Euro 5 engine Australia received from mid-2016, plastic rocker cover, roller rocker valvetrain) and the 4JJ3 in the current D-MAX, MU-X and BT-50. Isuzu catalogues both engines on the same base camshaft numbers, which is why one set covers the pair. Revised lobe profiles run more lift and duration than the factory sticks: more air in, more exhaust energy out, stronger response and top-end pull on tuned builds.
Performance upgrade. Professional installation strongly recommended. Factory camshaft gears must be transferred onto these camshafts and cam timing set correctly. ECU tuning recommended to get the full benefit.
Spec Snapshot
- Configuration: matched intake and exhaust camshaft pair
- Profile: increased lift and duration over stock
- Engine fitment: 4JJ1-TCX DPF (mid-2016 to 2020, plastic rocker cover) and 4JJ3 (2020 on)
- Replaces OE (DPF 4JJ1-TCX): intake 8-97328-642-8 / -9, exhaust 8-97328-644-8 / -9
- Replaces OE (4JJ3): intake 8-98331-641-1, exhaust 8-98398-234-1
- Shared OE base numbers: intake 8-98228-490-2, exhaust 8-98228-493-2 (common to both engines)
- Cam gears: factory gears transferred to the new camshafts (reused)
- Brand: FuseTech Performance
Key Features
- Complete set: intake and exhaust camshafts, matched as a pair
- More lift and duration: revised lobe profiles over the factory camshafts for improved airflow and response
- DPF-era and 4JJ3 fitment: suits the plastic rocker cover engines most aftermarket cams do not cover
- Turbo-friendly: more exhaust energy to spool larger turbos on upgraded builds
- Reuses factory gears: no proprietary drive gear required
Vehicle Fitment
- Isuzu D-MAX, 4JJ1-TCX DPF (mid-2016 to 2020)
- Isuzu MU-X, 4JJ1-TCX DPF (mid-2016 to 2021)
- Isuzu D-MAX RG, 4JJ3 (2020 on)
- Isuzu MU-X, 4JJ3 (2021 on)
- Mazda BT-50 TF, 4JJ3 (2020 on)
Quick fitment check (trust this over your build year): plastic rocker cover, DPF fitted, injector codes starting "9F" means you are in the right place. Aluminium rocker cover (2005 to mid-2016 pre-DPF 4JJ1) means this set is not for you: you want the 4JJ1 / 4JK1 pre-DPF camshaft set. Australia changed over around June 2016, so 2016 builds exist on both sides of the line. Check the cover, not the compliance plate.
Buying from overseas listings? Thai suppliers label this cam family "Euro 4" or "15-22" because Thailand switched to the plastic cover engine before Australia did. Ignore the Thai years. The rocker cover material is what matters.

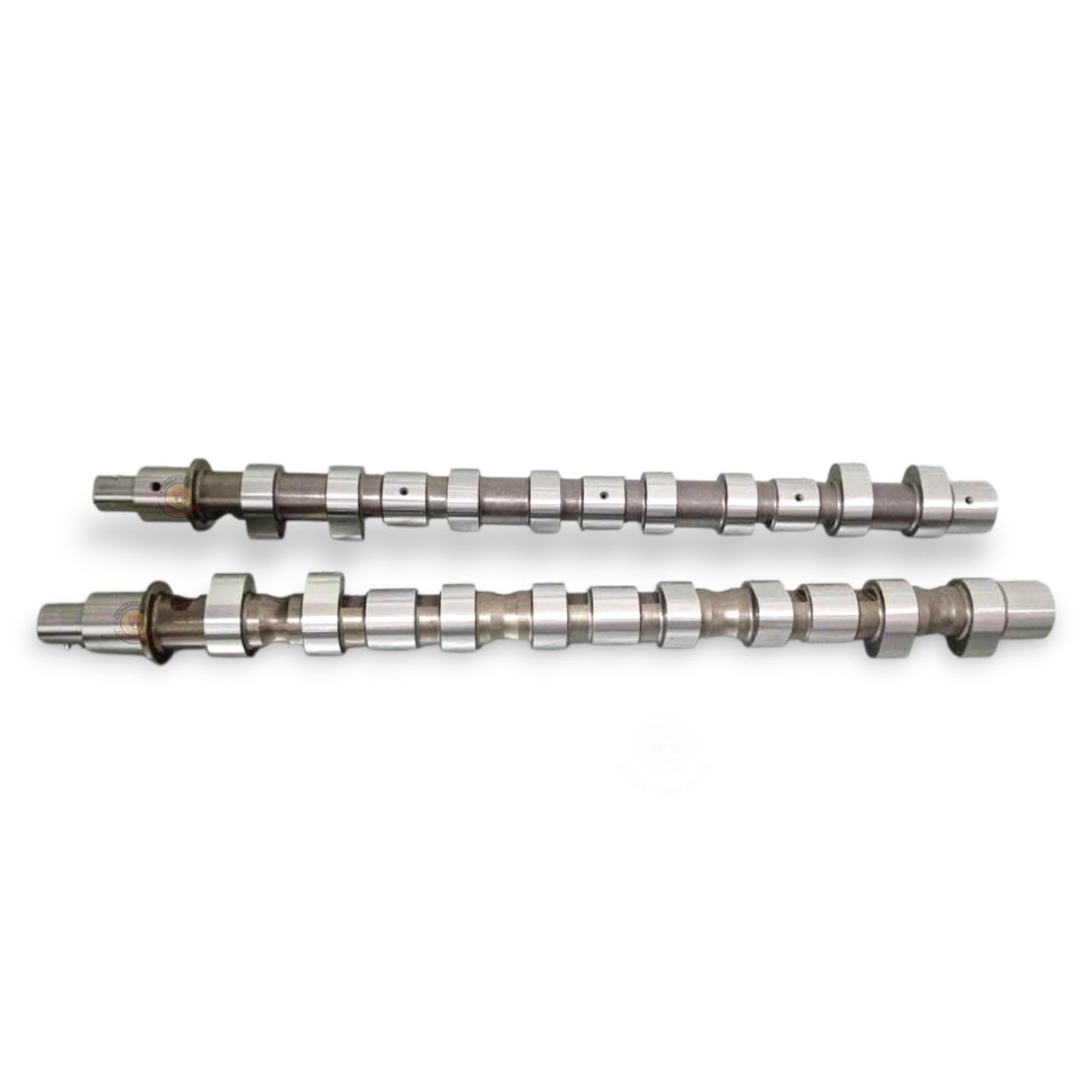

What Is Included
- 1 x FuseTech performance intake camshaft
- 1 x FuseTech performance exhaust camshaft
Not included: cam gears. Factory camshaft gears are reused, transferred from your original camshafts during installation.
Fitting Notes
- Professional installation strongly recommended. Correct cam timing is critical.
- Factory camshaft gears must be transferred to the new camshafts.
- ECU tuning recommended to take full advantage of the revised profiles.
- Best paired with supporting mods on high-output builds: upgraded turbo, exhaust manifold, exhaust, intercooling and fuel system.
- Contact us to confirm stock availability if timing is critical.
For off-road and competition use only. Engine modifications may affect compliance, including DPF-related emissions requirements. Check local regulations before purchase.
Shipping and Payment
- Free express shipping Australia-wide
- Buy now, pay later: Afterpay, Humm, Klarna and Zip
- Diesel performance specialists, not general parts resellers
- Returns and warranty: see our refund policy
Frequently Asked Questions
Q: Will these camshafts fit my 2017 to 2020 D-MAX with the DPF?
A: Yes, that is exactly what this set is for. The DPF-era 4JJ1-TCX (from mid-2016 in Australia) uses a revised valvetrain (plastic rocker cover, roller rockers) that most aftermarket 4JJ1 cams do not cover.
Q: Are the DPF 4JJ1 and 4JJ3 camshafts really interchangeable?
A: Yes, at OE level. Isuzu's parts catalogue lists both engines against the same base camshaft numbers (intake 8-98228-490-2, exhaust 8-98228-493-2), with the 4JJ3 receiving later revisions of the same parts. One performance set covers both engines.
Q: Will they fit my 2012 to 2016 D-MAX?
A: No. Pre-DPF 4JJ1s (aluminium rocker cover, 2005 to mid-2016) use the earlier valvetrain and need a different camshaft set. Check your rocker cover and injector codes if unsure.
Q: My D-MAX is a 2016 build. Which family am I in?
A: 2016 is the changeover year in Australia, so check the hardware. Plastic rocker cover with a DPF means this set fits. Aluminium rocker cover means it does not. Send us your VIN if you are not sure.
Q: Do I need to reuse my factory cam gears?
A: Yes. The factory camshaft gears are transferred from your original camshafts onto the FuseTech camshafts during installation.
Q: Do I need a tune after fitting performance camshafts?
A: ECU tuning is recommended. You will feel some improvement from the profiles alone, but the set delivers its best results paired with tuning and supporting airflow mods.
WAKE UP YOUR 4JJ1 / 4JJ3
FuseTech intake and exhaust performance camshaft set for the DPF-era 4JJ1 and 4JJ3. Professional install and tuning recommended. Free express shipping Australia-wide.
Disclaimer: Common Rail Cowboys is not affiliated with Isuzu Motors, Mazda Motor Corporation or Denso Corporation. FuseTech is a trademark of its respective owner. OE part numbers are shown for cross-reference only. Installation should be performed by a competent person. Correct cam timing is critical and ECU tuning is recommended. Fitment verification is the buyer's responsibility. Engine modifications may affect your vehicle warranty and compliance.
