Ford Ranger PX1 / Mazda BT-50 UP-UR DuraTorq / P4AT 2.2L (G88) Turbo Actuator
Ford Ranger PX1 / Mazda BT-50 UP-UR DuraTorq / P4AT 2.2L (G88) Turbo Actuator
Taxes included. Shipping calculated at checkout.
Couldn't load pickup availability

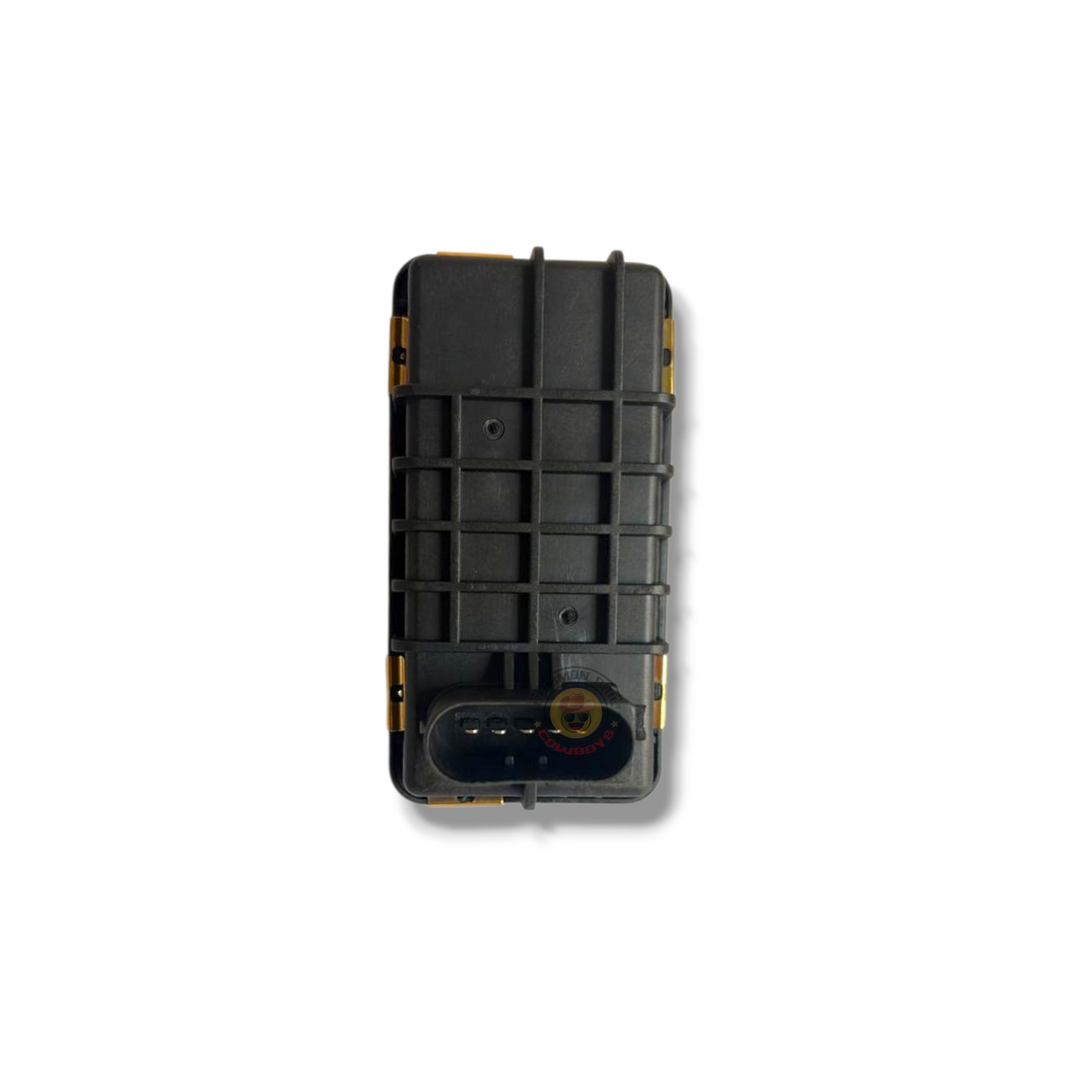

The electronic VNT actuator for the Garrett GTB1749V / GTB1749VK turbo used on the 2.2L P4AT DuraTorq in the Ford Ranger PX1, Mazda BT-50 UP and UR and Ford Transit. Supplied as a standalone stepper motor so a dead actuator does not cost you a whole turbo.
Typical symptoms are limp mode, under-boost or over-boost with the turbo itself mechanically fine: no shaft play, no oil leak, no whine. If the scan tool is reporting an actuator or boost control fault and the turbo spins clean, the stepper motor is the repair.
Specifications
| G-88 Electronic Turbo Actuator | |
|---|---|
| Actuator code | G-88 / G-088 / G88 |
| Hella reference | 6NW009550 (G-088 calibration) |
| Turbo models | GTB1749V / GTB1749VK |
| Engine | P4AT DuraTorq TDCi 2.2L 4-cylinder |
| Type | Electronic VNT stepper motor, plug-in |
| In the box | 1 x electronic actuator with connecting rod |
| Calibration | May be required after fitting |
Vehicle Fitment Guide
| Vehicle | Engine | Build |
|---|---|---|
| Ford Ranger PX1 | P4AT 2.2L | 10/2011 to 06/2015 |
| Mazda BT-50 UP / UR | P4AT 2.2L | 10/2011 to 06/2020 |
| Ford Transit VM / VO RWD | Duratorq 2.2L | 2011 onwards |
Some early Ranger PX2 builds carried over the 787556 / 854800 turbo. If your PX2 turbo ID plate matches the Garrett list below, this is still the correct actuator for it.
This actuator does not suit any 3.2L P5AT application, and does not suit Ranger or Everest 2.2L vehicles running the GTD1449VZ turbo.
Years are a guide only. Confirm against the turbo part number before ordering.
Garrett Turbo Part Number Cross Reference
If the number on your turbo ID plate appears below, this is the correct actuator.
| GTB1749V / GTB1749VK | ||
|---|---|---|
| 787556 | 787556-16 | 787556-0016 |
| 787556-17 | 787556-0017 | 787556-22 |
| 787556-0022 | 787556-0012 | 787556-5016 |
| 787556-5016S | 787556-5017 | 787556-5017S |
| 787556-5022 | 787556-5022S | 854800 |
| 854800-1 | 854800-0001 | 854800-5001 |
| 854800-5001S | 854800-5001W | 854800-5002W |
OEM Ford and Mazda Cross Reference
| Ford | Hyphenated |
|---|---|
| BK3Q6K682CB | BK3Q-6K682-CB |
| BK3Q6K682CC | BK3Q-6K682-CC |
| BK3Q6K682DA | BK3Q-6K682-DA |
| BK3Q6K682HA | BK3Q-6K682-HA |
| BK3Q6K682PB | BK3Q-6K682-PB |
| BK3Q6K682PC | BK3Q-6K682-PC |
| BK3Z6K682T | BK3Z-6K682-T |
| Mazda | Ford service numbers |
|---|---|
| U20313700 | 1717628 |
| U20313700A | 1719695 |
| U203-13-700 | 1760759 |
| U203-13-700A | 1863278 |
| 1D0113700 | 1899517 |
| 2175582 |
OEM numbers are listed for identification purposes only.
Wrong Actuator? Find the Right One
These four actuators look similar and are not interchangeable. Match your turbo number to the right listing:
- 787556 / 854800 (2.2L PX1, BT-50 UP and UR) is this listing
- 831157 / 889938 (2.2L PX2, PX3, Everest) needs the SU-001 actuator
- 798166 / 812971 / 853333 (3.2L PX1, BT-50 UP) needs the G-74 actuator
- 822182 / 889939 (3.2L PX2, PX3, Everest, BT-50 UR) needs the SU-008 actuator
Not sure? Send us your turbo ID plate number or your rego and state and we will confirm it for you.
Installation and Calibration Notes
- Electronic actuators may require calibration after installation. Have a scan tool and the correct procedure ready before you start.
- Skipping calibration can leave the vehicle in limp mode or throw boost control faults even with a good actuator fitted.
- Set the linkage to the same effective length as the unit coming off before final tightening.
- Always confirm the turbo ID before ordering. Fitting an actuator calibrated for a different turbo can cause over-boost or under-boost.
- Professional installation is recommended.
